Page 1 D I G I T A L C A M E R A U S E R ’ S G U I D E...
Page 3: Digital Camera

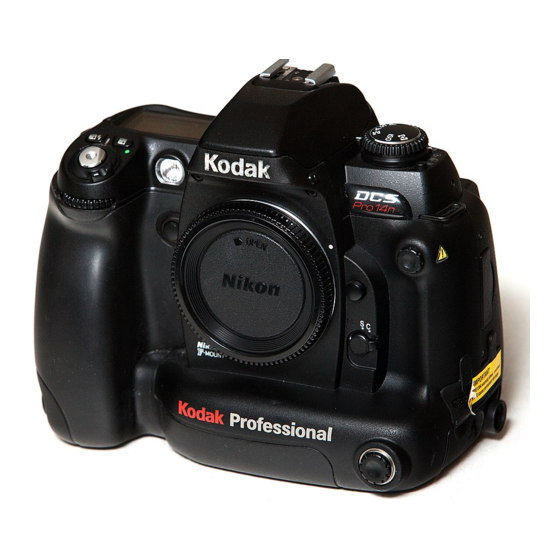

KODAK PROFESSIONAL DCS Pro 14n Digital Camera User’s Guide P/N 6B8766_EN...
Page 4 Eastman Kodak Company 343 State Street Rochester, New York, 14650 © Eastman Kodak Company, 2003 Kodak and Kodak Professional are trademarks of Eastman Kodak Company.
Page 5: Table Of Contents
Table of Contents 1 Important Information System Requirements for Your Computer ... 1-1 Warranty Registration for your Camera... 1-1 Warnings... 1-2 Safety Warnings... 1-2 Operational Warnings ... 1-2 Important Safeguards and Precautions ... 1-3 Electromagnetic Emissions... 1-6 VCCI ... 1-6 2 About Your Camera Nomenclature...
Page 6 Table of Contents Delete Button ...2-9 Tag/Record Button...2-9 LCDs...2-10 Top Status LCD...2-10 Image LCD ...2-10 Turning On the Image LCD ...2-11 Turning Off the Image LCD...2-11 Digital Status LCD...2-12 Using the Menus ...2-13 Navigating Through the Menus ...2-14 Using the Digital Status Button and Digital Status LCD to Highlight Menu Options...2-15 Using the HotKey Button to Highlight Menu Options ...2-16 Main-Command and Sub-Command Dials...2-17 Lens...2-17...
Page 7 CR 2032 Coin Cell... 3-6 Disposing of Batteries ... 3-6 4 The Basics Basic Camera Operations ... 4-1 Inserting/Removing Batteries ... 4-1 Mounting the Lens ... 4-2 Inserting a Memory Card ... 4-3 Setting Focus... 4-3 Setting the Metering System and Exposure Mode ... 4-4 Composing, Focusing, and Capturing ...
Page 8 Table of Contents Downloading Firmware to your Computer...5-6 Updating Firmware on your Camera...5-6 Firmware Features ...5-7 Folder and File Naming...5-7 Setting HotKeys ...5-8 Using Job Tracker...5-9 Saving a Job Tracker File to a Card...5-9 Loading a Job Tracker File From a Card...5-10 Loading a Job Tracker File from Camera Memory ...5-11 Selecting a Language...5-11 Resetting Defaults ...5-12...
Page 9 Determining Write Speed ... 6-8 For the Most Accurate Write Speed Measurement... 6-8 Folders for Captured Images ... 6-9 Selecting a Capture Folder ... 6-9 Creating a New Folder... 6-10 Image Files... 6-11 Setting the Crop Aspect Ratio ... 6-11 Setting Raw Resolution...
Page 10 Capturing and Evaluating Test Images ...9-3 Capturing Images ...9-3 Occasional Verification ...9-4 Transferring Images...9-4 Editing Images ...9-4 KODAK PROFESSIONAL DCS Photo Desk...9-5 KODAK PROFESSIONAL Extended Range Imaging File Format Module ...9-5 Capture Workflow When the Camera Is Connected to a Computer ...9-5 April 29, 2004...
Page 11 Connecting to a Computer and Power Supply... 9-6 Starting the Capture Software ... 9-6 Device and Media Preparation ... 9-6 Capturing and Evaluating Test Images ... 9-6 Capturing Images... 9-6 Occasional Verification ... 9-6 Editing Images ... 9-6 10 Flash Photography Built-in Speedlight...
Page 12 Table of Contents Selecting a Review Folder...11-6 Browsing Through Images ...11-7 Browsing Through Images Using the Nav+ Button ...11-7 Location Bar...11-7 Selecting an Image ...11-7 Overexposure Indicator ...11-8 Changing Display Contrast and Brightness...11-8 Auto Review...11-9 Slide Show...11-9 Starting/Stopping a Slide Show ...11-10 Deleting Images...11-11 Tagging Images...11-12 Recording Sound Files...11-13...
Page 13 Appendix C: Troubleshooting Problems Indicated in the Top Status LCD ... C-1 Other Problems... C-3 Appendix D: Warranty KODAK PROFESSI0NAL DCS Pro 14n Digital Camera...D-1 Warranty Repair Coverage ...D-1 Limitations ...D-2 Outside the United States ...D-3 Warranty is Not Transferable ...D-3 How to Obtain Service ...D-4...
Page 15: Important Information
System Requirements for Your Computer Warranty Registration for your Camera April 29, 2004 Thank you for purchasing your KODAK PROFESSIONAL DCS Pro 14n Digital Camera. This portable camera system, which combines technologies of Eastman Kodak Company and NIKON Corporation, allows you to capture and store high-resolution, high-quality digital images.
Page 16: Warnings
• Use only the KODAK PROFESSIONAL DCS Pro DC Power Module included with your camera or available from Kodak as an accessory. Do not plug other adapters into the camera. • The KODAK PROFESSIONAL DCS Pro DC Power Module is for indoor use only.
Page 17: Important Safeguards And Precautions
Water and Moisture—Do not use the camera in dripping or splashing water or near salt spray, and do not immerse your camera in water or other liquids. Do not use the KODAK PROFESSIONAL DCS Pro Charger/AC Adapter near water—for example, near a sink or in a wet room or basement.
Page 18 Lightning—For added protection for your camera during a lightning storm, or any time when you will leave your camera unattended for long periods of time, unplug the KODAK PROFESSIONAL DCS Pro Charger / AC Adapter from the power outlet and disconnect the camera from the computer.
Page 19 April 29, 2004 Damage Requiring Service—Unplug your camera from the wall outlet and computer, and refer all servicing to the manufacturer under the following conditions: • If liquid has been spilled or if objects have fallen into your camera. • If your camera has been exposed to heavy rain or water. (While it is designed to tolerate a reasonable amount of moisture, your camera is not waterproof.) •...
Page 20: Electromagnetic Emissions
Important Information Electromagnetic Emissions VCCI This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 21: About Your Camera
About Your Camera Nomenclature Camera Front Self Timer / AF-Assist Illuminator / Red-eye Reduction lamp Shutter Release button Sub-Command dial Depth of Field Preview button Vertical Shutter release April 29, 2004 Exposure Mode dial PC Sync terminal Lens Release button Focus Mode selector Remote Release accessory port...
Page 22: Camera Back
About Your Camera Camera Back Exposure Mode dial Flash Sync Mode button Auto Exposure Bracketing button Image LCD Menu button Nav+ button HotKey button Digital Status button Digital Status LCD Camera Top Flash Lock Release button Drive Mode selector lock release Camera Strap eyelet Exposure Mode dial Drive Mode selector...
Page 23: Camera Bottom
Camera Bottom Camera strap eyelet Left Side Serial port Battery slot April 29, 2004 About Your Camera Tripod mount Battery slot Name plate Coin cell battery slot Video Output port IEEE 1394 port...
Page 24: Open Media Door
About Your Camera Open Media Door Turning the Camera On and Off Connect your camera to a power source (see • Turn the Power Switch On or Off. CF Eject button CF Card slot Card Busy LED SD/MMC card slot page 3-1) before turning it April 29, 2004...
Page 25: Viewfinder
Viewfinder Focus Indicator Focus area Metering system Auto Exposure Lock indicator Shutter Speed Aperture April 29, 2004 About Your Camera Flash Ready light Exposure Compensation value / Flash Exposure Compensation value Exposure Compensation Flash Exposure Compensation Exposure mode / Electronic analog exposure display / Exposure Compensation value display...
Page 26: Digital Buttons
About Your Camera Digital Buttons Menu button Nav+ button HotKey button Digital Status button Four-way Switch NOTE: Use the buttons at the left of the Image LCD with the Four-way switch. Use the buttons at the right of the Image LCD without the Four-way switch.
Page 27: Locking And Unlocking The Four-Way Switch
Locking and Unlocking the Four-way Switch OK Button Cancel Button April 29, 2004 The Four-way switch does not work if the Four-way switch lock is on. There may be occasions where you want it locked to prevent changing certain settings. •...
Page 28: Menu Button
About Your Camera Menu Button Nav+ Button HotKey Button • If the Image LCD is off, turns it on and displays a menu (last-accessed menu option highlighted) • Displays a menu when the Image LCD is in Image mode (last-accessed menu option is highlighted) •...
Page 29: Digital Status Button
Digital Status Button Delete Button Tag/Record Button April 29, 2004 The Digital Status button (used with the Digital Status LCD) provides a shortcut to capture-critical menu options on the Image LCD. (See page 2-15.) • Highlights the last-used function on the Digital Status LCD and highlights its associated menu option on the Image LCD •...
Page 30: Lcds
About Your Camera LCDs Top Status LCD Shutter speed / Exposure Compensation value Flash Exposure Compensation Exposure Compensation Flexible Program Flash Sync Mode Image LCD 2-10 Bracketing bar graphs Using the Image LCD you can: • Conveniently evaluate and review images in the camera NOTE: Occasionally there are a few pixels in the LCD that are either brighter or darker than the scene depicted.
Page 31: Turning On The Image Lcd
Turning On the Image LCD Turning Off the Image April 29, 2004 All of the buttons listed below turn on the Image LCD if it is off. Some of the buttons provide shortcuts to specific functions on the Image LCD. Browse images—OK button, Nav+ button Navigate menus—Menu button, Digital Status button (shortcut), HotKey button (shortcut)
Page 32: Digital Status Lcd
About Your Camera Digital Status LCD 2-12 The Digital Status LCD provides the following information: Status information Capture-related information - interactive shortcuts to associated menu options on the Image LCD Review-related information Helpful messages Brief descriptions of highlighted menu options Brief procedural instructions Capture-related status information: When the Image LCD is turned off, or when you lightly press the Shutter Release button, the Digital Status LCD...
Page 33: Using The Menus
Using the Menus April 29, 2004 Your camera provides a variety of digital functions. You can access these functions through the tabbed menus on the Image LCD. The tabbed menus are available in Advanced mode. In Basic mode (see single menu with no tabs. There are three ways to access the digital functions.
Page 34: Navigating Through The Menus
About Your Camera Navigating Through the Menus 2-14 1. Press and hold the Menu button and press the right or left side of the Four-way switch to highlight the tab containing the desired set of functions. 2. Release the Menu button. 3.
Page 35: Using The Digital Status Button And Digital Status Lcd To Highlight Menu Options
Using the Digital Status Button and Digital Status LCD to Highlight Menu Options April 29, 2004 The Digital Status button, Digital Status LCD, and the Four-way switch provide a shortcut to menu options on the Image LCD. 1. Press and hold the Digital Status button to highlight the last-used function on the Digital Status LCD, and highlight its associated menu option on the Image LCD.
Page 36: Using The Hotkey Button To Highlight Menu Options
About Your Camera Using the HotKey Button to Highlight Menu Options 2-16 The HotKey button provides a shortcut to frequently used (user-definable) digital functions. You can change the HotKey settings if you like (see page 5-8). To access a function using the HotKey button: 1.
Page 37: Main-Command And Sub-Command Dials
Main-Command and Sub-Command Dials Main-Command dial Sub-Command dial Lens Mounting the Lens April 29, 2004 The Main- and Sub-Command dials are used alone or in combination with other buttons to select or set various functions or modes. 1. Turn off the camera. About Your Camera 2-17...
Page 38: Removing The Lens
About Your Camera Removing the Lens Imager 2-18 2. Mount the lens to the camera body. 3. Set the lens to its minimum aperture and lock. • Press and hold the Lens Release button and turn the lens clockwise. The Imager records light when you capture an image. Your camera has an approximately 14 million pixel imager with an ISO range of 80 to 800.
Page 39: Viewfinder Diopter
Viewfinder Diopter LCD Illuminator April 29, 2004 You can compensate for nearsightedness or farsightedness and see more clearly through the viewfinder by adjusting the viewfinder diopter within a continuous range (–1.8 to +0.8). 1. Remove the rubber eyecup. 2. Slide the Diopter Adjustment lever while looking through the viewfinder until the focus brackets or other viewfinder displays appear sharp.
Page 40: Depth Of Field Preview Button
About Your Camera Depth of Field Preview Button Imager Plane Indicator 2-20 The depth of field is the zone of acceptable focus in front of and behind the subject. • Press the Depth of Field Preview button to confirm the depth of field through the viewfinder.
Page 41: Hot Shoe
Hot Shoe PC Sync Terminal Remote Release Accessory Port Hot shoe April 29, 2004 The Hot Shoe allows direct mounting of a wide range of NIKON-dedicated electronic Speedlights. CAUTION Do not use Speedlights from other manufacturers since higher voltages and/or extra hot shoe contacts can damage your camera.
Page 42: Camera Straps
About Your Camera Camera Straps Attaching the Neck Strap Attaching the Hand Strap 2-22 A neck strap and a hand strap are included with your camera. You can attach either or both. • Thread the ends of the neck strap through the camera strap eyelets. Pull firmly on the strap to make sure it is held securely by the buckles.
Page 43: Powering Your Camera
The following items are included with your camera: • KODAK PROFESSIONAL DCS Pro Battery (battery) • KODAK PROFESSIONAL DCS Pro DC Power Module (power module) • KODAK PROFESSIONAL DCS Pro Charger / AC Adapter (charger/adapter) • CR 2032 coin cell battery (available at most battery retailers)
Page 44: Powering Your Camera Using The Power Module
Powering Your Camera Powering Your Camera using the Power Module latch Powering Your Camera using a Battery Charging Batteries Power LED 1. Insert the power module in the battery slot on the camera and turn the latch clockwise. 2. Insert the power module cable into the power module and into the port on the charger/adapter.
Page 45: Inserting/Removing Batteries
Charging LED Inserting/Removing Batteries April 29, 2004 3. Insert a battery in the battery slot on the charger/adapter. The appearance of the Charging LED varies, depending on the status of the charging operation: Color Action green one blink green two blinks green three blinks green...
Page 46: Checking Battery Status
Powering Your Camera Checking Battery Status You can determine the charge status of an inserted battery by viewing the Battery icon on the Top Status LCD. When the icon blinks, you need to replace the battery. The shutter locks when the icon blinks. Full Insufficient April 29, 2004...
Page 47: Conserving Batteries
5-1) or change the meter off time (see For more information on battery conservation, go to http://www.kodak.com/go/DCSPro14n, then click the "Batteries" white paper. • Use of a telephoto or wide angle fisheye lens and constant auto-focusing • Using the on-camera pop-up flash •...
Page 48: Cr 2032 Coin Cell
2. Slide the carrier into the carrier slot on the camera. This digital camera contains small amounts of lead in the circuit board. Disposal of lead may be regulated due to environmental considerations.
Page 49: The Basics
Inserting/Removing Batteries April 29, 2004 This chapter helps you quickly start using your KODAK PROFESSIONAL DCS Pro 14n Digital Camera. Use this chapter to familiarize yourself with your camera’s basic functionality. (Some information in this chapter also appears in other areas of the manual.) As you become more familiar with your camera, you can begin using its full range of functionality.
Page 50: Mounting The Lens
The Basics Mounting the Lens • To remove, lift the latch, turn the latch counterclockwise, and slide the battery out. 1. Turn off the camera. 2. Mount the lens to the camera body. April 29, 2004...
Page 51: Inserting A Memory Card
Inserting a Memory Card Setting Focus April 29, 2004 3. Set the lens to its minimum aperture and lock. 1. Open the Media door. 2. Insert a CF card in the top slot. (The label should be up.) NOTE: In Advanced mode (see cards: a CF card in the top slot and either an SD or a MMC card in the bottom slot.
Page 52: Setting The Metering System And Exposure Mode
The Basics Setting the Metering System and Exposure Mode 3. Turn the Main-Command dial to select [ ] (Single Area AF). The selected AF Area mode appears in the Top Status LCD and viewfinder. 4. Lightly press the Shutter Release button, and press the appropriate side of the Four-way switch to choose the center focus area.
Page 53: Composing, Focusing, And Capturing
Composing, Focusing, and Capturing April 29, 2004 2. Set the Exposure Mode dial to P (Programmed Auto). 1. Hold the camera properly. • Use your left hand to cradle the camera with your elbow propped against your body for support. •...
Page 54: Using The Built-In Speedlight
The Basics Using the Built-in Speedlight Use the Speedlight under the following conditions: • Subject is dark • Shutter speed is slower than 1/60 second • Subject is backlit NOTE: To conserve power, close the Speedlight when it is not in use. 1.
Page 55: Basic Mode
Basic Mode April 29, 2004 Your camera has two modes for accessing digital functions: Basic and Advanced modes. Using Basic mode you can change settings on some digital functions. All other digital functions are set to factory defaults. When you become familiar with your camera, change to Advanced mode (see page 4-19) and access the entire set of digital functions.
Page 56: Setting Basic Mode
The Basics Setting Basic Mode Accessing Functions Using the Basic Menu 1. If the Image LCD is off, press the Menu button to turn it on. If the Image LCD is on and images are displayed, press the Menu button to display the Basic Mode menu. NOTE: If the screen at the left appears, the camera is already in Basic mode.
Page 57: Digital Status Lcd
Digital Status LCD Using the Digital Status LCD to Highlight Menu Options April 29, 2004 The Digital Status LCD displays shown here appear when the Basic menu is displayed. (In Advanced mode, additional information appears.) Capture-related status information: When the Image LCD is turned off, or when you lightly press the Shutter Release button, the Digital Status LCD displays capture-related information and provides shortcuts to associated menu options on the Image LCD.
Page 58: Setting Iso
The Basics Setting ISO 4-10 ISO determines the sensitivity of the camera’s imager to light. Increasing or decreasing the ISO increases or decreases sensitivity. The range of available ISO settings varies, depending on the image resolution. Resolution 13.5 MP 6 MP 3.4 MP .8 MP You can change ISO settings in 1/3 stop increments.
Page 59: White Balance
White Balance April 29, 2004 White Balance adjusts an image to match the type of lighting used when capturing images. When you specify a White Balance option, that setting is applied to subsequently captured images. White Balance options include Auto, Daylight, Tungsten, Fluorescent, and Flash.
Page 60: Setting Raw Resolution
The Basics Setting Raw Resolution 4-12 There are three resolutions available for Raw files: 13.5 MP—Full-resolution Raw images (4500 x 3000) 6.0 MP—Half-resolution Raw images (3000 x 2000) 3.4 MP—Quarter-resolution Raw images (2250 x 1500) 1. Choose Raw Resolution from the Capture menu, then highlight a resolution.
Page 61: Setting Jpeg Resolution
Setting JPEG Resolution April 29, 2004 The four resolutions for JPEG files are: 13.5 MP—Full-resolution JPEG images (4500 x 3000) 6.0 MP—Half-resolution JPEG images (3000 x 2000) 3.4 MP—Quarter-resolution JPEG images (2250 x 1500) .8 MP—.8 resolution JPEG images (1125 x 750) 1.
Page 62: Formatting A Card
The Basics Formatting a Card 4-14 You should format a card if it was formatted incorrectly or if the data on the card becomes corrupted. If you have used a card for several sessions (for example, two or three dozen), you may want to format it on the camera you will be using so that the full capacity of the card is available.
Page 63: Changing The Display Contrast
Changing the Display Contrast April 29, 2004 You can change the contrast and lighten or darken the images displayed on the Image LCD. NOTE: Changing the contrast does not affect the stored images, only the view of the images on the Image LCD. 1.
Page 64: Turning The Overexposure Indicator On And Off
The Basics Turning the Overexposure Indicator On and Off 4-16 You can indicate areas of overexposure in images in Single or Multiple Image Display modes. 1. Choose Overexposure Indicator from the Basic menu, then highlight Highlight Off to turn the Overexposure Indicator off. 2.
Page 65: Firmware
Firmware is the software program that runs within your camera and controls its operation. If a new firmware version becomes available, you can download it from the Kodak Web site (see firmware in your camera. NOTE: You must register your camera (see download firmware.
Page 66: Updating Firmware
The Basics Updating Firmware 4-18 1. On your computer, go to http://www.kodak.com/go/dcssoftware follow the instructions. 2. Insert a CF Card into the computer’s card reader. 3. Using the computer, copy the firmware file to the card’s root directory. 4. Insert the card straight into your camera.
Page 67: Setting The Time/Date
Setting the Time/Date Setting User Mode April 29, 2004 A time and date stamp is associated with each image file. A CR 2032 coin cell battery maintains the time and date for approximately one to two years. If this battery loses its charge, you must replace the battery (see page 3-6) and reset the time and date.
Page 68: Using The Hotkey Button To Highlight Menu Options
The Basics Using the HotKey button to Highlight Menu Options 4-20 The HotKey button provides a shortcut to frequently used digital functions. In Basic mode there are built-in settings for three HotKey positions. • Format Card • Display Contrast • Time/Date You cannot change HotKey positions in Basic mode.
Page 69: Configuring Your Camera
April 29, 2004 This chapter describes features and methods for configuring your KODAK PROFESSIONAL DCS Pro 14n Digital Camera. Access most of the tools through the Tools menu on the Image LCD. You can set battery save times for the Image LCD. The Image LCD turns off if you don’t touch any digital buttons for the Display Battery Save time.
Page 70: Custom Settings
Configuring your Camera Custom Settings Custom Settings Table You can change Custom Settings using the Custom Settings menu. See page 5-2 for a complete list of custom settings. 1. Choose the desired setting from the Custom menu, then highlight an option.
Page 71 April 29, 2004 Custom Description Setting Grid Lines Displays grid lines in viewfinder Off (default) Focus Area Light Displays auto-focus bracket lights in viewfinder Focus Area Wrap Successive rotation of focus area selection Focus Area Lock Locks or unlocks the focus area Unlock Soft Press AE-L Auto Exposure Lock with Shutter Release button...
Page 72 Configuring your Camera Custom Description Setting Command Dial Assignment of functions to digital command dials S = shutter speed. A = Aperture Meter Off Time Time delay for auto meter switch Self Timer Time Set duration for Self Timer Top LCD Light Status LCDs illuminate when you press any function button AF Assist...
Page 73: Firmware
You can: • View information about your current fimware version • Download new firmware versions from the Kodak Web site and update the firmware in your camera (see • Enable optional firmware features (see NOTE: You must register your camera (see download firmware.
Page 74: Downloading Firmware To Your Computer
Computer Updating Firmware on your Camera • On your computer, go to http://www.kodak.com/go/dcssoftware follow the instructions. Once you download the firmware to your computer, you can copy it to a memory card and update the firmware on your camera.
Page 75: Firmware Features
Firmware Features Folder and File Naming April 29, 2004 A few specialized features are built into the firmware and are only available with a key. To enable a firmware feature on your camera you must first purchase a kit containing instructions and a certificate number (one kit for each camera where firmware features are to be enabled).
Page 76: Setting Hotkeys
Configuring your Camera Setting HotKeys HotKeys provide shortcuts to frequently used digital functions. Your camera has built-in settings for five HotKeys. You can clear settings or reset the HotKeys to different digital functions, according to your own workflow. NOTE: The Digital Status button (see specific capture-critical functions.
Page 77: Using Job Tracker
April 29, 2004 You can enter International Press Telecommunication Council (IPTC) data on your computer using KODAK PROFESSIONAL DCS Photo Desk, then load the data into camera memory where it can be included in image headers. The data follows the IPTC standard. job tracker files have a .IPT extension.
Page 78: Loading A Job Tracker File From A Card
Configuring your Camera Loading a Job Tracker File From a Card 5-10 1. Insert the card in the camera. 2. Choose Job Tracker from the Tools menu then highlight Load. 3. Choose Load from Card. If you chose Load from Card and there are two cards in the camera, highlight a card.
Page 79: Loading A Job Tracker File From Camera Memory
Loading a Job Tracker File from Camera Memory Selecting a Language April 29, 2004 1. Choose Job Tracker from the Tools menu then highlight Load. 2. Choose Load from Memory then highlight a file. 3. Press the OK button. The file becomes the active job tracker file. You can select the language that appears in the Image LCD and Digital Status LCD (English, Japanese, French, Italian, German, Spanish, Simplified Chinese, or Portuguese).
Page 80: Resetting Defaults
Configuring your Camera Resetting Defaults Time and Date 5-12 You can restore digital settings and camera settings to the factory defaults. 1. Choose Default Reset from the Tools menu, then highlight Digital Settings, Camera Settings, or Both. 2. Press the OK button. 3.
Page 81: Setting The User Mode
Setting the User Mode April 29, 2004 Your camera has two user modes: Advanced mode—provides access to all digital functions Basic mode—provides access to some digital functions (see page 4-7). • If the camera is in Advanced mode, choose User Mode from the Tools menu, then choose Basic.
Page 82: Using The Vertical Release
Configuring your Camera Using the Vertical Release 5-14 You can lock or unlock the camera’s vertical shutter release or set it to Auto. Auto—The vertical shutter release is operable when the camera is in portrait orientation (turned 90°counterclockwise). Unlock—The vertical shutter release works when the camera is in any orientation.
Page 83: Intervalometer
Intervalometer April 29, 2004 The Intervalometer automatically captures a sequence of images at specified intervals over a specified time period. You might use the Intervalometer to capture a flower bud opening or for unattended surveillance. The Intervalometer is disabled automatically after the specified time period, even if the specified number of images have not been captured.
Page 84: Changing Intervalometer Settings
Configuring your Camera Changing Intervalometer Settings Option Menu Enable Count Interval Delay 5-16 Procedure 1. Choose Intervalometer from the Tools menu, choose Enable, then highlight Yes or No. 2. Press the OK button. 1. Choose Intervalometer from the Tools menu, then highlight Count. The current count appears with the first digit highlighted.
Page 85: Lens Optimization
Your camera has a feature that automatically selects optimized lens settings for lenses recognized by the firmware. For a list of automatically recognized lenses, go to http://www.kodak.com/go/DCSPro14n. If your lens appears in the list, it is not necessary to use the Lens Optimization feature.
Page 86: Long Exposure
Configuring your Camera Long Exposure 5-18 You can enable or disable a long exposure feature on your camera. When enabled, this feature reduces noise in long exposures. The choices are: Off—If you capture an image using long exposure while this feature is Off, a message suggests that you enable it.
Page 87: Two-Button Reset
Two-Button Reset April 29, 2004 Two-Button Reset resets some settings to their original factory values. • Press and hold seconds. The Top Status LCD turns off momentarily and the following functions are reset to their original settings. Exposure mode is set to P, S, or M. Function Focus area Flexible Program...
Page 88: Iso
Configuring your Camera Setting ISO using the Image LCD 5-20 ISO determines the sensitivity of the camera system to light. Increasing or decreasing the ISO increases or decreases sensitivity. The range of available ISO settings varies, depending on the image resolution.
Page 89: Setting Iso Using Camera Controls
Setting ISO using Camera Controls April 29, 2004 1. Set the Exposure Mode dial to ISO. 2. Rotate the Main-Command dial to choose the desired setting. Configuring your Camera 5-21...
Page 90: Drive Mode
Configuring your Camera Drive Mode Drive Mode Selector Lock release Single frame shooting Drive Mode selector Continuous shooting 5-22 The following Drive modes are available: Single-frame shooting —Fully pressing the Shutter Release button takes one picture. —Pictures are taken continuously at the rate Continuous shooting of up to 1.7 frames/second as long as you keep the Shutter Release button fully pressed.
Page 91: Using The Self Timer
Using the Self Timer Drive Mode Selector Lock release Self Timer Drive Mode selector Self Timer LED Cancelling the Self Timer April 29, 2004 Use the Self Timer when you want to be in a photograph. Use a tripod or place the camera on a stable surface before using the Self Timer.
Page 92: Locking Exposure Settings
Configuring your Camera Locking Exposure Settings Drive Mode Selector Lock release Exposure Settings Lock Drive Mode selector 5-24 There may be times when you want to lock exposure settings. For example, if an inexperienced photographer is to use the camera, you may want to prevent their accidentally changing your settings.
Page 93: Setting Up Cards, Folders, And Files
CF card SD or MMC card April 29, 2004 Your KODAK PROFESSIONAL DCS Pro 14n Digital Camera has slots for two memory cards. Before capturing images to the memory cards, you can do the following: • Select a folder to hold captured images (see •...
Page 94: Inserting Cards
Setting up Cards, Folders, and Files Inserting Cards Removing Cards Eject button Card Busy Card icons 1. Open the Media door. 2. If using a CF card, insert it in the top slot. (The label should be up.) If using an SD or MMC card, insert it in the bottom slot. With two cards, insert either card first.
Page 95: File Types
Setting up Cards, Folders, and Files Your camera can save images as Raw or JPEG files. Raw (.dcr) files can be opened by KODAK PROFESSIONAL DCS Photo Desk. Raw images can be thought of as "digital negatives." They preserve all image information so you can apply the DCS-specific image enhancements available in DCS Photo Desk.
Page 96 Setting up Cards, Folders, and Files 1. With one card, choose the appropriate card (CF Card or MMC/SD Card) from the Capture menu, then choose Raw, JPEG, or Raw+JPEG. With two cards, choose the appropriate card from the Capture menu, then choose Raw, JPEG, Raw+JPEG, or Standby.
Page 97 ERI (Extended Range Imaging) JPEG or Standard JPEG. • ERI JPEG files offer enhanced image editing capability. When you open them in ADOBE PHOTOSHOP, the included KODAK PROFESSIONAL DCS Extended Range Imaging File Format Module lets you apply many DCS-specific image enhancements before acquiring them into PHOTOSHOP.
Page 98: Formatting Cards
Setting up Cards, Folders, and Files Formatting Cards You may need to format a card if it was formatted incorrectly or if the data on the card becomes corrupted. If you have used a card for several sessions (for example, two or three dozen), you may want to format it on the camera you will be using so that the full capacity of the card is available.
Page 99: Recovering Deleted Files
Recovering Deleted Files April 29, 2004 Setting up Cards, Folders, and Files The Recover feature lets you recover image files recently deleted from a memory card. You can recover files if: • The card was formatted using a DCS camera. •...
Page 100: Determining Write Speed
Setting up Cards, Folders, and Files Determining Write Speed For the Most Accurate Write Speed Measurement You can determine the speed at which your camera writes data to the memory card. Write speeds are measured in Megabytes per second (Mbytes/sec). NOTE: Write speed improves if you turn the Image LCD off when capturing images.
Page 101: Folders For Captured Images
Folders for Captured Images Selecting a Capture Folder April 29, 2004 Setting up Cards, Folders, and Files You can select a folder to hold captured images. You can also create and name new folders. IMPORTANT: When you select or create a folder and there are two cards in the camera, the same folder is selected or created on both cards.
Page 102: Creating A New Folder
• The name of a new folder associated with the default naming scheme • A Custom option for creating a new naming scheme NOTE: All naming schemes follow the DCF (Digital Camera File) standard. 2. If you chose Custom, this screen appears where you can name the folder.
Page 103: Image Files
Image Files Setting the Crop Aspect Ratio April 29, 2004 Setting up Cards, Folders, and Files You can capture Raw, JPEG, or Raw+JPEG files (see you can specify resolution, crop aspect ratio, quality, and other image enhancements. You can select a crop aspect ratio to apply to JPEG images. Crop aspect ratio is not applied to Raw images on the camera.
Page 104: Setting Raw Resolution
Setting up Cards, Folders, and Files Setting Raw Resolution 6-12 There are three resolutions available for Raw files: 13.5 MP—Full-resolution Raw images (4500 x 3000) 6 MP—Half-resolution Raw images (3000 x 2000) 3.4 MP—Quarter-resolution Raw images (2250 x 1500) 1. Choose Raw Resolution from the Capture menu, then highlight a resolution.
Page 105: Setting Jpeg Resolution
Setting JPEG Resolution April 29, 2004 Setting up Cards, Folders, and Files There are four resolutions available for JPEG files: 13.5 MP—Full-resolution JPEG images (4500 x 3000) 6 MP—Half-resolution JPEG images (3000 x 2000) 3.4 MP—Quarter-resolution JPEG images (2250 x 1500) .8 MP—.8 resolution JPEG images (1125 x 750) NOTE: The actual number of pixels varies, depending on the crop aspect ratio (see...
Page 106: Setting Jpeg Quality
Setting up Cards, Folders, and Files Setting JPEG Quality 6-14 You can specify the compression level applied to JPEG files. Best—Images have lowest compression, larger file size, and highest quality Better—Images have moderate compression, smaller file size, and moderate quality Good—Images have highest compression, smallest file size, and lowest quality 1.
Page 107: Correcting Digital Exposure
Correcting Digital Exposure Exposure Bias April 29, 2004 Setting up Cards, Folders, and Files Use Digital Exposure Correction to correct errors in exposure. This feature helps correct errors but is not a substitute for proper exposure settings (shutter speed, aperture, and ISO). NOTE: Digital Exposure Correction is not to be confused with Exposure Compensation (see page...
Page 108: Look
Setting up Cards, Folders, and Files Look Noise Reduction 6-16 Look applies a tone scale adjustment to JPEG images and tags Raw images for adjustment in the DCS Photo Desk software. Look is not applied to Raw images on the camera. Rather, the information is saved and applied when the images are processed in the DCS Photo Desk software.
Page 109: Sharpening Level
Sharpening Level April 29, 2004 Setting up Cards, Folders, and Files You can specify the sharpening level applied to images. Sharpening Level is applied to JPEG images on the camera. It is not applied to Raw images on the camera. Rather, the information is saved and applied when the images are processed in the DCS Photo Desk software.
Page 111: Controlling Exposure
April 29, 2004 White Balance adjusts an image to match the type of lighting used when capturing images. Your KODAK PROFESSIONAL DCS Pro 14n Digital Camera offers two types of White Balance: Preset and Click. When you specify a Preset or Click Balance option, that setting is applied to subsequently captured images.
Page 112: Preset White Balance
Controlling Exposure Preset White Balance • Choose White Balance from the Capture menu, choose a Preset option, then choose a setting. Preset Category Preset Options Auto Daylight Tungsten Fluorescent Flash Click Balance An approximate Kelvin temperature scale value associated with the selected Preset setting appears in the Digital Status display.
Page 113: Click Balance
Click Balance Using the Current Image for Click Balance April 29, 2004 Click balance takes RGB values from the current image or from previously saved or loaded settings and applies them to subsequently captured images. 1. Select an image (see page 11-7).
Page 114: Displaying The Saved Settings Menu
Controlling Exposure Displaying the Saved Settings Menu 1. Choose White Balance from the Capture menu, choose Click Balance , then highlight Saved. 2. Press the OK button to display the Saved Settings menu. April 29, 2004...
Page 115: Using A Saved Setting
For saved settings to appear in the list, you must first do one of the following: • Save a setting on the camera (see • Save a setting to a card using the KODAK PROFESSIONAL DCS Photo Desk software on your computer, then load the setting from the card (see page 7-7).
Page 116: Saving A Setting On The Camera
Controlling Exposure Saving a Setting on the Camera 1. Select an image (see page 11-7). 2. Choose Save <image #> from the Saved Settings menu, then press the OK button. 3. Press the OK button to save the setting and close the confirmation screen.
Page 117: Loading Settings From A Card
Loading Settings from a Card Deleting Settings April 29, 2004 Using the DCS Photo Desk software, you can save settings to the root directory of a card. (These filenames have .WB extension.) IMPORTANT: Settings must be saved to the root directory or you will not be able to load them into your camera.
Page 118: Exposure
Controlling Exposure Exposure Exposure Metering Systems Choosing a Metering System Matrix Metering/3D Matrix Metering You can choose from three metering systems to suit the lighting for your subject. NOTE: You cannot use metering systems when a non-CPU NIKKOR lens is attached.
Page 119: Center-Weighted Metering
Center-Weighted Metering Spot Metering April 29, 2004 Center-Weighted Metering places special emphasis on brightness within the 12 mm diameter circle in the viewfinder. Use Center-Weighted Metering to base exposure on a specific area of the scene. Nearly 100% of the meter’s sensitivity is concentrated on the 4 mm diameter area (approximately 1% of the entire frame) within the selected focus area of the viewfinder.
Page 120: Capturing Images In Each Exposure Mode
Controlling Exposure Capturing Images in Each Exposure Mode 7-10 Light reaching the imager is controlled by the shutter speed and lens aperture. The proper combination results in a correct exposure. Shutter speed and lens aperture settings are based on the ISO speed and the operation of the camera’s exposure control system.
Page 121: Programmed Auto Exposure Mode
Programmed Auto Exposure Mode April 29, 2004 In Programmed Auto Exposure mode, the camera automatically controls exposure according to the exposure combination in the program chart (see below). This mode is helpful when you want to concentrate only on the shutter release opportunity. For more complex situations, use Flexible Program (see page 7-12), Exposure Compensation (see...
Page 122 Controlling Exposure 7-12 Flexible Program Flexible Program changes the shutter speed/aperture combination in Programmed Auto Exposure mode. Flexible Program lets you temporarily change an automatically set shutter speed/aperture combination, while maintaining consistent exposure. You can capture images in Programmed Auto Exposure mode as though you were in Shutter-Priority Auto or Aperture-Priority Auto mode.
Page 123: Shutter-Priority Auto Exposure Mode
Shutter-Priority Auto Exposure Mode April 29, 2004 Shutter-Priority Auto Exposure mode lets you manually set the shutter speed (2 - 1/4000 seconds). The camera selects a suitable aperture. With high shutter speeds, you can freeze the motion of a fast moving subject; with slower speeds, you can create a blurry motion effect.
Page 124: Aperture-Priority Auto Exposure Mode
Controlling Exposure Aperture-Priority Auto Exposure Mode 7-14 Aperture-Priority Auto Exposure mode lets you manually set the aperture. The camera automatically selects a suitable shutter speed. By varying the aperture, and thus controlling the depth of field, you can sharpen the background and foreground, or blur the background.
Page 125: Manual Exposure Mode
Manual Exposure Mode April 29, 2004 3. Compose the picture, focus, and capture the image. If the subject is too bright, HI appears in the Top Status LCD and viewfinder. Select a smaller aperture. If the warning remains, use an ND filter.
Page 126 Controlling Exposure 7-16 3. Rotate the Sub-Command dial to set the aperture. Aperture appears in the electronic analog exposure display in the viewfinder. 4. Compose the picture, focus, and capture the image. April 29, 2004...
Page 127: Auto Exposure Lock
Auto Exposure Lock April 29, 2004 Electronic analog exposure display The electronic analog exposure display in the viewfinder indicates the difference between the selected exposure (shutter speed and aperture) and the correct exposure. This is not available with Long Time exposure. The electronic analog exposure display blinks when the subject brightness is beyond the camera’s exposure range.
Page 128 Controlling Exposure 7-18 The area of exposure lock varies in the following situations: • With Spot Metering, when the focus area and metering area are linked, exposure locks at the selected focus area. • With Spot Metering with Dynamic AF Mode and Closest Subject Priority, exposure locks at the center focus area.
Page 129: Exposure Compensation
Exposure Compensation Cancelling Exposure Compensation April 29, 2004 Use Exposure Compensation to modify exposure control, (for example, from the ISO standard). This can be useful when you are intentionally achieving under- or overexposure. Use Center-Weighed or Spot Metering with Exposure Compensation. You can use any exposure mode. You can check the compensation value by pressing NOTE: Exposure Compensation is not to be confused with Digital Exposure Correction, which is used to correct errors in exposure...
Page 130: Auto Exposure Bracketing
Controlling Exposure Auto Exposure Bracketing 7-20 When it might be difficult to obtain a proper exposure, use Auto Exposure Bracketing to capture the same subject at two or three different exposures with a variable exposure compensation degree (maximum of ±2 EV). NOTE: In any Exposure mode, Flash Exposure Bracketing and Auto Exposure Bracketing are performed simultaneously when you use a Speedlight.
Page 131 April 29, 2004 2. Press and hold and rotate the Sub-Command dial to set the number of shots and the compensated EV value. The following table shows possible combinations, based on the number of shots and compensated EV values: Number of shots Bracketing bar and compensated graphs...
Page 132: Cancelling Auto Exposure Bracketing
Controlling Exposure Cancelling Auto Exposure Bracketing 7-22 3. Compose the picture, focus, and capture the image. The compensated shutter speed and aperture values appear in the Top LCD and viewfinder during capture. Auto Exposure Bracketing behaves differently in the following situations: •...
Page 133: Bulb Mode Exposure
Bulb Mode Exposure April 29, 2004 Bulb Mode exposure is useful when you are capturing nighttime scenes that require extended exposure of more than 30 seconds. NOTE: Extended exposure times may degrade image quality. Use the LCD illuminator (see page NOTE: Use of a tripod is recommended to avoid camera shake.
Page 135: Focusing
Focusing Autofocus Focus Modes Choosing a Focus Mode April 29, 2004 You can set up your KODAK PROFESSIONAL DCS Pro 14n Digital Camera to focus automatically (described below) or you can focus manually (see page 8-9). With autofocus, the camera does much of the work required to properly focus an image.
Page 136: Af Area Mode
Focusing AF Area Mode Choosing an AF Area Mode There are three AF Area modes: Single Area AF [ ]—You select a single focus area. Use this mode when the subject is stationary. Dynamic AF [+]—You select the primary focus area (the first to detect the subject).
Page 137: Choosing A Focus Area
Choosing a Focus Area April 29, 2004 You can select one of the five focus areas, depending on the subject’s position in the frame or your desired composition 1. Turn off the Image LCD. IMPORTANT: When the Image LCD is on, the Four-way switch is used to access digital functions.
Page 138: Viewfinder And Top Status Lcd Indicators
Focusing Viewfinder and Top Status LCD Indicators Focus AF Area Dynamic AF Mode Mode Mode with Single Servo Single Area Single Servo Dynamic AF Activated in initial setting Single Servo Dynamic AF Cancel with "Single Servo AF" Custom Setting Continuous Single Area Servo AF Continuous...
Page 139: Operations And Suitable Situations
Operations and Suitable Situations Focus AF Area Dynamic AF Mode Mode Single Servo Single Area Single Servo Dynamic AF Activated in initial setting Single Servo Dynamic AF Cancel with "Single Servo AF" Custom Setting Continuous Single Area Servo AF Continuous Dynamic AF Not activated in Servo AF initial setting...
Page 140: Af-Assist Illuminator
Focusing AF-Assist Illuminator When you lightly press the Shutter Release button, the AF-Assist Illuminator turns on automatically under the following conditions: • Single Servo AF Focus mode • AF NIKKOR lens is used • Subject is dark and center focus is selected •...
Page 141: Locking Focus
Locking Focus April 29, 2004 Use Focus Lock to capture a subject that is framed outside of the five focus areas and in situations where autofocus may not work as expected (see page 8-8). Focus lock works differently in Single Servo AF and Continuous Servo AF modes.
Page 142: Situations Where Autofocus May Not Work As Expected
Focusing Situations where Autofocus May Not Work as Expected Autofocus may not work as expected in the following situations. In these situations, focus manually using the clear matte field (see focus on a different subject at the same distance, use focus lock, then recompose.
Page 143: Manual Focus
Manual Focus Using the Electronic Rangefinder for Manual Focus April 29, 2004 Use manual focus in situations where autofocus does not work as expected or when you are not using an AF NIKKOR lens. 1. Set the Focus Mode selector to M. 2.
Page 144: Depth Of Field And Focus Tracking
Focusing Depth of Field and Focus Tracking Depth of Field Focus Tracking 8-10 Your camera is equipped with autofocus where focusing is automatically executed. Basics of the relationship between focus, depth of field, and Focus Tracking are explained in this section. When focusing, depth of field should be considered.
Page 145: Capture Workflow
April 29, 2004 This chapter outlines two general workflows to help you manage images captured on your KODAK PROFESSIONAL DCS Pro 14n Digital Camera. The workflows may vary between studio sessions and between different types of photography jobs on locations.
Page 146: Device And Media Preparation
MACBETH color chart, a gray card or a neutral area in the image, then perform Click Balance. To set up White Balance in the KODAK PROFESSIONAL DCS Photo Desk software, capture an image of a MACBETH color chart, a gray or white card, then adjust later using the software.
Page 147: Capturing And Evaluating Test Images
April 29, 2004 Before your photo session begins, and occasionally during a session, you should capture and evaluate images to be sure that the lighting and camera setup are producing the desired results. DCS Pro 14n Tool page 11-2) page...
Page 148: Occasional Verification
• Connected video monitor. (The Image LCD is disabled when this is in use.) • Remove the memory card from the camera and plug it into a laptop computer. View the images using KODAK PROFESSIONAL DCS Photo Desk software. When the photo session is complete, insert the memory card in a card reader connected to your computer.
Page 149: Kodak Professional Dcs Photo Desk
KODAK PROFESSIONAL DCS Photo Desk KODAK PROFESSIONAL Extended Range Imaging File Format Module Capture Workflow When the Camera Is Connected to a Computer Connect to Computer Capture & Evaluate Test Images April 29, 2004 Platforms: WINDOWS and MACINTOSH When you open Raw images in DCS Photo Desk you can do the following: •...
Page 150: Connecting To A Computer And Power Supply
Capturing Images Occasional Verification Editing Images Connect the DCS Pro 14n to your computer and power supply. Use the included AC adapter as your power supply. (You can use a battery, but the AC adapter provides an unlimited source of power.) KODAK PROFESSIONAL DCS Camera Manager is included with your camera.
Page 151: Flash Photography
Built-in Speedlight April 29, 2004 Your KODAK PROFESSIONAL DCS Pro 14n Digital Camera contains a built-in Speedlight with a Guide Number at ISO 100 of 12 m (39 ft). The flash angle is wide enough to cover the field of view of a 28 mm lens.
Page 152: D-Ttl Flash Control
Flash Photography D-TTL Flash Control 10-2 The type of D-TTL flash control varies with the type of lens in use: Lens Flash control for built-in Speedlight Type G or 3D Multi-Sensor Balanced Fill-Flash for Digital SLR: D CPU lens Based on information from the matrix metering system, flash output is adjusted to provide balance between the main subject and ambient background lighting.
Page 153: Using The Built-In Speedlight
Using the Built-in Speedlight April 29, 2004 Follow these instructions when using a G-type or D-type AF NIKKOR lens. NOTE: Continuous Shooting Drive mode cannot be used in flash photography. 1. Set the Metering system to Matrix or Center-Weighted metering. 2.
Page 154 Flash Photography 10-4 Available Shutter Speed and Aperture at Each Exposure Mode Exposure Mode Available Shutter Speed Programmed Auto Automatically set (1/125-1/60 sec.) Shutter-Priority Auto 1/125-30 sec. Aperture-Priority Auto Automatically set (1/125-1/60 sec.) Manual 1/125-30 sec. Shutter speed shifts automatically to 1/125 second when the shutter speed is set faster than 1/125 second and the flash is fired (or an attached optional Speedlight is turned on).
Page 155: Flash Shooting Distance Range For The Built-In Speedlight
Flash Shooting Distance Range for the Built-in Speedlight April 29, 2004 The flash shooting distance range varies, depending on ISO and aperture. 100 200 Guide number Aperture value You can also calculate the maximum flash shooting distance by dividing the guide number by the aperture value. For example, with an aperture of f/2.8 and an ISO of 100, the maximum flash shooting distance will be 12 / 2.8 = approximately 4.2 m.
Page 156: Usable Lenses With The Built-In Speedlight
Flash Photography Usable Lenses with the Built-in Speedlight 10-6 NOTE: The built-in Speedlight cannot be used with zoom lenses set to Macro in wide angle. You can use the following lenses with the built-in Speedlight: • 28 mm to 300 mm CPU lenses. Be sure to remove the lens hood. •...
Page 157: Ready-Light
Ready-Light April 29, 2004 You can use 28 to 200 mm non-CPU NIKKOR lenses (AI-S, AI, AI-modified NIKKOR) and Series-E lenses, except 200 mm f/2 lens with the built-in Speedlight. However, the lenses have limitations in usable focal length or shooting distance: •...
Page 158: Hot Shoe
Flash Photography Hot Shoe PC Sync Terminal 10-8 You can attach an optional Speedlight (for example the SB-28/28DX, SB-27, SB-26, SB-25,SB-24, SB-23, SB-22, SB-80DX, or SB-50DX) to the Hot Shoe. You can attach a cable from optional Speedlights directly into the PC Sync Terminal.
Page 159: Flash Sync Modes
Flash Sync Modes April 29, 2004 • Press and hold the Flash Sync Mode button and rotate the Main-Command dial to set the Flash Sync mode. Five Flash Sync modes are available: Front-Curtain Sync Set the Flash Sync mode to Front-Curtain Sync for normal flash photography.
Page 160 Flash Photography Slow Sync Normally the camera’s shutter speed is automatically set to 1/60 to 1/125 second for flash photography in Programmed Auto or Aperture-Priority Auto Exposure mode. However, for shooting nighttime scenes, Slow Sync uses a slower shutter speed (down to 30 seconds) to bring out background details using all available light.
Page 161: Flash Sync Modes For Optional Speedlights
Flash Sync Modes for Optional Speedlights April 29, 2004 Red-Eye Reduction The Red-Eye Reduction lamp lights for approximately one second before the flash fires to reduce the red-eye effect in photos of people or animals. Red-Eye Reduction with Slow Sync Red-Eye Reduction and Slow Sync mode are simultaneously set.
Page 162: Flash Exposure Compensation
Flash Photography Flash Exposure Compensation 10-12 With flash exposure compensation, you can change the correct exposure computed by the Speedlight and camera. For example, you can highlight the main subject by increasing the flash output, or prevent the main subject from becoming too bright by decreasing the flash output.
Page 163: Using Optional Speedlights
Using Optional Speedlights Flash mode D-TTL Speedlight D-TTL SB-80DX/SB-28DX SB-50DX April 29, 2004 SB-series 80DX, 50DX, and 28DX Speedlights support D-TTL flash control when mounted on the camera hot shoe. D-TTL flash control is not available with other optional Speedlights. The type of flash control available with SB-series 80DX, 50DX, and 28DX Speedlights depends on the type of lens attached: Lens...
Page 164 D, shutter speed is set to under 1/90 S. 2 When an SB-27 is mounted on the DCS Pro 14n, the flash mode is automatically set to TTL, and the shutter-release is disabled. Set the SB-27 to A (non-TTL auto flash).
Page 165: Notes For Using An Optional Speedlight
Notes for Using an Optional Speedlight April 29, 2004 • Flash sync speed is 1/125 second or slower when using an optional Speedlight. • Available ISO is 80 - 800. • With the SB-26, 25, or 24, Flash Sync mode set on the Speedlight overrides the setting on the camera.
Page 167: Working With Images On The Camera
Working with Images on the Camera Reviewing Images Selecting an Image Mode April 29, 2004 To review images on the Image LCD: 1. Select an Image mode. 2. Select a review folder (see page 3. Browse through the images (see •...
Page 168: Changing The Duration Of The Image Mode Menu Display
Working with Images on the Camera Changing the Duration of the Image Mode Menu Display Single-Image Mode Histogram Mode 11-2 The Image Mode menu appears for one second after you select an Image mode. You can change the duration of its display or turn it off. 1.
Page 169: Interpreting A Histogram
Interpreting a Histogram Underexposure Overexposure Low key High key Zoom Mode Enabling or Disabling the Region of Interest Box April 29, 2004 Working with Images on the Camera • A histogram that is clipped at the right indicates overexposure and one that is clipped at the left indicates underexposure.
Page 170: Zooming
Working with Images on the Camera Zooming Panning Luminometer 11-4 • With the region of interest box enabled, press the OK button. There are three zoom levels. The first actuation zooms to 1:4 (one pixel displayed for every four in the image), the second to 1:1, and the third returns to the un-zoomed 1:16.
Page 171: Multiple Image Mode
Multiple Image Mode Status Bar April 29, 2004 Working with Images on the Camera Four image thumbnails appear with the Status bar at the bottom. The selected image (see page 11-7) is highlighted. The Status bar appears at the bottom of the Image LCD in Single Image and Multiple Image modes.
Page 172: Selecting A Review Folder
Working with Images on the Camera Selecting a Review Folder 11-6 The Nav+ button provides a shortcut for quickly navigating among folders and images within a folder. NOTE: If there are two cards in the camera, the Nav+ button navigates on the card containing the currently selected folder.
Page 173: Browsing Through Images
Browsing Through Images Browsing Through Images Using the Nav+ Button Location Bar Selecting an Image April 29, 2004 Working with Images on the Camera • Press the left or right side of the Four-way switch to navigate through images in the selected folder. NOTE: In Zoom mode, with the region of interest box enabled, first press the Cancel button to disable the region of interest box.
Page 174: Overexposure Indicator
Working with Images on the Camera Overexposure Indicator Changing Display Contrast and Brightness 11-8 You can indicate areas of overexposure in Single or Multiple Image Display modes. 1. Choose Single or Multiple Image mode. 2. Choose Overexp. Indicator from the Review menu, then highlight Off or On.
Page 175: Auto Review
Auto Review Slide Show April 29, 2004 Working with Images on the Camera When you enable the Auto Review feature, the Image LCD turns on when you capture an image then displays the image for the amount of time you specify.
Page 176: Starting/Stopping A Slide Show
Working with Images on the Camera Starting/Stopping a Slide Show 11-10 3. Select the images to appear in the slide show: Choose Slide Show from the Review menu, then highlight All on cards, All in folder, Tagged on cards, or Tagged in folder. 4.
Page 177: Deleting Images
Deleting Images April 29, 2004 Working with Images on the Camera You can delete a single image, all images in a folder or on a card, or all untagged images in a folder or on a card. Associated sound files are also deleted.
Page 178: Tagging Images
You can tag one or more images for a variety of operations: • On the camera, you can specify that the tagged images are not deleted. • In the KODAK PROFESSIONAL DCS Photo Desk software, you can use tags as a selection mechanism for a variety of operations.
Page 179: Recording Sound Files
Recording Sound Files April 29, 2004 You can record a sound file to annotate the selected image, either immediately after you capture it or later when you review it. If you delete the image using camera controls, or copy or delete it using the DCS Photo Desk software, the sound file will also be copied or deleted.
Page 181: Using The Video Output Port
You can review it and make necessary camera adjustments. • Connect a video cable (not included) to the Video Output port. The Video Output port is a 2.5mm stereo jack. NOTE: Kodak sells a cable that fits your camera (catalog j number 1817774). 12-1...
Page 182: Enabling/Disabling External Video
Using the Video Output Port Enabling/Disabling External Video 12-2 You can specify the video standard used to view images on an external monitor. NTSC—North America (default) PAL—Europe and Asia 1. Choose External Video from the Review menu. 2. Choose NTSC or PAL to enable. Choose Off to disable. 3.
Page 183: Connecting To Your Computer
Advantages to an IEEE 1394 Connection Advantages to a Card Reader April 29, 2004 There are two ways to access KODAK PROFESSIONAL DCS Pro 14n Digital Camera images from your computer: • Connect the camera to the computer using an IEEE 1394 connection, then capture images using the KODAK PROFESSIONAL DCS Camera Manager software.
Page 184: Connecting Your Camera To The Computer
You must use an IEEE 1394 connector and adapter card. 1. Connect the KODAK PROFESSIONAL DCS Pro 14n Charger / AC Adapter or charge and insert the KODAK PROFESSIONAL DCS Pro 14n Battery.
Page 185 Connecting to Your Computer You may connect more than one camera or other IEEE 1394 devices to the card as long as you avoid a closed loop configuration. (The drawing indicates an acceptable configuration.) The camera’s IEEE 1394 port does not support a second pass-through connector and is meant to be the last device on the “daisy chain.”...
Page 186: Quitting-Disconnecting From The Computer
2. Insert the memory card into the card reader on your computer. CAUTION Do not remove a card from the card reader while KODAK PROFESSIONAL DCS Photo Desk is running. If images on the card are open in DCS Photo...
Page 187: Camera Care
Handling April 29, 2004 With careful handling, your KODAK PROFESSIONAL DCS Pro 14n Digital Camera should produce images of the highest quality for years to come. • Be careful not to drop your camera or subject it to shock. (While the camera has been designed for durability, it is a precision instrument and should be handled with care.)
Page 188: Cleaning
Camera Care Cleaning 14-2 CAUTION Remove the lens from the camera before cleaning. 1. Turn off the camera. 2. Disconnect the camera from the AC adapter and from the computer. 3. Using a damp cloth, clean only the outside of the camera body, the Top Status LCD, the Back Status LCD, and the Image LCD.
Page 189: The Imager
2. Capture an image of a plain white object, such as a clean, white wall. 3. Examine the image on the computer using the KODAK PROFESSIONAL DCS Photo Desk software. Imperfections in the image, such as dark clusters or streaks, may indicate a dirty imager.
Page 190: Inspecting And Cleaning The Imager
6. Press the OK button. The mirror raises and the shutter opens. 7. Visually inspect the imager. If it is dirty, go to http://www.kodak.com/go/dcspro14n, click "Service and Support", then navigate to the link for "Cleaning Recommendations for CCD Coverglass". 8. Choose Imager Clean from the Tools menu then choose Close.
Page 191: Storing
Storing Top and Back Status LCDs April 29, 2004 Carefully check the camera’s operation after lengthy storage, when the camera has not been used for a long time, or before an important trip or shooting assignment. • When storing your camera, wrap it in a clean, soft cloth and place it in a well-ventilated, cool, dry, dust-free place.
Page 193: Serial Data Collection And Global Positioning System
Serial Data Collection and Global Positioning System Serial Data Collection Connecting a Device to the Serial Port April 29, 2004 You can use the serial port on your camera to collect serial data. The following Serial Port settings are available: •...
Page 194: Serial In Mode
NOTE: The Scan-Shoot and Scan-Shoot Multi features allow connectivity of serial bar code scanners. To enable, please contact your dealer of Kodak products. 1. Choose Serial Port from the Tools menu then choose Serial In. 2. Select a Serial In option, described below.
Page 195: Serial In Status
Serial In Status Serial Out Mode April 29, 2004 Serial Data Collection and Global Positioning System When you choose New Images or Previous Image from the Serial In menu, the Serial In Status choice becomes available. When you choose Status, one of two screens appears.
Page 196: Setting The Baud Rate
Serial Data Collection and Global Positioning System Setting the Baud Rate Global Positioning System Requirements for Using the GPS Feature 15-4 Before transmitting data between the camera and a connected device, you must set the correct baud rate required by the device. NOTE: Please follow the device manufacturer’s recommendations for baud rate.
Page 197: Using The Gps Feature
Using the GPS Feature April 29, 2004 Serial Data Collection and Global Positioning System 1. Connect the appropriate end of the GPS serial cable to the serial port on your camera. 2. Connect the other end of the cable to the GPS unit. 3.
Page 199: Appendix A: Specifications
Appendix A: Specifications Dimensions Weight (without batteries or memory cards) Image sensor ISO range Lens mount Auto-focus system Number of focus points Auto-focus sensitivity (ISO 100 with f/1.4) Auto-focus assist AF Area mode Focus lock Shutter Shutter speeds Maximum flash synchronization speed Capture modes April 29, 2004 Height: 131 mm (5.16 in.)
Page 200: Specifications
Specifications Metering system Metering modes Metering sensitivity (ISO 100 with f/1.4) EV 0-21 Exposure Compensation Flash Exposure Compensation AE Lock Exposure modes Viewfinder Viewfinder magnification (50 mm lens @ infinity) Diopter adjustment Viewfinder eyepoint Viewfinder coverage Viewfinder information Top Status LCD (backlit) Digital LCD (backlit) TTL full aperture exposure metering, three Metering systems available: 3D Matrix Metering, Center-Weighted Metering, Spot Metering...
Page 201 Image LCD Focus Screen Custom Settings AE Bracketing Depth-of-Field Preview Remote Control Self timer Electronic Strobe ERI-JPEG image resolution Raw resolution Image file formats Burst rate Burst depth White Balance Video output April 29, 2004 2.0", 130,000-dot, low temperature polysilicon TFT LCD NIKON Clear Matte Screen 2 with focus brackets and on-demand grid lines Bracketing order Grid lines...
Page 202 For attaching optional Speedlight Single frame or Continuous shooting Date and time is associated with each image file. Can be reset. KODAK PROFESSIONAL DCS Pro Battery or KODAK PROFESSIONAL DCS Pro Charger / AC Adapter Power On and Off positions Shuts off automatically after 8 seconds if no operations are performed.
Page 203: Burst Depth And Burst Rate
13.5 MP Raw + 13.5 MP JPEG 13.5 MP JPEG 6.0 MP Raw 3.4 MP Raw There is more detailed information regarding camera burst depth, storage card data rates, and storage card compatibility available at www.kodak.com/go/dcs. Specifications 256 MB Memory...
Page 205: Appendix B: Lens Compatibility
• You must use Manual Exposure mode. (The shutter will not release in other Exposure modes.) • The exposure meter cannot be used. • Aperture cannot be set using the Sub-Command dial. For a list of lenses automatically recognized by the camera’s Lens Optimization feature (see page 5-17), go to http://www.kodak.com/go/DCSPro14n.
Page 206: Compatible Lenses And Lens Accessories
Lens Compatibility Compatible Lenses and Lens Accessories Lens / Accessories G-type or D-type AF NIKKOR , AF-S, AF-1 NIKKOR AF-I Teleconverter Non-D-type AF NIKKOR, (except AF NIKKOR for F3AF AI-P NIKKOR AI-S or AI type NIKKOR, Series E, AI-modified NIKKOR Medical-NIKKOR 120 mm f/4 Reflex-NIKKOR AI-S or AI type Teleconverters...
Page 207: Incompatible Lenses And Lens Accessories
Incompatible Lenses and Lens Accessories April 29, 2004 CAUTION Do not attach the following lenses or accessories to your camera. Doing so can damage your camera or lens. • TC-16A Teleconverter • Non-AI lenses • 400 mm f/4.5, 600 mm f/5.6, 800 mm f/8, and 1200 mm f/11 with Focusing Unit AU-1 •...
Page 209: Appendix C: Troubleshooting
HI appears April 29, 2004 In addition to the issues described in this section, the following Web page provides answers to many of your questions: http://www.kodak.com/go/DCSPro14n. Cause Lens is not set to its minimum aperture. Attached Speedlight is not set at TTL Auto Flash in P mode.
Page 210: Troubleshooting
Troubleshooting Top Status LCD Viewfinder Lo appears Lo appears — Electronic analog exposure display blinks buLb blinks buLb blinks Shutter speed 125 appears indication blinks — blinks for 3 seconds after flash Err blinks Err blinks Cause Underexposure warning (subject is too dark).
Page 211: Other Problems
Other Problems Problem Camera does not power on Camera does not power on when the power module is used Camera does not recognize the card in the camera Shutter will not actuate. Camera seems to be locked. Cannot get out of custom settings Camera seems to contain hidden information.
Page 212 Troubleshooting Problem Can’t recover deleted images. Images are out of focus. Color is not right. Images have low contrast. Some subject matter is out of focus. Images in the viewfinder look blurry. The wrong language appears on camera screens. Accidentally deleted an image. Image contrast is wrong in the Image LCD.
Page 213: Appendix D: Warranty
If this equipment does not function properly during the warranty period due to defects in material or workmanship, Kodak will, at its option, either repair or replace the equipment without charge, subject to the conditions and limitations stated herein. Such repair service will include all labor as well as any necessary adjustments and/or replacement parts.
Page 214: Limitations
Should you need to return equipment to Kodak, Kodak is not responsible for the loss or damage of equipment while in transport to a Kodak authorized service center. You may, at your option, choose to insure equipment for loss or damage with the carrier of your choice.
Page 215: Outside The United States
In countries other than the United States, warranty terms may be different. Unless a specific Kodak warranty is communicated to the purchaser in writing by Kodak, no warranty or liability exists even though defect, damage or loss may be by negligence or other act of Kodak.
Page 216: How To Obtain Service
In Canada, call 1-800-GO-KODAK (1-800-465-6325). In other countries, call your nearest Kodak representative. If service is required, your Kodak representative will instruct you to return the unit to the nearest service center for repair and will issue a return authorization number.
Page 217: Product Support Options
Digital Camera, you are entitled to product support for both hardware and software, provided your camera is registered with Eastman Kodak Company. You may register with Kodak via mail, fax, or through Kodak’s World Wide Web site: http://www.kodak.com/go/DCSRegister. Support is provided through a variety of options: 1.
Page 218 There will be a charge for out-of-warranty call incidents if you wish to speak to a Kodak support representative. A call incident is defined to include only those issues raised during the first telephone or email contact. Follow-up telephone calls by Kodak’s representative, and callbacks to Kodak’s Support Center to resolve the call...
Page 219: Exposure Bracketing
Glossary AE (Automatic Exposure) lock Continuous Servo AF Depth of field Drive mode Exposure bracketing April 29, 2004 Used to hold an automatically controlled shutter speed and/or aperture. Recommended when the photographer wants to control an exposure based on a scene’s particular brightness area with Center-Weighted or Spot Metering.
Page 220: Exposure Control
Exposure compensation Exposure control f-number Flexible Program Focus-Priority for autofocus The shutter cannot be released until the subject is in focus. Focus Tracking Glossary-2 Exposure compensation for available light is activated by changing the shutter speed and/or lens aperture. This is done by using AE-L/AF-L (Auto Exposure/Autofocus Lock) button or exposure compensation button, or by Auto Exposure Bracketing.
Page 221: Focal Length
Focal length Front-Curtain Sync Guide number Histogram Manual flash April 29, 2004 The distance from the principal point to the focal point. In 35 mm-format cameras, lenses with a focal length of approximately 50 mm are called normal or standard lenses. Lenses with a focal length less than approximately 35 mm are called wide angle lenses, and lenses with a focal length more than approximately 85 mm are called telephoto lenses.
Page 222 Matrix Metering system Rear-Curtain Sync Release-Priority for autofocus Single Servo AF Slow Sync Vignetting White balance Glossary-4 An advanced exposure metering system using a multi-segment sensor and computer. Flash fires an instant before the second (rear) curtain of the focal plane shutter begins to move.
Page 223 Index Numerics 3D multi-sensor balanced fill-flash for digital SLR, 10-2 af area mode, 8-2 choosing, 8-2 af-assist illuminator, 8-6 aperture-priority auto exposure mode, 7-14 auto exposure bracketing, 7-20 cancelling, 7-22 auto exposure lock, 7-17 auto review, 11-9 autofocus, 8-1 situations where autofocus may not work as expected, 8-8 basic camera operations, 4-1 basic menu, using, 4-8...
Page 224 13-1 continuous drive mode, 5-22 CR 2032 coin cell, 3-6 crop aspect ratio, 6-11 custom settings, 5-2 custom settings table, 5-2 DCS Pro 14n back, 2-2 bottom, 2-3 front, 2-1 media door, 2-4 side, 2-3 top, 2-2...
Page 225 KODAK PROFESSIONAL DCS Pro Battery, 3-2 KODAK PROFESSIONAL DCS Pro Charger/Adapter, 3-2 using to charge batteries, 3-2 using to power camera, 3-2 KODAK PROFESSIONAL DCS Pro Power Module, 3-2 language, selecting, 5-11 LCD illuminator, 2-19 LCDs digital status LCD, 2-12...
Page 226 4-16 panning, 11-4 pc sync terminal, 2-21, 10-8 powering your camera, 3-1 using KODAK PROFESSIONAL DCS Pro Battery, 3-2 using KODAK PROFESSIONAL DCS Pro Power Module, 3-2 programmed auto exposure mode, 7-11 ready light, 10-7...
Page 227 8-2 single-frame drive mode, 5-22 slide show, 11-9 slow sync mode, 10-10 software KODAK PROFESSIONAL DCS Camera Manager, 9-6 KODAK PROFESSIONAL DCS Extended Range Imaging File Format Module, 9-5 KODAK PROFESSIONAL DCS Photo Desk, 9-5 sound files, 11-13...
Page 230 EASTMAN KODAK COMPANY Rochester, New York 14650 www.kodak.com/go/dcspro14n © Eastman Kodak Company, 2002. TM: Kodak, Kodak Professional P/N 6B8766...

Kodak DCS Pro 14n User Manual

1 Important Information

2 About Your Camera

3 Powering Your Camera

4 The Basics

5 Configuring Your Camera

6 Setting up Cards, Folders, and Files

7 Controlling Exposure

8 Focusing

9 Capture Workflow

10 Flash Photography

11 Working with Images on the Camera

12 Using the Video Output Port

13 Connecting to Your Computer

14 Camera Care

15 Serial Data Collection and Global Positioning System

Appendix A: Specifications

Appendix B: Lens Compatibility

Appendix C: Troubleshooting

Appendix D: Warranty

Quick Links

Troubleshooting

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kodak DCS Pro 14n

Summary of Contents for Kodak DCS Pro 14n
