HP ProCurve Switch xl Modules
Mode Conditioning Patch Cord for Gigabit-LX
36

Installing the Patch Cord

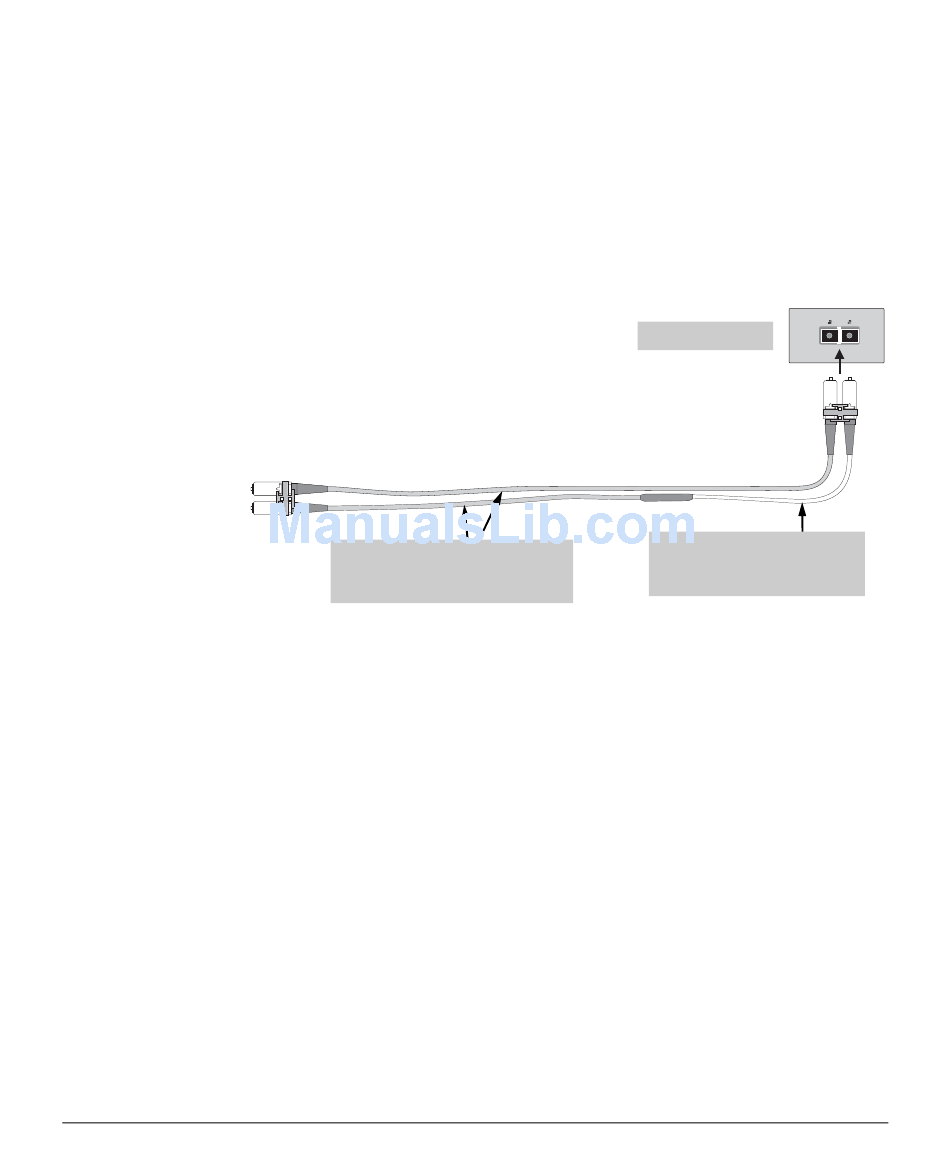

As shown in the illustration below, connect the patch cord to the Gigabit-LX
mini-GBIC with the section of single-mode fiber plugged in to the Tx (transmit)
port. Then, connect the other end of the patch cord to your network cabling
patch panel, or directly to the network multimode fiber.
If you connect the patch cord directly to the network cabling, you may need
to install a female-to-female adapter to allow the cables to be connected
together.
to network
multimode
cabling
the multimode cable in the patch
cord must match the
characteristics of your network
Ensure you purchase a patch cord that has LC connectors on the end that
connects to the Gigabit-LX mini-GBIC, and has multimode fibers that match
the characteristics of the multimode fiber in your network.

Recommended Patch Cords

Hewlett-Packard maintains a list of recommended Mode Conditioning Patch
Cords that have been tested and verified to operate correctly with the HP
ProCurve Gigabit-LX Transceiver and HP ProCurve Gigabit-LX LC
mini-GBIC.
The list is on the HP ProCurve web site, http://www.hp.com/go/procurve, in the
Technical Support section.
Gigabit-LX port
Mode
Conditioning
single-mode section plugs into
Tx port on Gigabit-LX
Transceiver or Gigabit-LX mini-
