HP ProCurve Switch xl Modules
Installing the Modules

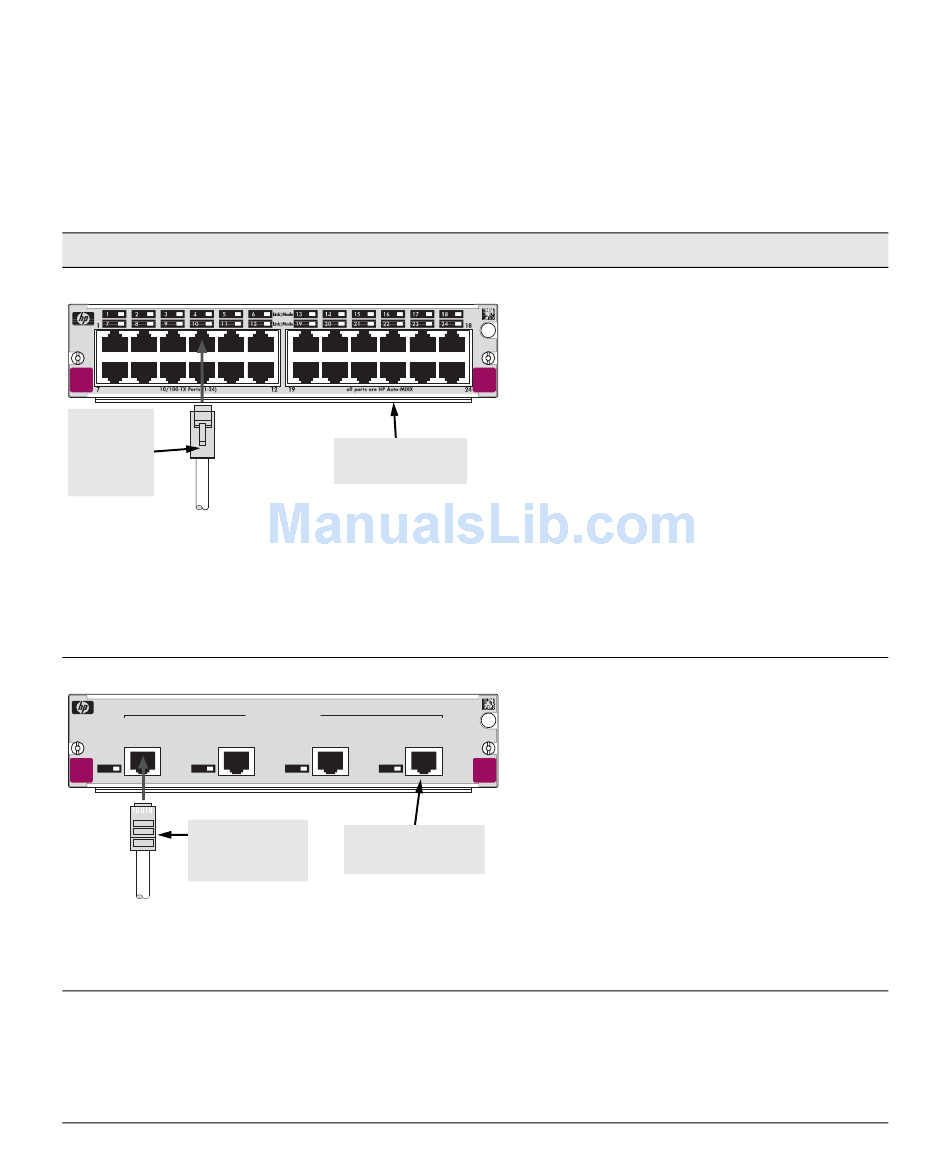

10/100-TX and PoE xl Modules
hp procurve
10 / 100-TX
xl module
J4820A
twisted-
pair cable
with
RJ-45
connector
Notes:
• The RJ-45 ports on this module have the HP Auto-MDIX feature. In the module's default configuration,
Auto, either a straight-through or crossover cable can be used to connect the module to any other
100Base-TX or 10Base-T device. See the Note on
• Since the 10Base-T operation is through the 10/100Base-TX ports, if you ever want to upgrade the ports to
100Base-TX, it would be best to cable the ports initially with category 5 cable.
100/1000-T xl Module
1 2
Link|Mode
hp procurve
100/1000-T 1 2
xl module
J4821A
twisted-pair
cable with
RJ-45 connector
Note: In the module's default configuration, Auto, either a straight-through or crossover cable can
be used to connect the module to either another Gigabit device or to a 100Base-T device. See the Note on
page 20
.
18

Connecting the Network Cables

Connect the appropriate network cables to the module's ports as shown in
the table below. For more information on the cable specifications, see
page 33.
"Cables" on
Supported Cable Types
Module
RJ-45 ports with
"HP Auto-MDIX"
100/1000Base-T Ports
3 4
3 4
RJ-45 ports with
"Auto MDI/MDI-X"
Continued on the next page.
Cable Type
10 Mbps
operation: category
3, 4, or 5,
100-ohm balanced
twisted-pair cable
xl
module
100 Mbps
operation: category
5, 100-ohm
balanced twisted-
pair cable
page 20
.
100 Mbps
operation: category
5, 100-ohm balanced
twisted-pair cable
xl 1000 Mbps
module
(Gigabit)
operation: category
5e, 100-ohm cable is
recommended,
although category 5
cable may also work.
Maximum Length
100 meters
(recommended)
100 meters
100 meters
100 meters
