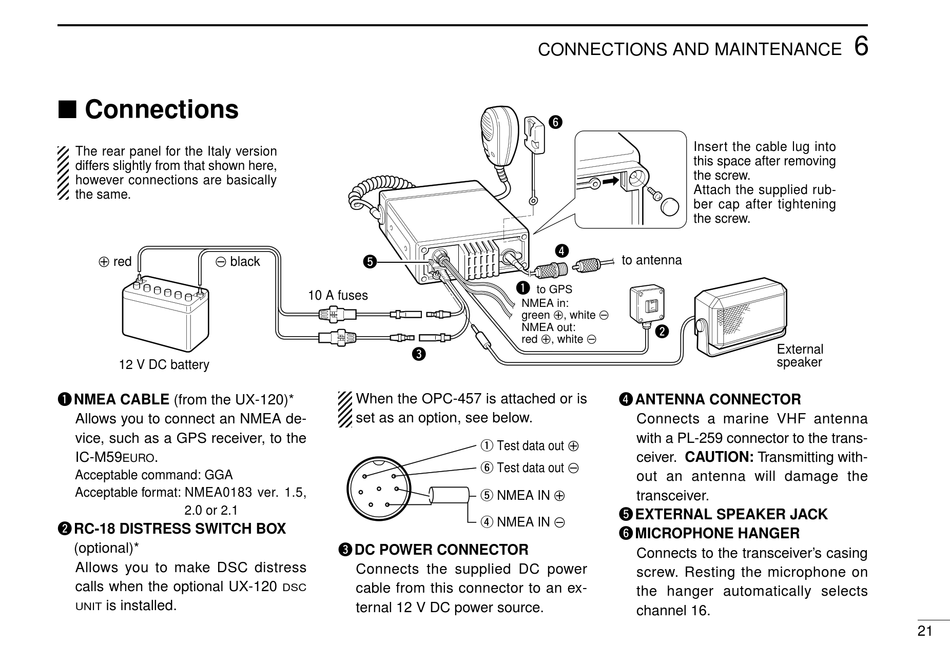

Connections

The rear panel for the Italy version
differs slightly from that shown here,
however connections are basically
the same.
+ red _ black
12 V DC battery
q NMEA CABLE (from the UX-120)*
Allows you to connect an NMEA de-
vice, such as a GPS receiver, to the
IC-M59 .
EURO
Acceptable command: GGA
Acceptable format: NMEA0183 ver. 1.5,
2.0 or 2.1
w RC-18 DISTRESS SWITCH BOX
(optional)*
Allows you to make DSC distress
calls when the optional UX-120
is installed.
UNIT
t
10 A fuses
e
When the OPC-457 is attached or is
set as an option, see below.
e DC POWER CONNECTOR
Connects the supplied DC power
cable from this connector to an ex-
DSC
ternal 12 V DC power source.

CONNECTIONS AND MAINTENANCE

y
r
to antenna
q
to GPS
NMEA in:
green +, white _
NMEA out: w
red +, white _
r ANTENNA CONNECTOR
Connects a marine VHF antenna
with a PL-259 connector to the trans-
q Test data out +
ceiver. CAUTION: Transmitting with-
y Test data out _
out an antenna will damage the
t NMEA IN +
transceiver.
t EXTERNAL SPEAKER JACK
r NMEA IN _
y MICROPHONE HANGER
Connects to the transceiver's casing
screw. Resting the microphone on
the hanger automatically selects
channel 16.
6
Insert the cable lug into
this space after removing
the screw.
Attach the supplied rub-
ber cap after tightening
the screw.
External
speaker
21
