CONNECTIONS AND MAINTENANCE

Mounting the transceiver

The universal mounting bracket supplied with your transceiver
allows overhead or dashboard mounting. Please read the fol-
lowing instructions carefully.
• Mount the transceiver securely with the 4 supplied screws
(M5 × 20) to a surface which is more than 10 mm thick and
can support more than 5 kg.
• Mount the transceiver so that the face of the transceiver is
at 90 ° to your line of sight when operating it.
CAUTION:
KEEP the transceiver and microphone at
least 1 meter away from your vessel's magnetic navigation
compass.
NOTE: Check the installation angle; the function display
may not be easy-to-read at some angles.
NOTE FOR SUPPLIED STICKER
When installing an optional UX-120
:
DSC UNIT
Attach the WARNING sticker supplied with the UX-120
near the transceiver's front panel so that it is clearly visible
during operation.
22
with RC-18
DSC UNIT

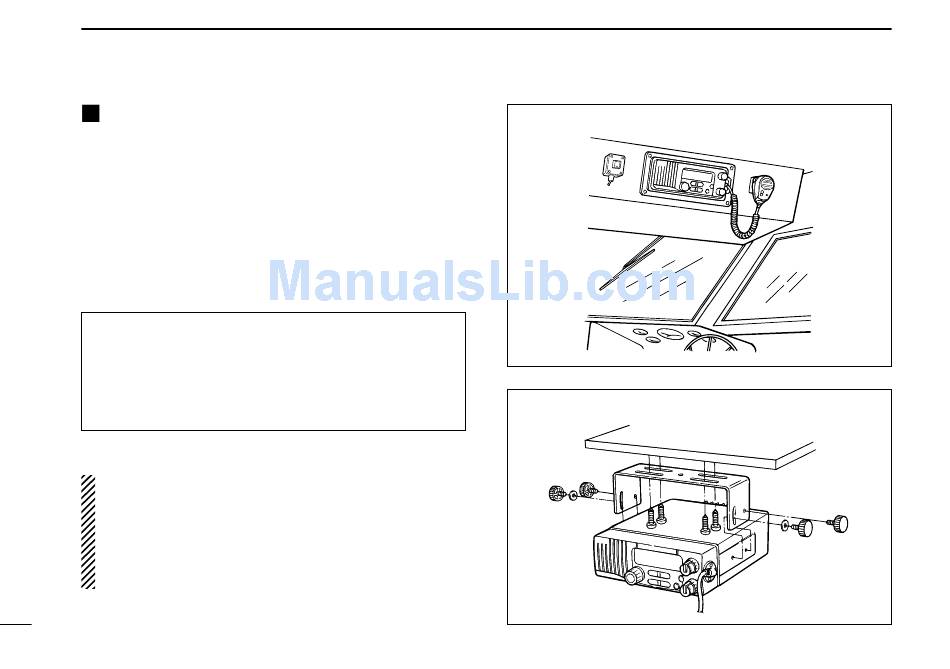

DASHBOARD MOUNTING
OVERHEAD MOUNTING
(with optional MB-28)
