6

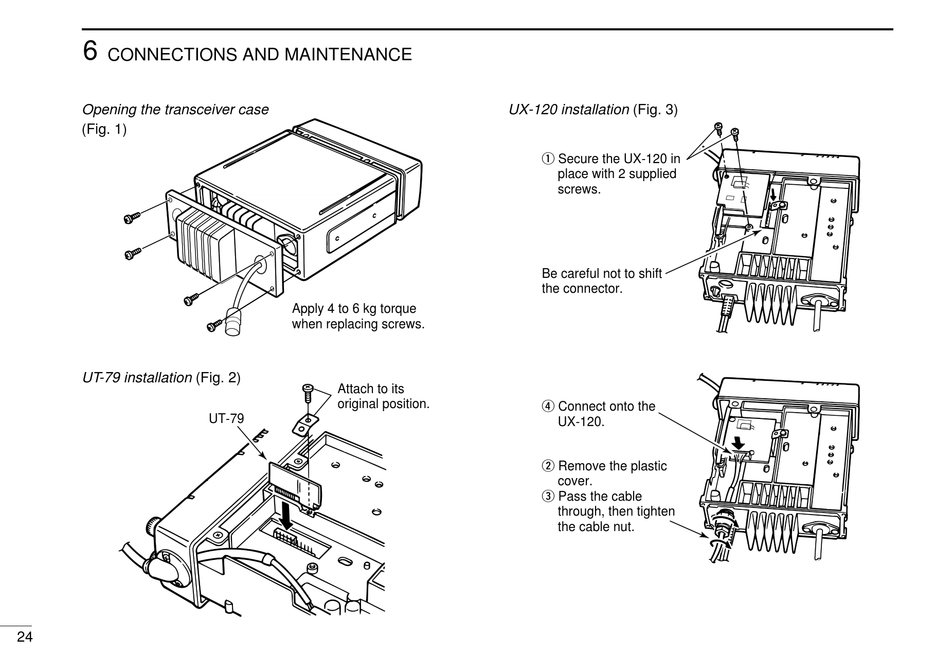

CONNECTIONS AND MAINTENANCE
Opening the transceiver case
(Fig. 1)
UT-79 installation (Fig. 2)
24
Apply 4 to 6 kg torque
when replacing screws.
Attach to its
original position.
UT-79
UX-120 installation (Fig. 3)
q Secure the UX-120 in
place with 2 supplied
screws.
Be careful not to shift
the connector.
r Connect onto the
UX-120.
w Remove the plastic
cover.
e Pass the cable
through, then tighten
the cable nut.
