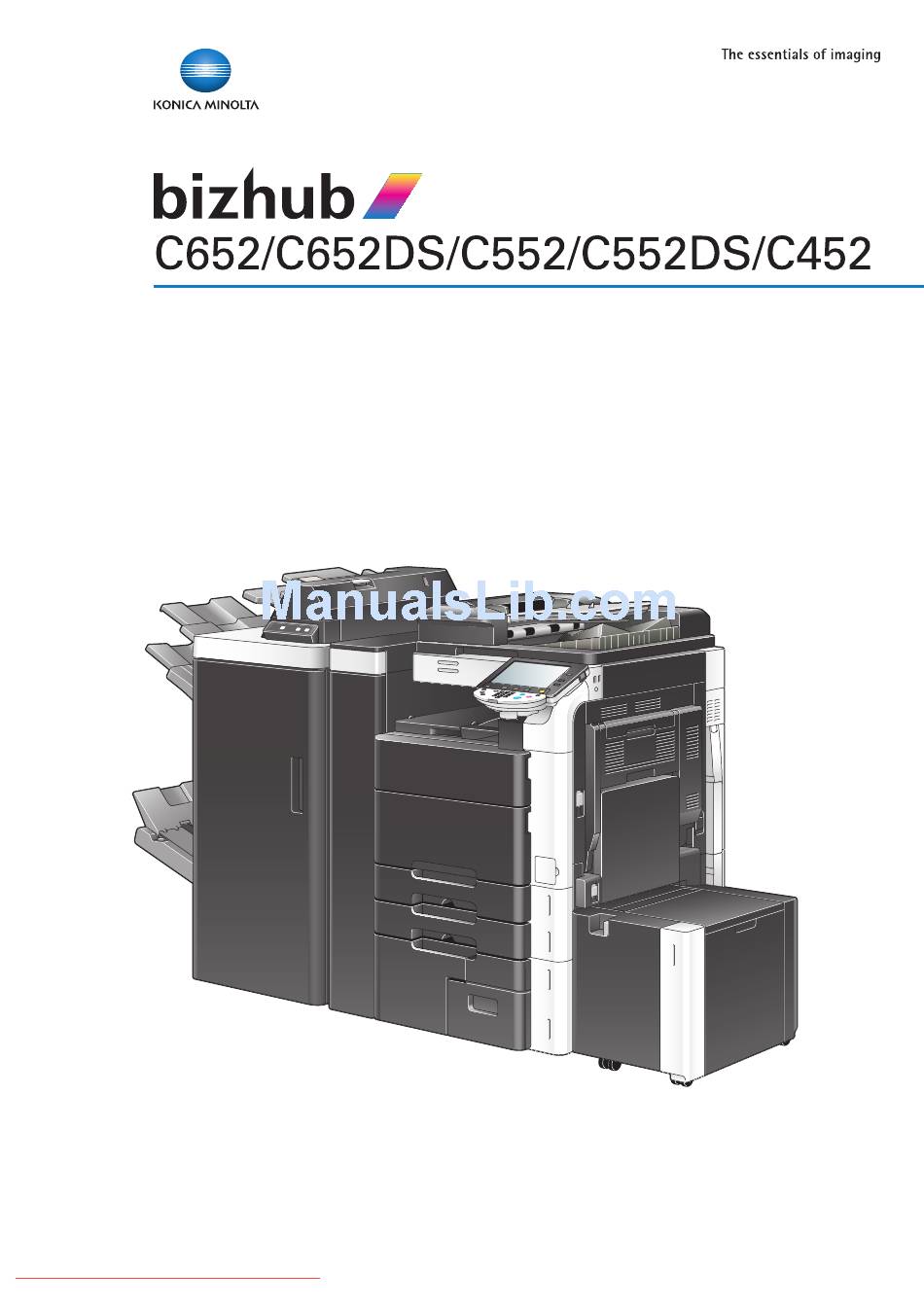

Page 1 User’s Guide [Copy Operations] Downloaded From ManualsPrinter.com Manuals...
Page 2: Table Of Contents
Outside of the main body (front) ......................2-7 2.2.2 Outside of the main body (rear) ......................2-9 2.2.3 Main bodyInside..........................2-11 bizhub C652/C552/C452 ......................... 2-11 bizhub C652DS/C552DS ......................... 2-13 2.2.4 Control panel............................ 2-14 Adjusting the angle of the control panel ..................2-15 2.2.5...
Page 3 Background Color..........................5-31 Color Adjustment ..........................5-31 5.4.3 Book Copy/Repeat .......................... 5-33 Book Copy ............................5-33 Image Repeat........................... 5-34 Poster Mode ............................ 5-35 Booklet Original..........................5-36 5.4.4 Page Margin............................. 5-37 5.4.5 Image Adjust ............................ 5-39 bizhub C652/C652DS/C552/C552DS/C452 Contents-2 Downloaded From ManualsPrinter.com Manuals...
Page 4 Punch Edge Sensor Adjustment ...................... 7-17 Vertical Punch (Z-Fold) Position Adjustment ................... 7-17 Horizontal Punch (Z-Fold) Position Adjustment................7-18 1st Z-Fold Position Adjustment ....................... 7-18 2nd Z-Fold Position Adjustment ...................... 7-19 Punch Unit Size Detect Sensor......................7-19 bizhub C652/C652DS/C552/C552DS/C452 Contents-3 Downloaded From ManualsPrinter.com Manuals...
Page 5 Precautions regarding the use of paper .................... 8-2 Paper storage............................. 8-2 8.1.2 Loading paper ............................ 8-3 Loading paper into trays 1 and 2 ....................... 8-3 Loading paper into trays 3 and 4 ....................... 8-4 bizhub C652/C652DS/C552/C552DS/C452 Contents-4 Downloaded From ManualsPrinter.com Manuals...
Page 6 Viewing counters..........................8-10 Checking the total number of pages printed ................... 8-11 Cleaning procedure ........................8-12 Slit glass (bizhub C652/C552/C452) ....................8-12 Slit glass (front) (bizhub C652DS/C552DS)..................8-12 Slit glass (back) (bizhub C652DS/C552DS) ..................8-13 Original glass, control panel, paper take-up roller................8-13 Housing, document pad ........................
Page 7 Automatic duplex unit ........................12-7 Reverse automatic document feeder (bizhub C652/C552/C452)............ 12-7 Reverse automatic document feeder (bizhub C652DS/C552DS) ............ 12-7 12.3 Options............................12-8 Large capacity unit LU-301......................12-8 Large capacity unit LU-204......................12-8 Finisher FS-526..........................12-9 Saddle stitcher SD-508........................12-10 Punch kit PK-516 ...........................
Page 8: Introduction
Introduction Downloaded From ManualsPrinter.com Manuals...
Page 9: Welcome
• PC-FAX Network Administrator This manual describes details on setting methods for each function using the network connection. • Network settings • Settings using PageScope Web Connection bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 10: User's Guide
Note that basic technical knowledge about the product is required to enable users to perform maintenance work or troubleshooting operations. Limit your maintenance and troubleshooting operations to the areas explained in this manual. Should you experience any problems, please contact our service representative. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 11: Conventions Used In This Manual
% This symbol indicates a supplementary explanation of a procedural instruction. A procedural operation is illustrated. This symbol indicates transition of the control panel to access a desired menu item. This symbol indicates a desired page. Reference This symbol indicates a reference. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 12: Key Symbols
Original and paper indications w indicates the paper size with the length (X) being longer than the width (Y). v indicates the paper size with the length (X) being shorter than the width (Y). bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 13: Part Names And Their Functions
Part names and their functions Downloaded From ManualsPrinter.com Manuals...
Page 14: Options
Options Part names and their functions Options 2.1.1 bizhub C652/C652DS/C552/C552DS Name Description Main unit The original is scanned by the scanner section, and the scanned image is printed by the printer section. Referred to as the "machine", the "main unit", or the "C652/C652DS/C552/C552DS"...
Page 15 Install this kit when using the connection function with a Bluetooth-compatible cellular phone or PDA. This kit contains a speaker and a receiving device for Blue- tooth communication. For details on compact keyboards, contact your serv- ice representative. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 16 Required when using Web browser, image panel, PDF processing, searchable PDF, My panel, or My address function. If necessary, you can increase up to nine lan- guages, which can be displayed in the control panel of this machine. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 17: Bizhub C452
Allows you to use this machine as a network-enabled color printer. Large capacity unit LU-301 Can be loaded with up to 3,000 sheets of 8-1/2 e 11-size (A4 -size) paper. Referred to as the LCT throughout the manual. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 18 Heater HT-508 Install this unit into the tray to dehumidify the paper. De- humidifying prevents paper in the tray from absorbing moisture. • This option may not be available depending on the sales area. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 19: Main Body
Left-side cover Lateral guide Original tray Original output tray Sub power switch USB port (type A) USB 2.0/1.1 USB port (type A) USB 2.0/1.1 (For compact keyboard) Automatic duplex unit release lever Automatic duplex unit bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 20 Bypass tray door release lever Lower right-side door Lower right-side door release lever Paper-empty indicator Total counter Main power switch Tray 4 Tray 3 Tray 2 Tray 1 Lower front door Upper front door Output tray Status indicator bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 21: Outside Of The Main Body (Rear)
The illustration above shows the main unit with an optional video interface kit, fax kit, and mount kit. Name Finisher connector Filter Power cord Power switch for dehumidifying heater Jack for connecting a telephone (TEL PORT2) Telephone jack 2 (LINE PORT2) bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 22 Main Body Name Jack for connecting a telephone (TEL PORT1) Telephone jack 1 (LINE PORT1) USB port (type A) USB 2.0/1.1 RS-232C port USB port (type B) USB 2.0/1.1 Network connector (10Base-T/100Base-TX/1000Base-T) Ozone filter bizhub C652/C652DS/C552/C552DS/C452 2-10 Downloaded From ManualsPrinter.com Manuals...
Page 23: Main Bodyinside
Main Body 2.2.3 Main bodyInside bizhub C652/C552/C452 Name Original glass Fusing unit Fusing unit cover lever Print head glass cleaning tool bizhub C652/C652DS/C552/C552DS/C452 2-11 Downloaded From ManualsPrinter.com Manuals...
Page 24 Main Body Name Waste toner box Imaging unit Charger-cleaning tool Imaging unit release lever Toner cartridges Slit glass Original scales Jam removal dial Slit glass cleaner bizhub C652/C652DS/C552/C552DS/C452 2-12 Downloaded From ManualsPrinter.com Manuals...
Page 25: Bizhub C652Ds/C552Ds
Main Body bizhub C652DS/C552DS Name Original glass Fusing unit Fusing unit cover lever Print head glass cleaning tool bizhub C652/C652DS/C552/C552DS/C452 2-13 Downloaded From ManualsPrinter.com Manuals...
Page 26: Control Panel
Slit glass (front) Original scales Opening and closing guide Slit glass cleaner Slit glass (back) 2.2.4 Control panel Name Stylus pen Touch panel Main power indicator Sub power switch Function key Data indicator bizhub C652/C652DS/C552/C552DS/C452 2-14 Downloaded From ManualsPrinter.com Manuals...
Page 27: Adjusting The Angle Of The Control Panel
You can tilt the angle of the control panel to one of the three positions. To tilt the control panel to the left or right, hold the bottom of the control panel, and then tilt the panel to the left or right. bizhub C652/C652DS/C552/C552DS/C452 2-15 Downloaded From ManualsPrinter.com Manuals...
Page 28: Touch Panel
Basic tab Quick Copy tab Name Message display area Functions/settings display area Icon/shortcut key display area Toner supply indicators Left panel Check Job Job List Copier setting button (arrow) bizhub C652/C652DS/C552/C552DS/C452 2-16 Downloaded From ManualsPrinter.com Manuals...
Page 29 Press the [Utility/Counter] key ö [User Settings] ö [Custom Display Settings] ö [Copier Settings] ö [Default Tab]. To configure color selection settings for buttons and tabs: Press the [Utility/Counter] key ö [User Settings] ö [Custom Display Settings] ö [Color Selection Settings] . bizhub C652/C652DS/C552/C552DS/C452 2-17 Downloaded From ManualsPrinter.com Manuals...
Page 30 Option Option 2.3.1 Finisher FS-526/Saddle stitcher SD-508/Punch kit PK-516 Name Output tray 2 Output tray 1 Front door bizhub C652/C652DS/C552/C552DS/C452 2-18 Downloaded From ManualsPrinter.com Manuals...
Page 31 Guide lever [FN1] Staple replacement door Guide lever [FN13] Guide lever [FN14] Exit cover * Press the output tray switch to move folded and center stapled paper to the end of the folding output tray. bizhub C652/C652DS/C552/C552DS/C452 2-19 Downloaded From ManualsPrinter.com Manuals...
Page 32: Job Separator Js-602
Option 2.3.2 Job separator JS-602 Name Finishing tray Job separator cover bizhub C652/C652DS/C552/C552DS/C452 2-20 Downloaded From ManualsPrinter.com Manuals...
Page 33: Z Folding Unit Zu
2.3.3 Z Folding Unit ZU-606 Name Z folding/conveyance unit Guide lever [FN1] Punch scrap box Front door Guide lever [FN6] Guide lever [FN7] Guide lever [FN8] Recessed pull [FN2] Jam removal dial [FN5] bizhub C652/C652DS/C552/C552DS/C452 2-21 Downloaded From ManualsPrinter.com Manuals...
Page 34: Post Inserter Pi-505
Name Guide lever [FN3] Jam removal dial [FN4] 2.3.4 Post Inserter PI-505 Name Post inserter control panel Lower tray paper guide Lower Tray Upper Tray Upper Tray paper guide Upper unit release lever bizhub C652/C652DS/C552/C552DS/C452 2-22 Downloaded From ManualsPrinter.com Manuals...
Page 35 Option 2.3.5 Finisher FS-527/ Saddle Stitcher SD-509/ Punch Kit PK-517/ Job Separator JS-603 bizhub C652/C652DS/C552/C552DS/C452 2-23 Downloaded From ManualsPrinter.com Manuals...
Page 36 Output tray 2 Output tray 1 Front door Horizontal transport unit cover Stapler Guide lever [FN3] Jam removal dial [FN2] Guide lever [FN1] Guide lever [FN4] Staple holder Punch scrap box Saddle stitcher bizhub C652/C652DS/C552/C552DS/C452 2-24 Downloaded From ManualsPrinter.com Manuals...
Page 37: Job Separator Js-504
Transport unit Punch kit Job separator Staple cartridge Recessed pull [FN7] Folding output tray 2.3.6 Job Separator JS-504 Name Jam removal dial Eject assist lever Output tray 2 Tray extension Output tray 1 bizhub C652/C652DS/C552/C552DS/C452 2-25 Downloaded From ManualsPrinter.com Manuals...
Page 38: Large Capacity Unit Lu-301/Lu-204
Option 2.3.7 Large capacity unit LU-301/LU-204 Name Jam removal cover Upper door Paper take-up roller Paper-empty indicator Release lever bizhub C652/C652DS/C552/C552DS/C452 2-26 Downloaded From ManualsPrinter.com Manuals...
Page 39: Using This Machine
Using this machine Downloaded From ManualsPrinter.com Manuals...
Page 40: Turning On Or Off The Machine
To turn the power on, open the main power switch cover, and then press n on the [main power switch]. Close the main power switch cover. Press the [sub power switch]. Check that the touch panel is turned on. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 41 To turn the power off, press the [sub power switch], then the [main power switch]. Reference To change the default settings for Copy: Press the [Utility/Counter] key ö [User Settings] ö [Copier Settings] ö [Default Copy Settings]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 42: Basic Copy Operations
% If the document is loaded in any orientation other than with the top of the document toward the back of the machine, be sure to select the document orientation. Slide the adjustable lateral guides against the edges of the original. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 43: Placing The Original On The Original Glass
% To interrupt the copy operation being performed, press the [Stop] key. % A "Ready to accept another job" message that appears during the current printing job indicates that the next original can be scanned. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 44: Copy Operations Using Multiple Functions
This section describes copy operations using combination of functions. Load the original. Press [Original Setting]. % For details on original setting, refer to page 5-15. Press [Basic] ö [Duplex/Combine]. % For details on the Duplex/Combine settings, refer to page 5-8. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 45 Press [Application] and then configure settings for respective functions. % For setting for the application functions, refer to page 5-20. Press [Basic] ö [Finishing]. % For details on copy finishing and folding/binding, refer to page 5-10. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 46: Functions That Cannot Be Combined
The setting configured last is given priority. (The setting specified first is canceled.) The setting configured first is given priority. (A warning message appears.) bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 47: Control Panel Keys
Control Panel Keys Downloaded From ManualsPrinter.com Manuals...
Page 48: Control Panel And Functions
[Utility/Counter] Switches to the Utility screen or the Meter Count p. 4-6 screen. [Reset] Resets all settings (except programmed settings) p. 4-4 entered using the control panel or touch panel. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 49 Guide [Network Scan/Fax/Network Fax Opera- tions]". [Copy] Enters Copy mode. (As a default, the machine is in p. 4-5 Copy mode. ) While the machine is copying, the in- dicator on the [Copy] key lights up in green. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 50: About The [Start] Key, The [Stop] Key, And The [Interrupt] Key
The copy settings return to those specified before the interrupting copying job. The [Reset] key Resets all settings (except programmed settings) entered using the control panel or touch panel. Press the [Reset] key. The basic settings screen appears. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 51: About The [Copy] Key, The [Fax/Scan] Key, And The [User Box] Key
For details on the fax/scan function, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". The [User Box] key Enters User Box mode. For details on User Box functions, refer to the "User's Guide [Box Operations]". bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 52: The [Utility/Counter] Key
Check the function version of this machine and of the printer driver. Ensure that they match before using this machine. IPv4 Address: Allows you to check the currently specified IPv4 address. IPv6 Address: Allows you to check the currently specified IPv6 address. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 53: The [Mode Memory] Key
Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Restrict User Access] ö [Copy Program Lock Settings]. To delete a copy program: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Restrict User Access] ö [Delete Saved Copy Program]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 54: The [Access] Key
The users, who belong to the suspended account, cannot also log in to this machine. If authentication is performed with PageScope Authentication Manager, check with your server administrator for information on the login procedure. Press the [Access] key. Screen for user authentication Screen for account track bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 55 [Password] to enter alphabets and sym- bols in succession. Login Displays the basic settings screen, enabling you to use this machine. Reference To configure user authentication/account track: Press the [Utility/Counter] key ö [Administrator Settings] ö [User Authentication/Account Track]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 56: Using The Machine During Non-Scheduled Hours
Using the keypad, enter the length of time to elapse before the machine enters Sleep mode again. Press [OK]. The basic settings screen appears. Reference To configure Weekly Timer: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Weekly Timer Settings]. bizhub C652/C652DS/C552/C552DS/C452 4-10 Downloaded From ManualsPrinter.com Manuals...
Page 57: The [Power Save] Key
The machine returns from Low Power mode when any other key on the control panel or the touch panel surface is pressed. Reference To enable Low Power mode: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Power Save Settings]. bizhub C652/C652DS/C552/C552DS/C452 4-11 Downloaded From ManualsPrinter.com Manuals...
Page 58: The [Accessibility] Key
([+]) again. • To cancel the touch panel adjustment process, press the [Stop] or [Re- set] key. • If the touch panel cannot be adjusted, contact your service represent- ative. bizhub C652/C652DS/C552/C552DS/C452 4-12 Downloaded From ManualsPrinter.com Manuals...
Page 59 [Severe Caution Sound]: A sound produced when an error occurs that cannot be corrected by the user or requires action by a service repre- sentative Default Enlarge Display For details, refer to the "User's Guide [Enlarge Display Operations]". Settings bizhub C652/C652DS/C552/C552DS/C452 4-13 Downloaded From ManualsPrinter.com Manuals...
Page 60: The [Enlarge Display] Key
Press the [Enlarge Display] key to return to normal display. If PageScope Authentication Manager is used for authentication, the login screen cannot be switched to the enlarged display mode. Press the [Enlarge Display] key. bizhub C652/C652DS/C552/C552DS/C452 4-14 Downloaded From ManualsPrinter.com Manuals...
Page 61: The [Guidance] Key
Check descriptions by selecting a Guidance menu grouped by useful func- tion. Name and Function of Check the description of the main unit and its options. Parts Service/Admin. Informa- Check the name, extension number and E-mail address of the administra- tion tor. bizhub C652/C652DS/C552/C552DS/C452 4-15 Downloaded From ManualsPrinter.com Manuals...
Page 62 Check procedures for replacing the toner cartridge, imaging unit or waste Processing Procedure toner box, adding staples or discarding punch-hole scraps by viewing an- imations. Press the target button, and then press [Start Guidance]. bizhub C652/C652DS/C552/C552DS/C452 4-16 Downloaded From ManualsPrinter.com Manuals...
Page 63: The [C] (Clear) Key
The [C] (Clear) key Clears a value (such as the number of copies, a zoom ratio and size) entered using the keypad. Press the [C] key. The value is deleted. Enter the correct value. bizhub C652/C652DS/C552/C552DS/C452 4-17 Downloaded From ManualsPrinter.com Manuals...
Page 64: The [Proof Copy] Key
(if System Auto Reset is set to "OFF"). Press the [Proof Copy] key to repeat proof copy. Press [Print]. The number of copies yet to be printed is registered as a copy job. bizhub C652/C652DS/C552/C552DS/C452 4-18 Downloaded From ManualsPrinter.com Manuals...
Page 65: Using A Preview Image To Check The Copy Result (Advanced Preview)
The finishing state cannot be displayed if you change the display size. bizhub C652/C652DS/C552/C552DS/C452 4-19 Downloaded From ManualsPrinter.com Manuals...
Page 66 Switch between the View Status and View Pages tab in the Preview screen. Perform image rotation and setting changes on [View Pages] and stop scanning on [View Status]. Press the [Start] key. Select this menu to start printing. bizhub C652/C652DS/C552/C552DS/C452 4-20 Downloaded From ManualsPrinter.com Manuals...
Page 67: Copy Function
Copy Function Downloaded From ManualsPrinter.com Manuals...
Page 68 Configure the application settings for making copies. p. 5-20 Left panel Job List Check jobs currently being performed p. 5-62 and jobs waiting to be performed. Check Job Check the current settings and the result p. 5-64 of the settings. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 69: Basic
This item is not displayed when two shortcut keys are configured. Shortcut Key Allows you to arrange shortcut keys for the frequently used Appli- cation functions on the Basic screen. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 70: Color
(apparent color densities) and the gradation levels into density differences of the single color. Average Density Copies the original by only converting the grada- tion levels into density differences of the single color, regardless of the color differences in the original, bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 71: Paper
Specify a paper size to use the bypass tray as a paper tray dedicated to the paper size. [Custom Size] (only for Bypass Tray): Enter the paper size. [Wide Paper]: Select a paper size larger than the original. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 72: Configuring A Custom Size
Wide Paper Select the size of the paper to be loaded. Change Size Enter the length [X] and width [Y] of the paper. Preset Paper Sizes Enables 12 e 18 w to be selected. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 73: Zoom
Select a registered copy zoom value. To change the registered zoom val- ues, use [Set Zoom]. Reference To set image rotation: Press the [Utility/Counter] key ö [User Settings] ö [Copier Settings] ö [Enlargement Rotation]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 74: Duplex/Combine
11/16 inch (297 mm), a binding margin along the short side of the paper is selected. • If [Auto] is selected for the original binding po- sition, the binding margin is set at the top or on the left. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 75 Copies images of four original pages on one sheet of paper. <Horizontal> <Vertical> 8in1 Copies images of eight original pages on one sheet of paper. <Horizontal> <Vertical> Horizontal Specify the combine order of the original (Num- bering Direction setting). Vertical bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 76: Finishing
Press [Basic] ö [Finishing]. Settings Sort Prints the copied sets separately when a multi-page original is copied. Group Makes multiple copies of each page when you make multiple copies of a multi- page original. bizhub C652/C652DS/C552/C552DS/C452 5-10 Downloaded From ManualsPrinter.com Manuals...
Page 77 When the Saddle Stitcher SD-509 is installed on the Finisher FS-527: Half Fold Center Staple & Fold Staple Staples copies in corner or at two points before they are output. Punch Punches holes in copies before they are output. bizhub C652/C652DS/C552/C552DS/C452 5-11 Downloaded From ManualsPrinter.com Manuals...
Page 78: Post Inserter
Only the lower tray can be used as the output tray. The upper tray is not available. Keys on control panel Name Corner staple lamp Center staple & fold lamp [Finishing] key 2-hole lamp 3-hole lamp [Select punch] key [Start/stop] key 4-hole lamp Tri-fold lamp 2 position staple lamp bizhub C652/C652DS/C552/C552DS/C452 5-12 Downloaded From ManualsPrinter.com Manuals...
Page 79: Finishing Using Post Inserter
When making 2-sided or combined copies using the original glass, the machine can scan a number of original pages without enabling Separate Scan. Load the original. In the Basic tab, press [Separate Scan]. bizhub C652/C652DS/C552/C552DS/C452 5-13 Downloaded From ManualsPrinter.com Manuals...
Page 80: Auto Rotate Off
Select this setting to copy the original according to the paper orientation without rotating the image. For some paper sizes or zoom values, part of the image may be cut off. Press [Basic] ö [Auto Rotate OFF]. bizhub C652/C652DS/C552/C552DS/C452 5-14 Downloaded From ManualsPrinter.com Manuals...
Page 81: Original Setting
2-sided originals or making 2-sided or combined cop- ies. Despeckle Reduces the influence of a dirt of the slit glass upon a copy output when loading an original in the ADF. bizhub C652/C652DS/C552/C552DS/C452 5-15 Downloaded From ManualsPrinter.com Manuals...
Page 82: Copying Mixed Originals
8-1/2 e 14 w (B4 w) 8-1/2 e 11 w (A4 w) 5-1/2 e 8-1/2 v (A5 v) 5-1/2 e 8-1/2 w (A5 w) (B5 v) (B5 w) Possible to combine Not possible to combine bizhub C652/C652DS/C552/C552DS/C452 5-16 Downloaded From ManualsPrinter.com Manuals...
Page 83: Copying Z-Folded Originals
Load the original into the ADF. In the basic settings screen, press [Original Setting]. Press [Z-Folded Original]. % To cancel the setting, press [Z-Folded Original] again to deselect it. bizhub C652/C652DS/C552/C552DS/C452 5-17 Downloaded From ManualsPrinter.com Manuals...
Page 84: Quality/Density
Select this setting to copy originals with a back- ground color, originals containing pencil markings or fine colored lines such as maps. A sharp copy image is produced. bizhub C652/C652DS/C552/C552DS/C452 5-18 Downloaded From ManualsPrinter.com Manuals...
Page 85 To emphasize the background image, press [Lighter Text] to adjust the set- ting toward -. [Text Enhancement] can be configured when an item other than [Photo] is selected. Glossy Makes copies with a glossy finish. bizhub C652/C652DS/C552/C552DS/C452 5-19 Downloaded From ManualsPrinter.com Manuals...
Page 86: Application
Copies the contents of the front and back sides of a card-size orig- p. 5-59 inal, for example, insurance card, driver's license, or business card, on one sheet. Save in User Box Saves the scanned original data in a User Box. p. 5-60 bizhub C652/C652DS/C552/C552DS/C452 5-20 Downloaded From ManualsPrinter.com Manuals...
Page 87: Sheet/Cover/Chapter Insert
Interleave Paper Select the paper tray loaded with paper with a transparency interleaf. Transparency Indicates the paper size of the loaded transparency. Reference Setting Black for Color Settings: Press [Basic] ö [Color] ö [Black]. bizhub C652/C652DS/C552/C552DS/C452 5-21 Downloaded From ManualsPrinter.com Manuals...
Page 88: Cover Sheet
You can select the paper tray of the Post Inserter when [Front(Blank)] or [Back(Blank)] is selected while the optional Post Inserter is installed. Reference To configure the 2-sided copy mode: Press [Basic] ö [Duplex/Combine]. bizhub C652/C652DS/C552/C552DS/C452 5-22 Downloaded From ManualsPrinter.com Manuals...
Page 89: Insert Sheet
Leaves the back side of the first page of the copy blank, inserts the specified paper for the second page of the copy, and makes a 2-sided copy of the sec- ond and third pages of the original onto the inserted sheet. REPORT REPORT REPORT bizhub C652/C652DS/C552/C552DS/C452 5-23 Downloaded From ManualsPrinter.com Manuals...
Page 90: Insert Image
If the specified page number is greater than the total number of pages in the main original, the corresponding insertion original page is added at the end of the copy. Load the original into the ADF. bizhub C652/C652DS/C552/C552DS/C452 5-24 Downloaded From ManualsPrinter.com Manuals...
Page 91 % To insert a multi-page original, repeat steps 4 and 5 until all pages of the insertion original are scanned in the order that they are to be inserted. Press [Finish]. Press the [Start] key. Copying begins. bizhub C652/C652DS/C552/C552DS/C452 5-25 Downloaded From ManualsPrinter.com Manuals...
Page 92: Chapters
Makes copies of the first pages of the chapters on paper of a different type from that for the text pages. None Copies all pages with the same type of paper. Reference To configure the 2-sided copy mode: Press [Basic] ö [Duplex/Combine]. bizhub C652/C652DS/C552/C552DS/C452 5-26 Downloaded From ManualsPrinter.com Manuals...
Page 93: Program Jobs
% Press [Retry] to delete the scanned job. Press [Change Setting] to configure the copy settings. % When the original has been loaded on the original glass, press [Finish]. Load the next original and press [Change Setting]. bizhub C652/C652DS/C552/C552DS/C452 5-27 Downloaded From ManualsPrinter.com Manuals...
Page 94 % Repeat Steps 3 to 5 until all originals have been scanned. After all original pages have been scanned, press [Finish]. Press [Yes]. Specify finish settings as needed. Press [Start] or the [Start] key. bizhub C652/C652DS/C552/C552DS/C452 5-28 Downloaded From ManualsPrinter.com Manuals...
Page 95: Edit Color
% To cancel the Neg./Pos. Reverse function, press [Neg./Pos. Reverse] again. Reference To set Single Color: Press [Basic] ö [Color] ö [Single Color]. To Set Background Color: Press [Application] ö [Edit Color] ö [Background Color]. bizhub C652/C652DS/C552/C552DS/C452 5-29 Downloaded From ManualsPrinter.com Manuals...
Page 96: Mirror Image
Select [Auto] to detect the size of the original automatically. If the size of the original is not automatically detected, select the original size. Custom Size Enter the original size. Photo Size Select the photo size. bizhub C652/C652DS/C552/C552DS/C452 5-30 Downloaded From ManualsPrinter.com Manuals...
Page 97: Background Color
Press [Application] ö [Edit Color] ö [Background Color]. Settings Select Color Select a background color. Color Adjustment Adjust the image quality to fit an image based on the color-copied original. Press [Application] ö [Edit Color] ö [Color Adjust]. bizhub C652/C652DS/C552/C552DS/C452 5-31 Downloaded From ManualsPrinter.com Manuals...
Page 98 By changing the amount of each of the four toners, adjust the tints in the copy. Configure respective functions. % Press [Sample Copy] to see how it will appear with the currently specified color quality adjustment settings. bizhub C652/C652DS/C552/C552DS/C452 5-32 Downloaded From ManualsPrinter.com Manuals...
Page 99: Book Copy/Repeat
Front and Back Cover Copies the front cover, separate copies of each page in the page spreads and the back cover in the original page order. bizhub C652/C652DS/C552/C552DS/C452 5-33 Downloaded From ManualsPrinter.com Manuals...
Page 100: Image Repeat
Repeats copying of the scanned area of the original so that the sheet is filled with the copied image. However, some parts of the image may be lost. Auto Detect Automatically detects the area to be scanned. bizhub C652/C652DS/C552/C552DS/C452 5-34 Downloaded From ManualsPrinter.com Manuals...
Page 101: Poster Mode
In Poster Mode, the number of copies is set to 1. Press [Application] ö [Book Copy/Repeat] ö [Poster Mode]. Settings Image Size Select the finished image size. Custom Size Enter the finished image size. bizhub C652/C652DS/C552/C552DS/C452 5-35 Downloaded From ManualsPrinter.com Manuals...
Page 102: Booklet Original
% To use the original glass, position the pages in order, starting with the side that includes the first page, then the side that includes the second page, then the side that includes the third page. bizhub C652/C652DS/C552/C552DS/C452 5-36 Downloaded From ManualsPrinter.com Manuals...
Page 103: Page Margin
If part of the image is lost when copied with the specified binding margin settings, reduce the zoom and perform copying. Press [Application] ö [Page Margin]. bizhub C652/C652DS/C552/C552DS/C452 5-37 Downloaded From ManualsPrinter.com Manuals...
Page 104 20.0 mm). When [None] is selected, the binding margin width is set to 0 Original Direction Select the orientation of the original loaded into the ADF or placed on the original glass. Reference To set the zoom: Press [Basic] ö [Zoom]. bizhub C652/C652DS/C552/C552DS/C452 5-38 Downloaded From ManualsPrinter.com Manuals...
Page 105: Image Adjust
Select [Auto] to detect the size of the original automatically. If the size of the original is not automatically detected, select the original size. Custom Size Enter the original size. Photo Size Select the photo size. bizhub C652/C652DS/C552/C552DS/C452 5-39 Downloaded From ManualsPrinter.com Manuals...
Page 106: Booklet
When the original to copy does not have a front and back cover, you can insert blank sheets of paper as the front and back covers. bizhub C652/C652DS/C552/C552DS/C452 5-40 Downloaded From ManualsPrinter.com Manuals...
Page 107: Erase
European model (cm): Press [+], [-] to set the erasing width between 0.1 mm and 50.0 mm. The erasing width can also be entered using the key- pad. None Sets the erasing width to 0 inch (0 mm). bizhub C652/C652DS/C552/C552DS/C452 5-41 Downloaded From ManualsPrinter.com Manuals...
Page 108: Non-Image Area Erase
The original image may be defected at its top or end. Press [Application] ö [Erase] ö [Non-Image Area Erase]. Reference To set Erase Operation: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Expert Adjustment] ö [Erase Adjustment]. bizhub C652/C652DS/C552/C552DS/C452 5-42 Downloaded From ManualsPrinter.com Manuals...
Page 109: Stamp/Composition
Registered Overlay Saves an image of the scanned original as a registered overlay in the hard disk and later overlay the registered image on the copy of another original. bizhub C652/C652DS/C552/C552DS/C452 5-43 Downloaded From ManualsPrinter.com Manuals...
Page 110: Date/Time
1/16 inch (0.1 mm) and 1-15/16 inch (50.0 mm). Text Details Set the text color, size and type. Reference To enable printing on blank pages: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Blank Page Print Settings]. bizhub C652/C652DS/C552/C552DS/C452 5-44 Downloaded From ManualsPrinter.com Manuals...
Page 111: Page Number
"1" on the third copied page. • The entered chapter number is printed if [1-1, 1-2...] is selected under "Page Number Type". Page Number Type Select the type (format) of the page. bizhub C652/C652DS/C552/C552DS/C452 5-45 Downloaded From ManualsPrinter.com Manuals...
Page 112 To configure the settings for the Chapters function: Press [Application] ö [Sheet/Cover/Chapter Insert] ö [Chapters]. To enable printing on blank pages: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Blank Page Print Settings]. bizhub C652/C652DS/C552/C552DS/C452 5-46 Downloaded From ManualsPrinter.com Manuals...
Page 113: Stamp
Adjust horizontal and vertical positions between 1/16 inch (0.1 mm) and 1-15/16 inch (50.0 mm). Reference To enable printing on blank pages: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Blank Page Print Settings]. bizhub C652/C652DS/C552/C552DS/C452 5-47 Downloaded From ManualsPrinter.com Manuals...
Page 114: Copy Protect
Number Specify the distribution control number using a val- ue between 1 and 99999999. Detail Settings Configure the settings for Text/Background Color, Density, Copy Protect Text, Text Size, Pattern Overwrite and Background Pattern. bizhub C652/C652DS/C552/C552DS/C452 5-48 Downloaded From ManualsPrinter.com Manuals...
Page 115: Copy Guard
You can select the preset stamp, date/time, and the other items together. Multiple preset stamps cannot be selected. A Copy Guard cannot be printed on a colored paper, envelope, or transparency film. [Application] ö [Stamp/Compositon] ö [Copy Security] ö [Copy Guard] bizhub C652/C652DS/C552/C552DS/C452 5-49 Downloaded From ManualsPrinter.com Manuals...
Page 116: Password Copy
If a password is detected on copies with Zoom, 2 Color, Grayscale, Color Adjust, Colored Paper, Envelope, or Transparency specified, the currently processed copy job will be erased. If multiple originals with different passwords are scanned, you will need to enter a password for each original. bizhub C652/C652DS/C552/C552DS/C452 5-50 Downloaded From ManualsPrinter.com Manuals...
Page 117: Stamp Repeat
The selected Stamp appear in the order they are placed, and can be used in combination for up to eight text lines. Use the PageScope Web Connection or Copy Protection Utility to register a registered stamp. Multiple registered stamps or preset stamps cannot be selected. bizhub C652/C652DS/C552/C552DS/C452 5-51 Downloaded From ManualsPrinter.com Manuals...
Page 118 Stamp Repeat text to be deleted. Reference To delete a registered stamp: Press the [Utility/Counter] key ö [Administrator Settings] ö [Security Settings] ö [Stamp Settings] ö [Delete Registered Stamp]. bizhub C652/C652DS/C552/C552DS/C452 5-52 Downloaded From ManualsPrinter.com Manuals...
Page 119: Header/Footer
Select the Text Color, Text Size and Text Type. Reset Reset the settings to the initial contents. Reference To register a header/footer: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Stamp Settings] ö [Header/Footer Settings]. bizhub C652/C652DS/C552/C552DS/C452 5-53 Downloaded From ManualsPrinter.com Manuals...
Page 120: Watermark
Select a watermark from the eight types available. The watermark selected is printed over the original image. Text Color Select the watermark color from [Black], [Magenta] and [Cyan]. The watermark is printed in the selected color. bizhub C652/C652DS/C552/C552DS/C452 5-54 Downloaded From ManualsPrinter.com Manuals...
Page 121: Overlay
Use the keypad to enter the density of an overlay image (using a value be- tween 20 to 100%). Color Select the color of overlay image from [full color], [black], [red], [blue], [green], [yellow], [cyan], or [magenta]. bizhub C652/C652DS/C552/C552DS/C452 5-55 Downloaded From ManualsPrinter.com Manuals...
Page 122: Registered Overlay
This function enables storing of an image from the scanned original as a registered overlay on the hard disk for later use in copying another original. It is useful to register frequently used overlay images. Press [Application] ö [Stamp/Composition] ö [Registered Overlay]. bizhub C652/C652DS/C552/C552DS/C452 5-56 Downloaded From ManualsPrinter.com Manuals...
Page 123 Select [Auto] to detect the size of the original automatically. If the size of the original is not automatically detected, select the original size. Custom Size Enter the original size. Photo Size Select the photo size. bizhub C652/C652DS/C552/C552DS/C452 5-57 Downloaded From ManualsPrinter.com Manuals...
Page 124 Application Reference To prohibit changing the overlay registration: Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Restrict User Access] ö [Restrict Access to Job Settings] ö [Change Registered Overly]. bizhub C652/C652DS/C552/C552DS/C452 5-58 Downloaded From ManualsPrinter.com Manuals...
Page 125: Card Copy
You can copy a card with the full size or enlarge an image to fit paper. Reference To specify the default of Card Copy: Select [Utility/Counter] ö [Administrator Settings] ö [Copier Settings] ö [Card Copy]. bizhub C652/C652DS/C552/C552DS/C452 5-59 Downloaded From ManualsPrinter.com Manuals...
Page 126: Save In User Box
Save & Print [Yes]: Select to copy the scanned original and save it in the specified User Box. [No]: Select to save the data of the scanned original in the specified User Box. bizhub C652/C652DS/C552/C552DS/C452 5-60 Downloaded From ManualsPrinter.com Manuals...
Page 127: Left Panel Display
Press the [Utility/Counter] key ö [Administrator Settings] ö [Security Settings] ö [Security Details] ö [Hide Personal Information]. To delete all job logs: Press the [Utility/Counter] key ö [Administrator Settings] ö [Security Settings] ö [Security Details] ö [Initialize] ö [Job History]. bizhub C652/C652DS/C552/C552DS/C452 5-61 Downloaded From ManualsPrinter.com Manuals...
Page 128: Job List
Opens the screen for checking fax reception jobs. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". Save Opens the screen for saving jobs. For details, refer to the "User's Guide [Box Operations]". bizhub C652/C652DS/C552/C552DS/C452 5-62 Downloaded From ManualsPrinter.com Manuals...
Page 129 All Jobs Displays all jobs. Detail Check the status, results, error details, user name, queued time, completed time, number of original pages and number of copies for jobs in the Job History list. bizhub C652/C652DS/C552/C552DS/C452 5-63 Downloaded From ManualsPrinter.com Manuals...
Page 130: Check Job
From the Check Job Settings screens, the current copy settings can be checked and changed if desired. Press [Check Job] ö [Check Details]. Check the copy settings. To change the copy settings, press the relevant button. After checking the settings, press [Close]. bizhub C652/C652DS/C552/C552DS/C452 5-64 Downloaded From ManualsPrinter.com Manuals...
Page 131: User Settings
User Settings Downloaded From ManualsPrinter.com Manuals...
Page 132 Register or delete the biometric authentication information or IC card au- formation thentication information of the current login user. Cellular Phone/PDA Set- Configure settings to print data from a cellular phone or PDA. ting bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 133: System Settings
Auto Color setting is selected. Power Save Settings Refer to page 7-3. Appears when user access is permitted under Administrator settings. Output Settings Refer to page 7-4. AE Level Adjustment Refer to page 7-9. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 134 Auto Paper Select for Small Prohibit Copy Original Blank Page Print Settings Do Not Print Page Number Print Posi- Left & Right Bind: All the Same tion Top & Bottom Bind: All the Same bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 135 To enable Auto Paper: Press [Basic] ö [Paper] ö [Auto Paper]. To enable Auto Color: Press [Basic] ö [Color] ö [Auto Color]. To configure Background Removal to Auto: Press [Quality/Density] ö [Background Removal] ö [Auto]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 136: Custom Display Settings
Configure whether to display a list of jobs in proc- ess and in queue or to display the progress of the current job in process, when the default display of the left panel set to "Job List". bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 137 Shortcut Key 1/Shortcut Key 2 (User Box Settings) Copy Operating Screen Color Selection Settings Green Left Panel Display Default Job List Job Display Setting List Display Uppercase and lowercase Differentiate letters Search Option Screen bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 138: Copier Settings
APS Off Select Tray for Insert Sheet Tri-Fold Print Side This item is displayed when user access is allowed in Administrator set- tings while the Finisher FS-526 is installed. For details, refer to page 7-43. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 139 Auto Zoom (Platen) Auto Zoom (ADF) Specify Default Tray when Tray Before APS ON APS Off Select Tray for Insert Sheet Tray 2 Tri-Fold Print Side Inside Half-Fold/Tri-Fold Specifi- Multiple Sheets cation Half-Fold Specification Multiple Sheets bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 140 Accept Operation Automatic Image Rotation When Auto Paper/Auto Zoom Is Set Finishing Program Card Shot Layout: Top/Bottom Zoom: Full Size Store Original Size: X: 3-1/2 inch (89.0 mm) Y: 21 inch (51.0 mm) bizhub C652/C652DS/C552/C552DS/C452 6-10 Downloaded From ManualsPrinter.com Manuals...
Page 141: Fax/Scan Settings
Fax/Scan Settings Fax/Scan Settings This setting is for the network scan, fax, and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". bizhub C652/C652DS/C552/C552DS/C452 6-11 Downloaded From ManualsPrinter.com Manuals...
Page 142: Printer Settings
Printer Settings Printer Settings This setting is for the printer operations. For details, refer to the "User's Guide [Print Operations]". bizhub C652/C652DS/C552/C552DS/C452 6-12 Downloaded From ManualsPrinter.com Manuals...
Page 143: Change Password
Press the [Utility/Counter] key ö [User Settings] ö [Change Password]. Enter the previous password, and then press [OK]. Enter a new password. Press [Password Confirmation], and then enter the new password again. Press [OK]. The new password is registered. bizhub C652/C652DS/C552/C552DS/C452 6-13 Downloaded From ManualsPrinter.com Manuals...
Page 144: Change E-Mail Address
Appears when user access is permitted under Administrator settings. For details, refer to page 7-50. Press the [Utility/Counter] key ö [User Settings] ö [Change E-Mail Address]. Press [E-mail Address]. Change the E-mail address. Press [OK]. bizhub C652/C652DS/C552/C552DS/C452 6-14 Downloaded From ManualsPrinter.com Manuals...
Page 145: Change Icon
Change the icon specified as registered user information. When logged in as a registered user, you can change the E-mail address. Press the [Utility/Counter] key ö [User Settings] ö [Change Icon]. Select the icon and press [OK]. bizhub C652/C652DS/C552/C552DS/C452 6-15 Downloaded From ManualsPrinter.com Manuals...
Page 146: Register Authentication Information
Registration] ö [Allow]. Log in as a registered user. Select Utility/Counter ö [User Settings] ö [Register Authentication Settings]. Press [Edit]. To delete authentication information, press [Delete]. For biometric authentication For IC card authentication bizhub C652/C652DS/C552/C552DS/C452 6-16 Downloaded From ManualsPrinter.com Manuals...
Page 147 If your finger vein patterns have been authenticated in the authentication test, press [Register]. If authentication has failed, retry scanning the finger. For IC card authentication, place your IC card on the Authentication Unit, and press [OK]. Press [Close]. bizhub C652/C652DS/C552/C552DS/C452 6-17 Downloaded From ManualsPrinter.com Manuals...
Page 148: Cellular Phone/Pda Setting
Cellular Phone/PDA Setting 6.10 Cellular Phone/PDA Setting Configure settings to print data in a cellular phone or PDA through this machine. For details, refer to the "User's Guide Box Operations" and "User's Guide Print Operations". bizhub C652/C652DS/C552/C552DS/C452 6-18 Downloaded From ManualsPrinter.com Manuals...
Page 149: Administrator Settings
Administrator Settings Downloaded From ManualsPrinter.com Manuals...
Page 150 Configure settings to restrict the functions of this machine for processing secret data. License Settings Enable an optional i-Option function. OpenAPI Authentication Configure settings to prevent our deprecated OpenAPI connection appli- Management Settings cation from being registered in this machine. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 151: System Settings
Low Power Mode Settings has elapsed. Immediately Enters the power save mode in a short time. Factory default Low Power Mode Settings 15 minutes Sleep Mode Settings 30 minutes Power Save Key Lower Enter Power Save Mode Immediately bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 152: Output Settings
Copy: Tray 2 • Print: Tray 2 • Print Reports: Tray 1 • Fax: Tray 1 [Tray 3] is displayed when the Job Separator JS-603 is installed in the Fin- isher FS-527. Shift Output Each Job bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 153: Date/Time Settings
Configure the current date and time. Monthly Daily Hour Minute Time Zone Configure the UTC (Coordinate Universal Time) related time zone. Factory default Time Zone +00:00 Reference To cancel the current settings: Press the [C] key. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 154: Daylight Saving Time
Press the [Utility/Counter] key ö [Administrator Settings] ö [System Settings] ö [Daylight Saving Time]. Settings Configure whether to use daylight saving time and the time difference from UTC (Coordinate Universal Time). Factory default Daylight Saving Time bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 155: Weekly Timer Setting
• To make the user to enter the password, you need to specify the pass- word. Factory default Weekly Timer ON/OFF Set- tings Select Time for Power Save Password for Non-Busi- ness Hours bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 156: Restrict User Access
For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". Factory default Changing Job Priority Allow Delete Other User Jobs Restrict Registering and Changing Allow Addresses Changing Zoom Ratio Allow bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 157: Expert Adjustment
For details on displaying this item, contact your service representative. Vertical Adjustment Adjust the feed direction zoom ratio of paper types. For details on displaying this item, contact your service representative. Media Adjustment p. 7-14 bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 158 Press the [Start] key to stabilize imag- Pressing the [Image Stabilization Only] button executes normal image stabili- zation. If a good result was not achieved after the [Image Stabilization Only] button was pressed, execute [Initialize + Im- age Stabilization]. bizhub C652/C652DS/C552/C552DS/C452 7-10 Downloaded From ManualsPrinter.com Manuals...
Page 159 Make adjustments for scanning images in the ADF. For details on displaying this item, contact your service representative. Line Detection Prior Detection Setting Configure whether to issue an alert (bizhub C652/C552/C452) when the slit glass is dirty. • Select an alert display format and contamination detection level.
Page 160 2nd Z-Fold Position Ad- 0.0 mm justment Post Inserter Tray Size Ad- Auto Detect justment Density Adjustment Image Stabilization Only Image Stabilization Only Image Stabilization Setting Standard Paper Separation Adjust- 0.0 mm ment bizhub C652/C652DS/C552/C552DS/C452 7-12 Downloaded From ManualsPrinter.com Manuals...
Page 161: Leading Edge Adjustment
% To adjust the starting print position at the left edge of the second side for 2-sided printing (with respect to the paper feed direction), press [Centering (Duplex 2nd Side)]. Select a paper tray to be adjusted. Press the [Start] kay. A test pattern is printed. bizhub C652/C652DS/C552/C552DS/C452 7-13 Downloaded From ManualsPrinter.com Manuals...
Page 162: Media Adjustment
Select the size of paper of which the center staple position is adjusted. Press [+] or [-] to adjust the staple position while checking the sample. Press [OK]. Create a sample, and check the print result. bizhub C652/C652DS/C552/C552DS/C452 7-14 Downloaded From ManualsPrinter.com Manuals...
Page 163: Half-Fold Position
Select the size of paper of which tri-fold position is adjusted. Press [+] or [-] to adjust the tri-fold position while checking the sample. Press [OK]. Create a sample, and check the print result. bizhub C652/C652DS/C552/C552DS/C452 7-15 Downloaded From ManualsPrinter.com Manuals...
Page 164: Punch Vertical Position Adjustment
% First, select the paper type if the finisher FS-527 and punch kit PK-517 are installed. Press [+] or [-] to adjust the punched hole position while checking the sample. Press [OK]. Create a sample, and check the print result. bizhub C652/C652DS/C552/C552DS/C452 7-16 Downloaded From ManualsPrinter.com Manuals...
Page 165: Punch Regist Loop Size Adjustment
Select the size of paper of which the vertical punched hole position is adjusted. Press [+] or [-] to adjust the punched hole position while checking the sample. Press [OK]. Create a sample, and check the print result. bizhub C652/C652DS/C552/C552DS/C452 7-17 Downloaded From ManualsPrinter.com Manuals...
Page 166: Horizontal Punch (Z-Fold) Position Adjustment
Select [Utility/Counter] ö [Administrator Settings] ö [System Settings] ö [Expert Adjustment] ö [Finisher Adjustment] ö [1st Z-Fold Position Adjustment]. While checking the sample, press [+] or [-] to adjust the first folding position. Press [OK]. Create a sample, and check the print result. bizhub C652/C652DS/C552/C552DS/C452 7-18 Downloaded From ManualsPrinter.com Manuals...
Page 167: 2Nd Z-Fold Position Adjustment
Select [Utility/Counter] ö [Administrator Settings] ö [System Settings] ö [Expert Adjustment] ö [Finisher Adjustment] ö [Punch Unit Size Detect Sensor]. Press [Start]. % The punch unit edge sensor is automatically adjusted. % The adjusted result appears. bizhub C652/C652DS/C552/C552DS/C452 7-19 Downloaded From ManualsPrinter.com Manuals...
Page 168: Color Registration Adjust
% Press [+] or [-] to adjust the color line to be corrected while checking the sample. The color registration is adjusted. Press the [Start] key to print a test pattern, and then check the print result. Press [OK]. bizhub C652/C652DS/C552/C552DS/C452 7-20 Downloaded From ManualsPrinter.com Manuals...
Page 169: Gradation Adjustment
Place 10 or more sheets of blank paper on top of the test pattern to prevent it from becoming transparent. Close the ADF. Press the [Start] key. The test pattern is scanned. The gradation level is automatically adjusted. Repeat steps 5 through 11 two more times. bizhub C652/C652DS/C552/C552DS/C452 7-21 Downloaded From ManualsPrinter.com Manuals...
Page 170: List/Counter
Resets the count to 0. Paper Size Select the paper size of the counter. Paper Type Select the paper type of the counter. Factory default Job Settings List • 1-Sided • Tray 1 bizhub C652/C652DS/C552/C552DS/C452 7-22 Downloaded From ManualsPrinter.com Manuals...
Page 171: Reset Settings
Next Job Configure whether to reset the following settings when the next job is selected. • Staple Setting • Original Set/Bind Direction • Reset Data After Job The destination of data is always reset. bizhub C652/C652DS/C552/C552DS/C452 7-23 Downloaded From ManualsPrinter.com Manuals...
Page 172: User Box Settings
This item may not be displayed on product sales areas. European model (cm) only Foolscap Size Setting Select the size that you want to use when the paper size is close to 13 inch- bizhub C652/C652DS/C552/C552DS/C452 7-24 Downloaded From ManualsPrinter.com Manuals...
Page 173: Stamp Settings
Change the selected header or footer. Fax TX Settings This setting is for the fax and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Op- erations]". Factory default FAX TX Settings Cancel bizhub C652/C652DS/C552/C552DS/C452 7-25 Downloaded From ManualsPrinter.com Manuals...
Page 174: Blank Page Print Settings
Configure whether to skip a job in the fax mode. Other than Fax Configure whether to skip a job in a mode other than the fax mode. Factory default Skip Job Operation Set- Fax: Yes tings Other than Fax: Yes bizhub C652/C652DS/C552/C552DS/C452 7-26 Downloaded From ManualsPrinter.com Manuals...
Page 175: Default Bypass Paper Type Setting
Factory default Default Bypass Paper Type Setting Paper Type: Plain Paper 7.1.16 Advanced Preview Setting Configure settings to fax or scan a document. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". bizhub C652/C652DS/C552/C552DS/C452 7-27 Downloaded From ManualsPrinter.com Manuals...
Page 176: Page Number Print Position
Left & Right Bind: Symmet- rical Top & Bottom Bind: Sym- metrical Factory default Page Number Print Posi- Left & Right Bind: All the Same tion Top & Bottom Bind: All the Same bizhub C652/C652DS/C552/C552DS/C452 7-28 Downloaded From ManualsPrinter.com Manuals...
Page 177: Administrator/Machine Settings
The E-mail address can be used for Internet fax. Factory default Device Name The default abbreviation is input for the product name. If necessary, it can be changed freely. bizhub C652/C652DS/C552/C552DS/C452 7-29 Downloaded From ManualsPrinter.com Manuals...
Page 178: One-Touch/User Box Registration
One-Touch/User Box Registration This setting is for the User Box, network scan, fax, and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]" and "User's Guide [Box Operations]". bizhub C652/C652DS/C552/C552DS/C452 7-30 Downloaded From ManualsPrinter.com Manuals...
Page 179: User Authentication/Account Track
Settings can be configured for the both and used without being synchronized. A total of 1,000 users and accounts can be registered. To register more than 1,000, use PageScope Authentication Manager. You can register up to 30,000 users and accounts. bizhub C652/C652DS/C552/C552DS/C452 7-31 Downloaded From ManualsPrinter.com Manuals...
Page 180: General Settings
Account Name & Enter the account name and password to log in. Password Password Only Enter only the password to log in. • You cannot configure this when user authen- tication settings are configured. bizhub C652/C652DS/C552/C552DS/C452 7-32 Downloaded From ManualsPrinter.com Manuals...
Page 181 60 min. Reference To configure external server settings: Press the [Utility/Counter] key ö [Administrator Settings] ö [User Authentication/Account Track] ö [External Server Settings]. For details on enhanced security settings, contact your service representative. bizhub C652/C652DS/C552/C552DS/C452 7-33 Downloaded From ManualsPrinter.com Manuals...
Page 182: User Authentication Settings
Once a user name is registered, it cannot be changed. • A user name that has already been registered cannot be used again. Password Enter the password. E-Mail Address Enter an E-mail address. bizhub C652/C652DS/C552/C552DS/C452 7-34 Downloaded From ManualsPrinter.com Manuals...
Page 183 • If suspend is selected for a specific account, it is also suspended for users who belong to that account even if [Continue Job] is selected for this setting. Icon Select an icon. bizhub C652/C652DS/C552/C552DS/C452 7-35 Downloaded From ManualsPrinter.com Manuals...
Page 184 Continue Job Icon Reference To specify the maximum number of registrations for the user: Press the [Utility/Counter] key ö [Administrator Settings] ö [User Authentication/Account Track] ö [General Settings] ö [Number of User Counters Assigned]. bizhub C652/C652DS/C552/C552DS/C452 7-36 Downloaded From ManualsPrinter.com Manuals...
Page 185: Account Track Settings
Configure the number of copies that can be output by a member of the account. • Individual Allowance Configure the number of black copies and color copies that can be output by a member of the account. bizhub C652/C652DS/C552/C552DS/C452 7-37 Downloaded From ManualsPrinter.com Manuals...
Page 186: Print Without Authentication
Press the [Utility/Counter] key ö [Administrator Settings] ö [User Authentication/Account Track] ö [Print Counter List]. Settings Paper Tray Select the desired paper tray. Simplex/Duplex Select Print (1-Sided) or Print (2-Sided). Print Item Configure whether to print all data or printing data only. bizhub C652/C652DS/C552/C552DS/C452 7-38 Downloaded From ManualsPrinter.com Manuals...
Page 187: External Server Settings
For details on configuring external server settings, refer to the "User's Guide [Network Administrator]". 7.4.7 Limiting Access to Destinations This setting is for the network scan, fax, and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]", "User's Guide [Network Administrator]". bizhub C652/C652DS/C552/C552DS/C452 7-39 Downloaded From ManualsPrinter.com Manuals...
Page 188: Authentication Device Settings
Logoff Settings Configure whether to log out when scanning of the original finishes. bizhub C652/C652DS/C552/C552DS/C452 7-40 Downloaded From ManualsPrinter.com Manuals...
Page 189: User/Account Common Setting
7.4.11 Scan to Authorized Folder Settings This setting is for the network scan, fax, and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]", "User's Guide [Network Administrator]". bizhub C652/C652DS/C552/C552DS/C452 7-41 Downloaded From ManualsPrinter.com Manuals...
Page 190: Network Settings
Network Settings Network Settings This setting is for the network operations. For details, refer to the "User's Guide [Network Administrator]". bizhub C652/C652DS/C552/C552DS/C452 7-42 Downloaded From ManualsPrinter.com Manuals...
Page 191: Copier Settings
Specify to copy a card with the full size or enlarge an image to fit paper. Store Original Size Change and register the pre-specified original size or [Original Name]. Factory default Auto Zoom (Platen) Auto Zoom (ADF) bizhub C652/C652DS/C552/C552DS/C452 7-43 Downloaded From ManualsPrinter.com Manuals...
Page 192 Select Tray for Insert Sheet Tray 2 Print Jobs During Copy Accept Operation Tri-Fold Print Side Inside Automatic Image Rotation When Auto Paper/Auto Zoom is Set Card Shot Settings Layout: Top/Bottom Zoom: Full Size bizhub C652/C652DS/C552/C552DS/C452 7-44 Downloaded From ManualsPrinter.com Manuals...
Page 193: Printer Settings
Printer Settings Printer Settings This setting is for the print operations. For details, refer to the "User's Guide [Print Operations]". bizhub C652/C652DS/C552/C552DS/C452 7-45 Downloaded From ManualsPrinter.com Manuals...
Page 194: Fax Settings
Fax Settings Fax Settings This setting is for the fax and network fax operations. For details, refer to the "User's Guide [Network Scan/Fax/Network Fax Operations]". bizhub C652/C652DS/C552/C552DS/C452 7-46 Downloaded From ManualsPrinter.com Manuals...
Page 195: System Connection
Select whether to automatically add prefix and suffix to a destination number. Setting If [Automatic Prefix/Suffix Setting] is set to [ON], the other settings will be re- stricted. For details, refer to the "User's Guide [Network Administrator]". bizhub C652/C652DS/C552/C552DS/C452 7-47 Downloaded From ManualsPrinter.com Manuals...
Page 196 Client Certificates Disable Validity Period Confirm Key Usage Do Not Confirm Chain Do Not Confirm Expiration Date Confirma- Do Not Confirm tion Do Not Confirm Authenticate Automatic Prefix/Suffix Setting Cellular Phone/PDA Set- Restrict ting bizhub C652/C652DS/C552/C552DS/C452 7-48 Downloaded From ManualsPrinter.com Manuals...
Page 197: Security Settings
Press the [Utility/Counter] key ö [Administrator Settings] ö [Security Settings] ö [Security Details] ö [Password Rules]. 7.10.2 User Box Administrator Setting Configure settings for the User Box operations. For details, refer to the "User's Guide [Box Operations]". bizhub C652/C652DS/C552/C552DS/C452 7-49 Downloaded From ManualsPrinter.com Manuals...
Page 198: Administrator Security Levels
Blank Page Print Settings • Change E-Mail Address • Print Jobs During Copy Operation Prohibit Does not allow the user to change the settings allowed in Level 1 and Level Factory default Administrator Security Lev- Prohibit bizhub C652/C652DS/C552/C552DS/C452 7-50 Downloaded From ManualsPrinter.com Manuals...
Page 199: Security Details
Specify the max. allowance for authentication op- eration frequency. Release Releases the prohibited operations due to failure in authentication, enabling the operations. Release Time Set- Configure the length of time until prohibited oper- tings ations are automatically released. bizhub C652/C652DS/C552/C552DS/C452 7-51 Downloaded From ManualsPrinter.com Manuals...
Page 200 Manual Destination Input Allow All Print Data Capture Allow Job Log Settings Restrict Fax TX Hide Personal Information Hide Personal Information (MIB) Display Activity Log Job History Thumbnail Dis- play Secure Print Only bizhub C652/C652DS/C552/C552DS/C452 7-52 Downloaded From ManualsPrinter.com Manuals...
Page 201 7.10 Security Settings Factory default Copy Guard Password Copy bizhub C652/C652DS/C552/C552DS/C452 7-53 Downloaded From ManualsPrinter.com Manuals...
Page 202: Enhanced Security Mode
In [Write User], [Security Level] cannot be set to tings [OFF]. Network Settings / TCPSocket Settings [Use SSL/TLS] is set to [ON]. Network Settings / WebDAV Settings / WebDAV Set to [SSL Only]. Server Settings / SSL Settings bizhub C652/C652DS/C552/C552DS/C452 7-54 Downloaded From ManualsPrinter.com Manuals...
Page 203: Hdd Settings
Different screens appear depending on the current settings. 7.10.6 HDD Settings This setting is for the hard disk operations. For details, refer to the "User's Guide [Box Operations]". bizhub C652/C652DS/C552/C552DS/C452 7-55 Downloaded From ManualsPrinter.com Manuals...
Page 204: Function Management Settings
• Using PageScope Scan Direct to retrieve doc- uments in User Boxes • Box operations using PageScope Web Con- nection (The User Box tab does not appear.) Factory default Network Function Usage Settings bizhub C652/C652DS/C552/C552DS/C452 7-56 Downloaded From ManualsPrinter.com Manuals...
Page 205: Stamp Settings
To configure copy protect and stamp repeat settings: Press [Application] ö [Stamp/Composition]. 7.10.9 Driver Password Encryption Setting This setting is for the print operations. For details, refer to the "User's Guide [Print Operations]". bizhub C652/C652DS/C552/C552DS/C452 7-57 Downloaded From ManualsPrinter.com Manuals...
Page 206: License Settings
Enter the function code and license code obtained from the license man- agement server (LMS). Reference When the functions of an optional component i-Option LK-101, LK-102, LK-103 or LK-105 are enabled, the enabled functions can be checked with [List of Enabled Functions]. bizhub C652/C652DS/C552/C552DS/C452 7-58 Downloaded From ManualsPrinter.com Manuals...
Page 207: Openapi Authentication Management Settings
7.12 OpenAPI Authentication Management Settings 7.12 OpenAPI Authentication Management Settings Configure settings to prevent our deprecated OpenAPI connection application from being registered in this machine. For details, contact your service representative. bizhub C652/C652DS/C552/C552DS/C452 7-59 Downloaded From ManualsPrinter.com Manuals...
Page 208: Maintenance
Maintenance Downloaded From ManualsPrinter.com Manuals...
Page 209: Paper
Store paper in a cool, dark location with little humidity. If the paper becomes damp, a paper jam may occur. Store the paper flat, not on its edge. Curled paper may cause a paper jam. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 210: Loading Paper
% If special paper is loaded, the paper type must be specified. % Load letterhead paper so that the side to be printed on faces down. Close tray 1. Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 211: Loading Paper Into Trays 3 And 4
% Load letterhead paper so that the side to be printed on faces down. % To change the paper size for tray 3, contact your service representative. Lower the paper take-up roller, and then close tray 3. Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 212: Loading Paper Into The Bypass Tray
Expel air from the envelopes, and then load them while holding the folds of the envelopes. Load them with the flap side up, as shown in the illustration. The flap side of envelopes cannot be printed on. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 213 [Black] in the Color tab. % If you select [4 e 6 w (A6 Card w)], the paper type is automatically set to [Thick 3]. Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 214: Loading Paper Into The Lct
% If special paper is loaded, the paper type must be specified. % Load letterhead paper so that the side to be printed on faces Reference To configure paper settings: Press [Basic] ö [Paper]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 215: Consumables
Replace them according to the guidance contained in your maintenance agreement. Do not replace any color other than the one indicated in the message in the touch panel. For the Toner Cartridge, the machine stops operating after the message appears. Toner Cartridge bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 216 Replacement by user Replacement by service representative If a Toner Cartridge other than for black or the Imaging Unit is empty, printing can continue using black. Press [Continue], and then select the job to be printed. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 217: Checking Consumables Status
Rate screen, the consumed amount of toner can be viewed. Press the [Utility/Counter] key. Press [Meter Count] ö [Check Details]. % To print the counter list, press [Print List], select paper, and then press the [Start] key. bizhub C652/C652DS/C552/C552DS/C452 8-10 Downloaded From ManualsPrinter.com Manuals...
Page 218: Checking The Total Number Of Pages Printed
Consumables % To display the Coverage Rate screen, press [Coverage Rate]. Checking the total number of pages printed Pressing Total Counter displays the total number of pages printed to date. Total Counter bizhub C652/C652DS/C552/C552DS/C452 8-11 Downloaded From ManualsPrinter.com Manuals...
Page 219: Cleaning Procedure
Cleaning procedure Cleaning procedure Slit glass (bizhub C652/C552/C452) NOTICE Do not touch the slit glass. Open the ADF, and then remove the slit glass cleaner. Wipe stains off the slit glass using the slit glass cleaner. % Wipe off stains from the back side to the front side along the guide.
Page 220: Slit Glass (Back) (Bizhub C652Ds/C552Ds)
Original glass, control panel, paper take-up roller NOTICE Do not press the control panel hard, or the keys and touch panel may be damaged. Wipe the surface using a soft, dry cloth. bizhub C652/C652DS/C552/C552DS/C452 8-13 Downloaded From ManualsPrinter.com Manuals...
Page 221: Housing, Document Pad
Cleaning procedure Housing, document pad NOTICE Never use solvents, such as benzene or thinner, to clean the document pad. Wipe the surface using a soft cloth moistened with a mild household detergent. bizhub C652/C652DS/C552/C552DS/C452 8-14 Downloaded From ManualsPrinter.com Manuals...
Page 222: Troubleshooting
Troubleshooting Downloaded From ManualsPrinter.com Manuals...
Page 223: When The Message "Trouble" Appears (Call A Service Representative)
Problems that cannot be corrected by the user Write down the malfunction code in the Service Call screen. Turn off the [sub power switch]. Turn off the [main power switch]. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 224 When the message "Trouble" appears (call a service representative) Unplug the machine. Contact your service representative and inform them of the written down malfunction code. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 225: Troubleshooting Table
In the Back- ground Removal screen, select a lighter background density. (p. 5-18) Is the electrostatic charger wire Use the charger-cleaning tool to dirty? clean the electrostatic charger. (p. 9-12) bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 226 Is the original correctly loaded? Position the original correctly. (p. 3-4) The Finisher or Job Separator Is any power being supplied to Check that the cord is correctly JS-504 does not run. the connector? inserted into the connector. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 227 (10 to 25 mm)), a correct image cannot be obtained, and scan- ning may not finish. Try "stretch- ing your finger", "placing your finger deeply", or "placing your finger shallowly" on the scanning section. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 228 USB unit to this machine? cable from this machine or au- thentication unit, and then con- nect it again. Wait at least 10 seconds, and then turn on the main power of this machine. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 229: Main Messages And Their Remedies
Incorrect Imaging Unit is in- The correct Imaging Unit is not Reinstall each consumable and stalled. Install the correct Imag- set. replaceable part. Or contact your ing Unit and close all doors. service representative. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 230 The slit glass (back) is dirty. User the slit glass cleaner to side of the ADF with the glass clean it. cleaner. Continuing using the machine in this condition may cause lines to appear in the out- put. bizhub C652/C652DS/C552/C552DS/C452 Downloaded From ManualsPrinter.com Manuals...
Page 231: Icons That Appear In The Touch-Panel Screen
Indicates that paper is not loaded in the paper tray. Indicates that very little paper remains in the paper tray. If the optional image controller is installed, press this icon to display the setting screen for the image controller. bizhub C652/C652DS/C552/C552DS/C452 9-10 Downloaded From ManualsPrinter.com Manuals...
Page 232 USB connection is not enabled. Indicates that the job is in the waiting-for-redial status because, for exam- ple, the recipient's line is busy when sending with the G3 Fax or IP Address Fax function. bizhub C652/C652DS/C552/C552DS/C452 9-11 Downloaded From ManualsPrinter.com Manuals...
Page 233: If Print Quality Is Deteriorated
Slowly pull out the charger-cleaning tool as far as possible. Next, slowly push in the charger-cleaning tool as far as possible. Repeat the above operations three times. Securely insert the charger-cleaning tool, and then close the front door. bizhub C652/C652DS/C552/C552DS/C452 9-12 Downloaded From ManualsPrinter.com Manuals...
Page 234: Cleaning The Print Head
Pull out tray 1. Remove the print head glass cleaning tool from tray 1. Open the machine's lower front door. Release the securing levers for the waste toner box, and then remove the waste toner box. bizhub C652/C652DS/C552/C552DS/C452 9-13 Downloaded From ManualsPrinter.com Manuals...
Page 235 Install the waste toner box. Place back the print head glass cleaning tool to tray 1. Close tray 1. bizhub C652/C652DS/C552/C552DS/C452 9-14 Downloaded From ManualsPrinter.com Manuals...
Page 236: Authentication Unit (Biometric Type)
Authentication unit (biometric type) Downloaded From ManualsPrinter.com Manuals...
Page 237: Using An Authentication Unit (Biometric Type)
Authentication completed Two short blip sounds Authentication failed one short blip and one long beep sounds One long beep sound Scanning canceled For authentication unit (biometric type) AU-101 For authentication unit (biometric type) AU-102 bizhub C652/C652DS/C552/C552DS/C452 10-2 Downloaded From ManualsPrinter.com Manuals...
Page 238: Configuring This Machine
Authentication/Account Track], then [1 General Settings]. Set [User Authentication] to "ON (MFP)", and then press [OK]. Press [Yes], and then [OK]. Press [8 Authentication Device Settings]. Press [1 General Settings]. Press [Bio Authentication]. bizhub C652/C652DS/C552/C552DS/C452 10-3 Downloaded From ManualsPrinter.com Manuals...
Page 239 Press [OK] twice. Press [2 Logoff Settings]. Specify whether to log out the user when scanning the original has finished after the user logged in with the authentication unit. Press [OK]. Press [Close] twice. bizhub C652/C652DS/C552/C552DS/C452 10-4 Downloaded From ManualsPrinter.com Manuals...
Page 240: Registering A User
[2 User Authentication Settings] is disabled when User Authentication is set to [OFF] in General Settings. Press [2 User Registration]. Select a desired registration number, and then press [Edit]. Press [Register Auth. Info.]. bizhub C652/C652DS/C552/C552DS/C452 10-5 Downloaded From ManualsPrinter.com Manuals...
Page 241: Registering A User Using Data Administrator
BioDriver (USB-Driver) of the authentication unit, and then install Data Administrator Bio Plugin. NOTICE Before setup, install Data Administrator V4.0 or later in your computer. For the Data Administrator operating environment and installation procedure, refer to the Data Administrator User's Guide. bizhub C652/C652DS/C552/C552DS/C452 10-6 Downloaded From ManualsPrinter.com Manuals...
Page 242: Checking The Version Of The Installed Data Administrator
Connect the authentication unit to the USB port of your computer. The "Found New Hardware" dialog box appears. Select "Locate and install driver software (recommended)". Insert the application CD-ROM provided with the authentication unit into the CD-ROM drive of the computer. bizhub C652/C652DS/C552/C552DS/C452 10-7 Downloaded From ManualsPrinter.com Manuals...
Page 243 Check that the driver's search location is the application CD-ROM, and then click the [Next]. % When the driver's search location is not the application CD-ROM, click the [Browse]. Select the BioDriver (USB-Driver) folder on the CD-ROM, and then click the [OK]. bizhub C652/C652DS/C552/C552DS/C452 10-8 Downloaded From ManualsPrinter.com Manuals...
Page 244 Open the DA_Bio_Plugin folder on the application CD-ROM, and then click setup.exe. Select a language, and then click the [OK]. The installation program starts. Follow the on-screen instructions to proceed with the installation. bizhub C652/C652DS/C552/C552DS/C452 10-9 Downloaded From ManualsPrinter.com Manuals...
Page 245 10.1 Using an authentication unit (biometric type) Click the [Next]. Select "I accept the terms in the license agreement", and then click the [Next]. Click the [Install]. bizhub C652/C652DS/C552/C552DS/C452 10-10 Downloaded From ManualsPrinter.com Manuals...
Page 246: User Registration
USB power supply, resulting in an operation failure. To use the USB hub, be sure to connect the self-power USB hub that supplies 500 mA or more. Restart the procedure 5 or more seconds after connecting the authentication unit. bizhub C652/C652DS/C552/C552DS/C452 10-11 Downloaded From ManualsPrinter.com Manuals...
Page 247 The Device Information window appears. % For details on how to import device information, refer to the Data Administrator User's Guide. In Select Function, select "Authentication Settings" - "User Setting", and then click the [Add]. bizhub C652/C652DS/C552/C552DS/C452 10-12 Downloaded From ManualsPrinter.com Manuals...
Page 248 The User Registration window appears. Enter the user name and password, select the "AU-101" or "AU-102" tab, and then click the [Register Auth. Info]. % Enter the E-mail address and other information as required. bizhub C652/C652DS/C552/C552DS/C452 10-13 Downloaded From ManualsPrinter.com Manuals...
Page 249 % If the authentication test has failed, place your finger on the authentication unit again, and click [Authentication Test]. % If the authentication has failed, click [Reset] to repeat the scanning process. For authentication unit AU-101 For authentication unit AU-102 Click the [Registration]. bizhub C652/C652DS/C552/C552DS/C452 10-14 Downloaded From ManualsPrinter.com Manuals...
Page 250 Click the [OK]. % Repeat steps 5 to 10 to register all users. Click the [Export to the device]. % Select the user name and click the [Edit] to change the registered data. bizhub C652/C652DS/C552/C552DS/C452 10-15 Downloaded From ManualsPrinter.com Manuals...
Page 251 To turn the main power switch off and on, first turn the main power switch off, and then turn it on after 10 or more seconds has elapsed. Not doing so may result in an operation failure. When connecting or disconnecting the USB cable, hold the plug. Otherwise, the cable may be damaged. bizhub C652/C652DS/C552/C552DS/C452 10-16 Downloaded From ManualsPrinter.com Manuals...
Page 252: Logging In To This Machine
Press [ID & PW] to log in by entering the user name and the password, without using the authentication unit. When 1-to-many authentication has been specified Place your finger on the authentication unit. Authentication unit (biometric type) AU-101 Authentication unit (biometric type) AU-102 The basic settings screen appears. bizhub C652/C652DS/C552/C552DS/C452 10-17 Downloaded From ManualsPrinter.com Manuals...
Page 253: When 1-To-1 Authentication Has Been Specified
When 1-to-1 authentication has been specified Select [User Name], and enter the user name. Place your finger on the authentication unit. Authentication unit (biometric type) AU-101 Authentication unit (biometric type) AU-102 The basic settings screen appears. bizhub C652/C652DS/C552/C552DS/C452 10-18 Downloaded From ManualsPrinter.com Manuals...
Page 254: Authentication Unit (Ic Card Type)
Authentication unit (IC card type) Downloaded From ManualsPrinter.com Manuals...
Page 255: Using Authentication Unit (Ic Card Type)
7-31. To combine account track settings with user authentication settings, set Synchronize User Authentication & Account Track to "Synchronize". Use the control panel of this machine to display the Administrator Settings screen. Press [4 User Authentication/Account Track], then [General Settings]. bizhub C652/C652DS/C552/C552DS/C452 11-2 Downloaded From ManualsPrinter.com Manuals...
Page 256 Card Authentication + Password: Allows the user to log in by placing the IC card and entering the password. For details on how to log in to this machine, refer to page 11-15. bizhub C652/C652DS/C552/C552DS/C452 11-3 Downloaded From ManualsPrinter.com Manuals...
Page 257: Registering A User
Use the control panel of this machine to display the Administrator Settings screen. Press [4 User Authentication/Account Track], and then [2 User Authentication Settings]. Press [2 User Registration]. Select a desired registration number, and then press [Edit]. bizhub C652/C652DS/C552/C552DS/C452 11-4 Downloaded From ManualsPrinter.com Manuals...
Page 258 Place the IC card on the authentication unit, and press [OK]. When message [Registration complete] appears, press [Close] twice. Enter the user name and password. Configure function permission settings as required. Press [OK]. Press [Close]. bizhub C652/C652DS/C552/C552DS/C452 11-5 Downloaded From ManualsPrinter.com Manuals...
Page 259: Registering A User Using Data Administrator
If Data Administrator V3.x is installed, it is removed when V4.x is installed. Click the [Plug-in version]. In "Plug-in information list", confirm the plugin version of Data Administrator. % This software is available if the plugin version is "4.x". bizhub C652/C652DS/C552/C552DS/C452 11-6 Downloaded From ManualsPrinter.com Manuals...
Page 260: Setup
The "Found New Hardware" dialog box appears. Select "Locate and install driver software (recommended)". Insert the application CD-ROM provided with the authentication unit into the CD-ROM drive of the computer. Click the "Browse my computer for driver software (advanced)". bizhub C652/C652DS/C552/C552DS/C452 11-7 Downloaded From ManualsPrinter.com Manuals...
Page 261 Check that the driver's search location is the application CD-ROM, and then click the [Next]. % When the driver's search location is not the application CD-ROM, click the [Browse]. Select the IC Card Driver (USB-Driver) folder in the CD-ROM, and click the [OK]. % Installation starts. bizhub C652/C652DS/C552/C552DS/C452 11-8 Downloaded From ManualsPrinter.com Manuals...
Page 262 Open the IC_Card_Plugin folder on the application CD-ROM, and then click setup.exe. Select a language, and then click the [OK]. The installation program starts. Follow the on-screen instructions to proceed with the installation. Click the [Next]. bizhub C652/C652DS/C552/C552DS/C452 11-9 Downloaded From ManualsPrinter.com Manuals...
Page 263 Select "I accept the terms in the license agreement", and then click the [Next]. Click the [Install]. Click the [Finish]. Installation of the Data Administrator IC Card Plugin is completed, which completes the setup. bizhub C652/C652DS/C552/C552DS/C452 11-10 Downloaded From ManualsPrinter.com Manuals...
Page 264: User Registration
Data Administrator starts, and device information of this machine is imported. The Device Information window appears. % For details on how to import device information, refer to the Data Administrator User 's Guide. bizhub C652/C652DS/C552/C552DS/C452 11-11 Downloaded From ManualsPrinter.com Manuals...
Page 265 Using authentication unit (IC card type) In Select Function, select "Authentication Settings" - "User Setting", and then click the [Add]. Select the desired template, and then click the [OK]. The User Registration window appears. bizhub C652/C652DS/C552/C552DS/C452 11-12 Downloaded From ManualsPrinter.com Manuals...
Page 266 Place the IC card on the authentication unit, and click the [Start reading]. % If necessary, click [Card ID Input] to register the card ID. Click the [OK]. % Repeat steps 5 to 12 to register all users. bizhub C652/C652DS/C552/C552DS/C452 11-13 Downloaded From ManualsPrinter.com Manuals...
Page 267 Disconnect the authentication unit from the USB port of the computer. Turn the main power switch of this machine off, connect the authentication unit to this machine, and turn the main power switch of this machine on. bizhub C652/C652DS/C552/C552DS/C452 11-14 Downloaded From ManualsPrinter.com Manuals...
Page 268: Logging In To This Machine
Press [ID & PW] to log in by entering the user name and the password, without using the authentication unit. When IC card authentication is enabled Place the IC card on the working table. The basic settings screen appears. bizhub C652/C652DS/C552/C552DS/C452 11-15 Downloaded From ManualsPrinter.com Manuals...
Page 269: When Ic Card Authentication + Password Authentication Is Enabled
When IC card authentication + password authentication is enabled Place the IC card on the working table. Press [Password], and then enter the password. Press either [Login] or the [Access] key. The basic settings screen appears. bizhub C652/C652DS/C552/C552DS/C452 11-16 Downloaded From ManualsPrinter.com Manuals...
Page 270: Specifications
Specifications Downloaded From ManualsPrinter.com Manuals...
Page 271: Paper
Paper where company names, preset text, and others are already printed. Colored paper. Paper that is registered as one of frequently used paper types. For paper weight and media adjustment settings, contact your service representative. bizhub C652/C652DS/C552/C552DS/C452 12-2 Downloaded From ManualsPrinter.com Manuals...
Page 272 When you select Plain Paper, Thick 1, Thick 1+, Thick 2, Thick 3, or Thick 4 for the bypass tray, you can select Duplex 2nd Side. Select Duplex 2nd Side when you load paper where something is printed on one side. bizhub C652/C652DS/C552/C552DS/C452 12-3...
Page 273: Machine Specifications

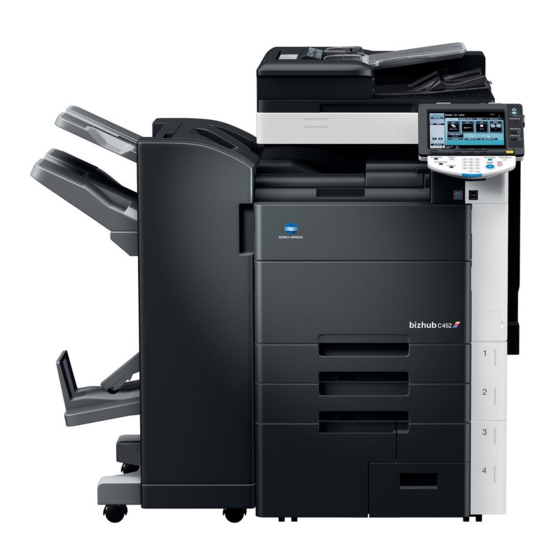

12.2 Machine specifications 12.2 Machine specifications bizhub C652/C652DS/C552/C552DS/C452 Specification Type Scanner, printer, desktop, or stand-alone Document holder Stationary (mirror scanning) Photo conductor Light source White rare-gas fluorescent Copy system Laser electrostatic copying Developing system Dry 2-component HMT developing system Fusing system...
Page 274 Full color: 5.5 sec. or less printing) Black: 3.8 sec. or less C552/C552DS Full color: 6.0 sec. or less Black: 4.3 sec. or less C452 Full color: 6.0 sec. or less Black: 4.8 sec. or less bizhub C652/C652DS/C552/C552DS/C452 12-5 Downloaded From ManualsPrinter.com Manuals...
Page 275 LCU (LU-204) are pulled out, and the ADF is open. Memory size (hard disk ca- 2,048 MB (250 GB) pacity) Weight bizhub C652/C552/C452 :Approx. 487-13/16 lb (Approx. 221 kg) bizhub C652DS/C552DS :Approx. 223 kg bizhub C652/C652DS/C552/C552DS/C452 12-6 Downloaded From ManualsPrinter.com Manuals...
Page 276: Automatic Duplex Unit
8-1/2 e 13 w, 8-1/4 e 13 w, 8-1/8 e 13-1/4 w, and 8 e 13 w. Any one of these sizes is selectable. For details, contact your service representative. Power supply Supply from machine Reverse automatic document feeder (bizhub C652/C552/C452) Specification Original feed function 1-sided original, 2-sided original, mixed original...
Page 277: Options
Approx. 55-1/8 lb (Approx. 25 kg) The maximum number of loadable sheets for each paper size is 2,500 sheets (for 21-1/4 lb (80 g/m )) or 2,750 sheets (for 17 lb (64 g/m bizhub C652/C652DS/C552/C552DS/C452 12-8 Downloaded From ManualsPrinter.com Manuals...
Page 278: Finisher Fs-526
When the length 300 sets Sort of paper is 5- 15/16 to 12-5/8 (150 mm to 320 When the length 150 sets of paper is other than 5-15/16 to 12-5/8 (150 mm to 320 bizhub C652/C652DS/C552/C552DS/C452 12-9 Downloaded From ManualsPrinter.com Manuals...
Page 279: Saddle Stitcher Sd
(Belt conveyer feeding) Paper type Center Staple and Fold: Plain paper (17 lb to 23-15/16 lb (64 to 90 g/m Half-Fold or Tri-Fold: Plain paper (17 lb to 23-15/16 lb (64 to 90 g/m bizhub C652/C652DS/C552/C552DS/C452 12-10 Downloaded From ManualsPrinter.com Manuals...
Page 280: Punch Kit Pk
Number of punch holes 2 holes, 3 holes or 4 holes Paper type Plain paper (17-15/16 lb to 23-15/16 lb (60 g/m to 90 g/m Thick (24-3/16 lb to 79-13/16 lb (91 g/m to 300 g/m bizhub C652/C652DS/C552/C552DS/C452 12-11 Downloaded From ManualsPrinter.com Manuals...
Page 281: Z-Folding Unit Zu
Power supply Supply from electrical outlet Size Width 6-11/16 e Depth 26 e Height 40-7/16 (Width 169.7 mm e Depth 660 mm e Height 1027.5 mm) Weight Approx. 99-3/16 lb (Approx. 45 kg) bizhub C652/C652DS/C552/C552DS/C452 12-12 Downloaded From ManualsPrinter.com Manuals...
Page 282: Post Inserter Pi-505
457.2 mm) Staple: 11 e 17 w, 8-1/2 e 11 w/v, A3 w to A5 v Width: 7-3/16 to 11-1/4 (182 mm to 297 mm), Length: 5-7/8 to 17(148.5 mm to 431.8 mm) bizhub C652/C652DS/C552/C552DS/C452 12-13 Downloaded From ManualsPrinter.com Manuals...
Page 283 Approx. 92-5/8 lb (Approx. 42 kg) Consumables Staples SK-602 For EH-590 (Product No.505 manufactured by MAX) (5,000 staples includ- ed) e 1 unit Saddle stitcher SD-509 Specification Feeding function Center Staple and Fold, Half-Fold bizhub C652/C652DS/C552/C552DS/C452 12-14 Downloaded From ManualsPrinter.com Manuals...
Page 284 ), Transparency, Postcards, Label sheets, Envelope, Banner paper Paper size 12-1/4 e 18 w, Postcards, Banner Paper, 11 e 17 w - 5-1/2 e 8-1/2 w/v, A3 w to B6 w, A6 w bizhub C652/C652DS/C552/C552DS/C452 12-15 Downloaded From ManualsPrinter.com Manuals...
Page 285: Authentication Unit (Biometric Type) Au
50 ºF to 95 ºF (10 ºC to 35 ºC) operation) Humidity 10% to 80% (No dew condensation) System conditions (during Ambient temperature 14 ºF to 140 ºF (-10 ºC to 60 ºC) non-operation) Humidity 10% to 80% (No dew condensation) bizhub C652/C652DS/C552/C552DS/C452 12-16 Downloaded From ManualsPrinter.com Manuals...
Page 286: Authentication Unit (Ic Card Type) Au
Approx. 3-5/8 (W) e 2-1/2 (D) e 5/8 (H) (Approx. 92 mm (W) e 64 mm (D) e 16 mm (H)) Weight Approx. 1/4 lb (Approx. 120 g) Power supply Power received from USB port bizhub C652/C652DS/C552/C552DS/C452 12-17 Downloaded From ManualsPrinter.com Manuals...
Page 287 Microsoft Internet Explorer 6.0 (SP1) or later Microsoft .NET Framework (SP1) or later Interface USB 1.1 or later Supported Operating Systems Windows 2000 Professional (SP4) Windows XP Professional Edition (SP2) Windows Vista Business/Enterprise bizhub C652/C652DS/C552/C552DS/C452 12-18 Downloaded From ManualsPrinter.com Manuals...
Page 288: Appendix
Appendix Downloaded From ManualsPrinter.com Manuals...
Page 289: Colors
But what about when comparing the yellow of a lemon and the red of a bean? Obviously, the yellow of the lemon is brighter. "Brightness" is this degree of lightness that enables comparison regardless of the hue. bizhub C652/C652DS/C552/C552DS/C452 13-2 Downloaded From ManualsPrinter.com Manuals...
Page 290 "saturation", as opposed to "brightness". As opposed to hue and brightness, "saturation" is the characteristic that indicates the degree of vividness. Brightness Saturation bizhub C652/C652DS/C552/C552DS/C452 13-3 Downloaded From ManualsPrinter.com Manuals...
Page 291: Red, Green, And Blue
13.1 Colors Red, green, and blue This machine allows you to adjust red, green, and blue in 19 levels. Green Bule bizhub C652/C652DS/C552/C552DS/C452 13-4 Downloaded From ManualsPrinter.com Manuals...
Page 292: Image Quality
Sharpness: You can adjust the amount of contours in text and images. You can adjust the contrast and copy density in 19 levels and the sharpness in 7 levels. Contrast Copy Density Sharpness bizhub C652/C652DS/C552/C552DS/C452 13-5 Downloaded From ManualsPrinter.com Manuals...
Page 293: Color Balance (Cmyk)
Full-color copy reproduces colors of the original by mixing toners of four colors: yellow, magenta, cyan, and black. By changing the amount of each of the four toners, adjust the tints in the copy. You can adjust the color balance in 19 levels. Yellow Green Magenta Cyan Bule Black bizhub C652/C652DS/C552/C552DS/C452 13-6 Downloaded From ManualsPrinter.com Manuals...
Page 294: Glossary
Edit Color Function that configures the image according to the objectives of copy editing. Finishing Allows you to select how to sort or finish copies when feeding them into the out- put tray. bizhub C652/C652DS/C552/C552DS/C452 13-7 Downloaded From ManualsPrinter.com Manuals...
Page 295 Function that staples copies. Text Enhancement Function that allows you to configure the reproduction quality of the text when copying originals consisting of text that overlaps images such as illustrations or graphs (text with a background). bizhub C652/C652DS/C552/C552DS/C452 13-8 Downloaded From ManualsPrinter.com Manuals...
Page 296 Function that inserts a blank sheet between transparency films each time a leave transparency film is copied. This function prevents transparency films from stick- ing together. Tri-Fold Function that tri-folds printed paper. Zoom Function that changes the zoom ratio of the copy. bizhub C652/C652DS/C552/C552DS/C452 13-9 Downloaded From ManualsPrinter.com Manuals...
Page 297: Index
Index Downloaded From ManualsPrinter.com Manuals...
Page 298: Index By Item
Eject assist lever ............2-25 Brightness adjustment dial ........2-14 Electrostatic charger wire ..........9-12 Bypass tray ..............2-7 Enhanced security mode ...........7-54 Bypass tray door ............2-7 Enlarge Display ............4-14 Erasing ...............5-41 C ................4-17 Erasing frames ............5-41 Centering ..............7-13 bizhub C652/C652DS/C552/C552DS/C452 14-2 Downloaded From ManualsPrinter.com Manuals...
Page 299 OpenAPI Authentication Management Settings ..7-59 Jack for connecting a telephone (TEL PORT1) ...2-9 Options ............. 2-2 12-8 Jack for connecting a telephone (TEL PORT2) ...2-9 Original glass ........2-11 8-12 8-13 Jam removal cover ............2-26 bizhub C652/C652DS/C552/C552DS/C452 14-3 Downloaded From ManualsPrinter.com Manuals...
Page 300 Toner cartridges ............2-11 Toner supply indicators ..........2-16 Red ................13-4 Total counter ...............2-7 Register Authentication Information ......6-16 Touch panel ............ 2-14 2-16 Registering one-touch destinations or Touch pen ..............2-14 User Boxes ..............7-30 Tray 1 ................2-7 bizhub C652/C652DS/C552/C552DS/C452 14-4 Downloaded From ManualsPrinter.com Manuals...
Page 301 Utility/Counter .............4-6 Video interface kit ............2-2 Waste toner box ............2-11 Watermark ..............5-54 Weekly timer setting ............7-7 Wide paper ..............5-6 Working table ............2-2 Z folding unit ..........2-21 12-12 Z-folded original ............5-17 Zoom ..............5-7 5-59 bizhub C652/C652DS/C552/C552DS/C452 14-5 Downloaded From ManualsPrinter.com Manuals...
Page 302: Index By Button
Auto Zoom for Combine/Booklet ........6-8 Color Selection Settings ..........6-6 Automatic Image Rotation .........6-9 7-43 Composition ..............5-56 Confidential Document Access Method ....7-52 Back (Blank) ..............5-22 Consumables Replace/Processing Procedure ..4-16 Back (Copy) ...............5-22 Contrast ..............5-32 bizhub C652/C652DS/C552/C552DS/C452 14-6 Downloaded From ManualsPrinter.com Manuals...
Page 303 Enlarge Display ............4-14 ID & Print Operation Settings ........7-34 Enlarge Display Mode Confirmation ......4-13 ID & Print Settings .............7-34 Enlargement Rotation ..........6-8 Image Adjust ..............5-39 Enter Power Save Mode ..........7-3 Image Repeat ............5-34 bizhub C652/C652DS/C552/C552DS/C452 14-7 Downloaded From ManualsPrinter.com Manuals...
Page 304 Measurement Unit Settings .........6-3 Post Inserter ............. 2-3 5-12 Media Adjustment .............7-14 Post inserter control panel ........5-12 Message Display Time ..........4-13 Poster Mode ..............5-35 Meter Count ..............8-10 Power Save ...............4-11 Minimal ................5-7 Power Save Key ............7-3 bizhub C652/C652DS/C552/C552DS/C452 14-8 Downloaded From ManualsPrinter.com Manuals...
Page 305 System Settings ..........6-3 Right Bind ..............5-40 Rotate Image .............4-20 Text ................5-18 Text Color ............5-47 5-54 Saturation ..............5-32 Text Details ............. 5-44 5-46 Save ................5-62 Text Enhancement .............5-19 Save & Print ...............5-60 bizhub C652/C652DS/C552/C552DS/C452 14-9 Downloaded From ManualsPrinter.com Manuals...
Page 306 Weekly Timer Setting ..........7-7 When # of Jobs Reach Maximum ......7-33 When AMS Direction is Incorrect ........6-8 Wide Paper ..............5-6 With Margin ...............5-34 Without Margin ............5-34 X/Y ................5-6 Z-Folded Original ............5-15 Zoom ............4-19 5-36 bizhub C652/C652DS/C552/C552DS/C452 14-10 Downloaded From ManualsPrinter.com Manuals...
Page 307 http://konicaminolta.com Copyright A1DM-9585CO-00 2009.11 2009 Downloaded From ManualsPrinter.com Manuals...
