Replacing the Transfer Belt Unit

The belt unit is located under the four image drums. Switch off the printer and allow the fuser to cool for about 10 minutes before
opening the cover.

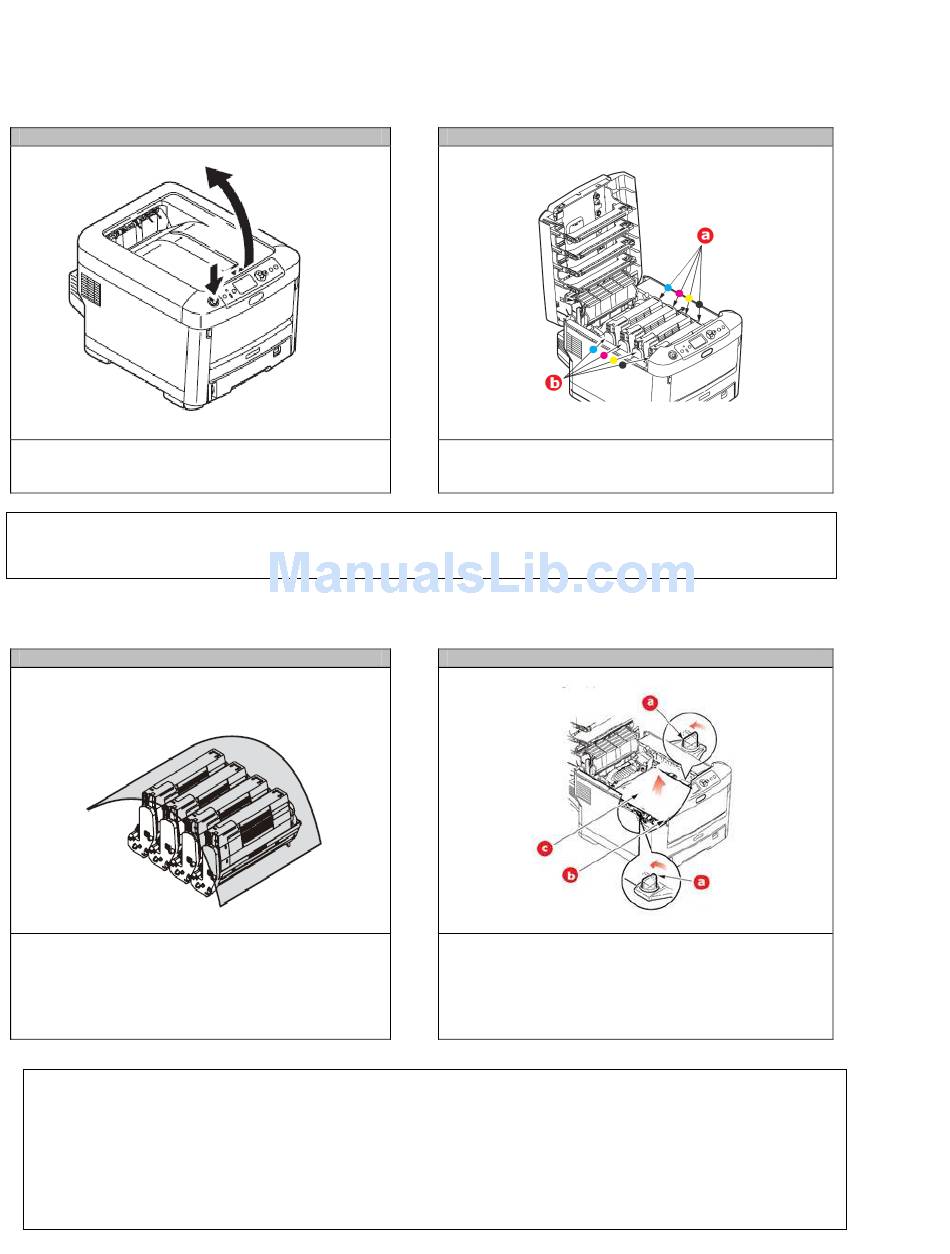

STEP 1
Press the cover release and open the printer's top
cover fully.
WARNING! If the printer has been powered on, the fuser will be hot. This area is clearly labeled. Do not
touch.
STEP 3
Lift each of the image drum units out of the printer
and place them in a safe place away from direct
sources of heat and light.
CAUTION! The green image drum surface at the base of each cartridge is very delicate and light
sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the
drum unit needs to be out of the printer for longer than this, please wrap the cartridge inside a black
plastic bag to keep it away from light. Never expose the drum to direct sunlight or very bright room
lighting.
June 2011: Revision 002
STEP 2
Note the positions of the four toner cartridges (a) and
image drums (b) it is essential that they go back in the
same order.
STEP 4
Locate the two fasteners (a) at each side of the belt and
the lifting bar (b) at the front end. Turn the two fasteners
90˚ to the left. This will release the belt from the printer
chassis. Pull the lifting bar (b) upwards so that the belt
tilts up towards the front, and withdraw the belt unit (c)
from the printer.
