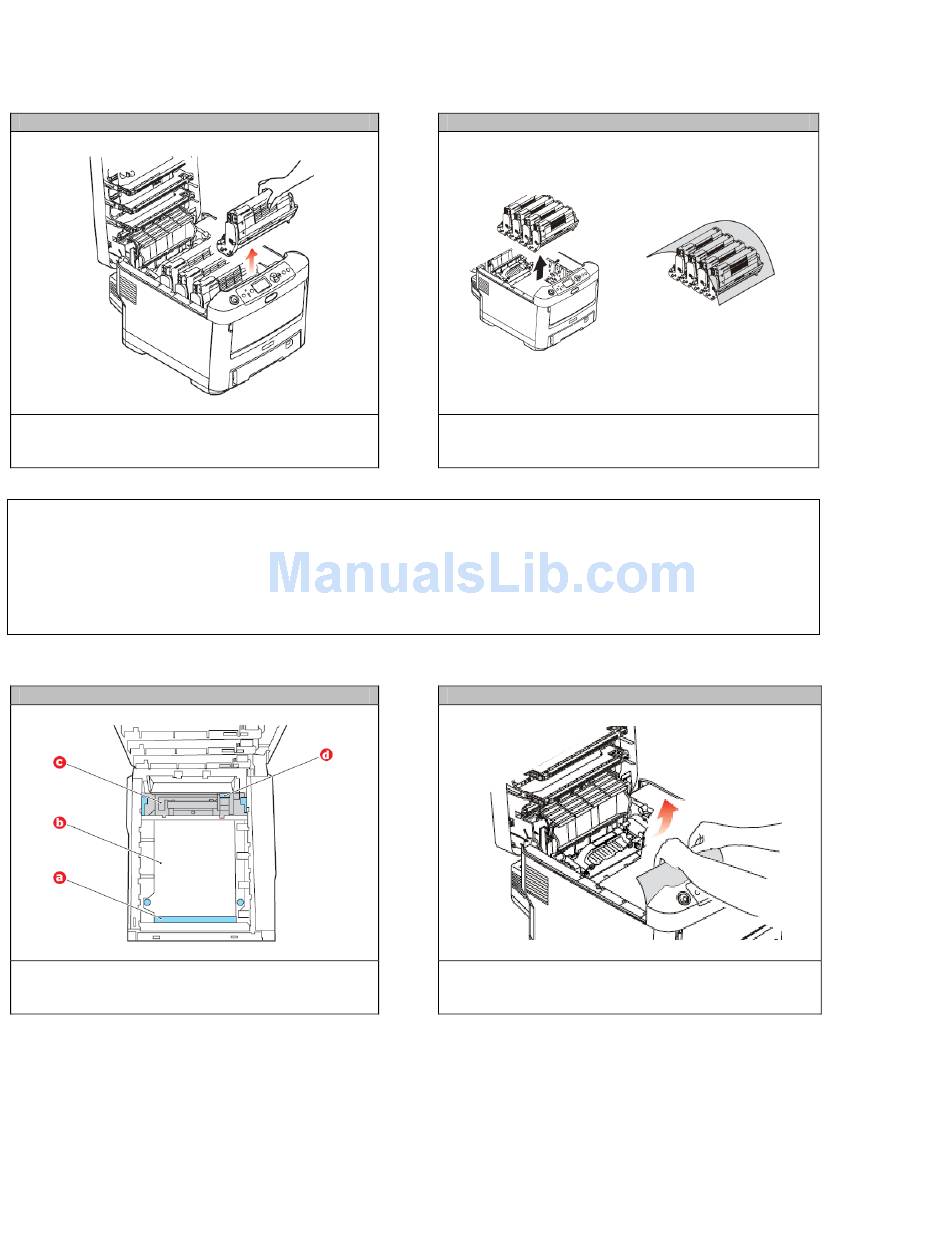

STEP 3
Lift the image drum, complete with its toner
cartridge, up and out of the printer
CAUTION: The green image drum surface at the base of the Image Drum is very delicate and light
sensitive. Do not touch it and do not expose it to normal room light for more than 5 minutes. If the
drum unit needs to be out of the printer for longer than this, wrap the cartridge inside a black plastic
bag to keep it away from light. Never expose the drum to direct sunlight or very bright room lighting.
STEP 5
Check if any sheets of paper are visible on any part
of the belt unit (a. release handle, b. belt, c. fuser or
d. fuser pressure release lever).
June 2011: Revision 002
STEP 4
Put the assembly down gently onto a piece of paper
to prevent toner from staining surrounding areas and
to avoid damaging the green drum surface and cover.
STEP 6
To remove sheet from the front, lift the sheet from the
belt and pull it forward into the internal drum cavity to
withdraw the sheet.
