iSys iTerra IJ875 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
   www.isys‐group.com

iSys - The Imaging Systems Group Inc. © Copyright 2009


iTerra IJ875
User Guide



Rev 005
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iTerra IJ875 and is the answer not in the manual?

Questions and answers

Related Manuals for iSys iTerra IJ875

Summary of Contents for iSys iTerra IJ875

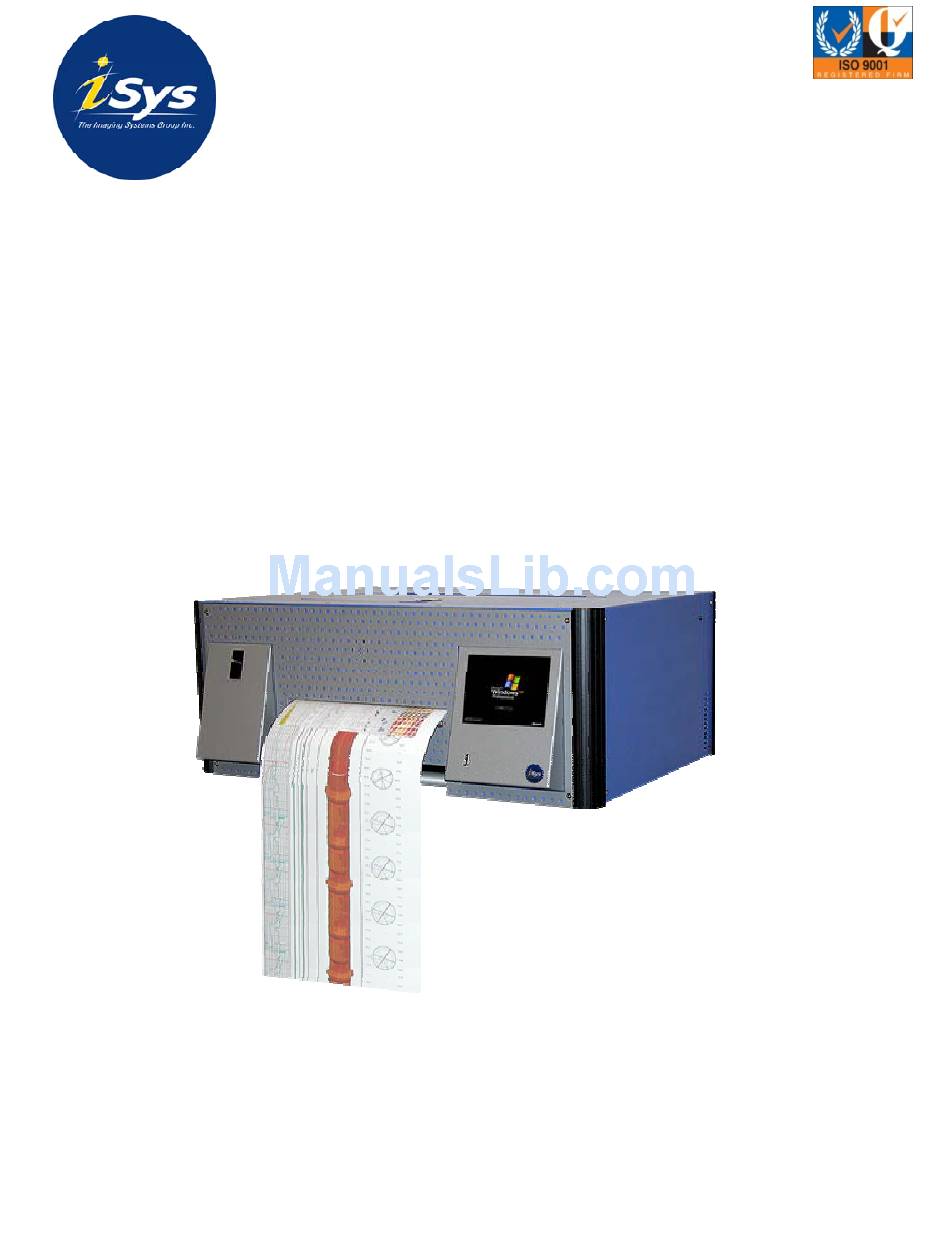

  • Page 1        www.isys‐group.com         iTerra IJ875  User Guide      iSys - The Imaging Systems Group Inc. © Copyright 2009 Rev 005 1   ...

  • Page 2: Table Of Contents

    Windows XP Add Printer Wizard and Driver Installation Windows Vista Driver Installation USB to Ethernet Windows Vista Driver Installation   USB to Ethernet Windows XP Driver Installation  Setting up the IJ875 with the USB Ethernet Adapter   Setting up your computer Setting up the IJ875 Printer Control Panel Overview  Web Interface   Top of Form Calibration  Specs/ Features and Benefits   Troubleshooting  Limitation of Liability  iTerra IJ875 Warranty    iSys is an ISO 9001 Registered Firm 2   ...
  • Page 3   Thank you for selecting the iTerra IJ875. iSys will make every effort to assist you with operation of your new printer. It is our sincere desire that your ownership experience meets your highest expectations. This user guide is provided to help you easily install and operate your new printer. It contains important information on the features and functions of the iTerra IJ875.

  • Page 4: Ordering Consumable Supplies

    Sales tax as well as shipping and handling charges are added where applicable. • An iSys purchase order can be used to order products directly if the order value is over $500, excluding freight and taxes and if you have been approved for credit. Please contact iSys for a purchase order form.

  • Page 5: Unpacking And Installation

      Unpacking and Installation Unpacking the Printer STEP 1 STEP 2 Open the box and remove the accessories box Remove the top piece of Styrofoam from the top of from the top of the IJ875 box. the IJ875. *Note – A small box containing accessories will lay on the top of the Styrofoam that contains the IJ875.

  • Page 6: Assembling The Input & Output Baskets

      Assembling the Input & Output Baskets STEP 1 STEP 2 Locate the front output basket screws. Place the plate under the printer; the holes must align with the back legs of the printer. *Note: the plate must be parallel with the edge of the surface. STEP 3 STEP 4 Align the holes on the output basket with the...

  • Page 7: Installing The Toner Cartridges

      Installing the Toner Cartridges STEP 1 STEP 2 Push the black latch down to open the toner door. Match the color of the cartridge to the slot in the printer. Insert the cartridge until it clicks into place. As the ink cartridges are inserted, the front panel will display the ink levels.

  • Page 8: Loading Paper

      STEP 3 Once all of the printheads are in place, return the blue printhead cover to its original position ensuring that the hook and the latch engage. You may now power on the printer. Loading Paper STEP 1 STEP 2 Start on a face up, non I-mark sheet of paper, Place the bundle of fanfold paper into the input press the form feed button and feed the end of the...

  • Page 9: Ip Configuration And Driver Installation

      IP Configuration and Driver Installation Windows XP Add Printer Wizard and Driver Installation STEP 1 Go to Windows Start Settings Printers and Faxes STEP 2 9   ...
  • Page 10   Select Add a Printer on the left hand side of the window Press Next STEP 3 Welcome to the Add Printer Wizerd Press Next STEP 4 10   ...
  • Page 11   Select Local printer attached to this computer Press Next STEP 5 Select Create a new port: Type of port Standard TCP/IP Port Press Next STEP 6 11   ...
  • Page 12   Welcome to the Add Standard TCP/IP Printer Port Wizard Press Next STEP 7 Enter your IP into the box Press Next STEP 8 12   ...
  • Page 13   Under Device Type Select Standard Generic Network Card Press Next STEP 9 STEP 10 Completing the Add Standard TCP/IP Printer Port Wizard Press Finish 13   ...
  • Page 14 Select Browse Select the IJ875 Driver. From the driver installation disk select the .inf you downloaded the driver from the iSys Group website, locate the driver from the location you downloaded and unzipped it to; select the .inf file. Press Ok...
  • Page 15   Select the iSys iTerra IJ875 Printer Press Next   STEP 13 Enter the printer name Select Yes if you would like the IJ875 to be your default printer or No if you do not Press Next STEP 14 15 ...
  • Page 16   Select a sharing option Press Next STEP 15 Enter a location and a comment Press Next STEP 16 16   ...

  • Page 17: Windows Vista Driver Installation

      Select Yes or No to print a test page Press Next STEP 17 Completing the Add Printer Wizard Press Finish Windows Vista Driver Installation STEP 1 17   ...

  • Page 18: Control Panel

      Go to the Windows Start button Control Panel                         STEP 2 18   ...
  • Page 19   Select Printer under Hardware and Sound   STEP 3 Select Add a printer STEP 4 19   ...
  • Page 20   Select Add a local printer   STEP 5 Create a new port Select type of port: Standard TCP/IP Port Press Next   STEP 6 20   ...
  • Page 21   Select Device type: TCP/IP Device Enter the IP address Press Next   STEP 7 Detecting the TCP/IP Port   STEP 8 21   ...
  • Page 22 Select Have Disk Select Browse From the driver installation disk select the .inf file you downloaded the driver from the iSys Group website, locate the driver from the location you downloaded and unzipped it to; select the .inf file. Press Ok Press Next  ...
  • Page 23   Press Next   STEP 11 Type a name for the printer Press Next       STEP 12 23   ...
  • Page 24   During installation a window will appear asking you to verify the driver publisher Press Install this driver software anyway   STEP 13 Installing Printer             STEP 14 24   ...

  • Page 25: Usb To Ethernet Windows Vista Driver Installation

      Choose a sharing option Press Next   STEP 15 You’ve successfully added the printer You may print a test page Press Finish USB to Ethernet Windows Vista Driver Installation When first plugging in the USB to Ethernet adapter, Vista will alert the user that new hardware is found. Allowing Vista to find a compatible driver will fail.
  • Page 26   STEP 1 Left click the Start button Right click on the Computer tab Left click on the Manage item 26   ...
  • Page 27   STEP 2 Within the left panel, click on Device Manager. Notice under Other devices, a device labeled Apple USB Ethernet Adapter has an exclamation mark beside its name. 27   ...
  • Page 28   STEP 3 Right click on the Apple USB Ethernet Adapter and left click on the Update Driver Software…             STEP 4 28   ...
  • Page 29   Allowing windows to automatically search for a driver will fail. Select Browse my computer for the driver software. STEP 5 Click Let me pick from a list of device drivers on my computer STEP 6 29   ...
  • Page 30   Click Next STEP 7 Click Have Disk   STEP 8 30   ...
  • Page 31 Navigate to the location of the driver to install. If installing the driver from the CD included with the IJ875 printer, the location the USB to Ethernet drivers a located in the ‘iSys USB To Ethernet Adapter Drivers’ folder. Note there a four folders for different Microsoft Windows operating systems(Windows XP 32bit, XP 64bit, Vista 32bit and Vista 64bit).
  • Page 32   Going back into the Device Manager will now have a new device labeled iSys USB2.0 to Fast Ethernet Adapter under the Network adapter devices. 32   ...

  • Page 33: Usb To Ethernet Windows Xp Driver Installation

    ‘USB to Ethernet Drivers’ folder. There are four drivers provided for the different Microsoft operating systems each within an associated folder name. If you downloaded the driver from the iSys website you need to unzip the file and remember the location of the driver.
  • Page 34   Select Don’t search. I will choose the driver to install. STEP 3 Click the Have Disk button 34   ...
  • Page 35   STEP 4 Click Browse STEP 5 Navigate to the location of the driver, once you’re in a folder with a driver the *.inf file will be available to select. Click Open STEP 6 35   ...
  • Page 36   Select the iSys USB2.0 to Fast Ethernet Adapter and click the Next Button. STEP 7 A dialog window warning will appear, click Continue Anyway STEP 8 36   ...
  • Page 37   Once that the driver is installed, click Finish 37   ...

  • Page 38: Setting Up The Ij875 With The Usb Ethernet Adapter

      Setting up the IJ875 with the USB Ethernet Adapter Two separate steps are required to set up the USB Ethernet Adapter 1. Setting up your computer 2. Setting up the IJ875   Setting up your computer STEP 1 Open Network Connections. Click Start Click Run STEP 2 Enter the command...
  • Page 39   The USB Ethernet Adapter will be displayed as Local Area Connection, possibly with a number appended at the end, (such as Local Area Connection 2 or Local Area Connection 3, etc). Right-click on the USB Ethernet Adapter and choose properties. Select Internet Protocol (TCP/IP) and click on Properties.
  • Page 40   Here, you are able to change your IP address, subnet mask, gateway, and DNS settings for the USB Ethernet Adapter. To start, first click on the Use the following IP address radio button. Now you should completely  be able to change your IP address, subnet mask, and gateway. Type in an IP that is is different e.g. 4.1.1.1, and type in a subnet mask, e.g. 255.0.0.0. ...
  • Page 41   In the Advanced menu, select Advanced Settings. STEP 6 If the USB Ethernet Adapter is above your main adapter, move the USB Ethernet Adapter priority down by selecting it and clicking on the down arrow. Click OK.   41   ...

  • Page 42: Setting Up The Ij875

    Settings Menu. Here you have the option to view and change the security options or the completed list options. Network Settings Changes the IP of the iTerra IJ875. Completed List Settings Changes the number of items in the completed list.

  • Page 43: Printer Control Panel Overview

      Printer Control Panel Overview • Main Screen  o Menu  Settings  • Network Settings  o Modify IP  o Modify Subnet  • Completed List Settings  o Change Pressed  • Security Settings   o Modify Allowed Access Page 1  o Modify Allowed Access Page 2  o Modify Allowed Access Page 3  • Filter Settings  Maintenance  • TOF Calibration  o Started TOF Calibration  Display Board Firmware  Display Printer Firmware  Print Test Plots  o Queue Menu  Queue List ...

  • Page 44: Web Interface

      Web Interface Default Username: Admin Default Password: Admin 44   ...
  • Page 45   45   ...
  • Page 46   46   ...
  • Page 47   47   ...

  • Page 48: Top Of Form Calibration

      Top of Form Calibration 1. Press Start. 2. You will now see a number for sensor output. 3. Insert paper until the sensor is above the white space. 4. Manually adjust the gain by pressing either Increase Gain or Decrease Gain until the sensor is below 45 for white space.

  • Page 49: Specs/ Features And Benefits

      Specs/ Features and Benefits Printer Specifications Print Technology Color Inkjet Plotter Carriage Width 8.75” Maximum Plot Width 8.5” Continuous Mode Print Resolution 300 Dpi or 600 Dpi Maximum Plot Speed Up To 3.75” Per Second (color) Consumables Fanfold Paper, Ink Cartridges, Printheads Sheet Sizes 8.75 up to 300 feet Connectivity Interfaces...

  • Page 50: Limitation Of Liability

    The Imaging Systems Group Inc. has been advised of the possibility of such damages. The Imaging Systems Group Inc. 911 28 Street NE Calgary, Alberta, Canada T2A 7X1 Phone: 1-403-204-5200 Fax: 1-403-204-1971 Toll Free: 1-866-415-4797 e-mail: support@isys-group.com www.isys-group.com 50   ...

  • Page 51: Iterra Ij875 Warranty

    NAFTA. iSys is willing to license the software for the iTerra IJ875 to you only upon the condition that you accept all of the terms contained in this agreement. By using this software, you accept the terms of the agreement. "Software" means iTerra...
