iSys iTerra Elite ll User Manual page 26

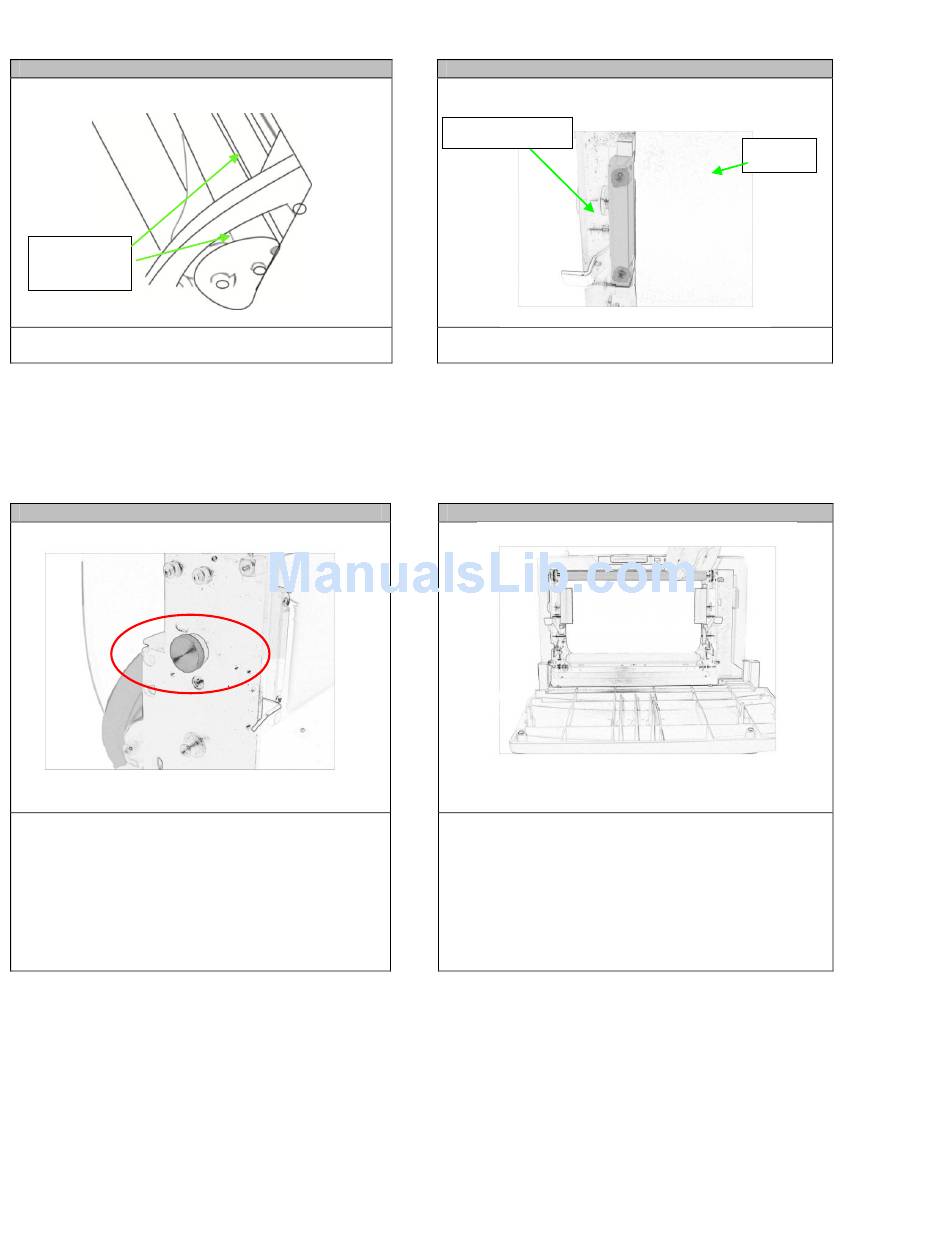

STEP 5
Tension
Rollers
Lift tension roller up and slide the paper between both
rollers.
STEP 7
Use the Guide Width Adjuster (Red Knob) to change
the width of the guide if necessary.
Turn the Knob COUNTERCLOCKWISE to NARROW
the guide.
Turn the Knob CLOCKWISE to WIDEN the guide.
Ensure there is no space between the Guide
Channels and the paper (too wide).
Ensure the paper is not compressed between the
Guide Channels (too narrow)
June 2011: Revision 002
STEP 6
Guide Channels
Ensure the media is flush against the guide channels
STEP 8
Raise the paper between the guide channels until it is
lightly touching the feed rollers.
Media
26
