  • Page 1 RGBW LED beam movinghead User manual...

  • Page 2: Safety Precautions

    WARNING: Do not look directly into the beam from a short distance. This may cause serious injury to the eyes. Ayra is not responsible for any injuries caused by incorrect use of this device. Installation requirements: - Always check the power supply to which you want to connect the device. If the voltage requirements do not meet, do not connect the device as this may cause serious damage.

  • Page 3: Box Contents

    Box contents Box contents 1x ERO Minibeam 12 1x power cable 1x installing bracket 1x small bag with mounting hardware Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 4: Device Overview

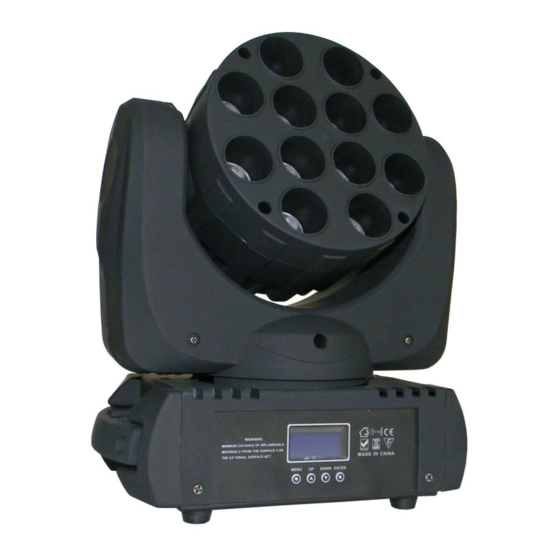

    Device overview 1. Beam output 2. Control panel with display and menu-functions 3. On/off switch 4. Fan 5. IEC power inlet 6. DMX input 7. DMX output...

  • Page 5: Setting Up The Unit

    Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. Switch the on/off switch to the ‘ON’ position, the LED movinghead will activate. Give the movinghead time to calibrate the stepping motors, which are used to determine the position of the head.
  • Page 6 Working modes: The ERO Minibeam 12 movinghead is equipped with several working modes: - Sound-active mode: The fixture will react to music with an internal microphone. The microphone sensitivity is digitally adjustable with the LCD-display and menu-buttons.
  • Page 7 Cluster 1: Blue dimmer Blue 0-100% 0-255 Cluster 1: White dimmer White 0-100% 0-255 Cluster 2: Red dimmer Red 0-100% 0-255 Cluster 2: Green dimmer Green 0-100% 0-255 Cluster 2: Blue dimmer Blue 0-100% 0-255 Cluster 2: White dimmer White 0-100% 0-255 Cluster 3: Red dimmer Red 0-100%...

  • Page 8: Installation And Maintenance

    Use proper equipment to install this fixture, as a dropping fixture may cause severe injury! Ayra is not responsible for any damage or injuries caused by improper installation.
  • Page 9 your fixture frequently by using the following checklist: - All screws must be mounted tightly. - Check all screws and metal parts for corrosion. No visible corrosion may be present. - The exterior of your fixture must be in optimal condition. Check your fixture for dents, cracks or missing parts.

  • Page 10: Technical Specifications

    Technical specifications - high power LED beam movinghead - light source: 12x RGBW 10 Watt LED module - CREE branded LED light source - expected LED lifespan: 100.000 hours - RGBW colour mixing for fluent color changes - control over four seperate LED segments for creative lighting applications and unique chase-effects - high-precision stepping motors with smooth 16-bit movement - movement speed adjustable for pan and tilt - wide movement range: 540°...
