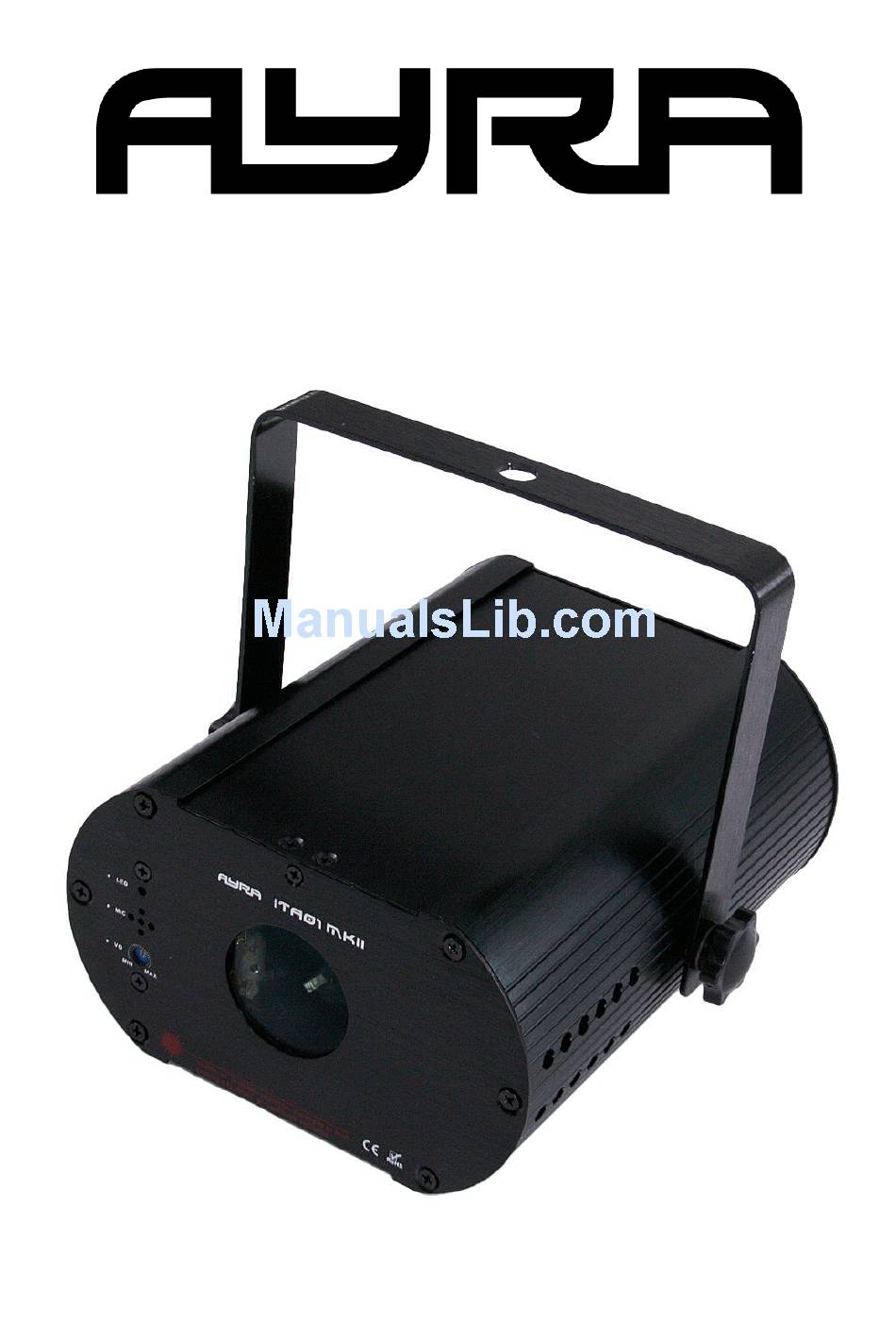

- Page 1 ITA01 MKII 130mW RGY DMX laser User manual...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
- Page 4 Guidelines for laser devices Laser diode guidelines: WARNING! This device emits powerful laser beams! Do not look directly in the laser beam to avoid possible permanent injury to eyes and skin! This is a class 3B laser product. - This device is a professional show and entertainment laser product. The device emits laser beams with a wavelength spectrum between 400 and 700 nm.
-
Page 5: Box Contents
Box contents Box contents 1x laser device 1x user manual 1x IEC to Schuko power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 6: Device Overview
Device overview Power supply: Power IN and Power OUT. Connect the device to a power supply with the provided cable. DMX in/output: When using a DMX-controller, connect the device with the supplied XLR-cable. The unit has a XLR in- and output for the distribution of DMX signals. LED indicator: LED indicator for the music-activated mode Microphone: Built-in microphone for the music-activated mode. -
Page 7: Setting Up The Device
Setting up the device - When the power supply is connected, the unit will first calibrate the stepping motors of the unit. It is normal that this may cause any noise. When the calibration is done, the unit is ready to be used (in the selected DMX, automatic or music controlled mode) - It is possible that the unit may shut off the beam projection when no music or sound is detected. - Page 8 DMX operating mode While in the DMX mode, it is possible to select the working mode of the laser. That way, you can either choose to use your own programmed presets of your DMX controller, or to activate the music activated/automatic working mode of the laser to have a fully-automatic lasershow.
-
Page 9: Technical Specifications
Technical specifications TYPE: ITA01 MKII Laser diode: - green: class 3B, 532 nm, >30 mW - red: class 3B, 650 nm, >100 mW Scan type: - stepping motors Scan motor angle: - maximum angle: +/- 25 degrees Working modes: - automatic (full-automatic laser show with built-in program) - music activated (full-automatic laser show with built-in program, responding to the beat of music) - DMX (9 channels) - input signal bandwidth: 0~5000 Hz... -
Page 10: Electrical Diagram
Electrical diagram Connectors and wiring schematics: DMX-connections: Electrical wiring:...
