Summary of Contents for Ayra ALO 060

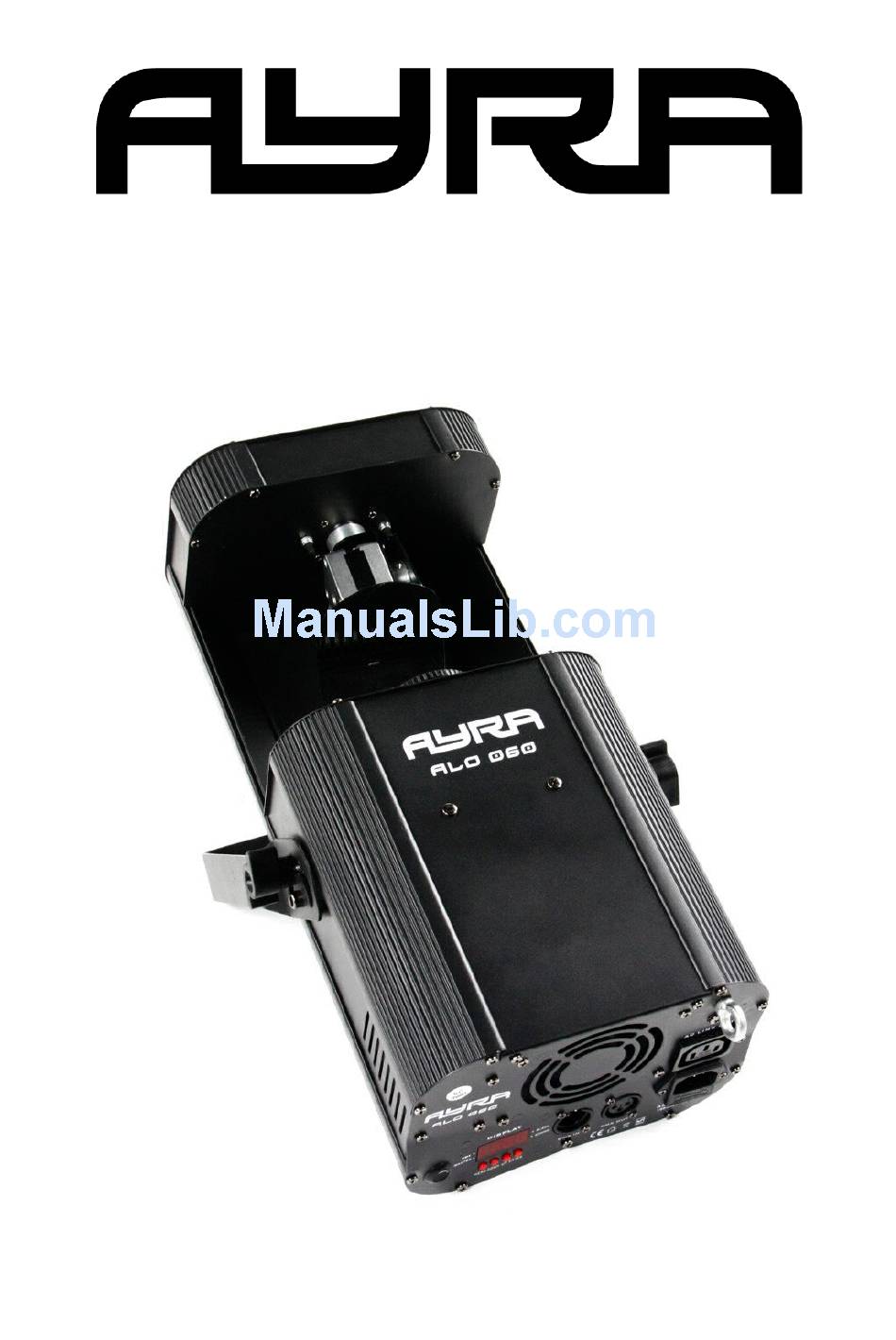

- Page 1 ALO 060 DMX LED scanner User manual...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
-
Page 4: Box Contents
Box contents Box contents 1x ALO 060 fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 5: Device Overview

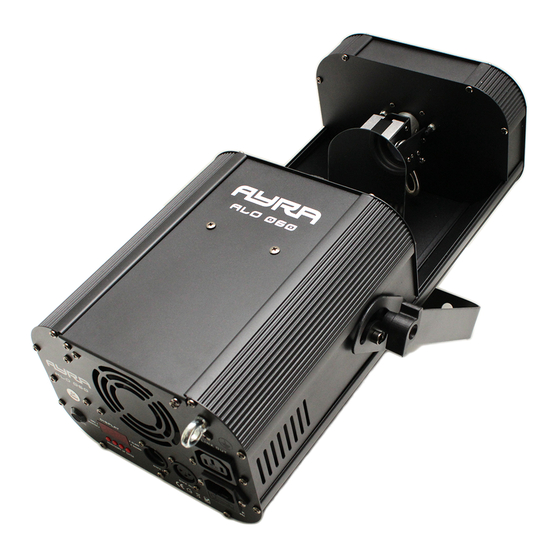

Device overview 1. Beam output 2. Adjustable bracket 3. Built-in microphone 4. DMX input (3P XLR) 5. DMX output (3P XLR) 6. Menu display with buttons 7. Safety eye 8. IEC output (Power link) 9. IEC input with fuse... -
Page 6: Setting Up The Unit
Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001. - Page 7 DMX: The ALO 060 can be connected to a DMX-controller with standard XLR – XLR cable. While doing so, a DMX- terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures.
- Page 8 8CH mode: 000-255 Pan 0°~ 180° 000 - 255 Tilt 0°~ 75° 000-007 Blackout Shutter 008-015 Open 016-131 Strobe slow to fast 132-139 Open 140-181 Slow open fast close 182-189 Open 190-231 Fast open slow close 232-239 Open 240-247 Random strobe 248-255 Open 000-014 White Color...
- Page 9 11CH Mode: 000-255 Pan 0°~ 180° 000-255 Pan Fine 000-255 Tilt 0°~ 75° 000-255 Tilt Fine 000-255 Pan/Tilt move speed Fast to slow 000 - 255 Dimmer 0 ~ 100% 000-007 Blackout Shutter 008-015 Open 016-131 Strobe slow to fast 132-139 Open 140-181 Slow open fast close 182-189 Open...
- Page 10 NOTE: The last channel in 8/11 DMX mode is also known as the A.B.C. channel, which is Advanced Blackout Control. This feature is used for theatrical applications, where movement of scanner mirrors and the change of colors/gobos does not need to be visible for the audience. For example, when changing scenery from a blue bubble-gobo on position 1 to a red tunnel gobo on position 2, it is possible that the audience sees the movement and the switching of colors/gobos, causing distraction and a messy switch of scenery.
-
Page 11: Technical Specifications
Technical specifications Powerful scanner with LED light source Light source: 60 Watt LED chip Smooth mirror movement – accurate stepping motors Pan/tilt inverse option for every working mode Seperate colour- and gobowheel 8 colours + white 8 gobos + open Rotating and indexable gobo’s Gobo shake effect Colour + gobo scroll effect...
