- Page 1 TDC Sunrise RGBAWP LED light effect User manual Any information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 28-10-2015 RV Revision date + author initials: -...
- Page 2 The TDC Sunrise makes use of a chip with 6 differently coloured LEDs in the colours red, green, blue, white, amber and purple. The chip is mounted on a motor which rotates the LEDs clockwise or counterclockwise.
-
Page 3: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electric shocks may occur! WARNING! Only connect this device to a matching power outlet. This device uses a specific AC current. Connecting it to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electric shocks! WARNING! Be careful while operating this device. - Page 4 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra cannot be held responsible for any damage or injury caused by improper use.
- Page 5 going to be serviced. Fuses: - The main fuse of this device is located inside the unit and cannot be replaced by the user. If the fuse blows for any reason, the device should be inspected by a skilled technician. Symbol clarification: WEEE: Dispose of this product properly.
-
Page 6: Box Contents
Box contents Box contents 1x Ayra TDC Sunrise LED light effect Unit and accessory inspection - If the cable appears broken or has visible damage, do not use it. - If the unit is not going to be used for a longer period of time, disconnect it from the power supply and store it in a dust-free environment. -
Page 7: Device Overview

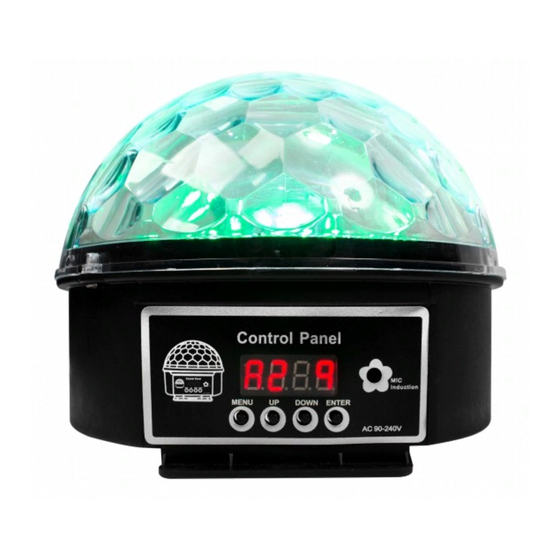

Device overview 1. Transparent dome with lens technology (also beam output) 2. DMX input (3p XLR) 3. DMX output (3p XLR) 4. mounting bracket (also on other side) 5. power cable 6. LED display with menu buttons 7. microphone sensitivity Any information and illustrations shown in this user manual are subject to change without further notice. -
Page 8: Setting Up The Unit
Master/slave mode (sync mode): Connect two or more TDC Sunrise devices with a standard 3p male to 3p female XLR cable. (Not included in delivery.) The first system will act as a master fixture, the second system will mimic the actions of the first system, thus creating synchronised effects. - Page 9 If you use the device with a separately available DMX controller, you have control over certain functions that allow for custom-made light shows and full control over all features. Choose between different colours, strobe modes, movements and the built-in macros. This unit features the following DMX channels and DMX values: 7 Channel Mode Dimmer...
-
Page 10: Installation And Maintenance
Installing the system in an upright position (right side up) The TDC Sunrise is mainly used for party lighting and can be placed directly on a flat surface such as a table or counter. Please ensure that the device is positioned safely and the power cord is installed properly. - Page 11 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve the difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section contains the most frequently encountered problems and is not a complete collection of possible faults, defects and solutions.
-
Page 12: Technical Specifications
Technical specifications versatile light effect based on LED technology 6x 1W LED chip (Red, Green, Blue, White, Amber, Purple) sound-actived operating mode (2 options) built-in microphone for sound-actived modes, responds to the beat of the music 7-channel DMX control automatic programs with various colour presets, colour changes and adjustable motor speed transparent dome with integrated lens technology projects hundreds of wide-spread, narrow beams! LED display with menu buttons compact housing with integrated mounting brackets...
