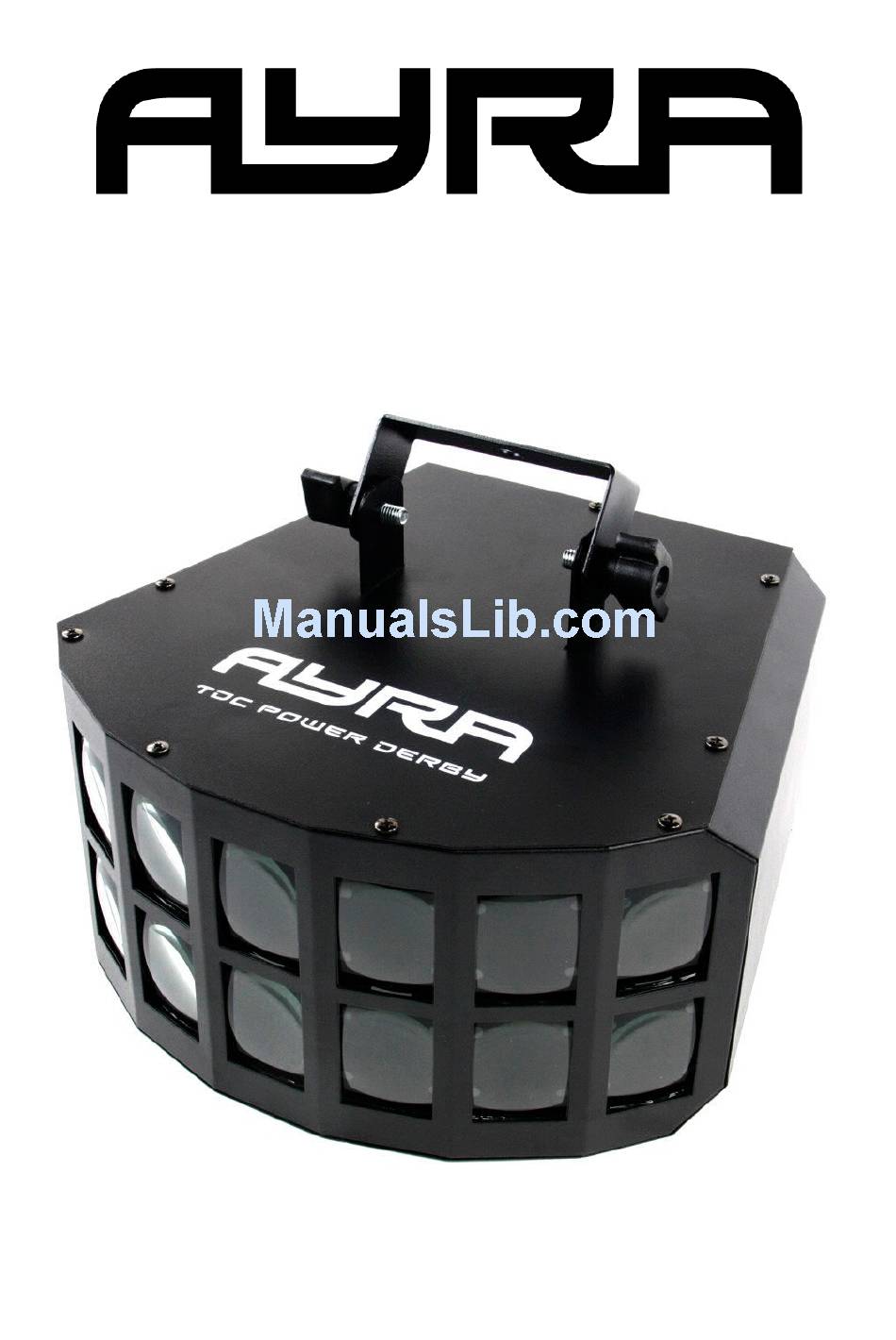

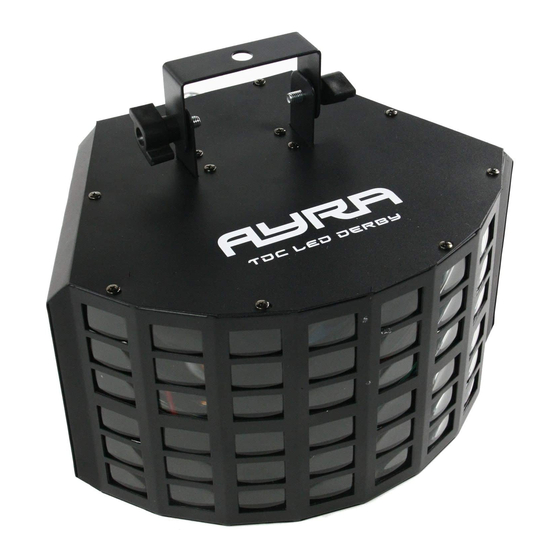

  • Page 1 TDC Power Derby DMX LED light effect User manual...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.

  • Page 4: Box Contents

    Box contents Box contents 1x TDC Power Derby fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 5: Device Overview

    Device overview 1. Beam output 2. Adjustable bracket 3. Built-in microphone 4. DMX input (3P XLR) 5. DMX output (3P XLR) 6. Menu display with buttons 7. Safety eye 8. IEC output (Power link) 9. IEC input with fuse...

  • Page 6: Setting Up The Unit

    Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001.
  • Page 7 The master/slave function requires XLR – XLR cables (not included). DMX: The TDC Power Derby can be connected to a DMX-controller with standard XLR – XLR cable. While doing so, a DMX-terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures.
  • Page 8 Color 000-255 The first green dimmer Color 000-255 The first blue dimmer Color 000-255 The first white dimmer Color 000-255 The second red dimmer Color 000-255 The second green dimmer Color 000-255 The second blue dimmer Color 000-255 The second white dimmer CH10 Motor 000-009...

  • Page 9: Technical Specifications

    Technical specifications Powerful LED derby effect High output thanks to 2x 10W RGBW LED chip Dozens of narrow, colourful and moving beams fill the room with light Razorsharp optics for intense beam projections Individual LED chip control with colour mixing, for creative colour combinations. Working modes: Automatic, music-controlled, master/slave, DMX Exciting built-in programs or full control with a DMX controller DMX operation: 1, 3, 10 channels...
