Ayra ERO Motion Heads 4RGBW-10 User Manual

Ayra ERO Motion Heads 4RGBW-10 User Manual

Moving led light effect
Hide thumbs

Advertisement

Quick Links

Download this manual
ERO Motion Heads 4RGBW-10
Moving LED Light Effect
User Manual
The information included in this user manual is subject to change at any time and without notification:
Version: 1.0
Date & Author Initials: 14-11-2023 RV
Revision Date & Author Initials: -

Advertisement

loading
Need help?

Need help?

Do you have a question about the ERO Motion Heads 4RGBW-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ayra ERO Motion Heads 4RGBW-10

Summary of Contents for Ayra ERO Motion Heads 4RGBW-10

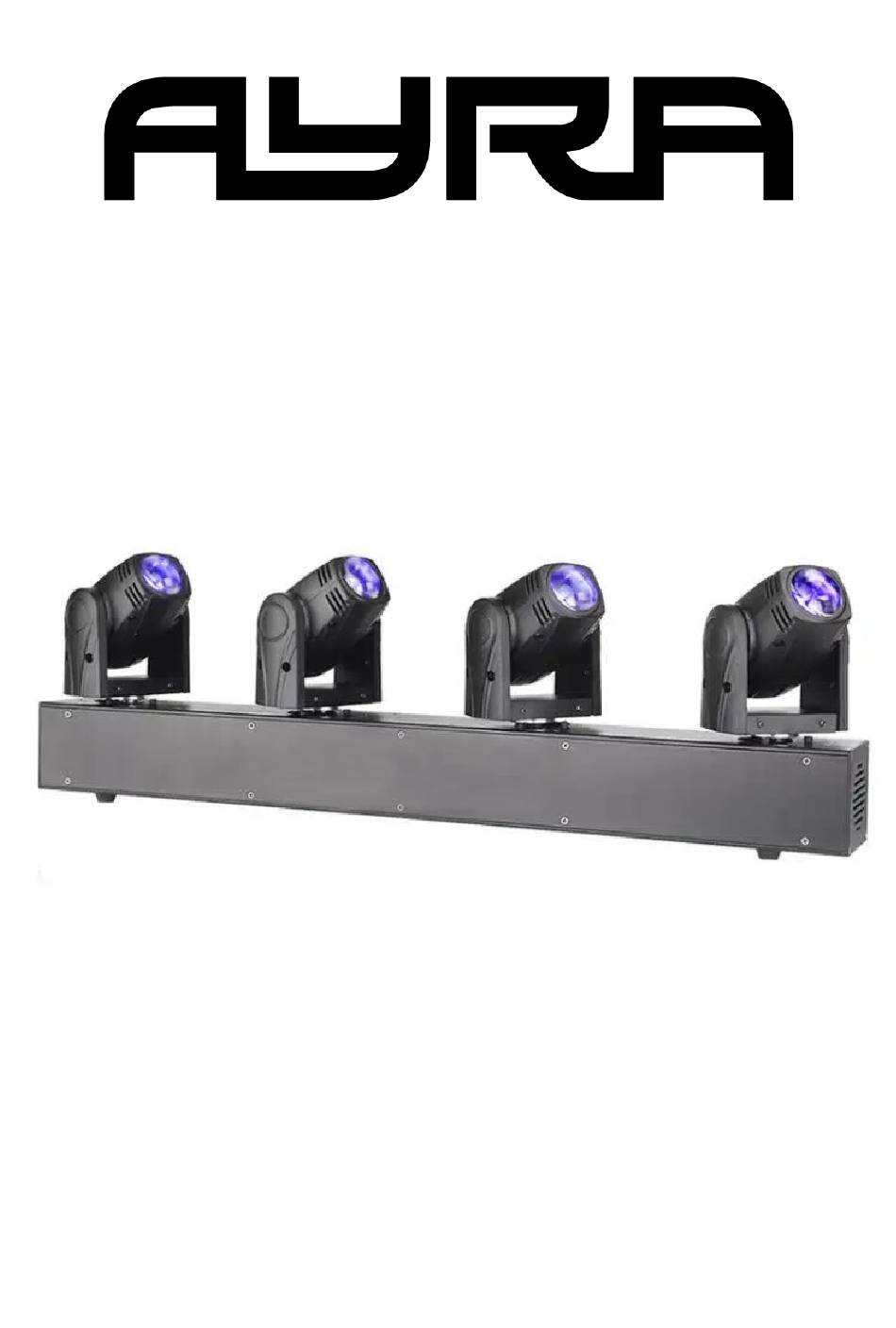

  • Page 1 ERO Motion Heads 4RGBW-10 Moving LED Light Effect User Manual The information included in this user manual is subject to change at any time and without notification: Version: 1.0 Date & Author Initials: 14-11-2023 RV Revision Date & Author Initials: -...
  • Page 2 Before unpacking the box, we recommend reading this user manual thoroughly to ensure that you are familiar with all of the features and functions that the Ayra ERO Motion Heads 4RGBW-10 has to offer. When unpacking the box, please make sure that all of the components and accessories listed below have been included.

  • Page 3: Safety Instructions

    Safety Instructions WARNING! Keep this device away from moisture, water and rain to prevent any danger of electric shocks! WARNING! This device must only be connected to a power socket that matches the specified mains voltage. If this device is connected to a power source with a different voltage, it may cause permanent damage or lead to harmful effects including fire hazards or electric shocks.
  • Page 4 - If the device is not operated in the manner described in this user manual, damages or even injuries could occur. Ayra will not be held responsible for any injuries or damages that occur as a result of improper use of this product.
  • Page 5 UKCA: The UKCA mark indicates that this product conforms to the directives and standards that this product is legally required to comply with in the United Kingdom. For indoor use only: This product was designed for indoor use only. Contact: Ayra Professional Lighting Products Verrijn Stuartweg 18 4462 GE Goes The Netherlands This is a correspondence address only.
  • Page 6 Overview & Use 1. Moving head with output lens 2. Power output (locking grey port) 3. Power input (locking blue port) + fuse compartment 4. On/Off switch 5. DMX input: 3-pin XLR 6. DMX output: 3-pin XLR 7. Safety eyelet for optional safety cable 8.

  • Page 7: Controls & Installation

    Controls & Installation Once connected to an active power outlet, the device will activate automatically. During the start-up process of the device, the step-motors of the moving heads shall fully calibrate before returning to their ‘0’ position. It is possible that the moving heads shake slightly and emit a rattling noise during this process.
  • Page 8 Firmware version Firmware version: cannot be upgraded by the user The information included in this user manual is subject to change at any time and without notification: Version: 1.0 Date & Author Initials: 14-11-2023 RV Revision Date & Author Initials: -...
  • Page 9 Please find an explanation of every function included below: ADDR: Via this function, the DMX start address of the device can be set. When the device is set to DMX channel 001, it will respond to all commands from DMX channel 1. When the device is set to DMX channel 002, it will respond to all commands from DMX channel 1, and so on.
  • Page 10 Operating Modes A more detailed description of all of the different functions that can be accessed via the menu as described above is included below: Auto: In Automatic mode, the device will respond to all pre-selected parameters at a fixed speed. In this mode, the device requires no external input i.e.
  • Page 11 188-202 Show 13 203-217 Show 14 218-232 Show 15 233-247 Show 16 248-255 Sound-controlled mode Built-in/Sound-controlled show speed 000-255 slow > fast (sound-controlled: min. > max. microphone sensitivity) LED chases / colour macros 000-030 LED chases 031-255 static colour selection (see colour macro table) LED chase speed 000-255 slow >...
  • Page 12 Dimmer red 0-100% 000-255 Dimmer green 0-100% 000-255 Dimmer blue 0-100% 000-255 Dimmer white 0-100% 000-255 Pan-movement head 1 min. > max. 000-255 Tilt-movement head 1 min. > max. 000-255 Dimmer head 1 0-100% 000-255 Pan-movement head 2 min. > max. 000-255 Tilt-movement head 2 min.
  • Page 13 031-255 static colour selection (see colour macro table) Pan-movement head 3 000-255 Fine pan-movement head 3 000-255 Tilt-movement head 3 000-255 Fine tilt-movement head 3 000-255 Max. movement speed head 3 000-255 fast > slow LED chases / colour macros head 3 000-030 LED chases 031-255 static colour selection (see colour macro table)
  • Page 14 031-255 static colour selection (see colour macro table) Operating mode selection head 1 000-007 No function 008-030 Show 1 031-053 Show 2 054-076 Show 3 077-099 Show 4 100-122 Sound-controlled mode 123-199 No function 200-224 Head auto-resets after 3-5 seconds in these values 225-255 No function Show playback speed head 1: slow >...
  • Page 15 HEAD 3 Pan-movement head 3 000-255 Fine pan-movement head 3 000-255 Tilt-movement head 3 000-255 Fine tilt-movement head 3 000-255 Max. movement speed head 3: slow > 000-255 fast Master dimmer 0-100% head 3 000-255 Strobe speed / shutter 000-010 LED ON 011-255 Strobe speed: slow >...
  • Page 16 Power Supply The Ayra ERO Motion Heads 4RGBW-10 Light Effect is equipped with a power input so that the device can be supplied with power and a power output so that the device can be chained with and pass on power to other fixtures, without the need to use more than one mains power point.
  • Page 17 When the Ayra ERO Motion Heads 4RGBW-10 is set up in a floor-standing position, make sure that it is placed on a stable surface, such as a table, DJ booth or bar. The base of the ERO Motion Heads 4RGBW-10 has been fitted with rubber feet to provide ample grip on a level surface.
  • Page 18 Cooling The Ayra ERO Motion Heads 4RGBW-10 is cooled by fans located in the main housing and in each moving head. These will activate automatically as soon as the device is switched on. Always ensure that the fans and ventilation slots are never blocked and regularly check that they are functioning properly.
  • Page 19 DMX-Lighting Problem Shooting If you happen to encounter any problems while using this unit, we recommend checking this troubleshooting section to see if a solution can be found. If none of the suggested solutions included below solve your particular problem, please contact your local retailer for further advice. This troubleshooting section includes all of the most common possible issues and is not a complete list of every possible fault, defect, and their subsequent solution.
  • Page 20 Problem Possible Cause Solution DMX terminator missing Close the DMX signal chain with a DMX terminator Signal loss or interference in the Close the DMX signal chain with a DMX signal chain terminator or connect a booster after maximum 32 fixtures. The device is not responding Incorrect DMX channel mode Check that the correct DMX...

  • Page 21: Technical Specifications

    Technical Specifications - Electronic bar mounted with x4 moving heads - Floor-standing, suspended or stand-mounted position supported - Floor-standing position via feet fitted on base - Can be suspended using brackets with twist-lock fast-couplers - Can be stand-mounted via integrated 35 mm stand-adapter - Operating modes: automatic, music-controlled, DMX - Master/slave options - Central display with menu buttons...
