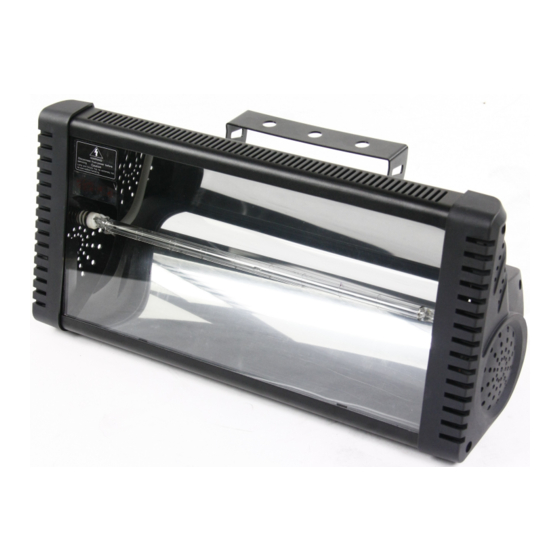

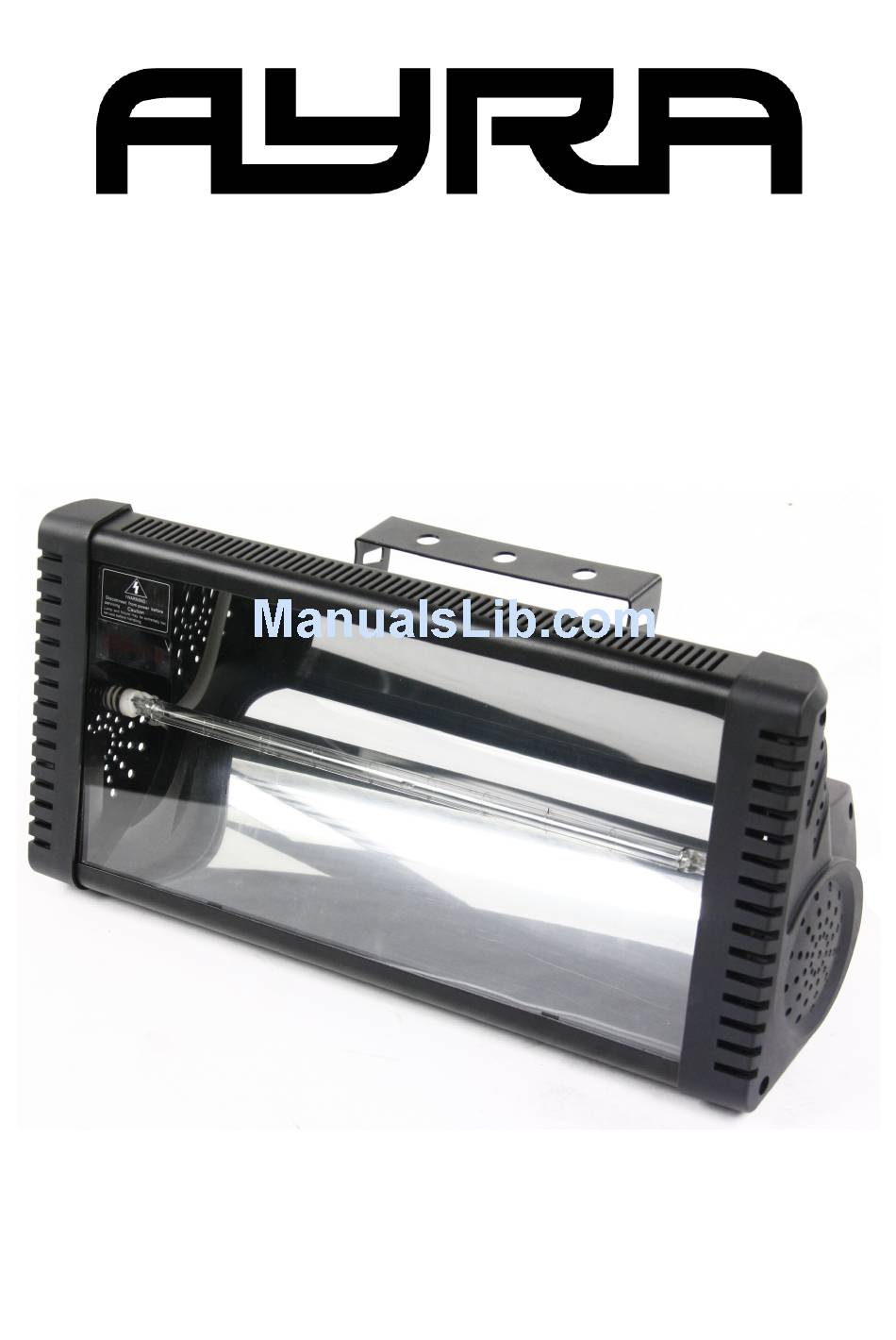

- Page 1 FLASH 1500D 1500W DMX strobe User manual...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
- Page 4 Strobe guidelines WARNING! Do not use this device when you, or anybody around you, is oversensitive for intense lighting and flashes. This device is capable of producing intense pulsating light flashes and it is therefore not recommended to use this device in the direct environment of epilepsy-patients as seizures may occur.
-
Page 5: Box Contents
Box contents Box contents 1x FLASH 1500D Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. - If the unit is not going to be used for a longer period of time, disconnect it from the power supply and store it in a dust-free environment. -
Page 6: Device Overview
Device overview 1. Strobe tube 2. Reflector 3. Ventilation slots 4. Bracket 5. Power cord + Fuse 6. Safety eye 7. Speed adjustment 8. Dimmer adjustment 9. DMX dipswitch panel 10. DMX input 11. DMX output... -
Page 7: Setting Up The Device
When you want to set the device to DMX-address 19, add dipswitch 5, 2 and 1. (16 + 2 + 1 = 19) The FLASH 1500D can be controlled with 2 DMX-channels. Each channel has its own function. DMX channel 1: Speed 0 – 512 (slow to fast) -
Page 8: Installation And Maintenance
Feet The FLASH 1500D is equipped with small feet on the bottom, making it possible to place the fixture on a flat surface, such as a table, stage etc. Never block the fan output, never place the fixture on a hot surface to prevent damage and possible injury. -
Page 9: Technical Specifications
Technical specifications 1500W DMX strobe 1500W discharge tube lamp Automatic and DMX mode built-in speed and dimmer knobs 2-channel DMX control (speed, dimmer) High quality optics and reflector for optimal strobe effect High intensity light pulses fill the room with bright lighting Hanging bracket for easy installation to a truss system, light stand, ceiling or beam Solid feet for placement on a solid surface (DJ booth, table, stage) Input voltage: 230V AC, 50 Hz (110V, 60Hz optional)
