Ayra TDC Cross User Manual

Dmx led light effect with 5 lenses
Hide thumbs
Table of Contents

Advertisement

Quick Links

DMX LED light effect with 5 lenses
User manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDC Cross and is the answer not in the manual?

Questions and answers

Related Manuals for Ayra TDC Cross

Summary of Contents for Ayra TDC Cross

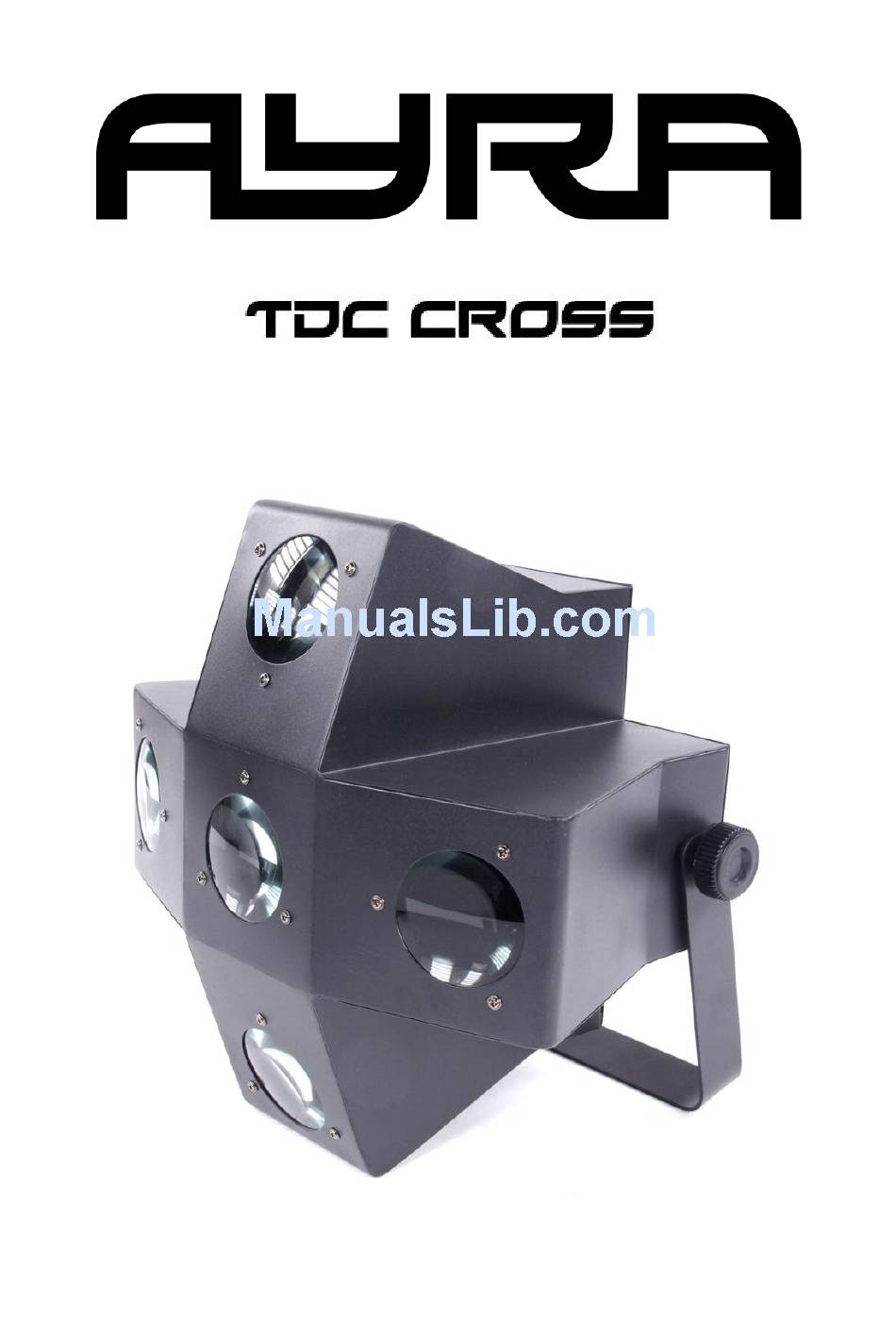

  • Page 1 DMX LED light effect with 5 lenses User manual...

  • Page 2: Safety Precautions

    WARNING: Do not look directly into the beam from a short distance. This may cause serious injury to the eyes. Ayra is not responsible for any injuries caused by incorrect use of this device. Installation requirements: - Always check the power supply to which you want to connect the device. If the voltage requirements do not meet, do not connect the device as this may cause serious damage.

  • Page 3: Box Contents

    Box contents Box contents 1x TDC Cross fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 4: Device Overview

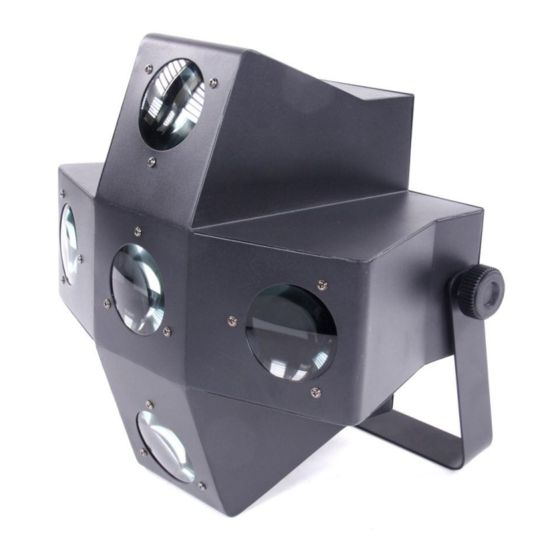

    Device overview 1. Beam output 2. Adjustable bracket 3. IEC Power inlet with integrated fuse holder 4. Control panel display with MENU, UP and DOWN buttons 5. Built-in microphone for sound active mode 6. DMX input (3P XLR) 7. DMX output (3P XLR)

  • Page 5: Setting Up The Unit

    Stand-alone mode: Shnd: This mode uses the internal programs of the unit to perform a stand-alone light show. The TDC Cross has 13 built-in programs, varying from 0 to 12. When the internal microphone is active, the unit will change the beam output on every detected beat.
  • Page 6 display ON. The DMX indicating dot will not turn off for convenience reasons. Flip display: Disp When activating this function, the LED display will flip upside-down. This might be convenient when the fixture is installed in a certain way and you need to read the values on the display. Channel mode: Chnd This mode changes the DMX channel mode between 1 and 4.
  • Page 7 Chase 14 Chase 15 Chase 16 Chase 17 Chase 18 Chase 19 Chase 20 Chase 21 Chase 22 Chase 23 Chase 24 Chase 25 Random 4 channel DMX mode Channel 1: Mode selection Start value End value Function Synchronous show Asynchronous show Sound active Channel 2: Chase selection...

  • Page 8: Installation And Maintenance

    The lenses can be cleaned with a non-aggressive glass cleaning solution, but is not recommended. Ayra recommends to clean the mirror and lens with a fine brush, while removing dust and/or dirt with a vacuum cleaner. Avoid touching the lenses with your bare fingers, to prevent fingerprints on the optics.
  • Page 9 - Electrical components (connectors and cables) must be in optimal condition. Any form of damage (cuts, exposed wire cores or any other visual deformities should not be present. If any visual or mechanical damage is detected, contact your local dealer or a specialized technician. Do not use a damaged or failing fixture.

  • Page 10: Technical Specifications

    Technical specifications LED light effect with 5 lenses Light source: 320 LEDs (80 red, 80 green, 80 blue, 40 white, 40 amber 1 or 4 DMX-channels 3-pin XLR in- and output Music controlled mode with internal microphone Microphone sensitivity adjustable through menu Working modes: music controlled, DMX, automatic, test, master/slave Power consumption: 40 Watt Fuse: T6.3A 250V 20mm glass fast blow...
