TDC 4 LED

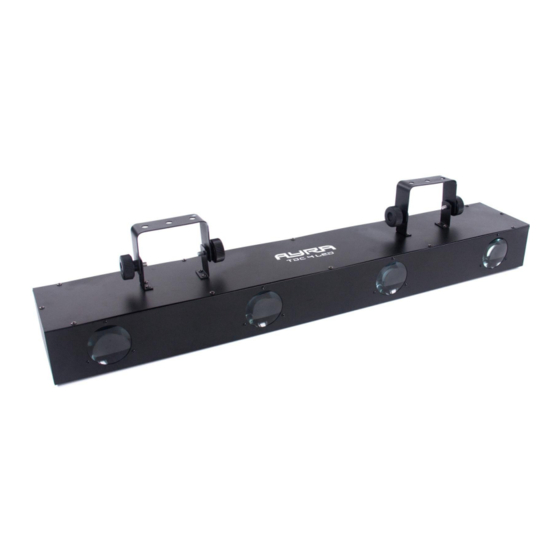

4-head DMX LED moonflower light effect
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDC 4 LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ayra TDC 4 LED

Summary of Contents for Ayra TDC 4 LED

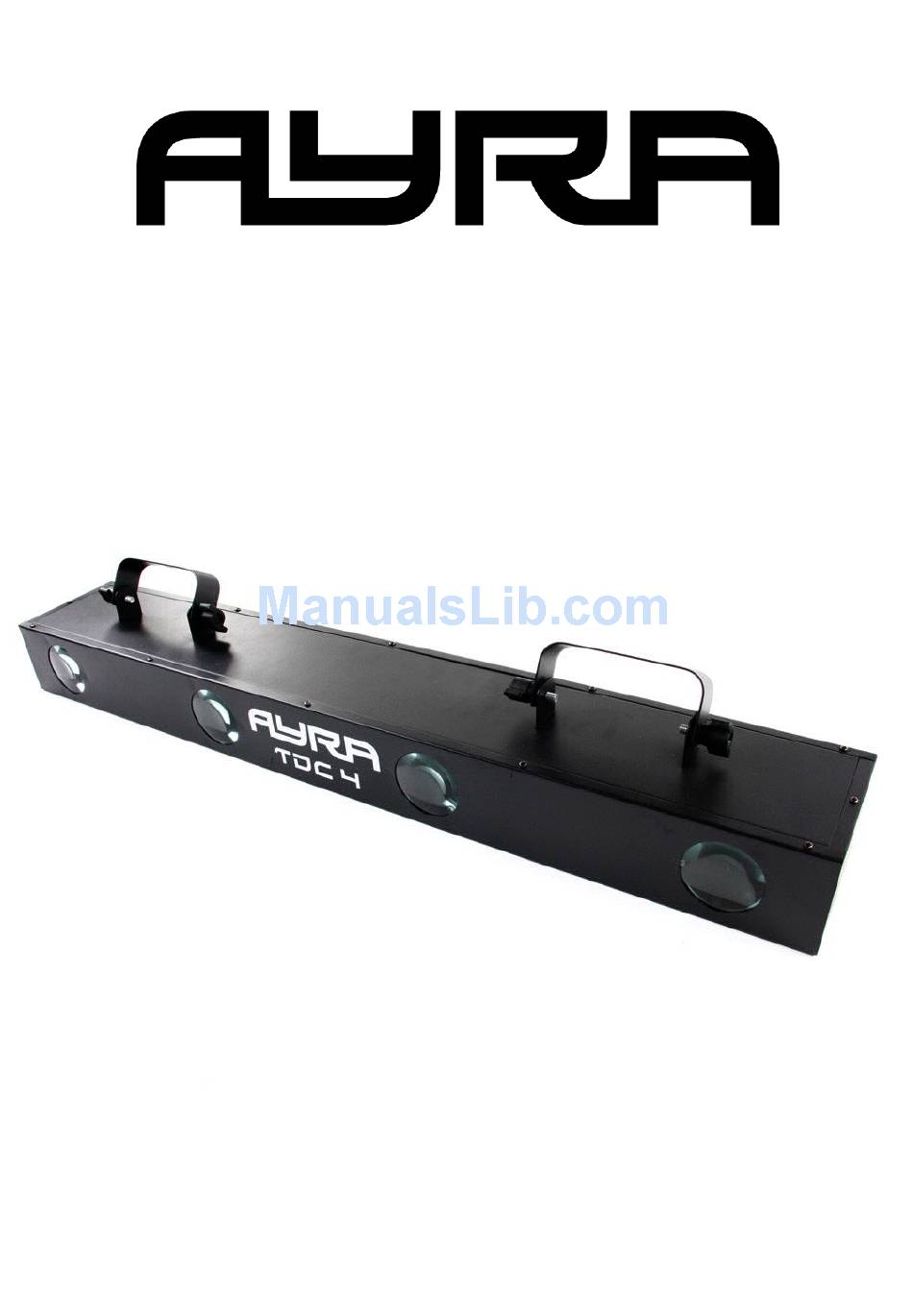

  • Page 1 TDC 4 LED 4-head DMX LED moonflower light effect User manual...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
  • Page 4 Box contents Box contents 1x TDC 4 LED fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.
  • Page 5 Device overview 1. Beam output 2. Adjustable bracket 3. IEC Power inlet (with fuse) 4. IEC Power outlet 5. Control panel display with MENU, UP and DOWN buttons 6. Built-in microphone for sound active mode 7. DMX input (3P XLR) 8.
  • Page 6 UERS: Displays the software version which is installed on the main PCB. The TDC 4 LED is equipped with several working modes, each with its own advantages. For simple events there are stand-alone modes, for advanced situations there are options to create synchronized lightshows, or...
  • Page 7 The music controlled mode is used to play a series of programs on the beat of the music. For optimal results, place the TDC 4 LED fixture close to a speaker or subwoofer. Too much distance or a lack of bass will cause the unit to freeze as it will not detect a music source.

  • Page 8: Technical Specifications

    Technical specifications LED light effect with 4 lenses Projects LED light-patterns on floors, walls and ceilings Light source: 256 LEDs, spread over 4 clusters (64 for each lens) 4 DMX-channels Auto mode with 12 internal programs and 9 speed settings Music controlled mode with internal microphone Working modes: music controlled, DMX, automatic, test, master/slave LCD-display with menu-buttons...
