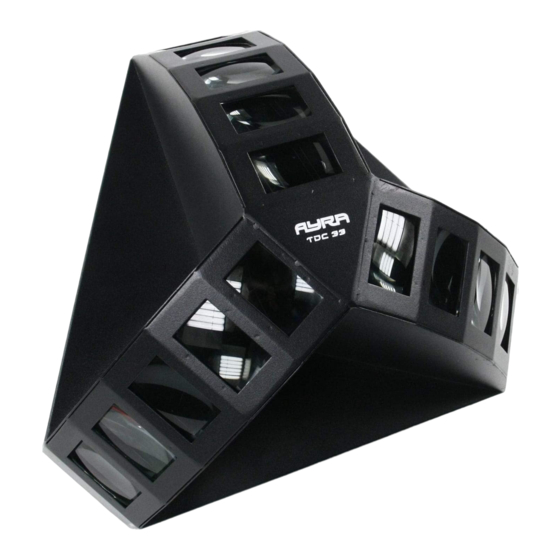

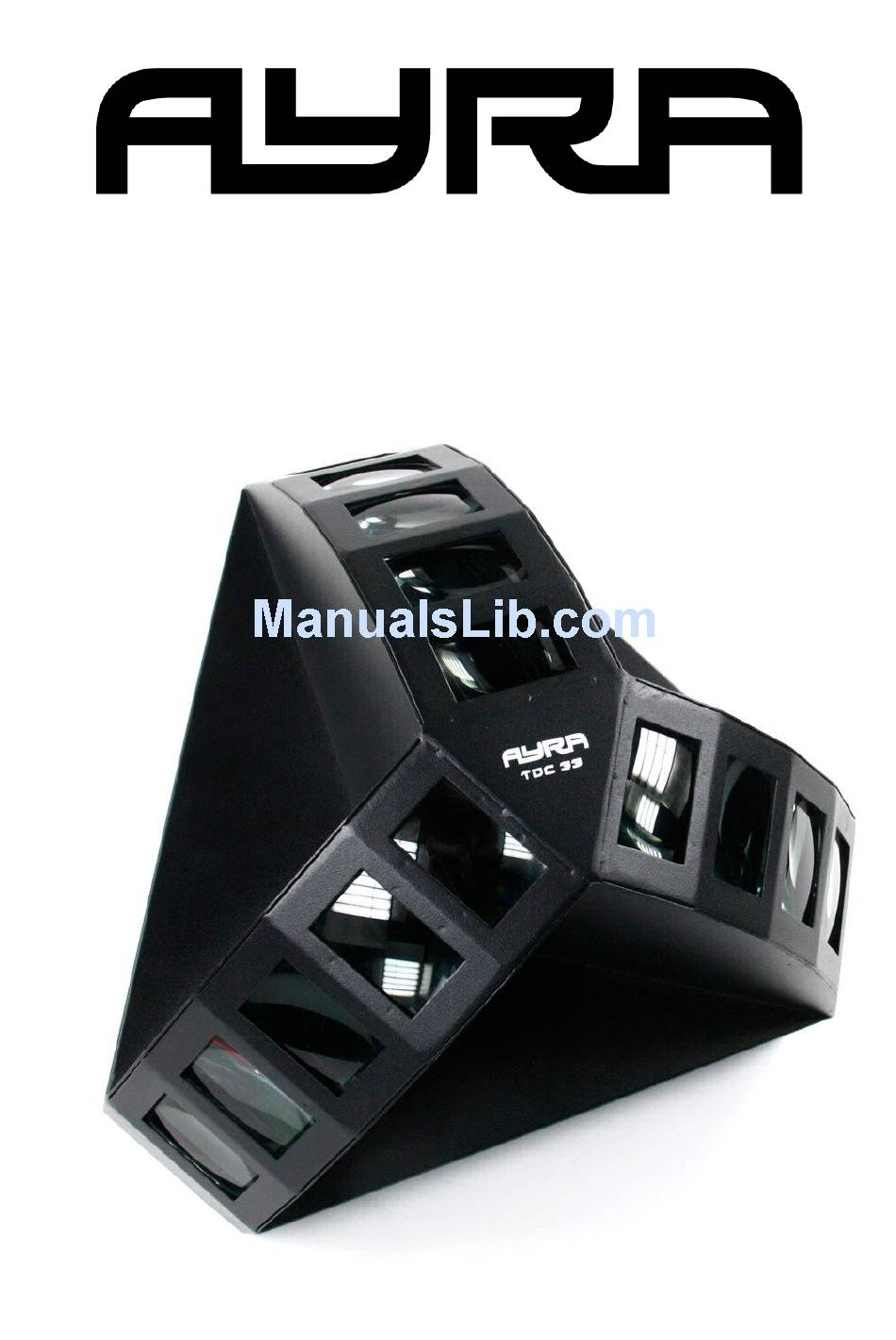

- Page 1 TDC 33 DMX LED light effect User manual...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
- Page 4 Box contents Box contents 1x TDC 33 fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.
- Page 5 Device overview 1. Beam output 2. Ventilation slots 3. Safety eye 4. DMX input 5. DMX output 6. Menu display with buttons 7. On-board microphone 8. IEC power link output 9. IEC power input with fuse 10. Adjustable bracket...
- Page 6 Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001.
- Page 7 DMX: The TDC 33 can be connected to a DMX-controller with standard XLR – XLR cable. While doing so, a DMX- terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures.
-
Page 8: Technical Specifications
Technical specifications Powerful LED light effect with wide projection angle Large coverage for projection on dance floors, mid-air, on walls or on ceilings Razorsharp beams, colourful beam projection Light source: 4x 3W LED (1x Red, 1x Green, 1x Blue, 1x White) Three lens-sections with large coverage Rotating LED system, moves the several beams for a dynamic and wild effect! Fluent dimmers for each colour + fast strobe functionality...
