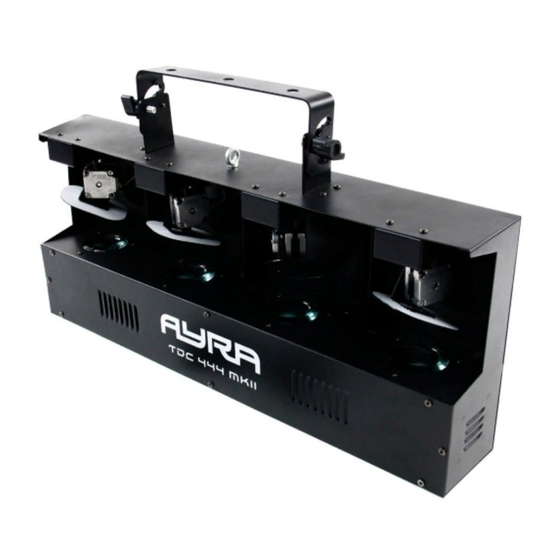

Ayra TDC 444 MKII User Manual

Dmx led light effect with 4 scan mirrors
Hide thumbs Also See for TDC 444 MKII:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

TDC 444 MKII
DMX LED light effect with 4 scan mirrors
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDC 444 MKII and is the answer not in the manual?

Questions and answers

Related Manuals for Ayra TDC 444 MKII

Summary of Contents for Ayra TDC 444 MKII

  • Page 1 TDC 444 MKII DMX LED light effect with 4 scan mirrors User manual...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.

  • Page 4: Box Contents

    Box contents Box contents 1x TDC 444 MKII fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 5: Device Overview

    Device overview 11 12 1. Moving mirror 2. Beam output 3. Adjustable bracket 4. Ventilation slots 5. IEC Power inlet with integrated fuse holder 6. IEC Power outlet (link) 7. Control panel display with MENU, UP and DOWN buttons 8. Sound sensitivity potentiometer 9.

  • Page 6: Setting Up The Unit

    Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001.
  • Page 7 Hour: The fixture shows how much hours it has been active. This is very practical for rental companies which need to perform service intervals on all fixtures after several hours of performing, to maintain optimal shape. The TDC 444 MK2 is equipped with several working modes, each with its own advantages. For simple events there are stand-alone modes, for advanced situations there are options to create synchronized lightshows, or controlled with a DMX-512 controller.
  • Page 8 12CH Mode: Black out Color mix 8-24 head 1 25-41 Green 42-57 Blue 58-74 White 75-90 Red Green 91-107 Red Blue 108-123 Red White 124-140 Green Blue 141-156 Green White 157-173 Blue White 174-189 Red Blue Green 190-206 Blue Green White 207-222 Red Blue White 223-239...

  • Page 9: Technical Specifications

    Technical specifications Unique light effect with four scanners in one device Powerful 10W RGBW 4-in-1 LED light source Intense and colourful beams Smooth mirror movement – Accurate stepping motors Seperate control for each of the four scanner systems Working modes: Automatic, music-controlled, master/slave, DMX DMX operation: 9 or 12 channels Adjustable microphone sensitivity for music-controlled mode Scan speed adjustable for the automatic mode...
