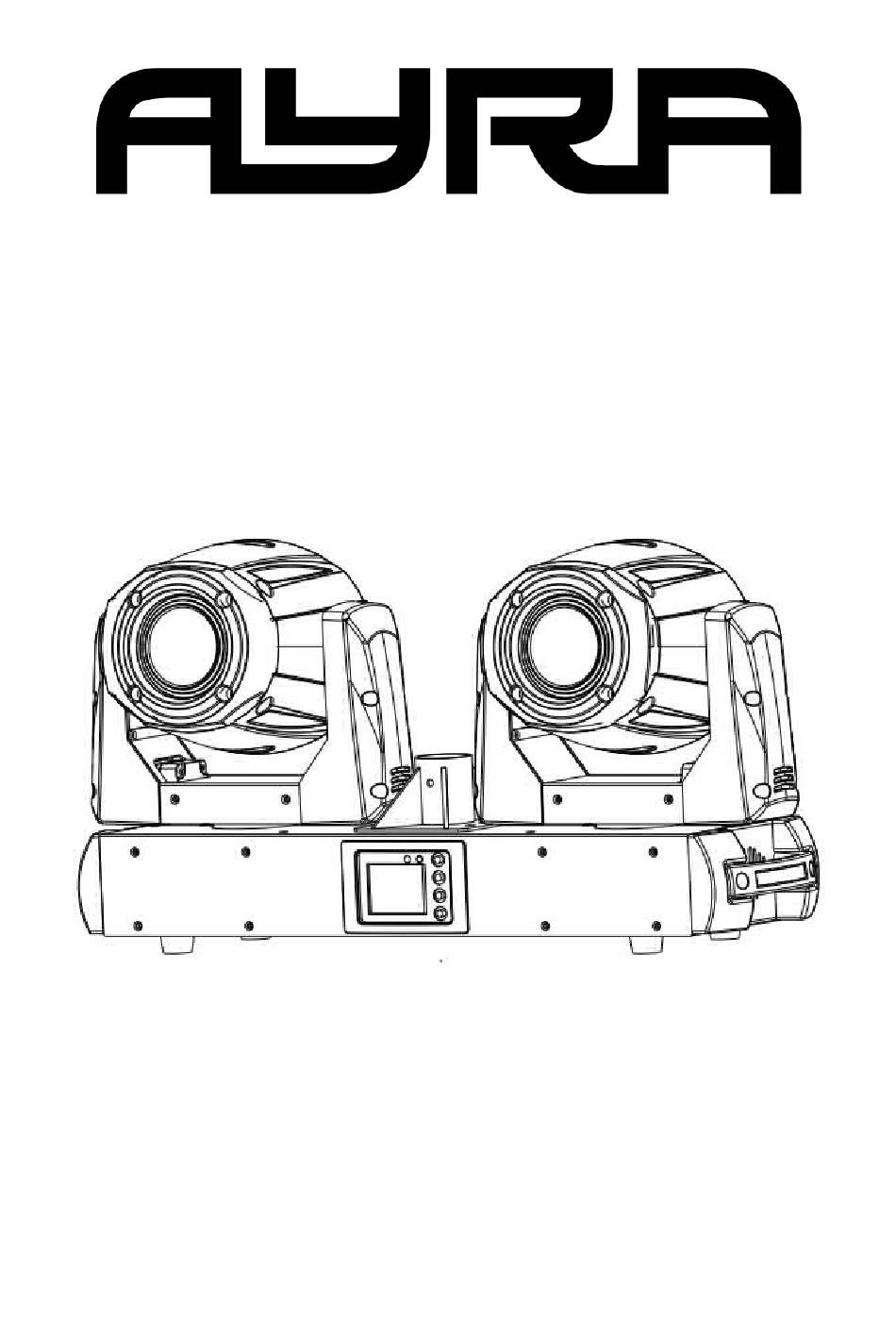

- Page 1 Vision Twins Spot (2x 75 W) Dual LED Moving Head System User Manual The information included in this user manual is subject to change at any time and without notification: Version: 1.1 Date & Author Initials: 22-03-2022 RV Revision Date & Author Initials: -...
- Page 2 Before unpacking the box, we recommend reading this user manual thoroughly to ensure that you are familiar with all of the features and functions the Vision Twins Spot has to offer. When unpacking the box, please make sure that all of the components and accessories listed below have been included. If the device does not function as it should, unplug any connected cables before contacting your local retailer for further advice.
-
Page 3: Safety Instructions
Safety Instructions WARNING! Keep this device away from moisture, water and rain to prevent any danger of electric shocks! WARNING! This device must only be connected to a power socket that matches the specified mains voltage. If this device is connected to a power socket with a different voltage, it may cause permanent damage or lead to harmful effects including fire hazards or electric shocks. - Page 4 - If the device is not operated in the manner described in this user manual, damages or even injuries could occur. Ayra will not be held responsible for any injuries or damages that occur as a result of improper use of this product.
- Page 5 United Kingdom. For indoor use only: This product was designed for indoor use only. The maximum environmental temperature must not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra Professional Lighting Products Verrijn Stuartweg 18 4462 GE Goes The Netherlands This is a correspondence address only.

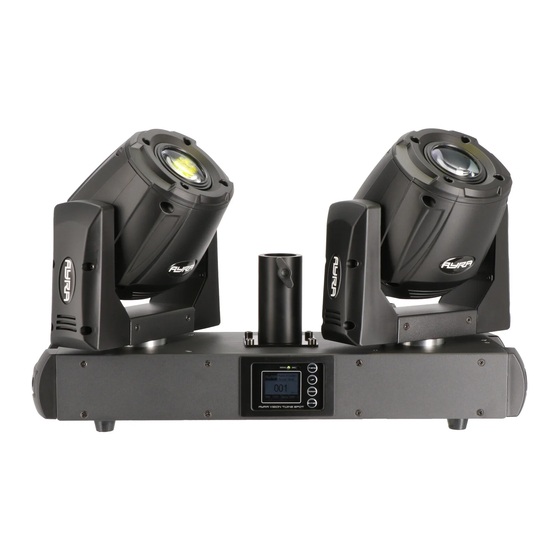

- Page 6 Overview 1. Moving head with light output via lens 2. Display with menu buttons 3. Handle 4. Legs for standing installation 5. 35mm stand mount adapter 6. Power output (link output) via white locking power socket 7. Power input via blue locking power socket 8.
-
Page 7: Setup And Operation
Set Up & Operation To test the device after unpacking it, make sure it is placed on a flat and stable surface far away from any other objects that may hinder the moving head of the device. Activate the device by plugging it into a nearby power socket and flipping the power switch into the On position. - Page 8 Reverse Tilt 1 (On / Off) Reverse Pan 2 (On / Off) Reverse Tilt 2 (On / Off) settings. Pan controls left and right movements. Select Pan (630 / 540 / 360) Tilt controls up and down movements. Select Tilt (270 / 180 / 90) Limit mode: Off / Center / Right / Left) User Interface settings, including:...
- Page 9 are not designed to continuously adjust the focus of a moving head to ensure a consistently sharp projection, simply because adjustments would have to be made constantly, as the fixture moves from one position to the next, To compensate for this, and to ensure as sharp a projection as possible at all times, Auto Focus mode can be used.
-
Page 10: Operating Modes
Operating Modes The various operation modes, accessed via the menu functions listed above, are explained in full below: Auto: In automatic mode, you can select an operating mode that is not dependent on any external equipment or factors (e.g. a DMX controller, chained master unit, or detected sound). Select one of the basic programmes, then you will be able to set parameters like the speed. - Page 11 effect, fast - slow 190 – 193: Rainbow effect stop 194 – 255: Backwards Rainbow effect, slow - fast Gobo wheel 1 (with rotating gobos) (head 000 – 009: Open (no gobo) 010 – 019: Gobo 1 020 – 029: Gobo 2 030 –...
- Page 12 075 – 089: Colour 5 090 – 104: Colour 6 105 – 119: Colour 7 120 – 127: Colour 8 128 – 189: Forward Rainbow effect, fast - slow 190 – 193: Rainbow effect stop 194 – 255: Backward Rainbow effect, slow - fast Gobo wheel 1 (with rotating gobos) (head 000 –...
- Page 13 Special functions 000 – 079: No function 080 – 084: Motor reset all motors 085 – 087: Motor reset pan and tilt 088 – 090: Colour wheel reset 091 – 093: Gobo wheel(s) reset 094 – 096: No function 097 – 099: Other motor reset (gobo rotation, prism, focus) 100 –...
- Page 14 Installation & Connection Instructions Now you know what the Vision Twins Spot is capable of and how it works, we can take a look at how it can be safely and properly installed and connected. Always ensure that children are unable to access the unit or any connected cables and ensure that any children are supervised by an adult when the unit is in use.
- Page 15 Use in Daylight/Direct Sunlight The Vision Twins Spot is fitted with various optics, including a large central lens. If direct sunlight is able to shine through the optics of the unit, there is a danger of sunlight beaming inside the unit itself. This light can be concentrated in such a way that the effect is amplified, causing damage to the interior of the unit.
- Page 16 DMX Terminator A DMX terminator is commonly placed at the end of the DMX circuit when using this unit in DMX mode. A DMX terminator places a 120 Ohm resistor between pin 2 and 3 to eliminate any data reflections. Data reflections can cause any DMX fixtures to behave strangely.
- Page 17 itself. This unit has a maximum power consumption rating of 190 Watts at almost 1 Ampere. To ensure safe operation, and to allow for a margin, it is recommended that a maximum of 14 Amperes from the first unit be passed onto the subsequent units.
- Page 18 DMX-Lighting Problem Shooting If you happen to encounter any problems while using this unit, we recommend checking this troubleshooting section to see if a solution can be found. If none of the suggested solutions included below solve your particular problem, please contact your local retailer for further advice. This troubleshooting section includes all of the most common possible issues and is not a complete list of every possible fault, defect, and their subsequent solution.
- Page 19 No DMX terminator End the DMX circuit with a DMX terminator. Signal loss or DMX circuit End the DMX circuit with a DMX malfunction terminator or connect a booster after every 32 fixtures in the circuit. The unit is performing jerking Movement is programmed at too When the moving head is set at a movements...
-
Page 20: Technical Specifications
Technical Specifications Specifications: - Versatile professional dual LED moving head system - Spot edition: Fitted with optics to deliver sharp, broad projections - Light source: 2x 75 Watt LED module - LED light source lifespan: 50,000 hours - Various operating modes (automatic, music controlled, DMX, master/slave) - 24 / 20 / 18 / 13 DMX-channels - Offset step-motor calibration Optic features &... - Page 21 Unit Feature Illustrations: Gobo and Colour Wheels Unit Dimensions (mm) Photometric Features The information included in this user manual is subject to change at any time and without notification: Version: 1.1 Date & Author Initials: 22-03-2022 RV Revision Date & Author Initials: -...
