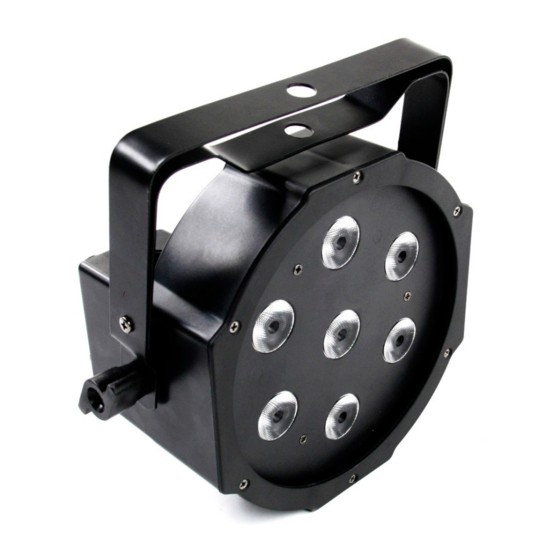

  • Page 1 ComPar 20 3-in-1 RGB LED spot User manual...

  • Page 2: Safety Instructions

    Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device.
  • Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.

  • Page 4: Box Contents

    Box contents Box contents 1x ComPar 20 fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it.

  • Page 5: Device Overview

    Device overview 1. Beam output 2. Double bracket 3. Tightening knob 4. Ventilation slot 5. On-board microphone 6. Menu display with buttons 7. IEC input with fuse 8. DMX input (3p XLR) 9. IEC outlet (link) 10. DMX output (3p XLR)

  • Page 6: Setting Up The Unit

    Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001.
  • Page 7 XLR – XLR cables (not included). DMX: The ComPar 20 can be connected to a DMX-controller with standard XLR – XLR cable. While doing so, a DMX-terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures.
  • Page 8 With the following channel assignment, it is possible to control the ComPar 20: 2CH mode: Channel Value Function 000 - 255 Master Dimmer 0-100% Dimmer 000 - 036 Red 037 - 073 Green 074 - 110 Blue 111 - 147 Yellow...

  • Page 9: Technical Specifications

    Technical specifications Powerful and compact LED fixture with RGB colour system Slimline design, easy transport and storage Light source: 7x 3W RGB LED chip Perfect colour mixing thanks to close placement of LED diodes Extensive colour palette, RGB colour mixing Create amazing colour combinations High power light source for bright and intense projection Built-in colour macro’s, automatic chase/fade shows and extensive control via DMX...
