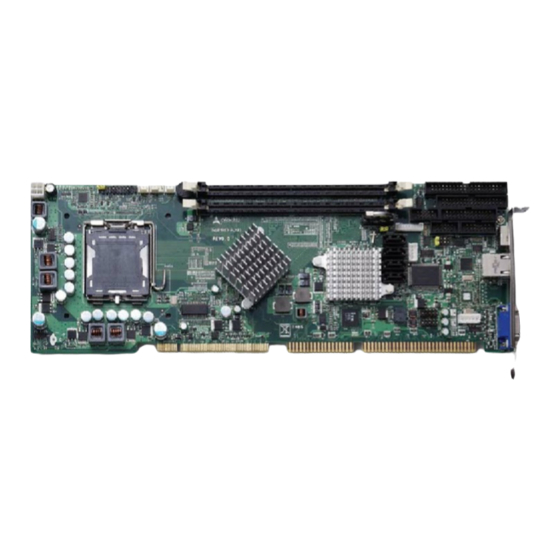

ADLINK Technology NuPRO-E330 User Manual

Picmg 1.3 system host board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Full-Size PICMG 1.3 Intel® Core™ i7/i5/i3
Manual Rev.:
Revision Date:
Part No:
Advance Technologies; Automate the World.
NuPRO-E330
Q57 Express Chipset SHB
User's Manual
2.01
January 6, 2011
50-13066-1010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NuPRO-E330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ADLINK Technology NuPRO-E330

Summary of Contents for ADLINK Technology NuPRO-E330

  • Page 1 NuPRO-E330 Full-Size PICMG 1.3 Intel® Core™ i7/i5/i3 Q57 Express Chipset SHB User’s Manual Manual Rev.: 2.01 Revision Date: January 6, 2011 Part No: 50-13066-1010 Advance Technologies; Automate the World.

  • Page 2: Revision History

    Revision History Revision Release Date Description of Change(s) 2.00 2010/05/28 Initial Release Update specifications: memory, temperature, OS support; delete IDE, Turbo Boost; correct 2.01 2011/01/06 dimensions, Floppy/Parallel connector layout, graphics card driver path...

  • Page 3: Preface

    NuPRO-E330 Preface Copyright 2010-2011 ADLINK Technology Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Chapter 2, Hardware Information: Provides technical informa- tion on connectors and jumpers for configuring the NuPRO-E330. Chapter 3, Getting Started: Illustrates how to install components on the NuPRO-E330 such as CPU, heatsink, and memory mod- ules. Chapter 4, Driver Installation: Provides information on how to install the NuPRO-E330 device drivers.
  • Page 5 NuPRO-E330 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
  • Page 6 This page intentionally left blank. Preface...

  • Page 7: Table Of Contents

    NuPRO-E330 Table of Contents Revision History..............ii Preface ..................iii List of Figures ................ xi List of Tables................ xiii 1 Introduction ................ 1 Overview................1 Features................2 Specifications............... 3 Block Diagram ..............5 Functional Description ............6 Mechanical Drawing ............9 I/O Connectivity ..............
  • Page 8 Display Driver..............36 Ethernet Driver..............37 Intel® Rapid Storage Technology ........37 Intel® Active Management Technology ......37 TPM Driver................. 38 Audio Driver ............... 38 5 BIOS Setup ................ 39 Starting the BIOS ............... 39 Main Setup................. 43 Advanced BIOS Setup ............44 5.3.1 CPU Configuration............
  • Page 9 NuPRO-E330 A Appendix: Watchdog Timer..........75 Sample Code ..............75 B Appendix: System Resources.......... 79 System Memory Map............79 Direct Memory Access Channels........79 IO Map ................80 Interrupt Request (IRQ) Lines..........81 Important Safety Instructions ..........87 Getting Service..............89...
  • Page 10 This page intentionally left blank. Table of Contents...

  • Page 11: List Of Figures

    NuPRO-E330 List of Figures Figure 1-1: NuPRO-E330 Block Diagram .......... 5 Figure 1-2: NuPRO-E330 Board Dimensions ........9 Figure 2-1: Rear Panel I/O Ports............15 Figure 2-2: Connectors and Jumpers..........18 List of Figures...
  • Page 12 This page intentionally left blank. List of Figures...

  • Page 13: List Of Tables

    NuPRO-E330 List of Tables Table 1-1: NuPRO-E330 General Specifications......4 Table 1-2: NuPRO-E330 I/O Connectivity ........10 Table 1-3: Core™ i7-860 Processor Power Consumption....11 Table 1-4: Core™ i3-540 Processor Power Consumption....12 Table 1-5: Pentium® G6950 Processor Power Consumption ..13 Table B-1: System Memory Map.............
  • Page 14 This page intentionally left blank. List of Tables...

  • Page 15: Introduction

    NuPRO-E330 Introduction 1.1 Overview The ADLINK NuPRO-E330 is a PICMG 1.3 System Host Board (SHB) supporting the next-generation Intel® Core™ i7/i5/i3 and Pentium® processors in LGA1156 package to deliver a scalable high performance platform for a wide array of industrial applications.

  • Page 16: Features

    1.2 Features Supports Intel® Core™ i7/i5/i3 and Pentium® processors in LGA1156 package Integrated Intel® HD Graphics on dual core 32nm (Clarkdale) processors PCI Express® x16 expansion capability via backplane Mini Card slot Express Dual Gigabit Ethernet 9x USB 2.0 ports (1x on bracket, 4x onboard, 4x on backplane) 6x SATA 3 Gb/s ports (4x onboard, 2x on backplane) 6x COM ports (including 1x RS-232/422/485/485+) Watchdog Timer, Hardware Monitor...

  • Page 17: Specifications

    NuPRO-E330 1.3 Specifications System Intel® Core™ i7/i5/i3 and Pentium® Dual Core processors in LGA1156 package: • Intel® Core™ i7-860 Processor, 2.80 GHz, 8M Cache, 45nm, 95W, 4 cores/8 threads • Intel® Core™ i5-750 Processor, 2.66 GHz, 8M Cache, 45nm, 95W, 4 cores/4 threads •...

  • Page 18: Table 1-1: Nupro-E330 General Specifications

    Dimensions • 338 x 126 mm (L x W) Operating Temp. • 0ºC to 60ºC Storage Temp. • -20ºC to 80ºC Relative Humidity • 10% to 90% non-condensing Safety • CE, FCC Class A Table 1-1: NuPRO-E330 General Specifications Introduction...

  • Page 19: Block Diagram

    Intel 82578DM PCIe x1 SATA ports Controller SATA (4x onboard, 2x backplane) Intel 82574L USB 2.0 (1x bracket, 4x onboard, 4x backplane) PCIe Mini Card BIOS KB/Mouse LPT/FDD ITE IT8783F Super I/O RS-232 RS-232/ 422/485/485+ Figure 1-1: NuPRO-E330 Block Diagram Introduction...

  • Page 20: Functional Description

    1.5 Functional Description Processor Support The NuPRO-E330 is a single processor design for the latest Intel Clarkdale (32nm) and Lynnfield (45nm) processors in LGA1156 socket (Intel® Core™ i7/i5/i3, Pentium® G6950). An integrated memory controller supports dual channel 1066/1333 MHz DDR3 and integrated Intel®...
  • Page 21 NuPRO-E330 Serial ATA The NuPRO-E330 provides six Serial ATA ports with data transfer rates of up to 3.0 GB/s. Intel® Rapid Storage Technology supports AHCI and RAID 0/1/5/10 functionality. Universal Serial Bus (USB) 2.0 The NuPRO-E330 provides nine USB 2.0 ports supporting trans- fer speeds up to 480 Mbps.
  • Page 22 Intel® Active Management Technology Intel® Active Management Technology (Intel® AMT) is hard- ware-based technology for remotely managing and securing PCs out-of-band. Intel® AMT includes hardware-based remote man- agement, security, power-management, and remote-configuration features. Intel® AMT allows remote access to a system when tra- ditional techniques and methods are not available.

  • Page 23: Mechanical Drawing

    NuPRO-E330 1.6 Mechanical Drawing Dimensions in mm Figure 1-2: NuPRO-E330 Board Dimensions Introduction...

  • Page 24: I/O Connectivity

    Parallel port — — — Floppy port — — — SATA — — PCIe x4 — — — PCIe x16 — — — PCIe Mini Card — — — PCI 32bit/33MHz — — — Table 1-2: NuPRO-E330 I/O Connectivity Introduction...

  • Page 25: Power Consumption

    NuPRO-E330 1.8 Power Consumption Intel® Core™ i7-860 Processor, 2.80 GHz Test Configuration Intel® Core™ i7-860 Processor, 2.80 GHz (4 cores) Unigen MUUUDM8000ACELPAA DDR3 1333MHz Memory 2x 1GB in 2 DIMM slots Graphics mPCIe-8770 PCIe Mini Card VGA graphics SATA Channel 1 Seagate Barracuda 7200.10 160GB...

  • Page 26: Table 1-4: Core™ I3-540 Processor Power Consumption

    Intel® Core™ i3-540 Processor, 3.06 GHz Test Configuration Intel® Core™ i3-540 Processor, 3.06 GHz (2 cores) Unigen MUUUDM8000ACELPAA DDR3 1333MHz Memory 2x 1GB in 2 DIMM slots Graphics Integrated on CPU SATA Channel 1 Seagate Barracuda 7200.10 160GB Power Supply LEMACS HG2-6350P 350W Backplane ADLINK EBP-5E1...

  • Page 27: Table 1-5: Pentium® G6950 Processor Power Consumption

    NuPRO-E330 Intel® Pentium® G6950 Processor, 2.80 GHz Test Configuration Intel® Pentium® G6950 Processor, 2.80 GHz (2 cores) Unigen MUUUDM8000ACELPAA DDR3 1333MHz Memory 2x 1GB in 2 DIMM slots Graphics Integrated on CPU SATA Channel 1 Seagate Barracuda 7200.10 160GB Power Supply...

  • Page 28: Package Contents

    COM cable with bracket (2.54mm pitch) x1 ADLINK All-in-One Driver DVD User’s manual The NuPRO-E330 must be protected from static discharge and physical shock. Never remove any of the socketed parts except at a static-free workstation. Use the anti-static bag shipped with WARNING: the product to handle the board.

  • Page 29: Hardware Information

    NuPRO-E330 Hardware Information This chapter provides information on the NuPRO-E330 board lay- out, connector pin assignments, and jumper settings. 2.1 Rear Panel I/O Ports Figure 2-1: Rear Panel I/O Ports Connector Description PS/2 KB/MS port Connects PS/2 mouse and keyboard via Y cable LAN2 port (RJ-45) Gigabit Ethernet LAN1 port (RJ-45) Gigabit Ethernet (supports Intel®...
  • Page 30 LAN (RJ-45) Ports 10BASE-T/ Pin # 1000BASE-T 100BASE-TX BI_DA+ BI_DA- LED1 LED2 BI_DB+ BI_DC+ BI_DC- BI_DB- BI_DD+ BI_DD- Refer to the table below for the LAN port LED definitions. LED1 LED2 Status Description Status Description No Link 10 Mb connection Linked Green 100 Mb connection...

  • Page 31: Vga Port

    NuPRO-E330 VGA Port Pin # Signal Green Blue Ground Ground Ground Ground +5 V Ground DDC DAT HSYNC VSYNC DDC CLK Hardware Information...

  • Page 32: Board Layout

    2.2 Board Layout 8 9 10 11 12 13 14 Figure 2-2: Connectors and Jumpers Connector Description ATX 12V Power connector DIMM1/2 DDR3 DIMM slots FAN2 FAN2 connector FAN1 FAN1 connector System Panel pin header CN7/8/10/11 SATA connectors Parallel Port connector CN13 COM6 connector CN14...

  • Page 33: Onboard Connectors

    NuPRO-E330 2.3 Onboard Connectors System Panel Connector (CN1) Connects to chassis-mounted buttons, speakers, and LEDs. Pin # Signal Function Pin Group WDSPK Speaker signal Chassis Speaker Power Ground Key Lock KEYLOCK Keyboard lock PLED Power LED signal Power LED Power LED pull-up...
  • Page 34 Parallel Port Connector (CN2) Pin # Signal Pin # Signal Line Printer Strobe Auto-Feed Parallel Data 0 Error Parallel Data 1 Initialize Parallel Data 2 Select Parallel Data 3 Ground Parallel Data 4 Ground Parallel Data 5 Ground Parallel Data 6 Ground Parallel Data 7 Ground...
  • Page 35 NuPRO-E330 Floppy Disk Drive Connector (CN3) Pin # Signal Pin # Signal Extended Density No Connect Index Motor A Select Drive A Select Step Direction Step Pulse Write Data Write Gate Track 0 Write Protect Read Data FDD Head Select...
  • Page 36 COM Connector (RS-232) (CN5/6/13/14/17/18) Pin # RS-232 Signal COM1 Connector (RS-422/485/485+) (CN6) Pin # RS-422/485+ RS-485 TXD- Data- TXD+ Data+ RXD+ RXD- Note: See “COM1 Mode Jumper Settings (JP1-4)” on page 25. COM1 COM2 COM3 COM4 COM5 COM6 Connector CN18 CN17 CN14 CN13...
  • Page 37 NuPRO-E330 Serial ATA Connectors (CN7/8/10/11) Pin # Signal HD Audio Daughter Board Connector (CN12) This connector is designed for use with the ADLINK DB-Audio2 daughter board. Pin # Signal Function Ground AUD_BCLK Audio Clock Ground ICH_AUD_SDIN1 Audio Data Input + 5V...
  • Page 38 External Keyboard Connector (CN25) Pin # Signal Function KBCLK Keyboard Clock KBDATA Keyboard Data — Power +5 V Power Fan Connectors (FAN1/2) Pin # Signal Fan power (+12V) Fan Tachometer Fan Speed Control PCIe Mini Card VGA Connector (JP6) This header is connected to the optional mPCIe-8770 to provide graphics output to the VGA connector on the rear panel.

  • Page 39: Jumpers

    NuPRO-E330 2.4 Jumpers Clear CMOS (JBAT1) The CMOS RAM data contains the date / time and BIOS setting information. CMOS is powered by the onboard button cell battery. To erase the CMOS RAM data: 1. Power down and disconnect power from the system.
  • Page 40 This page intentionally left blank. Hardware Information...

  • Page 41: Getting Started

    This chapter provides information on how to install components on the NuPRO-E330 SHB. 3.1 Installing the CPU The NuPRO-E330 supports an Intel® Core™ i7/i5/i3 or Pentium® processor in an LGA1156 socket. Disconnect all power to the board before installing a CPU to prevent damaging the board and CPU.
  • Page 42 2. Raise the locking arm to unlock the load plate. 3. Lift the load plate to uncover the socket. 4. Remove the plastic protective cover from the socket. Note the locations of the alignment keys (A) and Pin 1 indicator (B). DO NOT touch socket contacts.
  • Page 43 NuPRO-E330 5. Hold the CPU using thumb and forefinger as shown. Position the CPU over the socket, matching the notches on the sides of the CPU with the alignment keys on the socket (A). The golden triangle on the CPU must be positioned at the corner of the socket with the Pin 1 indi- cator as shown (B).
  • Page 44 7. Gently lower the load plate. Make sure the front edge of the plate is under the screw as indicated. 8. Lower the locking arm and fasten it to the retention tab (A). The load plate should be locked underneath the screw as shown (B)..

  • Page 45: Installing The Cpu Fan And Heatsink

    NuPRO-E330 3.2 Installing the CPU Fan and Heatsink The CPU requires a chassis with an airflow inlet and maximum internal ambient temperature of 50° C. A especially-designed CPU fan and heatsink must be installed before using the SHB. CAUTION: Failure to install a CPU fan and heatsink may damage the sys- tem host board and/or the CPU.

  • Page 46: Installing Memory Modules

    3.3 Installing Memory Modules The NuPRO-E330 supports up to 8 GB of DDR3 1066/1333 MHz memory modules in two DIMM sockets. A DDR3 module has a 240-pin footprint compared to the legacy 184-pin DDR DIMM. DDR3 modules are notched to facilitate correct installation in the DIMM sockets.
  • Page 47 NuPRO-E330 3. Align the memory module on the socket making sure that the notch matches the break on the socket. Notch Break 4. Insert the module firmly into the slot until the retaining clips snap back inwards and the module is securely seated.
  • Page 48 This page intentionally left blank. Getting Started...

  • Page 49: Driver Installation

    NuPRO-E330 Driver Installation This chapter provides information on how to install the NuPRO-E330 device drivers under Windows XP. The device drivers are located in the following ADLINK All-in-One DVD directories: Chipset \NuPRO\NuPRO-E330\Chipset\ Display \NuPRO\NuPRO-E330\VGA\ \Add-On Card\mPCIe-8770\ Ethernet \NuPRO\NuPRO-E330\Ethernet\ \NuPRO\NuPRO-E330\TPM\ .Net Framework \NuPRO\NuPRO-E330\Others\...

  • Page 50: Display Driver

    VGA_driver_Intel_Integrated_Graphics_Windows20 00_WinXP_v6.14.10.5101.zip. 2. Run the program setup.exe and follow the onscreen instructions. Restart the system if prompted. 3. Locate the directory X:\NuPRO\NuPRO-E330\Others\ on the ADLINK All-in-One DVD, and extract the file Microsoft_Net_Framework_v3.5_SP1.exe from the following archive: Microsoft_Net_Framework_v3.5_SP1.zip 4. Run the program Microsoft_Net_Framework_v3.5_SP1.exe and follow the...

  • Page 51: Ethernet Driver

    4.5 Intel® Rapid Storage Technology Utility Follow these instructions to install the Intel® Rapid Storage Technology utility. 1. Locate the directory X:\NuPRO\NuPRO-E330\Others\ on the ADLINK All-in-One DVD, and extract the file setup.exe from the following archive: Intel_Rapid_Storage_Technology_All_WinOS_v9.5.0.1037. zip. 2. Run the program setup.exe and follow the onscreen instructions.

  • Page 52: Tpm Driver

    4.6 Intel® Active Management Technology Follow these instructions to install the Intel® Active Management Technology driver. 1. Locate the directory X:\NuPRO\NuPRO-E330\Others\ on the ADLINK All-in-One DVD, and extract the file setup.exe from the following archive: iAMT_Intel_Management_Engine_Interface_SOL_driver_ All_WinOS_v6.0.0.1195.zip. 2. Run the program setup.exe and follow the onscreen instructions.

  • Page 53: Bios Setup

    NuPRO-E330 BIOS Setup The following chapter describes basic navigation for the AMIBIOS®8 BIOS setup utility. 5.1 Starting the BIOS To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press the < Delete > key on your keyboard when you see the following text prompt: <...
  • Page 54 Setup Menu The main BIOS setup menu is the first screen that you can navi- gate. Each main BIOS setup menu option is described in this user’s guide. The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured.
  • Page 55 NuPRO-E330 Note: There is a hot key legend located in the right frame on most setup screens. The < F8 > key on your keyboard is the Fail-Safe key. It is not dis- played on the key legend by default. To set the Fail-Safe settings of the BIOS, press the <...
  • Page 56 The < F10 > key allows you to save any changes you have made and exit Setup. Press the < F10 > key to save your changes. The following screen will appear: Press the < Enter > key to save the configuration and exit. You can also use the <...

  • Page 57: Main Setup

    NuPRO-E330 5.2 Main Setup When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by select- ing the Main tab. There are two Main Setup options. They are described in this section.

  • Page 58: Advanced Bios Setup

    5.3 Advanced BIOS Setup Select the Advanced tab from the setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as SuperIO Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <...

  • Page 59: Cpu Configuration

    NuPRO-E330 5.3.1 CPU Configuration MPS and ACPI MADT Ordering Multi-Processing and ACPI functions support. Modern ordering is for Windows XP or later operating systems. Legacy ordering is for Windows 2000 or earlier operating systems. Max CPUID Value Limit Enable this option to allow compatibility with older operating systems.
  • Page 60 A20M A20M# asserted low forces bit 20 of the physical address to be zero for all on-chip cache or external memory accesses. Leg- acy operating systems and APs may need A20M enabled. Intel® C-STATE Tech C-states are processor power states within the S0 system state that provide for various levels of power savings.

  • Page 61: Ide Configuration

    NuPRO-E330 5.3.2 IDE Configuration Configure SATA as Options: IDE, RAID, AHCI, Disabled SATA#1 IDE Configuration When running in Compatible mode, SATA channels 1, 2, 3 and 4 can be configured as legacy IDE channels. SATA#2 IDE Configuration When running at compatible mode, SATA channels 5 and 6 can be configured as legacy IDE channels.

  • Page 62: Super Io Configuration

    5.3.3 Super IO Configuration OnBoard Floppy Controller Select this option to Enable or Disable the onboard floppy con- troller. Serial Port1-6 Address/IRQ Specifies the serial port addresses. The options are: Port1-2: 3F8, 2F8, 3E8, 2E8, Disabled Port3-6: 3F8, 2F8, 3E8, 2E8, 2F0, 2E0, Disabled IRQ settings are fixed as shown.

  • Page 63: Hardware Health Configuration

    NuPRO-E330 5.3.4 Hardware Health Configuration This option displays the current status of all of the monitored hard- ware devices/components such as voltages and temperatures. The options are Enabled and Disabled. Fan 1/2 Mode Setting Three modes are provided for each fan: Full On mode, Automatic mode, and PWM Manually mode.
  • Page 64 Automatic Mode Temperature 1 Limit of OFF When the temperature (°C) is higher than the set value, Fan1/2 will run at Start PWM speed. When the temperature is lower than the set value, Fan1/2 will stop. Temperature 1 Limit of Start When the temperature (°C) is higher than the set value, Fan1/2 will increase its speed by Slope PWM 1 value.
  • Page 65 NuPRO-E330 PWM Manually Mode Fan 1/2 PWM Control Sets a value to control the fan speed. Minimum is 0 and Maxi- mum is 127. BIOS Setup...

  • Page 66: Acpi Settings

    5.3.5 ACPI Settings Suspend Mode Allows you to select the ACPI state to be used for system sus- pend. Options: Auto, S1, and S3. BIOS Setup...

  • Page 67: Ahci Configuration

    NuPRO-E330 5.3.6 AHCI Configuration You can use this screen to select options for the AHCI Settings. Use the up and down < Arrow > keys to select an item. Use the < + > and < - > keys to change the value of the selected option.

  • Page 68: Remote Access Configuration

    5.3.7 Remote Access Configuration Remote access configuration provides the settings to allow remote access by another computer to get POST messages and send commands through serial port access. Remote Access Select this option to Enable or Disable the BIOS remote access feature.
  • Page 69 NuPRO-E330 Serial Port Mode Select the baud rate you want the serial port to use for console redirection. The options are 115200 8,n,1; 57600 8,n,1; 19200 8,n,1; and 09600 8,n,1. Flow Control Set this option to select Flow Control for console redirection.

  • Page 70: Trusted Computing

    5.3.8 Trusted Computing Trusted computing is an industry standard to make personal com- puters more secure through a dedicated hardware chip, called a Trusted Platform Module (TPM). This option enables or disables the TPM support. BIOS Setup...

  • Page 71: Usb Configuration

    NuPRO-E330 5.3.9 USB Configuration Legacy USB Support Legacy USB Support refers to USB mouse and keyboard sup- port. Normally if this option is not enabled, any attached USB mouse or USB keyboard will not become available until a USB compatible operating system is fully booted with all USB driv- ers loaded.
  • Page 72 USB 2.0 Controller Mode The USB 2.0 Controller Mode configures the data rate of the USB port. The options are FullSpeed (12 Mbps) and HiSpeed (480 Mbps). Legacy USB 1.1 HC Support Enables/disables legacy USB 1.1 host controller support. USB Mass Storage Device Configuration This is a submenu for configuring the USB Mass Storage Class Devices when BIOS finds they are in use on USB ports.

  • Page 73: Pci/Pnp Settings

    NuPRO-E330 5.4 PCI/PnP Settings Select the PCI/PnP tab from the setup screen to enter the Plug and Play BIOS Setup screen. You can display a Plug and Play BIOS Setup option by highlighting it using the < Arrow > keys. The Plug and Play BIOS Setup screen is shown below.

  • Page 74: Boot Settings

    5.5 Boot Settings Select the Boot tab from the setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Device Priority, to go to the sub menu for that item.
  • Page 75 NuPRO-E330 Quick Boot Enabling this setting will cause the BIOS power-on self test routine to skip some of its tests during bootup for faster system boot. Quiet Boot When this feature is enabled, the BIOS will display the full- screen logo during the boot-up sequence, hiding normal POST messages.

  • Page 76: Boot Device Priority

    5.5.2 Boot Device Priority The items allow you to set the sequence of boot devices where BIOS attempts to load the disk operating system. First press <Enter> to enter the sub-menu. Then you may use the arrow keys to select the desired device, then press <+>, <-> or <PageUp>, <PageDown>...

  • Page 77: Security Setup

    NuPRO-E330 5.6 Security Setup Password Support Two Levels of Password Protection Provides both a Supervisor and a User password. If you use both passwords, the Supervisor password must be set first. The system can be configured so that all users must enter a...
  • Page 78 Remember the Password Keep a record of the new password when the password is changed. If you forget the password, you must erase the sys- tem configuration information in NVRAM. To access the sub menu for the following items, select the item and press <...

  • Page 79: Chipset Setup

    NuPRO-E330 5.7 Chipset Setup Select the Chipset tab from the setup screen to enter the Chipset BIOS Setup screen. You can select any of the items in the left frame of the screen to go to the sub menu for that item. The Chipset BIOS Setup screen is shown below.

  • Page 80: Graphics And Memory Configuration

    5.7.1 Graphics and Memory Configuration Memory Remap Feature This item allows remapping of over lapped PCI memory above the total physical memory (enable/disable). DRAM Frequency This item allows the user to configure the DRAM frequency. On Board VGA This item allows the user to enable/disable the built-in graphics. BIOS Setup...
  • Page 81 NuPRO-E330 Initial Graphics Adapter Select which graphics controller to use as the primary boot device. (“PCI” includes PCI slot and PCI Express x1/x4 slot, and PCIe Mini Card. PCI will be first.) IGD: Integrated graphics only. PCI/IGD: Detect PCI graphics first, then integrated graph- ics, then PCI Express x16 graphics.

  • Page 82: Pch Configuration

    5.7.2 PCH Configuration GbE LAN Boot Invoke the onboard LAN’s PXE ROM to enable boot from LAN. The options are Enabled and Disabled. HDA Controller Set this value to Enable/Disable the HD Audio Controller. Restore on AC Power Loss Determines which state the computer enters when AC power is restored after a power loss.

  • Page 83: Management Engine Subsystem

    NuPRO-E330 5.7.3 Management Engine Subsystem This section describes the Intel® Active Management Technology BIOS settings Do not modify these settings unless you are an advanced user. (HECI: Host Embedded Communication Interface) BootBlock HECI Message During bootblock step, function sends one message through the HECI circular buffer.
  • Page 84 ME-HECI The HECI bus allows the Host OS to communicate directly with the Manage Engine (ME) integrated in the chipset. ME-IDER Enable/Disable ME IDE Redirection support. ME-KT Enable/Disable ME KT (keyboard/text) support. Intel AMT Configuration Intel AMT Support This item allows the user to Enable/Disable the Intel AMT func- tion.
  • Page 85 NuPRO-E330 ME BIOS Extension This item allows the user to Enable/Disable ME BIOS exten- sion. Unconfigure AMT/ME This item allows the user to unconfigure the AMT/ME function. MEBx Ctrl+P Delay This item allows the user to configure the delay time to wait before MEBx (seconds).

  • Page 86: Exit Menu

    5.8 Exit Menu Select the Exit tab from the setup screen to enter the Exit BIOS Setup screen. You can display an Exit BIOS Setup option by high- lighting it using the < Arrow > keys. The Exit BIOS Setup screen is shown below.
  • Page 87 NuPRO-E330 Discard Changes and Exit Select this option to quit Setup without making any permanent changes to the system configuration. Discard Changes and Exit Setup Now? [Ok] [Cancel] appears in the window. Select Ok to discard changes and exit. Discard Changes Select Discard Changes from the Exit menu and press <...
  • Page 88 This page intentionally left blank. BIOS Setup...

  • Page 89: A Appendix: Watchdog Timer

    NuPRO-E330 Appendix A - Watchdog Timer A sample program for configuring the NuPRO-E330’s watchdog timer is included on the ADLINK All-in-One DVD in the following directory: \NuPRO\NuPRO-E330\WDT. A.1 Sample Code #include<stdio.h> #include<dos.h> static unsigned int IT8783_ioPort = 0x2e; void Enter_IT8783_Config(unsigned int flag) if(flag) IT8783_ioPort = 0x4e;...
  • Page 90 Get_IT8783_ID(unsigned int &ID1, unsigned int &ID2) outportb(IT8783_ioPort, 0x20); ID1 = inportb(IT8783_ioPort+1); outportb(IT8783_ioPort, 0x21); ID2 = inportb(IT8783_ioPort+1); void IT8783_WDTRun(unsigned int count_value, unsigned int PLEDflag) //for NuPRO-E330 unsigned long tempCount; unsigned int registerValue; outportb(IT8783_ioPort, 0x07); outportb(IT8783_ioPort+1, 0x07);// Device 7 outportb(IT8783_ioPort, 0xf8); outportb(IT8783_ioPort+1, 0x00);// PLED mapping to...
  • Page 91 NuPRO-E330 outportb(IT8783_ioPort, 0xf8); outportb(IT8783_ioPort+1, 0x1f);// PLED mapping to GP37 outportb(IT8783_ioPort, 0xf9); registerValue = inportb(IT8783_ioPort + 1); registerValue |= 0x02; registerValue &= 0xfb; outportb(IT8783_ioPort+1, registerValue); outportb(IT8783_ioPort, 0x71); registerValue = inportb(IT8783_ioPort + 1); registerValue &= 0xfe; outportb(IT8783_ioPort+1, registerValue); outportb(IT8783_ioPort, 0x72); registerValue = inportb(IT8783_ioPort + 1);...
  • Page 92 registerValue = inportb(IT8783_ioPort+1); registerValue |= 0x80; tempCount = count_value; if(tempCount != 0) printf("WDT timeout in %d seconds.\n", tempCount); registerValue |= 0x40; //Enable WDT output through KBRST else printf("WDT is Disabled.\n"); registerValue &= 0xbf; //Disable WDT output through KBRST outportb(IT8783_ioPort+1, registerValue); // set WDT count is second outportb(IT8783_ioPort, 0x71);...

  • Page 93: B Appendix: System Resources

    NuPRO-E330 Appendix B - System Resources B.1 System Memory Map Address Range Address Range Size Description (decimal) (hex) FFE00000 – (4GB-8MB) 8 MB High BIOS Area FFFFFFFF (4GB-18MB) – FEE00000 – 1 MB FSB Interrupt Memory Space (4GB-17MB-1) FEEFFFFF (4GB-20MB) –...

  • Page 94: Io Map

    B.3 IO Map Hex Range Device 000-00F, 081-09F, DMA controller 1, 8237A-5 equivalent 0C0-0DF 020-021, 0A0-0A1 Interrupt controller 1, 8259 equivalent 040-043 Timer, 8254-2 equivalent 060, 062, 064, 066, 8042 Keyboard 068-06F System Speaker 070-071 Real Time Clock Controller( bit 7 -NMI mask) 0F0-0FF Co-processor error register 2E0-2E7...

  • Page 95: Interrupt Request (Irq) Lines

    NuPRO-E330 B.4 Interrupt Request (IRQ) Lines IRQ Lines PIC Mode Typical Interrupt IRQ# Connected to Pin Available Resource Counter 0 Keyboard controller Serial Port 5 (COM5) IRQ3 via SERIRQ Serial Port 1, 2, 3, 4 IRQ4 via SERIRQ Note (1)
  • Page 96 IRQ Lines APIC Mode Typical Interrupt IRQ# Connected to Pin Available Resource Counter 0 Keyboard controller Serial Port 5 (COM5) Serial Port 1, 2, 3, 4 IRQ4 via SERIRQ Note (1) (COM1, 2, 3, 4) Serial Port 6 (COM6) IRQ5 via SERIRQ Floppy Drive Controller IRQ6 via SERIRQ Parallel port IRQ7 via SERIRQ...

  • Page 97: Table B-5: Irq Lines Apic Mode

    NuPRO-E330 Typical Interrupt IRQ# Connected to Pin Available Resource UHCI Controller 5, PCI Slot High Definition Audio Controller, PCI Slot 2/6 UHCI Controller 4, EHCI Controller 1 Table B-5: IRQ Lines APIC Mode Note (1): These IRQs can be used for PCI devices when onboard device is disabled.

  • Page 98: Pci Configuration Space Map

    PCI Configuration Space Map Bus # Device # Function # Routing Description Intel Q57 GMCH Host Hub Interface Bridge Internal P.E.G.#1 Root Port P.E.G.#1 Port Internal Intel Integrated Graphics Device Internal P.E.G.#3 Root Port Internal P.E.G.#3 Port Internal P.E.G.#4 Root Port Internal P.E.G.#4 Port Internal...

  • Page 99: Table B-6: Pci Configuration Space Map

    NuPRO-E330 Bus # Device # Function # Routing Description Internal Intel USB UHCI Controller #1 Internal Intel USB UHCI Controller #2 Internal Intel USB UHCI Controller #3 Internal Intel USB UHCI Controller #4 Intel Hub Interface to PCI Bridge Intel LPC Interface Bridge...

  • Page 100: Table B-7: Pci Interrupt Routing Map

    PCI Interrupt Routing Map PIRQ PEG Root Port 1 INTA INTB INTC INTD PEG Root Port 3 INTA INTB INTC INTD PEG Root Port 4 INTA INTB INTC INTD PEG Root Port 5 INTA INTB INTC INTD PEG Root Port 6 INTA INTB INTC INTD SATA Controller SATA Controller1...

  • Page 101: Important Safety Instructions

    NuPRO-E330 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference.
  • Page 102 Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. Risk of explosion if battery is replaced with one of an incorrect type. Dispose of used batteries appropriately. WARNING: Equipment must be serviced by authorized technicians when:...

  • Page 103: Getting Service

    Address: 5215 Hellyer Avenue, #110, San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. Address: (201203) 300 Fang Chun Rd., Zhangjiang Hi-Tech Park, Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax:...
  • Page 104 Address: 84 Genting Lane #07-02A, Cityneon Design Centre, Singapore 349584 Tel: +65-6844-2261 Fax: +65-6844-2263 Email: singapore@adlinktech.com ADLINK Technology Singapore Pte. Ltd. (Indian Liaison Office) Address: No. 1357, "Anupama", Sri Aurobindo Marg, 9th Cross, JP Nagar Phase I, Bangalore - 560078, India Tel: +91-80-65605817 Fax: +91-80-22443548 Email: india@adlinktech.com...
