Mobotix D15D Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

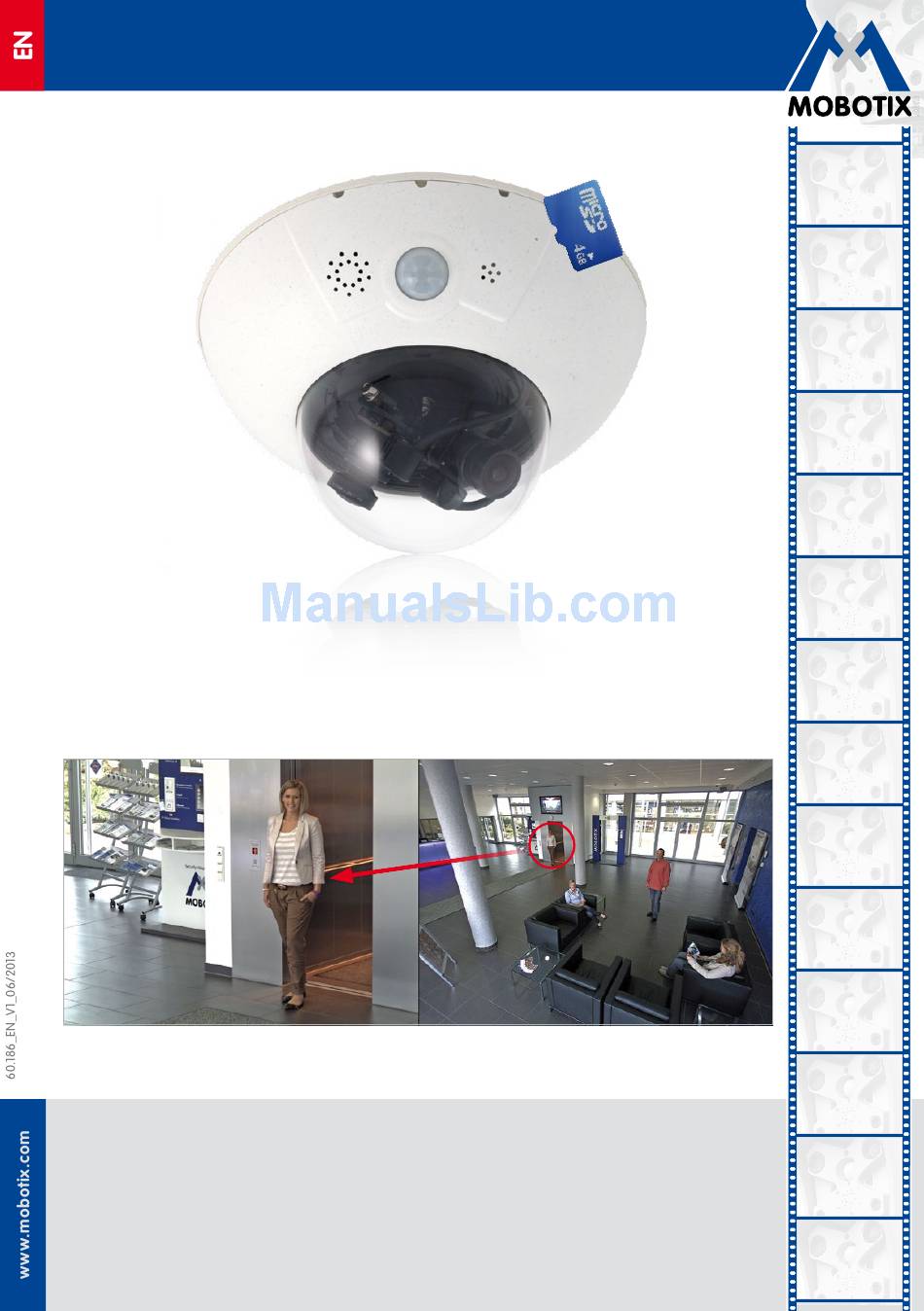

D15D Camera Manual
One Camera. Dual HiRes.
Two lenses, two 5MP HiRes image sensors, up to 64 GB internal storage and a dual image of a
maximum of 6 megapixels make the D15D DualDome an efficient security solution: It is possible to
secure two different areas using just one camera. All without vulnerable mechanical components!
MOBOTIX D15D Dual Dome - one camera, two views (left: telephoto lens, right: wide angle lens)
HiRes Video Innovations
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its
decentralized concept has made high-resolution video systems cost efficient.
MOBOTIX AG • D-67722 Langmeil • Tel: +49-6302-9816-103 • Fax: +49-6302-9816-190 • sales@mobotix.com
The HiRes Video Company
EN
HiRes
6 Megapixels
4096 x 1536
Software zoom
Skyline
Format free
Each image format
freely definable
30 Frames/s
VGA (640 x 480)
30 F/s Mega
Virtual PTZ
Digital pan, tilt,
zoom
Backlight
Safe using CMOS
without mechanical iris
Internal DVR
Internal via Flash,
external via Network
Win/Lin/Mac
Recording
via Network on PC
up to 1 Terabyte
Microphone & speaker
Audio
bi-directional via IP,
variable framerates
SIP-Client with video
IP Telephony
Alarm notify,
cam remote control
VideoMotion
Multiple windows
precision pixel-based
-22 to +140°F
Weatherproof
-30 to +60°C, IP65,
no heating necessary
IEEE 802.3af
PoE
Network power
even in winter
Robust
No moving parts
fiber glass housing
MxCC/MxEasy
Licence free
Video-Management-
Software

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D15D and is the answer not in the manual?

Questions and answers

Related Manuals for Mobotix D15D

Summary of Contents for Mobotix D15D

  • Page 1 Two lenses, two 5MP HiRes image sensors, up to 64 GB internal storage and a dual image of a Win/Lin/Mac maximum of 6 megapixels make the D15D DualDome an efficient security solution: It is possible to Recording secure two different areas using just one camera. All without vulnerable mechanical components!
  • Page 2 PDF files from www.mobotix.com (Support > Manuals). All rights reserved. MOBOTIX ™, MxControlCenter® und MxEasy® are internationally protected trademarks of MOBOTIX AG. Microsoft , Windows and Windows Server are registered trademarks of Microsoft Corporation. Apple , the Apple logo, Macintosh , OS X and Bonjour , the Bonjour logo and the Bonjour icon are trademarks of Apple Inc.

  • Page 3: Table Of Contents

    1.5.4 MOBOTIX App Mounting Overview Of Mounting Options 2.1.1 Mounting Indoor Cameras To A Ceiling Or Wall (Without Accessories) 2.1.2 Outdoor Installation On A Wall, Pole Or Corner (With Accessories) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 4 3.2.4 First Images And Network Parameter Configuration In MxEasy 3.2.5 Starting The Camera With The Factory IP Address 3.2.6 Starting The Camera With An Automatic IP Address (DHCP) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 5 3.5.2 Formatting The MicroSD Card 3.5.3 Activate Recording 3.5.4 Accessing Data on the MicroSD Card 3.5.5 Deactivating Card Recording 3.5.6 Using A MicroSD Card In A Different MOBOTIX Camera 3.5.7 Limitations On Warranty When Using Flash Storage Media Configuration In The Browser 3.6.1 Overview 3.6.2 General Browser Settings...
  • Page 6 All users of MOBOTIX products are therefore required to familiarize themselves with all valid regulations and comply with these laws. MOBOTIX AG is not liable for any illegal use of MOBOTIX products.
  • Page 7 D15D-DNight The camera switches lenses automatically, depending on the current illumination: either the color image sensor with daylight lens or the B/W image sensor with infra- red lens. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 8 Congratulations on your purchase of the latest generation of the successful MOBOTIX DualDome cameras. The D15D is a high-resolution, weatherproof network camera "Made in Germany". The D15D can capture two different areas at once in great detail, thanks to its two lenses with sensor assembly and optimized sensor technology.
  • Page 9 High frame rates up to Shock detector 30 fps (Mega) MiniUSB port for external Variable PoE class expansions MxBus port for MOBOTIX MxActivitySensor detects add-on modules movement and the direction of movement © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 10: Product Overview

    General Product Characteristics HiRes DualDome Camera With Two Independent Image Sensors And Lenses With its compact and elegant dome-shaped housing, the MOBOTIX DualDome camera system has become an indispensable feature of the now global market of high-resolution network security cameras. Thanks to the flexibility of two adjustable lenses and optional...
  • Page 11 Overview And Details With A Single Camera A single D15D is all that is required to fully monitor an entire shop floor, as well as provide a direct view of the checkout. The simultaneous generation and evaluation of two images...
  • Page 12 Model Variants And Lenses The D15D is available as a Secure or IT variant, each of which has two day or night sensors or a day/night sensor combination. The main difference between Secure and IT models is that the two image sensors of the Secure models have a higher maximum resolution (two 3MEGA instead of two VGA).
  • Page 13 This dual sensor system provides excellent true-color images during the day (also in reduced daylight) and extremely sensitive night images in dark environments. A new feature of the D15D is the maximum resolution of the black and white sensor, which has increased from 1.3 to 3.1 megapixels.
  • Page 14 When combined with the Outdoor Wall Mount, which is available as an accessory, the D15D is compliant with the higher IP65 protection class (fully dustproof and resistant to water jets) and can then be easily used in any unprotected outdoor areas. MOBOTIX offers an additional Corner and Pole Mount that allows the Outdoor Wall Mount to be attached to the corners of buildings and to masts.

  • Page 15: Advantages And New Features

    The more light-sensitive an image sensor is, the better the image quality, especially when the ambient light level is low, such as at dusk and in heavy rainfall. The D15D offers the best MOBOTIX image quality that is currently available thanks to the light sensitivity pro- vided by the five-megapixel color sensor that is four times higher than that of the previous three-megapixel color sensor.
  • Page 16 Low Power Consumption In Accordance With The PoE Standard (IEEE 802.3af) A D15D uses no more power than its predecessor (typically 4.5 watts), despite the new sensor technology. Adjusting the PoE class via the camera software also enables the use of PoE switches that cannot be operated on all ports with PoE class 3 (up to max.

  • Page 17: Decentralized Video System

    The D15D is equipped with a shock detector as standard (for all IT and Secure models). For example, if the camera receives a blow to the housing, it can simultaneously take a video of the offender, trigger a sound alarm and notify the security company via a SIP call.
  • Page 18 /124 D15D Camera Manual: Product Overview The decentralized MOBOTIX video solutions are superior to traditional systems in all major aspects. They are also considerably cheaper to operate since they require • Fewer cameras due to the more accurate detail of panorama images with mega- pixel technology •...

  • Page 19: Green Ip Video

    Due to the special product and system properties, the decision to install MOBOTIX video systems is also a decision for Green IP Video: low power consump- tion and environmental friendly because of long life expectancy and minimal amount of materials involved.

  • Page 20: Technical Specifications

    The L25 Super Wide-Angle lens has very little distortion and delivers good image quality, even when the maximum digital zoom is used. If the D15D is mounted in the corner of a room with this lens, the complete room will be visible on the image.
  • Page 21 Another benefit is that you can easily set a 35 mm camera (analog or digital) to the same focal length as the MOBOTIX lens (Lxx) to obtain the same field of vision. This approach greatly facilitates lens selection.

  • Page 22: Camera Variants - Lenses, Hardware, Image Formats

    250,000 VGA images with 4 GB MicroSD DVR 125,000 125,000 125,000 MEGA images with 4 GB MicroSD DVR – – 40,000 3MEGA images with 4 GB MicroSD DVR – – 20,000 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 23 3MEGA (2048x1536) 3MEGA (2048x1536) 3MEGA (2048x1536) 3MEGA (2048x1536) 20 fps 8 fps 8 fps 20 fps 250,000 250,000 250,000 250,000 125,000 125,000 125,000 125,000 40,000 40,000 40,000 40,000 20,000 20,000 20,000 20,000 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 24: Camera Variants - Software Features

    IEEE 802.1X network authentication) Video Analysis Video Motion detector MxAnalytics – – – MxActivitySensor – – Free-of-charge Video Management Software download from MxEasy, MxCC www.mobotix.com or App Store MOBOTIX App © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 25 /124 Technical Specifications D15Di-Sec-Night D15Di-Sec-Pano D15Di-Sec-Night-Pano D15Di-Sec-DNight-Fix General Features X/X/X X/X/X X/X/X X/X/X Via MX-232-IO-Box Video Analysis – – – – Video Management Software © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 26: Technical Data

    Software (included) MxEasy video management software, MxControlCenter control center software, MOBOTIX App for iOS devices, iOS 5.0 and higher Functionality depends on Image processing Backlight compensation, automatic white balance, camera variant image distortion correction, panorama correction, (see Section 1.2.3,...
  • Page 27 IP65 with wall mount IP66 and IK10 with Vandalism Set Temperature range –30 to +60°C/–22 to +140°F Dimensions/weight Diam. x H: 205 x 108 mm (D15D), 205 x 125 mm (D15D-Pano, D15D-Sec-DNight-Fix); weight: approx. 750 g (including lenses) Delivered parts Housing (high-resistance composite, PBT-PC), white, shock-resistant dome (transparent), free choice of lens, mounting parts, Allen wrench, 50 cm patch cable,...

  • Page 28: Delivered Parts

    MicroSD card, max. of 4 GB (inserted) Installation accessories Item Number Part Name M.1.1 8-mm screw anchors M.1.2 Stainless steel washers, diam. 5.3 mm M.1.3 Stainless steel wood 4.5 x 60 mm screws with TX20 head © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 29 /124 Delivered Parts Camera Housing And Connectors – D15D The MOBOTIX D15D consists of three main components (camera housing, outer shell and dome). LED default settings: Power (on), error (flashes) Recording (flashes) Washer Water outlet open- ings Outer shell Speaker PIR sensor...

  • Page 30: Standard Delivery - D15D-Pano

    MicroSD card, max. of 4 GB (inserted) Installation accessories Item Number Part Name M.2.1 8-mm screw anchors M.2.2 Stainless steel washers, diam. 5.3 mm M.2.3 Stainless steel wood 4.5 x 60 mm screws with TX20 head © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 31 /124 Delivered Parts Camera Housing And Connectors – D15D-Pano The MOBOTIX D15D-Pano consists of three main components (camera housing, outer shell and dome). LED default settings: Power (on), error (flashes) Washer Recording (flashes) Water outlet open- ings Outer shell Speaker PIR sensor...

  • Page 32: Standard Delivery - D15D-Sec-Dnight-Fix

    MicroSD card, max. of 4 GB (inserted) Installation accessories Item Number Part Name M.2.1 8-mm screw anchors M.2.2 Stainless steel washers, diam. 5.3 mm M.2.3 Stainless steel wood 4.5 x 60 mm screws with TX20 head © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 33 /124 Delivered Parts Camera Housing And Connectors – D15D-Sec-DNight-Fix The MOBOTIX D15D-Sec-DNight-Fix consists of three main components (camera housing, body shell and dome). LED default settings: Power (on), error (flashes) Washer Recording (flashes) Water outlet open- ings Outer shell Speaker PIR sensor...

  • Page 34: Delivered Parts For The Outdoor Wall Mount (Accessory)

    The 90 x 90 mm space covers in-wall and on- wall sockets as well as an MX-Patch-Box that is attached to the wall (MX-OPT-Patch1-EXT) Depth: 275 mm/10.83 in Width: 293 mm/11.54 in © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 35: Delivered Parts For The Corner And Pole Mount (Accessory)

    Corner and Pole Mount Stainless steel Allen screws M8x30 mm Stainless steel washers, diam. 9 mm Stainless steel lock nuts M8 Stainless steel straps Depth: Width: 293 mm/11.54 in 175 mm/6.89 in © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 36: Available Accessories

    The NPA-PoE-Set connects and remotely supplies a D15D with power via an Ethernet cable up to 100 m in length. The blue adapter can also be connected to mobile voltage sources from 12 V to 42 V by means of an additionally available battery...

  • Page 37: Ethernet Patch Cable With Bayonet Catch

    Order No.: MX-OPT-CBL-LAN-1/2/5/10 (length 1 m/2 m/5 m/10 m) The MOBOTIX-developed special cable can be installed in a waterproof manner and has an integrated sealing gasket. Every D15D ships with a 0.5-m-long cable as standard, which can be exchanged for a patch cable up to 10 m in length.

  • Page 38: Mx-Npa-Box

    (reaching or moving away from a specified posi- tion; exceeding or not reaching a specified speed). The MX-GPS-Box can be connected as an add-on module to all MOBOTIX cameras with an MxBus interface. The MX-GPS-Box has the same compact exterior housing as the MX-Patch-Box and the MX-NPA-Box (IP65 protection class, –30 to +60°C/–22 to +140°F).

  • Page 39: Extio Expansion Module

    It is ideal for door communication, elevators, access control systems, etc. The ExtIO is suitable for use as direct connection to the D15D via a MiniUSB cable (max. 5 m), which can be ordered separately, or as a network con- nection via the PoE switch.

  • Page 40: Mobotix Software

    MOBOTIX MxControlCenter, MxEasy remote stations and MOBOTIX App. The D15D models therefore also feature a variety of functions that are integrated in the firmware: from motion detection and long-term storage right through to alarm notification via video IP telephony.

  • Page 41: Mxcontrolcenter

    The state-of-the-art software, specifically tailored to support high-resolution MOBOTIX network cameras, provides a user-friendly user interface and camera image display, convenient video search functions, effective alarm handling, automatic camera integra- tion, video storage on file servers as well as useful configuration and update wizards.

  • Page 42: Mxeasy

    MOBOTIX cameras. The clear design allows you to manage up to 16 cameras, and the application can show up to four cameras at the same time.

  • Page 43: Mobotix App

    MOBOTIX Software 1.5.4 MOBOTIX App Premium solution: There for you whenever and wherever you need it, the MOBOTIX App serves as the perfect remote mobile station that uses intelligent detailed solutions to increase security and convenience for users on a daily basis. The controls are optimized for use with...

  • Page 44: Mounting

    Mounting Indoor Cameras To A Ceiling Or Wall (Without Accessories) In order to mount the MOBOTIX D15D to a ceiling or wall, you need to drill the holes for the fixtures. Use the supplied drilling template (fold-out at the end of this manual) to mark...

  • Page 45: Outdoor Installation On A Wall, Pole Or Corner (With Accessories)

    (is neither enlarged nor reduced in size) If you would like to mount the MOBOTIX D15D to the corner of a building or to a pole, you should consider using the MOBOTIX Corner And Pole Mount. This mount can only be used together with the Outdoor Wall Mount.

  • Page 46: Overview Of Network Connection

    Overview Of Network Connection 2.2.1 Power-Over-Ethernet (PoE Conforming To IEEE 802.3af) All D15D models are supplied with power using the PoE standard. The PoE Adapter Set The D15D supports (MX-NPA-PoE-Set) may be used for smaller installations. For larger installations, we recom-...

  • Page 47: Uninterruptible Power Supplies (Ups)

    This, in turn, means that you can centralize the UPS-protected power supply by injecting power into the Ethernet cables (max. 100 m). This kind of protected power supply can be used either with MOBOTIX PoE products (MX-NPA-PoE plus Universal Power Supply) or with PoE-compliant switches according to IEEE 802.3af.

  • Page 48: Wiring, Fire Prevention, Lightning And Surge Protection

    When installing the wiring inside or outside of buildings, make sure you always adhere to the relevant regulations on wiring, fire prevention, and protection against lightning. A range of measures are used to protect MOBOTIX cameras against the effects of small electrical surges. These measures, however, cannot prevent the camera from being dam- aged when stronger electrical surges occur.
  • Page 49 More information on preventing lightning or surge damage is available from organizations such as the International Electrotechnical Commission (www.iec.ch) or from the manufac- turers of lightning and surge protectors. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 50: First Installation Steps

    First Installation Steps 2.3.1 Mounting Lens Units The standard models in the MOBOTIX D15D series are supplied with a pre-installed dome. Lens units (lens mount, image sensor and lens) are usually delivered separately. Lens units are installed as described below if this is the case.
  • Page 51 4. Remove the lens cover on the image sensors : Press the two bars on the side of each lens cover (red arrow) and remove the covers one after another in the direction of the gray arrow. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 52 Connect the R and L sensor cables with the image sensors in accordance with the table. Example : In the case of a D15D-DNight (color/black and white), the R sensor cable must always be connected to the lens mount marked with RGB, while the L sensor cable must always be connected to the lens mount marked SW.
  • Page 53 Special Case: D15D-Pano Mounted To A Wall Without The Wall Mount The lens mount unit has to be rotated by 180° so that you do not get an upside-down camera image in the vertically mounted camera (PIR sensor points downwards, see Section 2.1.1 ):...

  • Page 54: Overview Of Cable Connections

    The following cables can be used with the D15D: • MOBOTIXEthernet cable : This MOBOTIX cable is pre-installed at deliv- ery and is intended for direct connection to a network outlet. If the D15D is to be installed outdoors, the MOBOTIX MX-Patch-Box should be used (optional accessory).

  • Page 55: Connecting The Ethernet Cable With The Mx-Patch-Box

    For more information on the MX-Patch-Box, please visit www.mobotix.com and go to the Products > Accessories > Interface Boxes section. 2.3.4 Connecting The MiniUSB Cable Existing additional modules like the MOBOTIX ExtIO (USB) can be connected via the MiniUSB Use the supplied connector. custom tool 1.
  • Page 56 /124 D15D Camera Manual: Mounting 5. Insert USB cable : Insert the MOBOTIX USB cable from below through the cable outlet (see figure) and wrap it around the camera within the cable guides. 6. Plug in the USB connector : Insert the MiniUSB con- nector in the appropriate socket.

  • Page 57: Connecting Mxbus Modules

    (each of which is blue/red or +/-): You are free to choose the position of the • 2 MxBus inputs to connect the D15D to the MxBus cable cable for the MxBus • 2 MxBus outputs to connect an MxBus module to the D15D connector’s inputs and...

  • Page 58: Replacing The Microsd Card

    MicroSD card into the mount until you hear a click. MicroSD card in, then pull it out The card now protrudes from its seat and can be removed (tweezers may be used to facilitate removal). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 59 PIR sensor of the camera. Gently press the shell into the shell's seats in the camera housing. Old outer shells (D10D, D12D) may no longer be used! © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 60: Mounting The Camera With Outdoor Wall Mount

    The PIR sensor has a range of approximately 10 m and a detection angle of approximately ±15 degrees. The positions that are available depend on how high the MOBOTIX D15D has been mounted and the alignment of the camera on the bottom plate, which can be completed in 15°...

  • Page 61: Mounting The Outdoor Wall Mount

    D15D Outdoor Wall Mount Mounting the Outdoor Wall Mount over the MX-Patch-Box or a socket D15D MOBOTIX interface boxes (here: the MX-Patch-Box) also fit in the 90 x 90 mm space © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 62 3. The rectangular opening on the rear of the wall mount is intended to cover the installed in-wall socket or a MOBOTIX interface box. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 63: Aiming The Camera

    3. PIR sensor of the camera looks to the left: Only use the PIR look- holes numbered with 7 for the M4 hex nuts. ing to the left: 7 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 64: Connecting The Camera With Bottom Plate

    (1, in this case) and use the two other M4x25 Allen screws with the washers to mount the camera to the bottom plate. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 65: Connecting And Securing The Camera

    4. Mount the bottom plate to the wall mount (eight M4x10 Allen screws) and make Max. torque for all Allen screws: 4 Nm sure the screws are all properly fastened. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 66: Mounting The Corner And Pole Mount

    Mounting The Corner And Pole Mount 2.5.1 Overview If you want to mount the MOBOTIX D15D to the corner of a building or to a pole, you should consider using the MOBOTIX Corner and Pole Mount. This mount is designed as an additional mounting option for the Outdoor Wall Mount.

  • Page 67: Mounting To The Corner Of A Building

    Corner and Pole Mount to the corner of the building using the 8x70 screws and washers (diam. 9 mm). Attach the Outdoor Wall Mount to the Corner and Pole Mount as described in Section 2.5.4, «Mounting The Outdoor Wall Mount» . © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 68: Mounting To A Pole

    The cable length from the pole should be at least 80 cm! 3. Firmly tighten the screws of the stainless steel straps. If required, trim the ends of the stain- less steel straps. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 69: Mounting The Outdoor Wall Mount

    Pole Mount to attach the Outdoor Wall Mount to the Corner and Pole Mount. Mount the camera to the Outdoor Wall Mount as described in Section 2.4.3, «Aiming The Camera» and the following sections. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 70: Adjusting The Lens

    • Mount the dome again using a soft cotton cloth. Notes The focusing aid provides a visual aid when setting the image sharpness of a MOBOTIX camera lens (see the The Focusing Aid Of The Camera section on the The Live View Of The MOBOTIX Camera page in the camera online help).

  • Page 71: Network And Power Connection

    MOBOTIX cameras, make sure, if possible, that these components do not have a fan. As the power consumption of MOBOTIX cameras is very low compared to other products, the reliability of the entire system is increased, thus extending the life of the components.

  • Page 72: Power Supply Using A Switch

    NPA-Set, Power-Box and Power-Rack (MX-NPA- Camera Set, MX-NPR-4 and RJ45 MX-NPR8/20) are not suitable for use with the D15D. LAN/www PC (10.8.0.11/255.0.0.0) Camera (10.8.0.99) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 73: Power Supply When Connected Directly To A Computer

    MOBOTIXnetwork power accessories, such as the NPA-Set, Power-Box and Power-Rack (MX-NPA- Camera PC (10.8.0.11/255.0.0.0) Set, MX-NPR-4 and RJ45 MX-NPR8/20) are not suitable for use with the D15D. Camera (10.8.0.99) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 74: Variable Poe

    4. Next, restart camera: Disconnect the camera from the power supply. Then reconnect it, for example, by disconnecting and then reconnecting the Ethernet cable at the PoE switch. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 75: Camera Startup Sequence

    Note During the startup sequence of the camera, the LEDs will always light up, even if they have been deactivated in Admin Menu > LED Setup. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 76: Operating The Camera

    OPERATING THE CAMERA Manual And Automatic Operation – Overview MxEasy and the MOBOTIX cameras do not require any extra software. Thus, you can set up and operate the MxControlCenter control MOBOTIX camera using a JavaScript-enabled browser on all common operating systems room software are avail- (such as Windows, Linux, Apple, etc.).

  • Page 77: Manually Using A Computer In The 10.X.x.x Ip Address Range

    – The computer or the network needs to operate in the 10.x.x.x IP address range or need to be able to access such a network. – The setup does not work automatically. – You need to know the relevant network parameters. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 78: Automatically Using Mxcontrolcenter Or Mxeasy

    MxControlCenter or MxEasy (see Section 3.2.3 and Section 3.2.4 ). You can also use one of these applications to automatically configure the network parameters of a MOBOTIX camera that is not operating in the same IP address range as the computer. MxControlCenter...

  • Page 79: Automatically Using Dhcp

    – The camera needs to be physically accessible as you need to press a key on the camera housing to boot it using DHCP. – Requires a running DHCP server on the network. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 80: First Images And The Most Important Settings

    D15D Camera Manual: Operating The Camera First Images And The Most Important Settings Once the MOBOTIX camera has been connected to the network, you need to set up the camera's network interface accordingly. This step involves setting up and checking the network parameters of the camera.
  • Page 81 2. Set up the target network parameters of the MOBOTIX camera: 1. Open a web browser on the computer and enter the default IP address of the MOBOTIX camera in the address bar of the browser (for example, 10.8.0.99). Clicking Enter displays the user interface of the MOBOTIX camera (see also Section 3.2.2, «First...

  • Page 82: First Images And The Most Important Settings In The Browser

    3.2.2 First Images And The Most Important Settings In The Browser Once the MOBOTIX camera has been connected to the power supply and to the network, you can access the user interface with the live camera image in the web browser. Internet Explorer, Firefox, Safari or any other graphical browser with activated JavaScript is suitable.
  • Page 83 Note Guest screen: http://<camera IP>/ cgi-bin/guestimage.html Click on the icon to view further information on the current camera screen in the online help of the camera's user interface. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 84: First Images And Network Parameter Configuration In Mxcontrolcenter

    D15D Camera Manual: Operating The Camera 3.2.3 First Images And Network Parameter Configuration In MxControlCenter Installation Download the setup file from the MOBOTIX website to install the latest version. The latest Download versions are available at www.mobotix.com in the Support > Software Downloads >...
  • Page 85 The Add Video Sources dialog box appears and the application automatically searches for MOBOTIX cameras in the local network when you launch the program for the first time. Select Video Source > Add from the menu to perform a camera search at a later time.
  • Page 86 For more information, see section «Creating A New Layout» . Reconfiguring Cameras In A Different Subnet If one or more MOBOTIX cameras are displayed with the status Different subnet (for example, cameras with a factory IP address), MxControlCenter automatically offers to configure the network settings of the cameras.
  • Page 87 MxControlCenter • Camera: Here, you can enter the known IP address or DNS name of a MOBOTIX camera or a third-party IP camera if it was not found by the automatic search feature.
  • Page 88 If you select the second option, the video sources you selected are simply integrated in the MxCC system where you can use them to generate a layout at a later time. Click OK to confirm your selection. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 89: First Images And Network Parameter Configuration In Mxeasy

    When you start MxEasy for the first time on a computer, the MxEasy Wizard automatically begins to search for MOBOTIX cameras and displays all the cameras found in a list. The camera list will be updated automatically as soon as new MOBOTIX cameras are con- nected to the local network or removed from the network.
  • Page 90 D15D Camera Manual: Operating The Camera Reconfiguring Network Addresses Of Cameras Using Bonjour*, MxEasy not only finds cameras on the same network as your computer, it also finds MOBOTIX cameras located in other subnets (status Invalid network). In such a *Bonjour: automatic recognition of network...
  • Page 91 D15D (telephoto lens and wide angle) For more information, see the MxEasy User Manual, which can be downloaded as a PDF file from the MOBOTIX website: www.mobotix.com > Support > Manuals. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 92: Starting The Camera With The Factory Ip Address

    As opposed to resetting the camera using Admin Menu > Reset configuration to Users and passwords factory defaults, the user information will not be reset if the camera is booted using will be reset! the factory IP address. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 93: Starting The Camera With An Automatic Ip Address (Dhcp)

    First Images And The Most Important Settings 3.2.6 Starting The Camera With An Automatic IP Address (DHCP) If your network has a DHCP server, you can start the MOBOTIX camera with DHCP support. The camera automatically obtains an IP address from the DHCP server and announces the new network data.

  • Page 94: Virtual Ptz And Full Image Recording

    Original image: Telephoto lens (left) and Wide-Angle lens (right) – simultaneously in one image Operation Using The Mouse And Scroll Wheel The vPTZ function of the D15D can be controlled in the browser using the mouse. This position becomes the new image center by clicking any position on the image displayed on the monitor.
  • Page 95 The PTZ Features" and the MxControlCenter manual in Section 2.4.6 "Using The vPTZ Features" and Section 3.1.4 "PTZ Controls In The Sidebar Panel" . The latest versions of all the manuals are available for download from the MOBOTIX website www.mobotix.com under Support > Manuals.

  • Page 96: Full Image Recording

    The main advantage of full image recording lies in the special functionality of the D15D, in that it can always maintain availability of a maximum size (full) image for later investigation, despite vPTZ actions carried out on the live image.
  • Page 97 Activate/Deactivate Full Image Recording In The Browser To configure this feature, open the Setup Menu > Event Control > Recording dialog box and activate or deactivate the Full Image Recording option. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 98: Image Optimization

    To hide this cushion effect, you simply have to Zoom In on the image slightly. Although this reduces the size of the captured area, the image is almost distortion-free compared to the original. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 99 Now select the Lens Distortion Correction option in the Display Mode Quick Control panel. An automatically corrected (live) image is displayed that can be panned, tilted, or zoomed. Switching to the Full Image option will deactivate the automatic distortion correction function. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 100: Adjusting The Panorama Image (D15D-Pano Only)

    Adjusting The Panorama Image In The Web Browser You need to follow these extra steps when installing a D15D-Pano to create a good combined image from the two single images (left and right image sensor). Step 1: Activate the configuration for the panorama view Open the user interface of the camera in the browser.
  • Page 101 Rotate image(s): You can rotate the sensor images to the left or right individually or together synchronously by clicking the edges of the rectangles on the bottom of the range. This way, you can correct any offset in the lens mounts. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 102 View in the Quick Control and set the value field to the right to activated. The OnScreen Control opens and you can proceed as described starting with Step 2. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 103 Adjusting The Panorama Image In MxEasy You can also use MxEasy to configure the panorama view of a D15D-Pano. Select the Image menu item from the Image Formats and Views option in the menu bar at the top of the screen. Then click Compass in the toolbar.
  • Page 104 You can also use MxControlCenter (MxCC) to configure the panorama view of a D15D-Pano. First select the D15D-Pano that you would like to configure and then open the PTZ Control controls on the left-hand sidebar of MxControlCenter. Click on the Activate button under configuration of the panorama view.

  • Page 105: Dual Image Exposure

    (dual image exposure) This function is also available for every standard D15D. This function ensures that both camera images in the combined dual image appear equally bright so that it is easier for the observer to associate these images with the same camera and/or the same mounting location.

  • Page 106: Microsd Card Recording

    "bad" and will no longer be used. No data is lost in this process. In addition, MOBOTIX cameras can constantly monitor activated flash storage devices. MOBOTIX has developed a technology to test the wear of the flash device by logging the number of write/delete cycles (patent pending). The flash memory wear is automatically displayed in the status bar in the live camera image but it can also be viewed at any time in the Admin Menu >...
  • Page 107 SD card (Admin Menu > Error Notification Function.). The MicroSD card can then be replaced to ensure that any existing data is not lost. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 108: Formatting The Microsd Card

    MxFFS-formatted). The following steps are necessary to format a storage device (Admin / Flash Device Menu > Storage on External File Server / Flash Device): 1. Make sure that there is a MicroSD card in the card slot of the MOBOTIX camera. 2. Click Format in the SD Memory Card line.

  • Page 109: Activate Recording

    External File Server / Flash Device 1. Make sure that there is a MicroSD card in the card slot of the MOBOTIX camera. 2. Make sure that the MicroSD card is formatted in MxFFS format. 3. Activate the SD Memory Card option.

  • Page 110: Accessing Data On The Microsd Card

    • In MxControlCenter: Play back the recorded video sequences with sound by access- ing the MicroSD card in the MOBOTIX camera via the camera or by directly accessing the MicroSD card via a card reader connected to the computer. Access the card by setting the MicroSD card's drive/volume as a Directory in MxControlCenter.

  • Page 111: Using A Microsd Card In A Different Mobotix Camera

    This is limited to 4 MB of lost data per incident due to MxFFS formatting. 3.5.6 Using A MicroSD Card In A Different MOBOTIX Camera A MicroSD card containing recorded data from a MOBOTIX camera can be inserted into any MicroSD card-enabled MOBOTIX camera. Once MicroSD card recording has been activated (requires a reboot), the "new"...

  • Page 112: Configuration In The Browser

    HTTP commands using programs and scripts of the embedded software. The settings are stored in the camera's flash memory. This section contains an overview of the basic browser settings of the MOBOTIX camera as well as further configuration options. Detailed information on the software functions is provided in the camera's online help.
  • Page 113 MOBOTIX camera. The camera can use either NTP time servers or Time Protocol servers. For more information on this topic, refer to the online help for the specific dialog boxes.

  • Page 114: General Browser Settings

    (Image Programs Quick Control). • Set the resolution of the live image: By default, all MOBOTIX cameras are factory- set to an image resolution of 640 x 480 pixels. You can select the desired resolution using the Resolution Quick Control.
  • Page 115 Action Group Overview dialog box. • Activate shock detector: The D15D is also equipped with a shock detector as stan- dard (for all IT and Secure models). If, for example, the camera's housing receives a blow, it automatically registers it and sends a notification via a network message or telephone call.

  • Page 116: Additional Notes

    3.7.4 Resetting The Camera To Factory Settings You can reset spe- cific parts of the All settings of the MOBOTIX camera can be reset permanently to the factory default settings. configuration This makes sense if you have, for example, obtained a camera without any information ©...

  • Page 117: Activating Event Control And Motion Detection

    MOBOTIX logo at the top of the image. Once the camera arming has been acti- vated, the text at the bottom of the live image (event, action, messaging and recording symbols) will also appear.

  • Page 118: Cleaning The Camera And Lens

    MOBOTIX products. Depending § on national laws and the installation location of the D15D, the recording of video and sound data may be subject to special documentation or it may be prohibited.

  • Page 119: Online Help In The Browser

    Electrical and electronic products contain many reusable materials. For this reason, we would ask that you dispose of MOBOTIX products at the end of their service life in accor- dance with all legal requirements and regulations (or deposit these products at a munic- ipal collection center).
  • Page 120 /124 D15D Camera Manual Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 121 /124 Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 122: Declaration Of Conformity D15D-Dualdome

    /124 D15D Camera Manual: Declaration of Conformity DECLARATION OF CONFORMITY D15D-DUALDOME Declaration of Conformity www.mobotix.com > Support > MX Media Libary > Certificates © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 123: Manufacturer

    VAT ID: sales@mobotix.com DE202203501 You can fi nd the latest version of this document at www.mobotix.com in the Support section. Technical specifi cations subject to change without notice! © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 124 Two lenses, two 5MP HiRes image sensors, up to 64 GB internal storage and a dual image of a Win/Lin/Mac maximum of 6 megapixels make the D15D DualDome an efficient security solution: It is possible to Recording secure two different areas using just one camera. All without vulnerable mechanical components!
