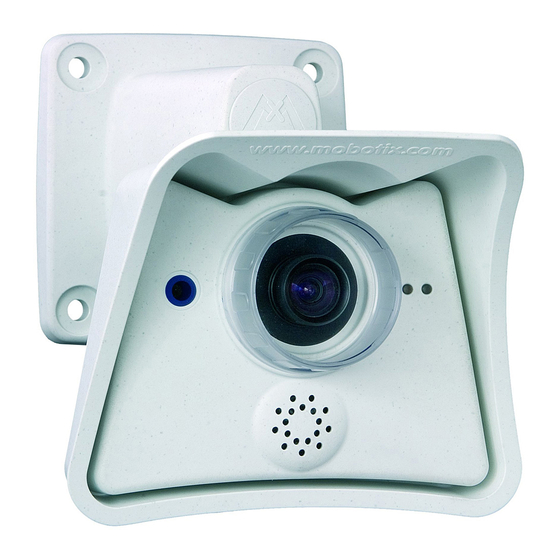

M22M

Camera Manual

Complete integration for web and security

MOBOTIX AG • Security-Vision-Systems • Made in Germany

www.mobotix.com • sales@mobotix.com • 18.06.2007

Part 1

Current PDF File:

www.mobotix.com > Support > Manuals

Security-Vision-Systems

MOBOTIX

Table of Contents

Summary of Contents for Mobotix M22M

Page 1: Video Motion
CMOS www.mobotix.com > Support > Manuals without mechanical iris Wall bracket with cable cover for RJ45 wall outlet MOBOTIX AG • Security-Vision-Systems • Made in Germany Robust no moving parts www.mobotix.com • sales@mobotix.com • 18.06.2007 fiber glass housing...
Page 2: M22M Camera Manual Part
Technical information subject to change without notice! No part of this manual may be reproduced by any means without our written approval! Copyright © MOBOTIX AG, Kaiserslautern, Germany. Note: MOBOTIX offers inexpensive seminars that include a workshop and practical excercises: Basic Seminar 3 days, Advanced Seminar 2 days.
Page 3: Table Of Contents
Camera Housing and Connectors of the MOBOTIX M22M 2.4.1 Connectors Mounting Options and Positioning Dimensions of the MOBOTIX M22M Mounting the MOBOTIX M22M to a Wall or Ceiling 2.7.1 Mounting to a Wall 2.7.2 Mounting to a Ceiling 2.7.3 Converting the Wall Mount to Ceiling Mount 2.7.4 Mounting the Camera over Wall Outlets...
Page 4 Starting the Camera Using the Factory IP Address Drilling Template M22M (Scale 1:1) Note Download the latest version of this document as a PDF file from www.mobotix.com under Support > Manuals. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 5 4.10 Fast Video Streaming 4.11 Operating Multiple Cameras BASIC CAMERA CONFIGURATION Overview Quick Installation Connection Test Basic Settings Image Controls Logos Exposure Settings Day & Night Modes Managing Settings © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 6 LED Signals of the Phone Functions MOBOTIX CAMERAS ON THE WEB 10.1 Overview 10.2 Displaying Cameras on the Web 10.3 Configuring Routers and Firewalls 10.4 Configuring DynDNS 10.5 Updating Web Pages © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 7 Information subject to change without notice! Copyright © 1999-2007 MOBOTIX AG, Kaiserslautern, Germany. All rights reserved. MOBOTIX, MxPEG and MxControlCenter are world- wide trademarks of MOBOTIX AG. Microsoft, Windows and Windows Server are registered trademarks of Microsoft Corporation. Apple, the Apple logo, Macintosh, OS X and Bonjour are trademarks of Apple Inc.
Page 8: Introduction
Similar to previous MOBOTIX cameras, M22M cameras are available as SECURE, BASIC models, with WEB and BASIC models just missing the microphone. The M22M can be fitted with one of the five M14 high-performance lenses or with CS Everything integrated! mount lenses (model M22M-Sec-CSVario).
Page 9 M22M Camera Manual Part 1 M22M Pole Mount If you would like to mount the MOBOTIX M22M to a pole, you should consider using the MOBOTIX Pole Mount, which is used in combination with the stan- dard SecureFlex mount. The supplied stainless steel straps allow fixing the mount to poles with diame- ters between 60 and 180 mm (2.4 to 7.1 in).
Page 10: Mobotix Cost Benefits
Additional functions and other extras included Audio support, lens, wall mount and weatherproof housing (-30 to +60°C, -22 to +140°F) included; microphone & speaker available in certain models © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 11: Mobotix Technical Advantages
SIP standard with automatic alarm call and remote control MxControlCenter included Dual screen technology with building plans, free camera positioning, event search, image processing, lens distortion correction and PTZ support © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 12: Mobotix M22M Concept
(approx. 2 Mbps)*. Live video display now matches the performance of analog video systems. When recording, MOBOTIX systems easily outperform analog sy- stems, since MOBOTIX cameras store the high live image resolution and frame rate without compromising image quality. MOBOTIX technology thus allows simultane- ous recording of video from 30 cameras in continuous recording mode on one standard PC at 30 fps each, including...
Page 13 UMTS modem can be connected to the serial interface of MOBOTIX M12/D12 models). Day & Night The Night versions of the M22M-IT/Secure models deliver crisp and clear images of moving objects even at night since they use a special black and white image sensor.
Page 14 IEEE 802.3af). Since the camera's plastic housing insulates well and is anti-fogging, no additional heating or fans are necessary. This is why MOBOTIX, unlike other manufacturer's cameras, have low power requirements (3 Watts) and PoE can be used every day of the year indoors as well as outdoors for supplying power.
Page 15: Feature Overview Of The Mobotix M22M
M22M Camera Manual Part 1 1.4 Feature Overview of the MOBOTIX M22M The MOBOTIX M22M includes the following main features (some features are model- dependent): • Live images of up to 1280 x 960 pixels resolution via network and WiFi with 1280 x 960 pixels up to 30 fps (at 640 x 480 VGA resolution), also adapted for PDAs.
Page 16 Free software updates on www.mobotix.com regular intervals that improve and expand the camera's functionality. Chapter 6, Software Update , in the Software Manual , provides detailed information on the process. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 17 Color & BW Color & BW † D22M models require an Standard lens for software version L22* L22* L22* external speaker/micro- phone † † † † Audio support (Microphone/Speaker) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 18: Lenses For The Mobotix M22M
4x digital zoom of the M22M. If a camera with a Super Wide-Angle lens has been mounted in the corner of a room, the complete room is vi- sible on the image.
Page 19 30.5 20.0 Note The focal lengths of MOBOTIX lenses do not reflect the actual focal length of the lenses, but the focal length ( Lxx mm) converted to 35 mm camera format. For example, the MOBOTIX Super Wide-Angle lens has an actual focal length of 4 mm. This would be the equivalent of 22 mm on a 35 mm camera.
Page 20: Important Notes
M22M Camera Manual Part 1 1.6 Important Notes 1.6.1 MOBOTIX M22M—Weatherproof with IP65 The MOBOTIX M22M is IP65-certified (absolutely dustproof, resistant against water jets) and can be used from -30 to +60°C (-22 to +140°F). 1.6.2 Password for the Administration Menu...
Page 21: Resetting The Camera To Factory Defaults
MOBOTIX camera only displays the Text WWW.MOBOTIX.COM, the time stamp and the MOBOTIX logo at the top of the image. Once the camera arming has been activated (see section 1.6.6), the text at the bottom of the live image (event, action and messaging symbols) will also appear.
Page 22: Using Internet Browsers
MOBOTIX recommends having MOBOTIX cameras installed only by specialists ac- customed to installing network devices and having proper respect for the pertinent regulations regarding lightning protection and...
Page 23: Additional Information
Camera information corner of the camera's browser interface. Another source of information on all dialogs and parameters of the MOBOTIX camera is the Reference Manual that you can download from www.mobotix.com. The Reference Manual consists of the MOBOTIX camera's online help in one PDF file.
Page 24: Mounting The Camera
Preparing the Installation 2.1.1 Network Connection and Power Supply, UPS Power over Ethernet (MxPoE) Power is supplied to all M22M models via the network cabling (MxPoE, Power- over-Ethernet). For smaller installations, the universal power supply ( MX-SNT-E/U/ GB/J/AUS01-30-RJ ) with the MOBOTIX Network Power Adapter MX-NPA-3-RJ is sufficient.
Page 25: Providing The Camera Connections, Wall Outlets
(e.g. switches, routers, PoE switches, etc.). Since MOBOTIX cameras do not require any heating even in the wintertime, the po- wer consumption of 3 W is very low. This in turn means that you can centralize the USP-protected power supply by injecting power into the network cables (max.
Page 26: Overview
• Checking the delivered parts (section 2.3) • Deciding on the mounting options (section 2.5) • Selecting the power supply (section 3.3) • Mounting the MOBOTIX M22M to a wall or ceiling (section 2.7) 2.3 Delivered Parts of the MOBOTIX M22M Lens (item 1.1), two lens covers (item 1.2)
Page 27: Camera Housing And Connectors Of The Mobotix M22M
M22M Camera Manual Part 1 2.4 Camera Housing and Connectors of the MOBOTIX M22M The MOBOTIX M22M consists of two main components, the camera itself and the SecureFlex wall mount. Like the M12/D12 models, the MOBOTIX M22M also features an integrated microphone and a speaker.
Page 28: Mounting Options And Positioning
To increase the tilt to 70° when mounting the camera to a wall, the vertical tilt joint can be shortened (see dotted red line!) • horizontally: 180° • vertically: 70° © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 29: Dimensions Of The Mobotix M22M
M22M Camera Manual Part 1 2.6 Dimensions of the MOBOTIX M22M The SecureFlex mount enables easy mounting of the MOBOTIX M22M models to a wall or ceiling; the concealed cabling enhances the visual impression of the installa- Elegantly covers wall outlets tion.
Page 30: Mounting The Mobotix M22M To A Wall Or Ceiling
M22M Camera Manual Part 1 2.7 Mounting the MOBOTIX M22M to a Wall or Ceiling Caution Never use screws with countersunk heads to fasten the mount, as these screws will destroy the mount. The wall mount is large enough to mount the camera over a wall outlet (see section Maximum torque for hex 2.7.4, Mounting the Camera over Wall Outlets ).
Page 31: Converting The Wall Mount To Ceiling Mount
Foot Pull out! Mounting to a wall Reseat cover Maximum torque for all Allen screws: 4 Nm (2.95 lbf ft) Push in until reaching stop! Mounting to a ceiling © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 32: Mounting The Camera Over Wall Outlets
Always use the NET plug for connecting the Ethernet cable! Make sure that the plug is seated properly and NET plug for Ethernet the connector is not bent or water may enter cable the camera! © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 33: Secureflex Pole Mount
Item Count Part Name Stainless steel screws M6x40 mm Stainless steel washers Ø 6.4 mm Stainless steel screws M6x25 mm Stainless steel hex nuts M6 Stainless steel straps © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 34: Mounting The Pole Mount And The Camera
(5 mm Allen wrench, item 1.3). Remove the Allen screw, washer and hex nut from the mount and pull the turn/tilt unit out of the mount's foot. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 35 (max. 4 Nm/2.95 lbf ft) to make sure that the camera keeps its position. • Press the white caps (item 1.10) onto the hex heads of the screws. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 36: Mounting The Camera To Different Surfaces
Make sure not to seal off this opening. Wall thickness: Make sure that the wall is at least five centimeters (2") thick if you intend to use the supplied dowels and screws. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 37: Mounting To A Wooden Wall Or Surface
• Tighten the screws using the wrench or ratchet. • Check the screws for proper tightness and push the caps onto the hex heads. Maximum torque for hex head screws: 4 Nm (2.95 lbf ft) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 38: Mounting To A Drywall
• Tighten the screws using the wrench or ratchet. • Check the screws for proper tightness and push the caps onto the hex heads. Maximum torque for hex head screws: 4 Nm (2.95 lbf ft) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 39: Mounting To A Concrete Or Brick Wall
• Tighten the screws using the wrench or ratchet. • Check the screws for proper tightness and push the caps onto the hex heads. Maximum torque for hex head screws: 4 Nm (2.95 lbf ft) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 40: After Mounting The Camera
• If required, clean the lens' surface using a clean, lint-free cotton cloth. • Check the image focus (tele lens L135 only) and the camera position on the computer monitor. Please also see section 2.9.3, Changing Lenses . © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 41: Lens Options
4x zoom of the M22M. If a camera with a Super Wide Angle lens has been mounted in the corner of a room, the complete room is visible on the image.
Page 42: Cs Mount Version
MOBOTIX M14 fixed lenses. This is why the vario lenses are typically used in applications where locations are changing frequently, e.g.
Page 43: Changing Lenses
• Tighten the lock ring by turning it in clockwise direction. This procedure is the same for the M22M-Sec-CSVario and CS/C mount lenses, albeit without the lock ring (not installed). 2.10 Wiring, Fire Prevention, Lightning and Surge Protection...
Page 44: Fire Prevention
This includes surge protectors for 19" racks, adding an uninterruptible power supply (UPS) to the MOBOTIX camera and installing surge arresters or similar for routers, switches, servers, etc.
Page 45 On the other hand, it also allows controlling other devices (two signal outputs, Line In/Out for audio signals) and serves as power supply of the camera. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 46: Operating The Camera
OPERATING THE CAMERA 3.1 General Procedure The MOBOTIX camera does not require any software installation; all you need is your preferred browser with JavaScript support to operate the camera. Thus, the MO- BOTIX camera is supported by all common operating systems (such as Windows, Macintosh and Linux, ...).
Page 47 M22M Camera Manual Part 1 Note After first booting the new MOBOTIX camera or after resetting to fac- tory defaults, accessing the Administration menu in the browser (Admin Menu button) will automatically start the Quick Installation Always use Quick Instal- wizard.
Page 48: Overview Of The Configuration Settings
Live screen. • The image settings are already optimized Recommendation: Always The factory image settings of MOBOTIX cameras deliver excellent images for use factory image set- most application scenarios and should not be changed. If you do wish to tings! make changes, your changes should be minor and gradual.
Page 49 This allows you to keep the camera in synch manually with a computer or fully automatic using a time server or another MOBOTIX camera. The camera can use NTP time servers or time servers providing Time Protocol (RFC 868). For additional information on this topic, see section 5.4.2, Date and Time / Time Zones and Time Servers , in the...
Page 50: Connecting The Camera To The Network And The Power Supply
• The power supply of the camera can only be established using the 10Ba- seT/NET connector of the camera with the (pre-installed) network cable. In or- der to supply power via the network cabling we recommend the MOBOTIX PoE products (MxPoE, see also section 2.11, Camera Accessories ): •...
Page 51: Power Supply (Mxpoe) Using A Switch
• Plug the RJ45 connector of the external power unit into the LAN/Power con- nector of the Network Power Adapter. Network Power Adapter The Network Power Adapter replaces the crossover cable when di- rectly connecting to a computer © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 52: Power Supply (Mxpoe) Using A Network Power Rack Or Network Power Box
• Connect the factory pre-installed cable of the camera to the Ethernet connec- quired tor of the PoE switch/router. The switch/router needs to support the PoE stan- dard IEEE 802.3af. PoE IEEE 802.3af! © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 53: Camera Startup Sequence
PoE class 0 (12.95 Watts max. power consumption of attached device). Although the M22M only uses 3 Watts and does not require heating even at very low temperatures, this will ensure that devices attached to the USB port of the camera will be properly supplied.
Page 54: The First Image From The Camera
• Automatic camera search and configuration using MxControlCenter (free Working with the web- Windows client for MOBOTIX cameras; section 3.4.7, The First Image in MxCon- based user interface only trolCenter ) requires a web browser with activated JavaScript! • Manual configuration (section 3.4.1, Preparing the Ethernet Connection )
Page 55 Example: 10.1.0.99 If you receive an answer from another network device although the camera is not connected, you will have to remove that device until you have reset the MOBOTIX ca- Make sure that you use the IP address of your mera to a free IP address.
Page 56: The First Image In The Browser
After entering the camera's IP address in the browser address bar (e.g. 10.1.0.99), you will see the Live screen of the MOBOTIX camera with its user in- terface controls, such as softbuttons, buttons for the different camera screens, pull- down menus ( Quick Controls ), icons for accessing the online help and the camera status, as well as status information elements above and below the live image.
Page 57: Additional Information
Another source of information on all dialogs and parameters of the MOBOTIX camera is the Reference Manual that you can download from www.mobotix.com. The Reference Manual consists of the MOBOTIX camera's online help in one PDF file.
Page 58: Camera Screens In The Browser
M22M Camera Manual Part 1 3.4.4 Camera Screens in the Browser Per factory default, the MOBOTIX camera first shows the Live screen. You can set a different start page in order to prevent others from changing the settings. In addition...
Page 59 M22M Camera Manual Part 1 Notes: © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 60: Access Using Zeroconf/Bonjour
Bonjour list in the web browser and in MxControlCenter. Se- 3.0.3.37! lecting a MOBOTIX camera in the browser will display the camera's user interface in the browser window; likewise, MxControlCenter will be able to find the camera.
Page 61: Prerequisites For Using Zeroconf/Bonjour
The list of Bonjour-enabled network de- vices is shown in Internet Explorer once the Bonjour add-on has been activated in the main toolbar of Internet Explorer. Internet Explorer with activated Bonjour sidebar © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 62 Konqueror address bar. The displayed list contains all Zeroconf-enabled network services (see figure below). Clicking on /WWW servers displays the list of all available MOBOTIX cameras (and all other Bonjour-enabled devices). Linux users can also use the mdns-scan applica- tion in a terminal to search for Bonjour-enabled devices on the network.
Page 63 Caution: Proxy servers sage when trying to access a MOBOTIX camera in the web browser. may cause errors when trying to establish a con- Make sure that the list of proxy exceptions in your browser contains...
Page 64: The First Image In Mxcontrolcenter
MxControlCenter can do quite a bit more than simply display the video and audio data from MOBOTIX cameras. The unique features of MxControlCenter in combina- tion with the MOBOTIX cameras create a full-featured security system: intelligent alarm handling, various ways of arranging the camera views on different layouts...
Page 65 If this is not the case or if you would like to update an older version, you can download the latest Windows installer (MSI file) from the MOBOTIX website and then manually install the current version. The latest version is available at www.mobotix.com >...
Page 66 Automated Search for MOBOTIX Cameras If you start MxControlCenter for the first time or if you have not yet stored a start layout with the desired video sources (i.e. MOBOTIX cameras), the Open Video Sources dialog will open and automatically starts scanning the network.
Page 67 Anytime you connect a new camera to the local network, you can initiate the search in the Open Video Sources dialog again by pushing the button. If the desired MOBOTIX cameras are highlighted in the video source list, proceed to Selecting Video Sources . Configuring MOBOTIX Cameras for a Different Network...
Page 68 • Add MxPEG clip: Adds an MxPEG video clip previously recorded by a MOBOTIX camera as a video source. • Add file server path: Adds the alarm images previously stored by a MOBOTIX camera on an external file server as a video source.
Page 69 If you interrupt the discovery process (section Config- uring MOBOTIX Cameras for a Different Subnet ) or re- quire a password that is different from the factory preset one, you can always re- launch the configuration process from the popup menu at a later time and enter the appropriate user name and password.
Page 70: Starting The Camera With An Automatic Ip Address (Dhcp)
DHCP server. If this is not the case, the camera uses its last IP camera cannot obtain a valid IP address and will fall back to its last address known IP address. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 71: Starting The Camera Using The Factory Ip Address
(see section 1.4.5), the users and passwords defined in the camera will not be reset if the camera is being booted using the factory IP address. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 72: Drilling Template M22M (Scale 1:1)
When printing the PDF, make sure that you print two facing PDF pages on one single A4 page in order to obtain a scale 1:1 template. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 73 M22M Camera Manual Part 1 Notes: © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 74 E /- / U /- CF slots (MOBOTIX extensions) Microphone/Speaker External audio (Line-In/Out*) I/O* I/O* I/O* I/O* I/O* Signal Input (only via Cam-IO*) Signal Output (only via Cam-IO*) Concealed cabling In stock © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 75 Color & BW Color & BW † D22M models require an Standard lens for software version L22* L22* L22* external microphone/spe- aker † † † † Audio support (Microphone/Speaker) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 76 M22M Camera Manual Part 1 IP65 Certificate © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 77 M22M Camera Manual Part 1 FCC Declaration of Conformity © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 78 M22M Camera Manual Part 1 Declaration of Conformity © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 79 M22M Camera Manual Part 1 MOBOTIX ... the new face of IP video All pictures in this manual are genuine MOBOTIX camera images. Enjoy the image quality! Manufacturer: CEO: MOBOTIX AG Dr. Ralf Hinkel Luxemburger Str. 6 67657 Kaiserslautern Court of Registration:...
Page 80 M22M Drilling Template Scale 1:1 Wall outlet at upper rim Wall outlet centered © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
Page 82 CMOS www.mobotix.com > Support > Manuals without mechanical iris Wall bracket with cable cover for RJ45 wall outlet MOBOTIX AG • Security-Vision-Systems • Made in Germany Robust no moving parts www.mobotix.com • sales@mobotix.com • 18.06.2007 fiber glass housing...
