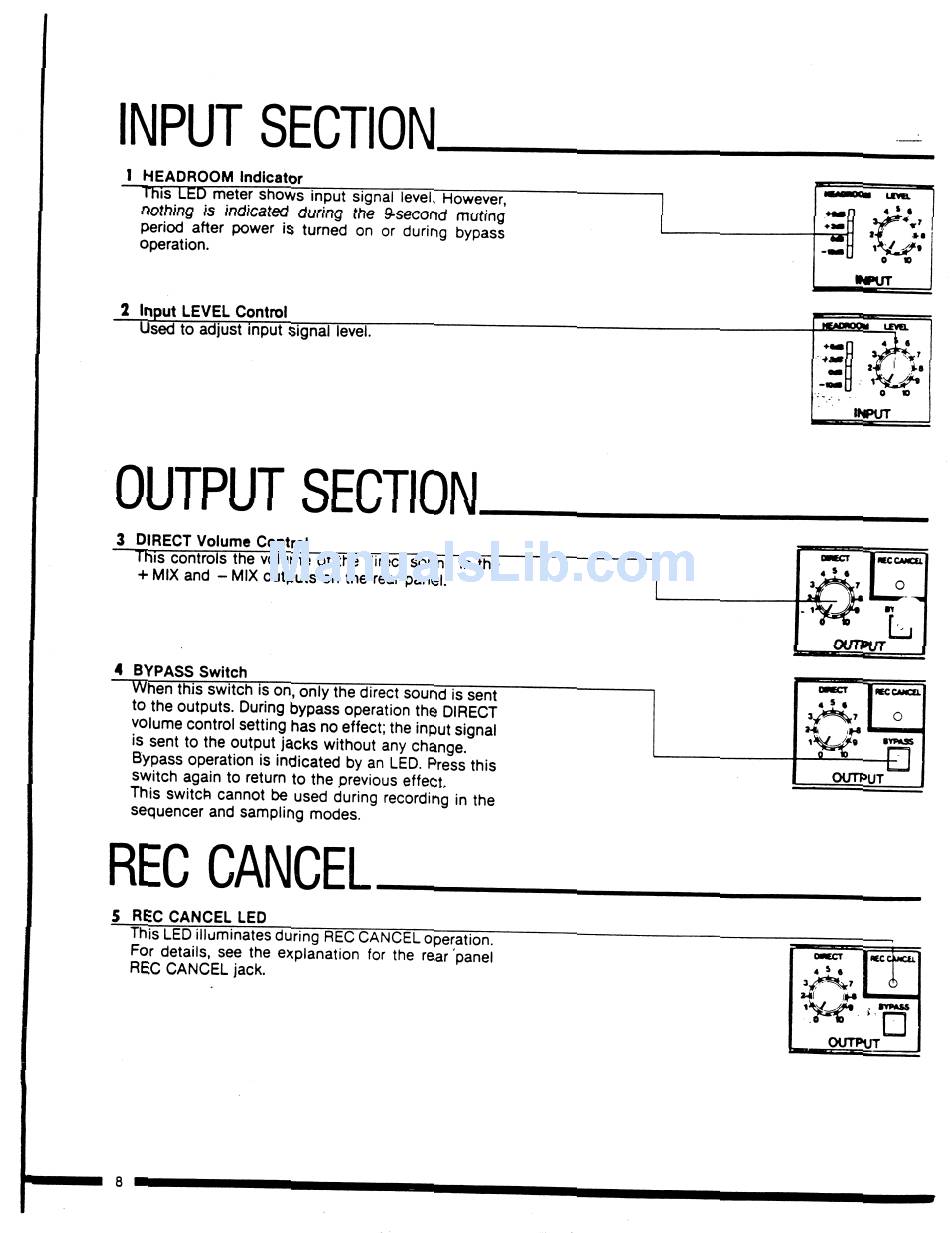

Korg SDD-200 Owner's Manual page 8

INPUT SECTION.
I HEADROOM Indicator
This LED meter s
ihows input signal level. However,
nothing is indicated during the 9-second muting
period after power is turned on or during bypass
operation.
2 Input LEVEL Control
Used to adjust input signal level.
OUTPUT SECTION.
3 DIRECT Volume Control
is controls the volume of the direct sound in the
+ MIX and - MIX outputs on the rear panel.
4 BYPASS Switch
J this switch is on, only the direct sound is sent
to the outputs. During bypass operation the DIRECT
volume control setting has no effect; the input signal
is sent to the output jacks without any change.
Bypass operation is indicated by an LED. Press this
switch again to return to the previous effect.
This switch cannot be used during recording in the
sequencer and sampling modes.
REC CANCEL
5 REC CANCEL LED
This LED illuminates during REC CANCEL operation.
For details, see the explanation for the rear panel
REC CANCEL jack.
O*ECT |REC CANCEL |
« ? •
O
BYPASS
OUTPUT
■a
