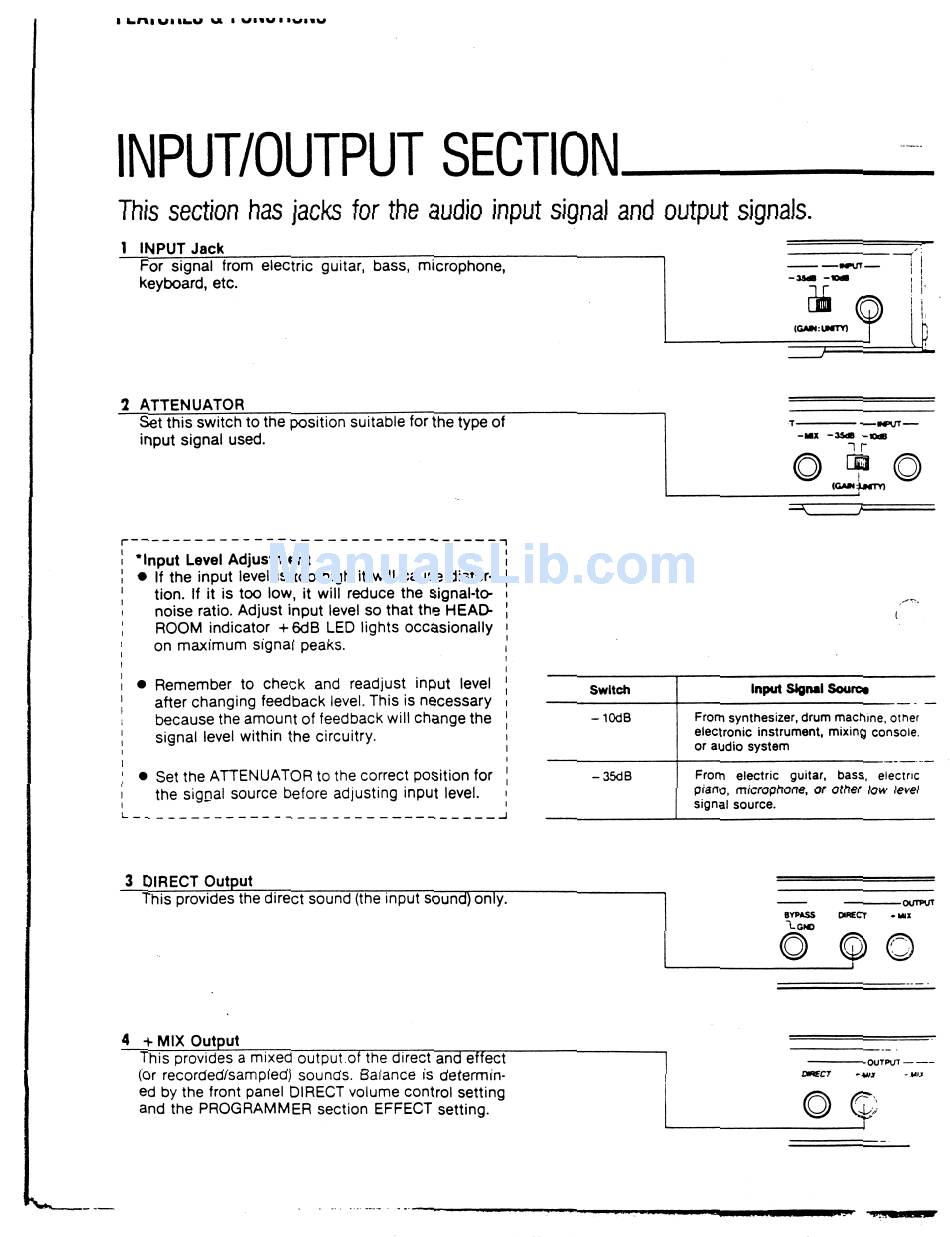

INPUT/OUTPUT SECTION .
This section has jacks for the audio input signal and output signals.
1 INPUT Jack
For signal from electric guitar, bass, microphone,
keyboard, etc.
I I
(GAM:1MTY)
2 ATTENUATOR
Set this switch to the position suitable for the type of
input signal used.
-WPl/T-
(GMNjJMTV)
• Input Level Adjustment
• If the input level is too high it will cause distor
tion. If it is too low, it will reduce the signal-to-
noise ratio. Adjust input level so that the HEAD
ROOM indicator + 6dB LED lights occasionally
on maximum signal peaks.
• Remember to check and readjust input level
after changing feedback level. This is necessary
because the amount of feedback will change the
signal level within the circuitry.
• Set the ATTENUATOR to the correct position for
the signal source before adjusting input level.
Switch
-10dB
-35dB
Input Signal Source
From synthesizer, drum machine, other
electronic instrument, mixing console,
or audio system
From electric guitar, bass, electric
piano, microphone, or other low level
signal source.
3 DIRECT Output ir_^_
This provides the direct sound (the input sound) only.
-OUTPUT
BYPASS DIRECT
+ MIX Output
This provides a mixed output.of the direct and effect
(or recorded/sampled) sounds. Balance is determin
ed by the front panel DIRECT volume control setting
and the PROGRAMMER section EFFECT setting.
OUTPUT
* MIX - Mix
