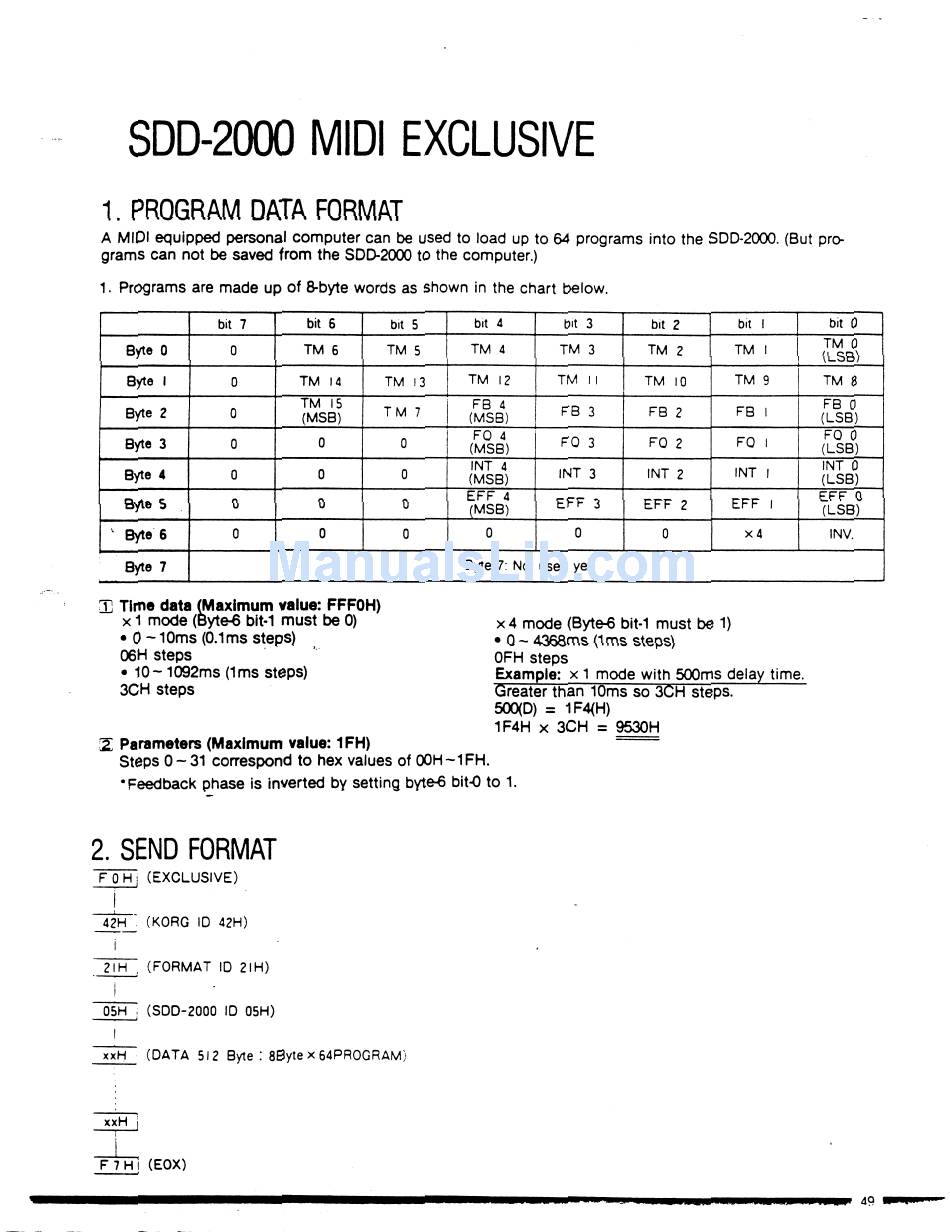

SDD-2000 MIDI EXCLUSIVE
1. PROGRAM DATA FORMAT
A MIDI equipped personal computer can be used to load up to 64 programs into the SDD-2000. (But pro
grams can not be saved from the SDD-2000 to the computer.)
1. Programs are made up of 8-byte words as shown in the chart below.
Byte 0
Byte I
Byte 2
Byte 3
Byte 4
Byte 5
v Byte 6
Byte 7
bit 7
0
0
0
0
0
0
0
bit 6
TM 6
TM 14
TM 15
(MSB)
0
0
0
0
bit 5
TM 5
TM I 3
TM 7
0
0
0
0
bit 4
TM 4
TM 12
FB 4
(MSB)
FO 4
(MSB)
INT 4
(MSB)
EFF 4
(MSB)
0
bit 3
TM 3
TM I I
FB 3
FO 3
INT 3
EFF 3
0
bit 2
TM 2
TM 10
FB 2
FO 2
INT 2
EFF 2
0
bit I
TM I
TM 9
FB I
FO I
INT I
EFF I
x4
bit 0
TM 0
(LSB)
TM 8
FB 0
(LSB)
FO 0
(LSB)
INT 0
(LSB)
EFF 0
(LSB)
INV.
Byte 7: Not used yet.
I Time data (Maximum value: FFFOH)
x 1 mode (oyte-6 bit-1 must be 0)
• 0 -10ms (0.1ms steps)
06H steps
• 10- 1092ms (1ms steps)
3CH steps
Parameters (Maximum value: 1FH)
Steps 0-31 correspond to hex values of 00H-
• Feedback phase is inverted by setting byte6
x4 mode (Byte€ biM must be 1)
• 0 - 4368ms (1ms steps)
0FH steps
Example: x 1 mode with 500ms delay time.
Greater than 10ms so 3CH steps.
500(D) = 1F4<H)
1F4H x 3CH = 9530H
-1FH.
bit-0 to 1.
2. SEND FORMAT
FOH) (EXCLUSIVE)
42H ". (KORG ID 42H)
I
2IH , (FORMAT ID 2IH)
|
(SDD-2000 ID 05H)
I
xxH (DATA 5I2 Byte : 8Byte x 64PROGRAM)
xxH j
F7H! (EOX)
