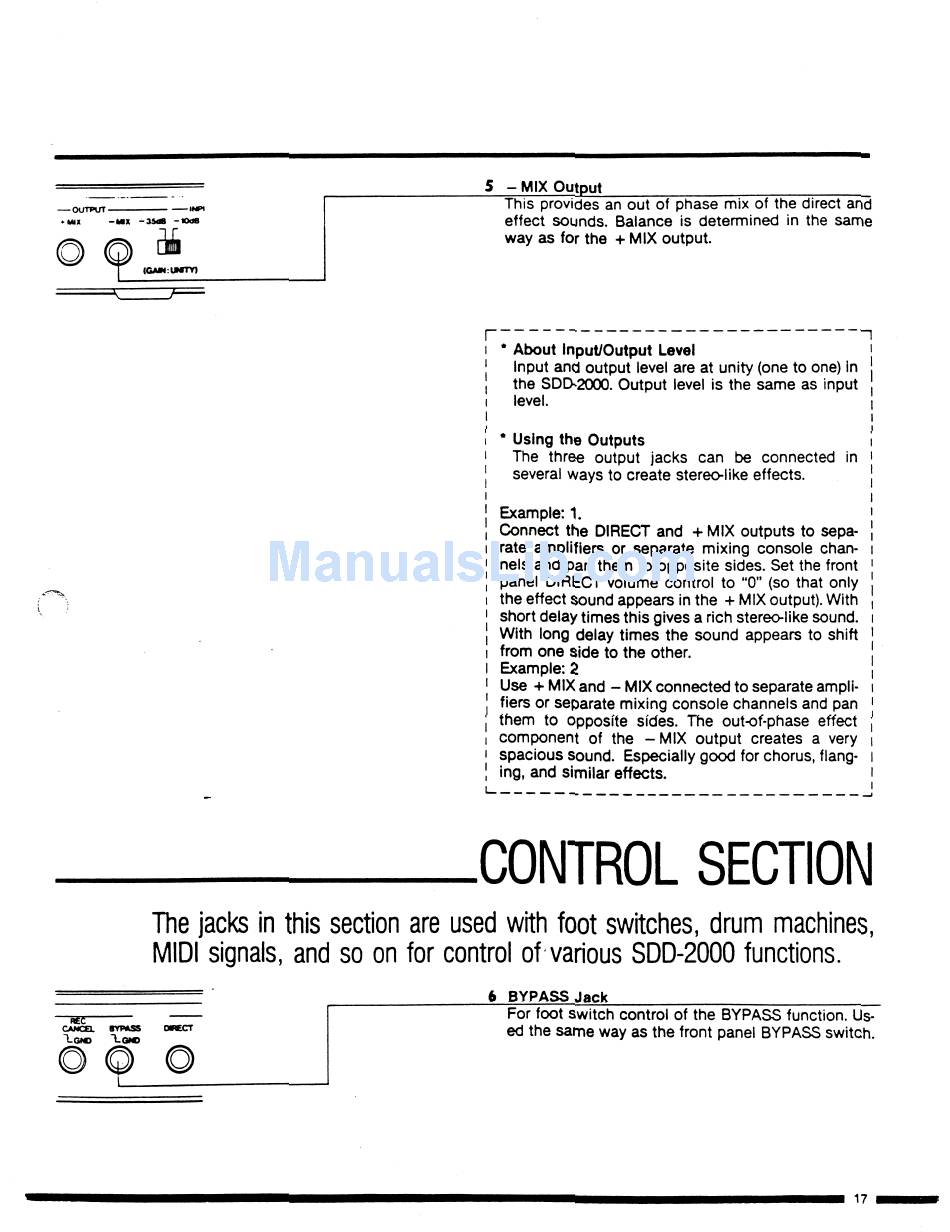

Korg SDD-200 Owner's Manual page 19

— OUTPUT
♦ mix -mix -a** -«
(GAM:UNmO
5 -MIX Output
This provides an out of phase mix of the direct and
effect sounds. Balance is determined in the same
way as for the + MIX output.
About Input/Output Level
Input and output level are at unity (one to one) in
the SDD-2000. Output level is the same as input
level.
Using the Outputs
The three output jacks can be connected
several ways to create stereo-like effects.
in
Example: 1.
Connect the DIRECT and + MIX outputs to sepa
rate amplifiers or separate mixing console chan
nels and pan them to opposite sides. Set the front
panel DIRECT volume control to "0" (so that only
the effect sound appears in the + MIX output). With
short delay times this gives a rich stereolike sound.
With long delay times the sound appears to shift
from one side to the other.
Example: 2
Use + MIX and - MIX connected to separate ampli
fiers or separate mixing console channels and pan
them to opposite sides. The out-of-phase effect
component of the - MIX output creates a very
spacious sound. Especially good for chorus, flang
ing, and similar effects.
CONTROL SECTION
The jacks in this section are used with foot switches, drum nnachines,
MIDI signals, and so on for control of various SDD-2000 functions.
6 BYPASS Jack
For foot switch control of the BYPASS function. Us
ed the same way as the front panel BYPASS switch.
