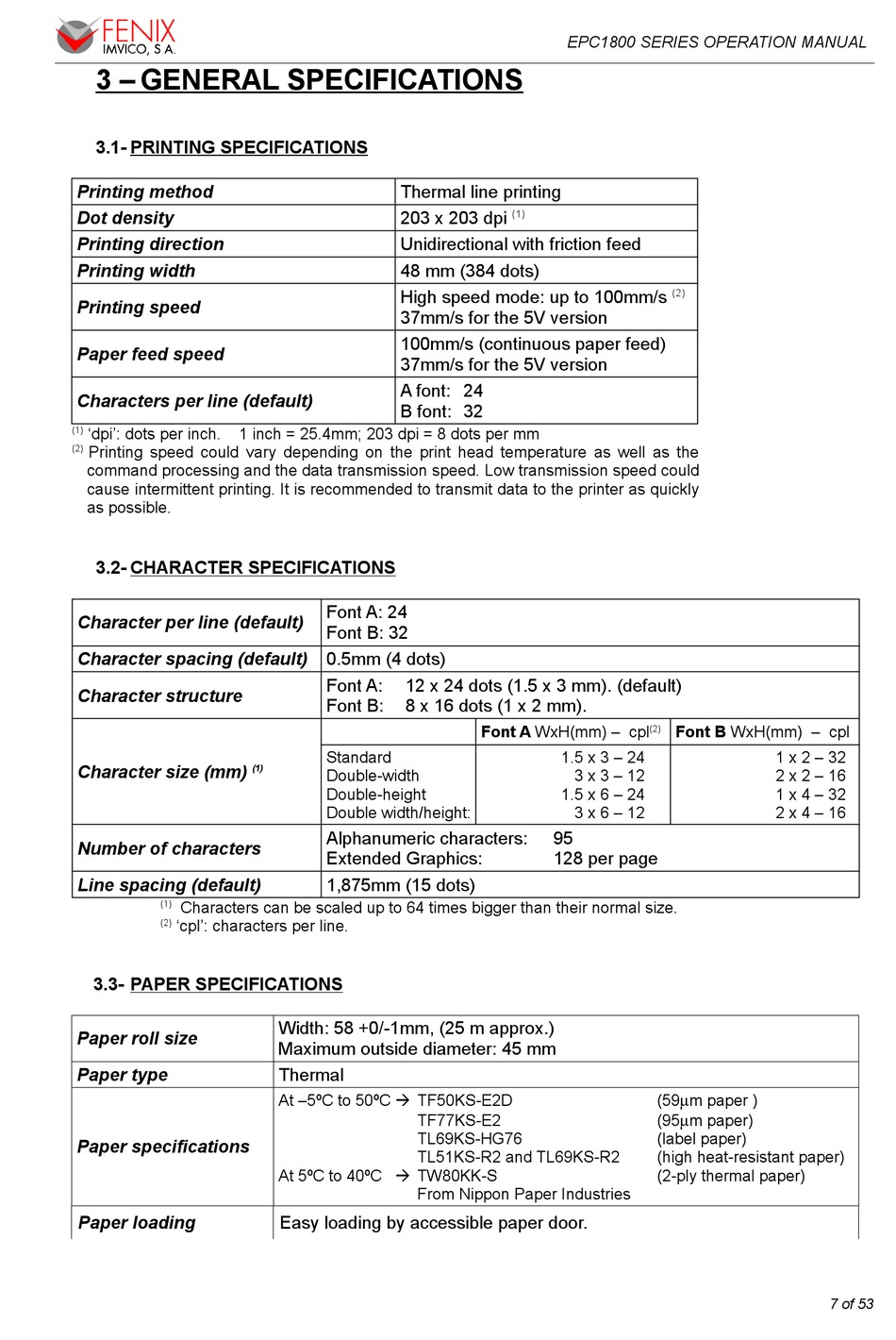

3 – GENERAL SPECIFICATIONS
3.1- PRINTING SPECIFICATIONS
Printing method
Dot density
Printing direction
Printing width
Printing speed
Paper feed speed
Characters per line (default)
(1) 'dpi': dots per inch. 1 inch = 25.4mm; 203 dpi = 8 dots per mm
(2) Printing speed could vary depending on the print head temperature as well as the
command processing and the data transmission speed. Low transmission speed could
cause intermittent printing. It is recommended to transmit data to the printer as quickly
as possible.
3.2- CHARACTER SPECIFICATIONS
Character per line (default)
Character spacing (default)
Character structure
Character size (mm)
Number of characters
Line spacing (default)
(1) Characters can be scaled up to 64 times bigger than their normal size.
(2) 'cpl': characters per line.
3.3- PAPER SPECIFICATIONS
Paper roll size
Paper type
Paper specifications
Paper loading
Thermal line printing
203 x 203 dpi
Unidirectional with friction feed
48 mm (384 dots)
High speed mode: up to 100mm/s
37mm/s for the 5V version
100mm/s (continuous paper feed)
37mm/s for the 5V version
A font: 24
B font: 32
Font A: 24
Font B: 32
0.5mm (4 dots)
Font A: 12 x 24 dots (1.5 x 3 mm). (default)
Font B: 8 x 16 dots (1 x 2 mm).
Standard
(1)
Double-width
Double-height
Double width/height:
Alphanumeric characters:
Extended Graphics:
1,875mm (15 dots)
Width: 58 +0/-1mm, (25 m approx.)
Maximum outside diameter: 45 mm
Thermal
At –5ºC to 50ºC  TF50KS-E2D
TF77KS-E2
TL69KS-HG76
TL51KS-R2 and TL69KS-R2
At 5ºC to 40ºC  TW80KK-S
From Nippon Paper Industries
Easy loading by accessible paper door.
EPC1800 SERIES OPERATION MANUAL
(1)
Font A WxH(mm) – cpl
1.5 x 3 – 24
3 x 3 – 12
1.5 x 6 – 24
3 x 6 – 12
95
128 per page
(2)
(2) Font B WxH(mm) – cpl
1 x 2 – 32
2 x 2 – 16
1 x 4 – 32
2 x 4 – 16
(59µm paper )
(95µm paper)
(label paper)
(high heat-resistant paper)
(2-ply thermal paper)
