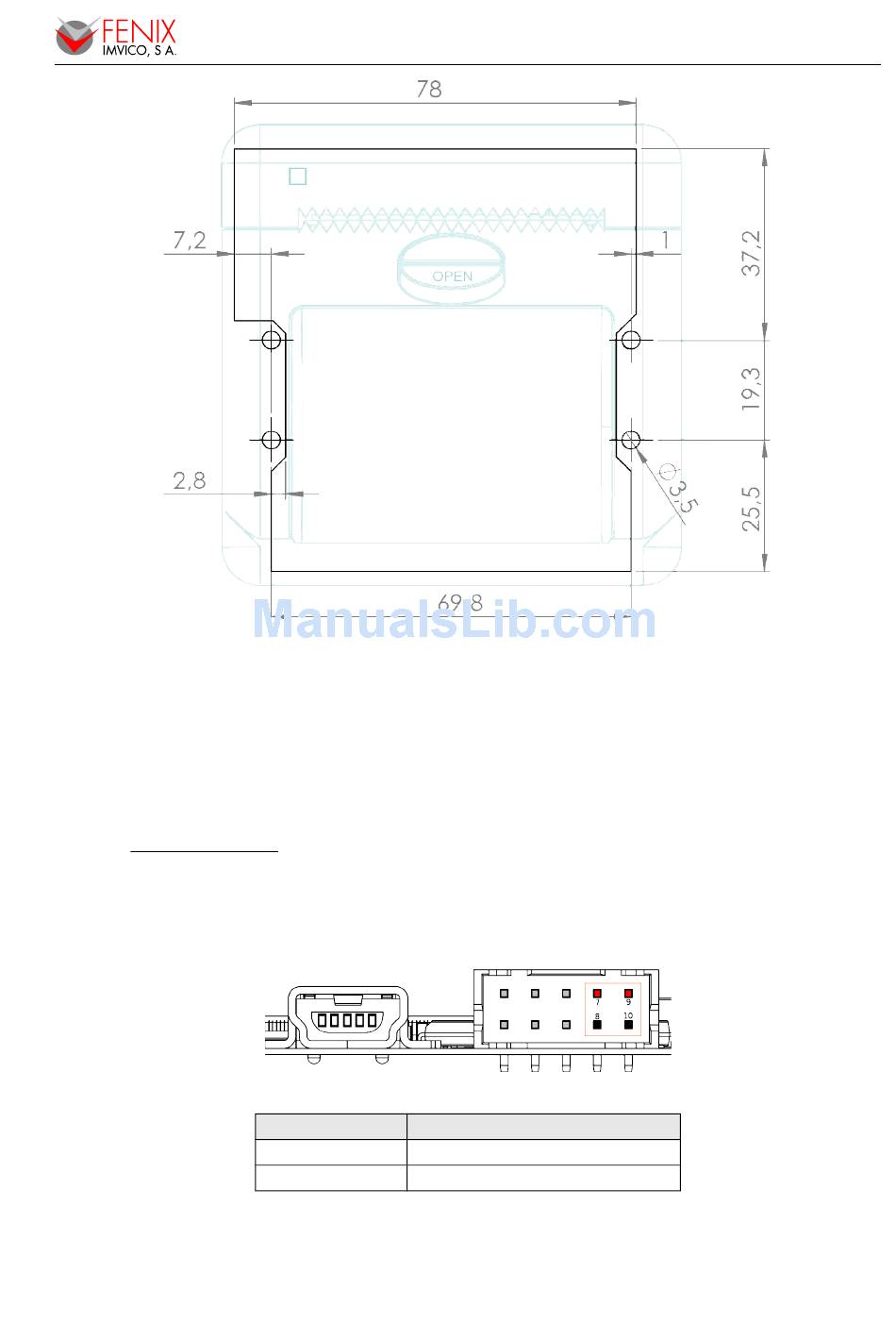

Fig. 5 - Fixing holes and window to be cut on the mounting wall (dimensions in mm)

•
All the wiring has been designed to allow the user to firstly connect the cables and then
screw the printer onto the panel although the other way is also possible. If it is difficult to
access the rear side of the printer it is advisable to connect all the cables first and perform a
self-test before fixing the printer to the mounting wall.
4.2- POWER SUPPLY
The EPC1800 is powered by an external power supply by means of four pins of the shared
connector that is also used for RS232 communication. Although the connector is polarized if forced it
could be connected inverted so it is very important to observe polarity before plugging the connector in.
The power supply female connector must be a:
Housing: PHDR-10VS (JST Ref.)
Terminal: SPHD-001T-P0.5 or equivalent.
Wire:

Fig. 6 - Power supply connector J1.

Pin number
7, 9 VIN (5VDC or 12-24VDC)
8, 10
22 AWG or thicker (GND & VIN)
EPC1800 SERIES OPERATION MANUAL
Description
GND
