4 – INSTALLATION
4.1- EPC1800 INSTALLATION CONSIDERATIONS
There are some general considerations to take into account when installing the EPC1800 printer.
A wrong installation may cause many issues like paper jam, difficult maintenance of the printer,
difficulty in changing the paper roll, etc. Moreover, a correct installation can prevent the printer from
being damaged by external agents, such as weather or vandalism.
This printer is designed to be installed vertically or horizontally in a case, closet, or another kind of
appropriate chassis.
The basic points that a correct installation must follow are:
Allow enough space and accessibility to reach the maintenance procedure points in case it
is needed. Take notice all user accessible parts in the printer.
Consider if the printer is going to be attached first to the panel and then connected or the
other way round. The EPC1800 allows both ways but cable length and some other variables
should have been taken into consideration.
Allow enough room in front of the printer in order to be able to open completely the door.
This printer has been designed to ease the installation process and maintenance. Please follow the
recommendations below so there should not be any issue related to it.
The printer must be set onto the user's chassis and screwing it from outside. To do so cut a
window with the dimensions indicated on the figure and thread four holes as shown.
Minimum closet depth: 44mm

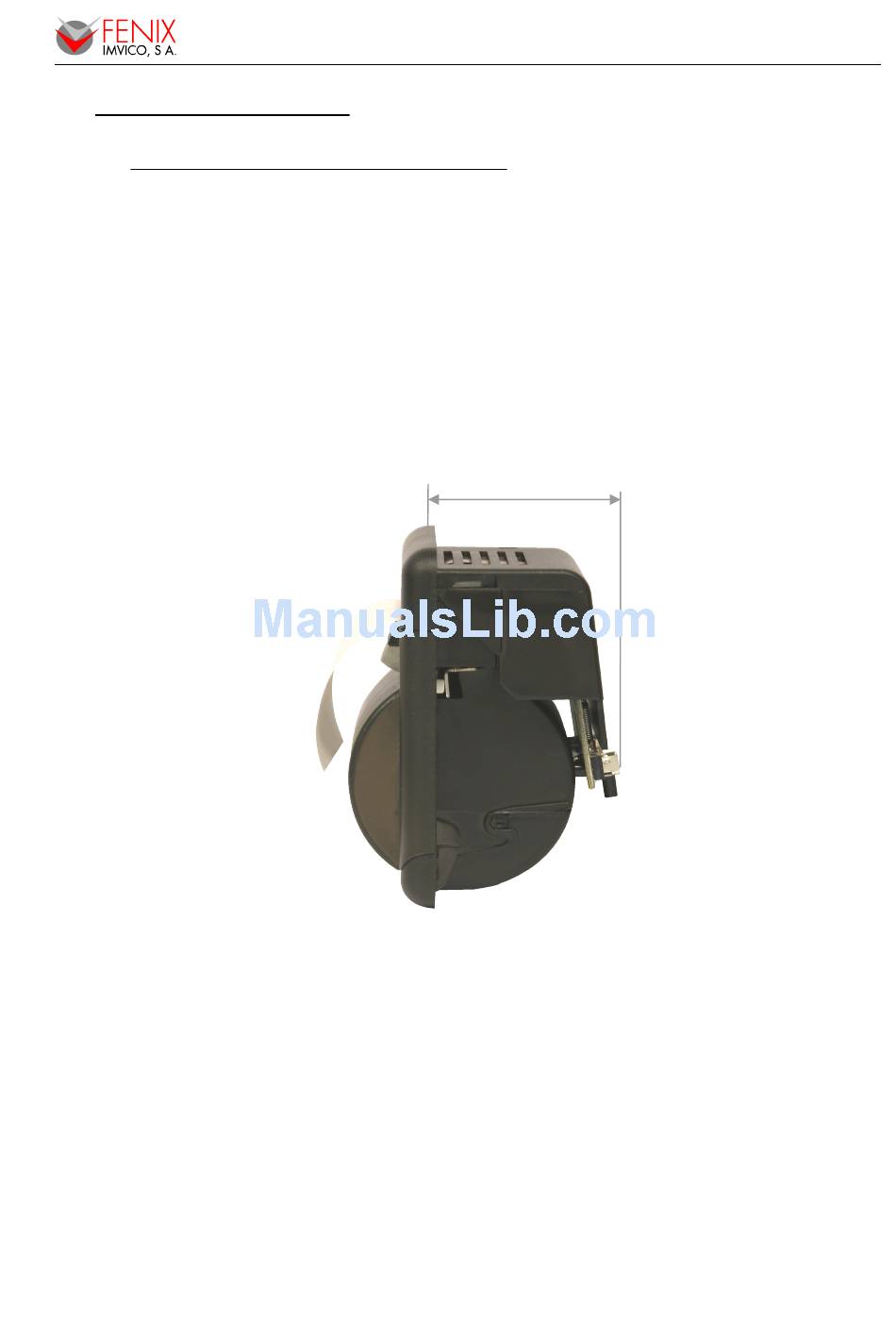

Fig. 4 - EPC1800 accessibility

EPC1800 SERIES OPERATION MANUAL
10 of 53
