Fig. 9 - Epc1800 Usb Connector - Fenix EPC1800 Operation Manual

4.4.1- Assignments of USB connector terminals
Pin Signal name
1 VBUS
2 D –
3 D+
4 GND
5 NC
USB Mini-B series connector has to be used (see APPENDIX B – HOW TO ORDER).
Pin #1

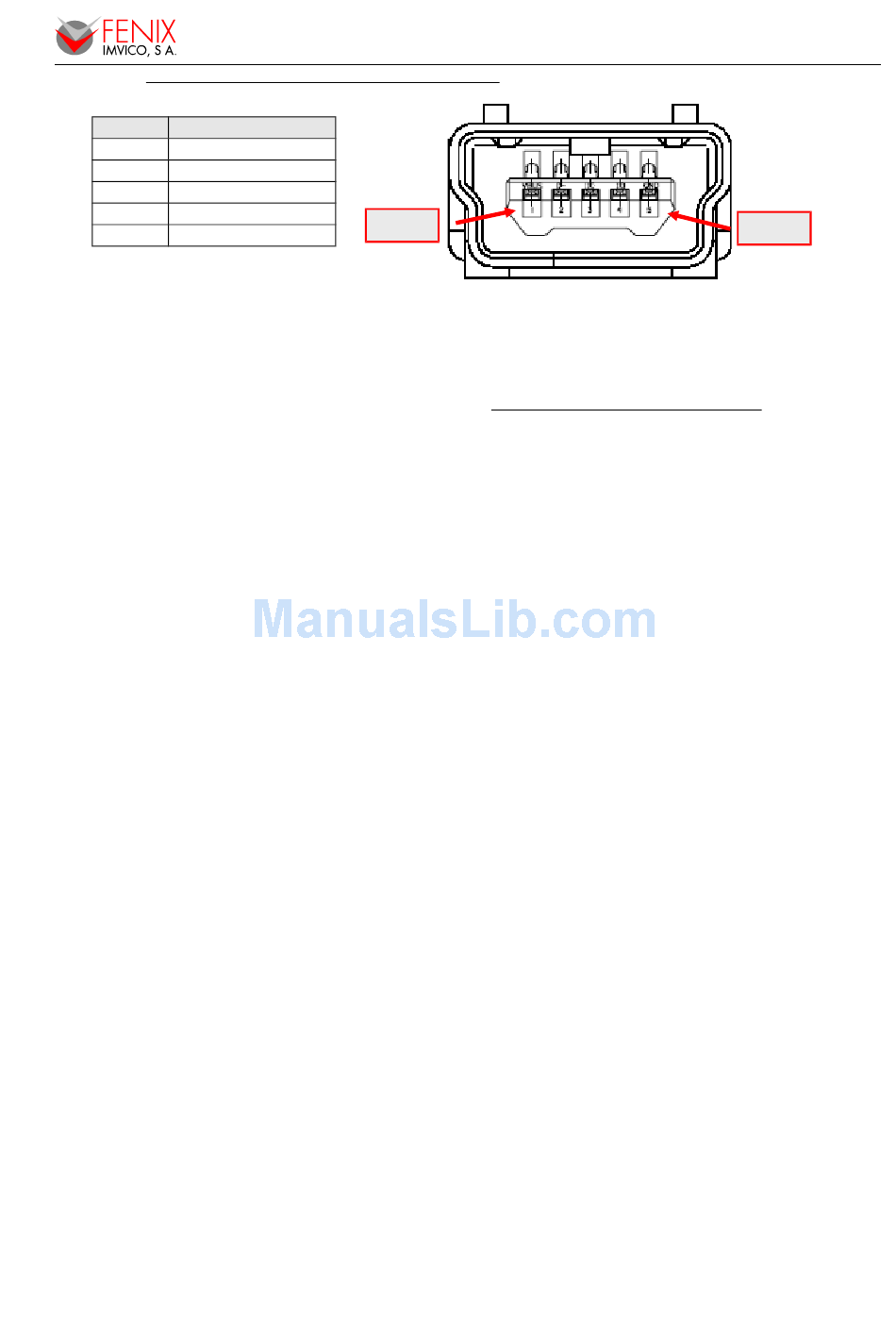

Fig. 9 - EPC1800 USB connector.

EPC1800 SERIES OPERATION MANUAL
Pin #5
14 of 53
