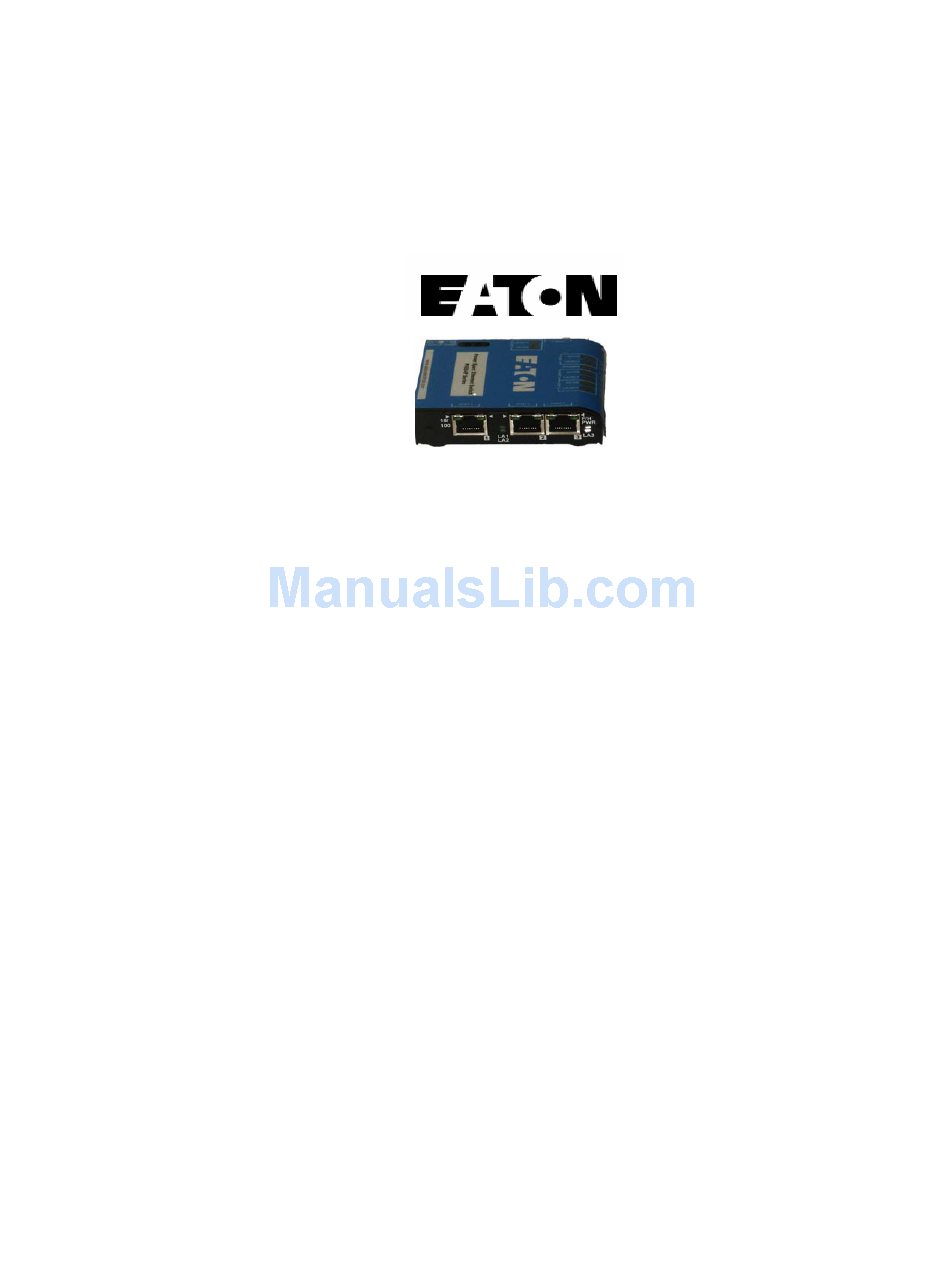

Page 1: User Guide
Power Xpert Ethernet Switch Series PXES4P User Guide Installation and Corporate Headquarters Eaton Electrical, Inc. 1000 Cherrington Parkway Moon Township, PA 15108 Phone: 1.800.525.2000 Website: http://www.eatonelectrical.com... - Page 2 Mb/s Convenient Switches, consult Section 5, troubleshooting, of this User Guide. Copyright © 2006 EATON. All rights reserved. No part of this publication may be reproduced without prior written permission from EATON, Inc. Printed in the United States of America.
-
Page 3: Table Of Contents
The architecture supports a dual speed switching environment, with auto-negotiation capability................38 Auto-cross (MDIX), Auto-negotiation and Speed-sensing....40 4.3: Dual LEDs, Front-panel and side-panel ( PXES4P Series ) .... 41 Troubleshooting Before Calling for Assistance ............44 When Calling for Assistance ............. 45... -
Page 4: Specifications
PXES4P Switches Installation and User Guide (10/06) SPECIFICATIONS Technical Specifications Ports Performance When a port is operating at 100Mbps: Data Rate: 100Mbps When a port is operating at 10 Mbps: Data Rate: 10 Mbps Network Standards 100Mb: Ethernet IEEE 802.3u, 100BASE-TX, IEEE 802.1p 10 Mb: Ethernet IEEE 802.3, 10BASE-T Power Over Ethernet: IEEE 802.3af (PPXES4PP model only) Auto-sensing for speed: IEEE 802.3u... - Page 5 PXES4P Switches Installation and User Guide (10/06) Cooling Method: The case is used as a heat sink on this model. POWER SUPPLY : These products are intended to be supplied by a Listed, Direct Plug-In power unit, marked “Class 2”, or a Listed ITE Power Supply, marked “LPS”, which has suitably rated output voltage (i.e.
-
Page 6: Introduction
PXES4P-48VDC = Same as PXES4P-24VDC model, except for -48VDC power input. PXESTRAY = 19” Rack-mount tray for 14-series Switch models, up to 16 units PXESDINRL = Metal DIN-Rail mounting bracket for one PXES4P Series INTRODUCTION This section describes PXES4P Series models, including appearance, features and typical applications. -
Page 7: Product Description
PXES4P Switches Installation and User Guide (10/06) Remove the PXES4P Series Switch from the shipping container. Be sure to keep the shipping container should you need to ship the unit at a later date. In the event there are items missing or damaged contact your supplier. If you need to return the unit use the original shipping container. -
Page 8: Frame Buffering And Latency
PXES4P Switches Installation and User Guide (10/06) ports of the PXES4P Series convenient switch support auto-cross (MDIX), and perform the auto-cross in the auto-negotiation mode only. Dual LEDs indicating the operating status of ports are mounted on the top as well as end for convenience and may be viewed from any direction. -
Page 9: Features And Benefits
Applications For PXES4P Series PXES4P Series Switch unit fits in any environment where users need to add a few RJ-45 ports to a LAN quickly and cost effectively. The edge-of–the-network connectivity product makes challenging industrial applications easier, more economical, and more reliable. The... -
Page 10: Installation
PXES4P Switches Installation and User Guide (10/06) compact PXES4P Series 10/100 Mbps switch functions support a mixed environment of 10 Mbps and 100Mbps users. The switching full / half duplex capability on all four ports provide bandwidth for high performance. Port #1 (on the back end) is typically used for an up-stream connection. -
Page 11: Pxestray For Rack Mounting Of Pxes4P Series Switches
PXES4P Switches Installation and User Guide (10/06) 3.2 PXESTRAY for Rack Mounting of PXES4P Series Switches For 19” rack mounting of PXES4P Series Switches, a rack-mount tray is available, the part number is PXESTRAY. The Convenient Switches along with Media Converter units are... -
Page 12: Powering The Pxes4Ph With 12V, 24V Or -48Vdc Power Input
PXES4P Switches Installation and User Guide (10/06) The PXES4P Series are designed to provide reliable operation, withstand higher temperature environments, and provide the Direct DC power choices to the user to deploy in uncontrolled temperature environments. 12VDC 24VDC -48VDC The Internal 12V DC (8 – 15V DC) has a built-in terminal block for +, -, ground. The 9V DC jack is also present. -
Page 13: Connecting Twisted Pair (Rj-45 Ports)
Installation and User Guide (10/06) 3.8 Connecting Twisted Pair (RJ-45 ports) The PXES4P Series Switches can be connected to only one media type with two different speed i.e. 100BASE-TX and 10BASE-T. CAT 5 cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE-T ports, CAT 3 may be used. -
Page 14: Connections To Nics Which Support Auto-Negotiation, Rj-45 Ports
3.8.2 Connections to NICs which support Auto-Negotiation, RJ-45 ports The copper ports of PXES4P Series Switches will function properly with NICs (Network Interface Cards) which support Auto-Negotiation, and the Fast Link Pulse (FLP) coding for the 100BASE-TX signaling system. When connecting a NIC to the PXES4P- Sereis, it may be necessary to reload the NIC drivers on the user device if the NIC has been communicating with a protocol other than 100BASE-TX (such as 10BASE-T). -
Page 15: Auto-Cross (Mdix), Auto-Negotiation And Speed-Sensing
Installation and User Guide (10/06) Switching, Address Learning The PXES4P Series units have address table capacity of 2K node addresses, and are suitable for use in large networks. They are self-learning, so that as nodes are added or changed, the PXES4P Series automatically keeps up with node locations. -
Page 16: Troubleshooting
However, if you are unsure of the procedures described in this section or if the PXES4P Series 10/100 Mb/s Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact EATON Customer Support. -
Page 17: Return Material Authorization (Rma) Procedure
PXES4P Switches Installation and User Guide (10/06) EATON will carefully test and evaluate all returned products, will repair products that are under warranty at no charge, and will return the warranty-repaired units to the sender with shipping charges prepaid (see Warranty Information, Appendix A, for complete details). -
Page 18: Appendix A: Warranty Information
MERCHANTABILITY AND FITNESS FOR A APRTICULAR PURPOSE. Warranty Repair If you believe your equipment is in need of repair, call Eaton Corporation and ask for a customer service representative. It is important to contact us first as many problems may be resolved with a phone call.
