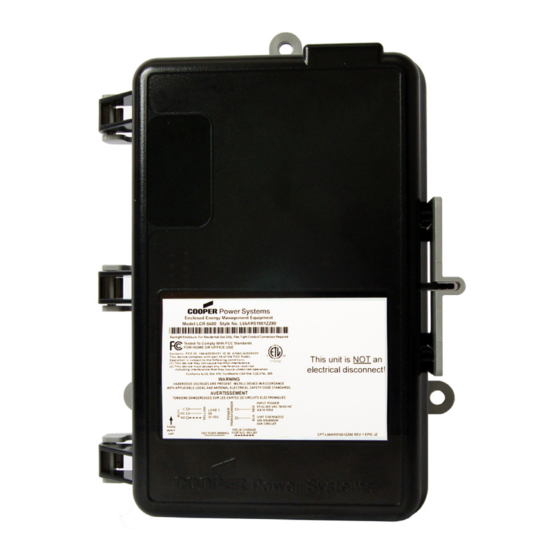

Eaton Cooper Power System LCR 6600 RFN Instructional Leaflet

Load control switch brazil
Hide thumbs
Table of Contents

Advertisement

Quick Links

Technical Support: 1-800-815-2258
Introduction
This instructional leaflet contains general installation
information for the LCR 6600 RFN Load Control
Switch. The LCR 6600 RFN is used to control remote
electric loads and it is activated by commands sent
over Eaton's Cooper Power Systems' Radio
Frequency (RF) mesh network.
The LCR 6600 RFN uses an RF SelectCom™ module
to provide two-way communication with the
Yukon™ master station. Once powered-up, the LCR
will automatically form a communication path back
to the Yukon master station.
Advanced security features provide both over-the-air
and local port security. All local port connections and
over-the-air commands are logged to provide
traceability of actions.
WARNING Dangerous voltages are present. Equipment damage, personal injury, and death can result if safety
precautions are not followed. Use authorized utility procedures to install, test, and service the LCR 6600 RFN.
AVERTISSEMENT Présence de tensions dangereuses. Tout défaut de se conformer aux mesures de sécurité
peut entraîner un bris d'équipement, une blessure corporelle ou même la mort. Servez-vous des procédures
autorisées par l'entreprise de services pour installer, tester et entretenir le LCR 6600 RFN.
Load Control Switch (Brazil)
The data log records the actual time of state
changes, for the control relay and appliances, to
provide improved granularity of runtime and
shedtime information.
The LCR 6600 RFN addressing must be configured
for your demand response system prior to operation.
CAUTION Observe precautions for handling
electrostatic sensitive devices.
MISE EN GARDE Respecter les précautions
de manipulation des dispositifs
électrostatiques sensibles.
LCR 6600 RFN
Instructional Leaflet

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cooper Power System LCR 6600 RFN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton Cooper Power System LCR 6600 RFN

Summary of Contents for Eaton Cooper Power System LCR 6600 RFN

  • Page 1 Eaton’s Cooper Power Systems’ Radio The LCR 6600 RFN addressing must be configured Frequency (RF) mesh network. for your demand response system prior to operation.

  • Page 2: Safety For Life

    FOR LIFE FOR LIFE Eaton’s Cooper Power Systems™ products meet or exceed all applicable industry standards relating to product safety. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton’s Cooper Power Systems employees involved in product design, manufacture, marketing, and service.

  • Page 3: Informations De Sécurité

    Eaton’s Cooper Power Systems participant à la conception, à la fabrication, à la mise sur le marché et à l'entretien des produits.
  • Page 4 NOTICE: The Original Equipment Manufacturer (OEM) must ensure that FCC Labeling requirements are met. This includes a clearly visible label on the outside of the OEM enclosure specifying the Eaton’s Cooper Power Systems FCC identifier (FCC ID: P9X-RFNSCOMMMR3) and IC Number (IC: 6766A-RFNSCOMMMR3) as well as the FCC Notice below.
  • Page 5 NOTIFICATION: Le fabricant d'équipement d'origine (OEM) doit s'assurer que les exigences en matière d'étiquetage FCC sont remplies. Cette comprend une étiquette clairement visible à l'extérieur du boîtier OEM précisant le numéro d’identification FCC de Eaton’s Cooper Power Systems (FCC ID: P9X-RFNSCOMMMR3) et le numéro IC Number (IC: 6766A-RFNSCOMMMR3) ainsi que l'avis FCC ci-dessous.
  • Page 6 LCR 6600 RFN Load Control Switch (Brazil) LCR 6600 RFN Features and Functions RF SelectCom LCR Receiver Switching Current Module LEDs (2) Board Power Transformer High Current Supply RF SelectCom IrDA Port Relay Module Test Button LCR LEDs RF Antenna Latch Gasket Wiring...
  • Page 7 Digital Control Jumper Digital Control Jumper Pin J15 for Relay 3 Pin J14 for Relay 1 (Low Power) 4. You are now ready to proceed with “Mounting the LCR 6600 RFN” on page Eaton’s Cooper Power Systems...
  • Page 8 LCR 6600 RFN Load Control Switch (Brazil) Mounting the LCR 6600 RFN Perform the following steps to mount the LCR: See the Cooper Crouse-Hinds Web site for UL approved conduit fittings: 1. Determine which knockout(s) are to be used. http://www.cooperindustries.com/content/pub The LCR 6600 RFN contains five knockouts for lic/en/crouse-hinds/commercial_products/ input and load wiring:...
  • Page 9 NOTE: To wire the LCR 6600 RFN to a Dual Stage air conditioner and perform Dual Stage TrueCycle control, wire the output lead from Relay 1 (K1) to the primary compressor and wire the output lead from Relay 3 (K3) to the secondary compressor. Eaton’s Cooper Power Systems...

  • Page 10: Test Button

    LCR 6600 RFN Load Control Switch (Brazil) LCR 6600 RFN Wiring Connections Install the wiring within a 1/2 inch liquid-tight, Two output leads are supplied for each relay. No non-metallic, flexible conduit or make sure the wiring polarity requirements apply. All relay leads are is close nippled into an approved junction box or attached via push-on connectors.
  • Page 11 LED On – LED is on solid when the RF SelectCom firmware has malfunctioned. • LED Blinking – LED blinks (1/2 second on and 1/2 second off) when the RF SelectCom module has power and it is functioning normally. Eaton’s Cooper Power Systems...

  • Page 12: Fcc Compliance Statement

    • Consult the dealer or an experienced radio/TV technician for help. These devices operate under Part 15 of the FCC rules. Modifications to these devices not expressly authorized by Eaton’s Cooper Power Systems may affect your ability to legally operate these devices.
