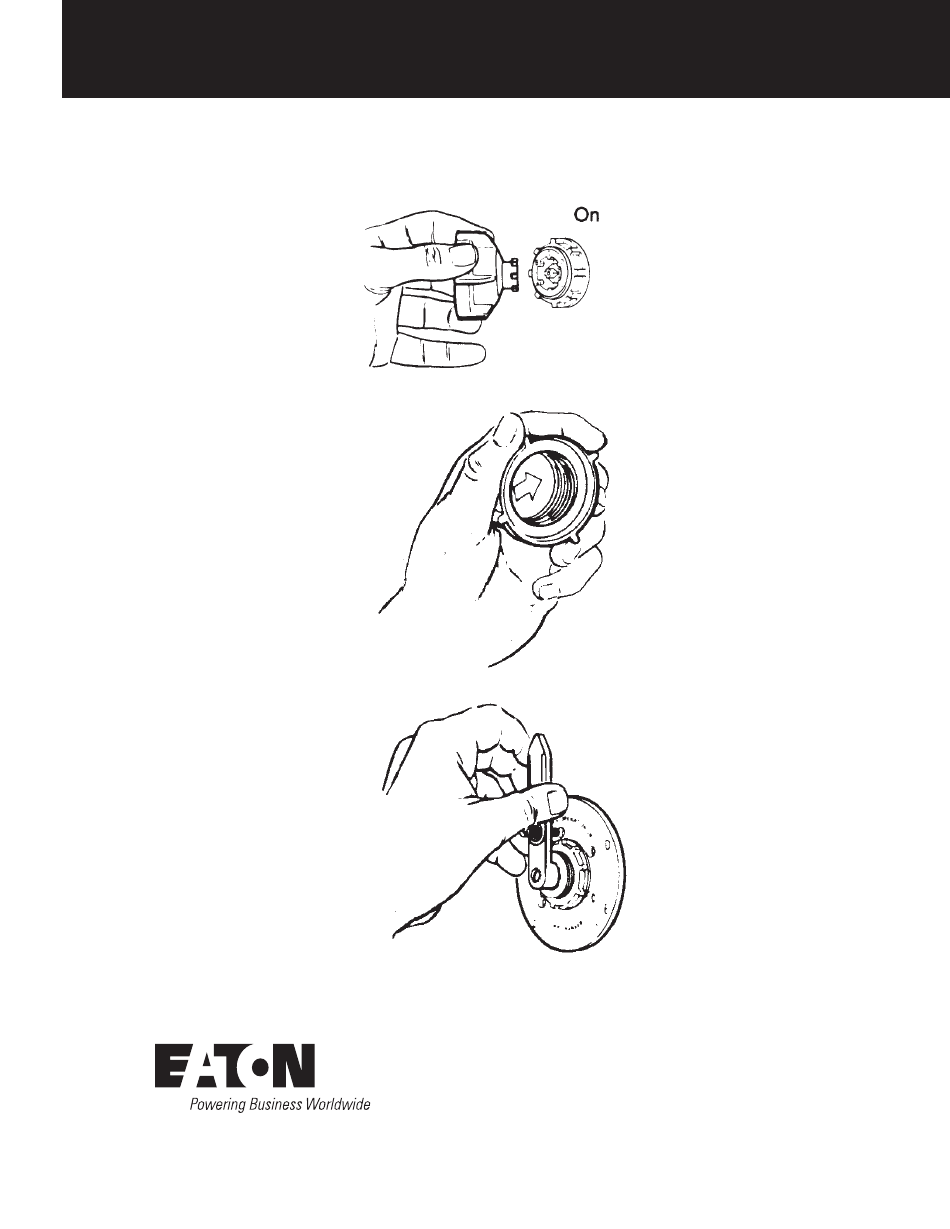

COOPER POWER OEM Equipment SERIES Effective February 2017 MN800014EN Supersedes August 2012 (S800-57-1) 100 A tap-changer switch cap/wrench, lever or hotstick operable handles installation instructions...
Page 2
CONTENTS OF THIS DOCUMENT SHALL NOT BECOME PART OF OR MODIFY ANY CONTRACT BETWEEN THE PARTIES. In no event will Eaton be responsible to the purchaser or user in contract, in tort (including negligence), strict liability or other-wise for any special, indirect, incidental or consequential damage or loss whatsoever, including but not limited to...
FOR LIFE FOR LIFE Eaton’s Cooper Power series products meet or exceed all applicable industry standards relating to product safety. We actively promote safe practices in the use and maintenance of our products through our service literature, instructional training programs, and the continuous efforts of all Eaton employees involved in product design, manufacture, marketing and service.
Product information General mounting description Table 1 . Dielectric clearance dimensions Introduction Eaton’s Cooper Power series 100 A externally operated Minimum mounting clearance single-, two-, and three-phase Tap-Changer Switches under-oil to Gnd/ between phases/ are designed for use in distribution transformers filled...
100 A tap-changer switch cap/wrench, lever or hotstick operable handles installation instructions Operation instructions WARNING Cap/wrench Enclosed “Warning” decals (Eaton P/N 1139089A01 and P/N 1139090A01) must be displayed at or near operating It is keyed for one way in/ handle of switch as a warning to service personnel .
100 A Tap-Changer Switch - Cap/Wrench, Lever or Hotstick Operable Handles Installation Instructions 100 A tap-changer switch cap/wrench, lever or hotstick operable handles installation instructions 100 A Tap-Changer Switch - Cap/Wrench, Lever or Hotstick Operable Handles Installation Instructions mounting Sequence Mounting sequence mounting Sequence Screw...
Page 8
100 A tap-changer switch cap/wrench, lever or hotstick operable handles installation instructions Screws Flexible Hotstick Handle Screw Lockwasher Flat Washer Thermoplastic Lever Handle Figure 10 . Flexible hotstick handle - front view Index Plate Tank Wall Gasket Switch Figure 8 . Flexible hotstick handle assembly Figure 9 .
Page 9
100 A tap-changer switch cap/wrench, lever or hotstick operable handles installation instructions Rigid one-piece hotstick handle Figure 12 . One-phase rigid one-piece hotstick * Dimension will decrease as tank wall thickness increases. Maximum dimension given with 14 gauge tank wall. Figure 13 .
Page 10
100 A tap-changer switch cap/wrench, lever or hotstick operable handles installation instructions Table 2 . Tap-changer mounting sequence (all configurations) “B” dimensions all switch configurations in/mm Contact type 1Ø 2Ø 3Ø Bolt Tabs for 1/4 inch Bolts 2.81 5.35 8.20 (71) (135.9) (208.3)
Page 11
100 A tap-changer switch cap/wrench, lever or hotstick operable handles installation instructions This page intentionally left blank. INSTALLATION INSTRUCTIONS MN800014EN February 2017...
