T V I NLET
The direct link can be used to:
1. Supply an external signal (caravan site TV
feed) to the primary TV position
a. Connect the socket in the battery box
(on flying lead depending on model), with
a suitable lead, to the appropriate socket
on the caravan site supply post. As the
connector in the battery box is a screw on
'F-type' connector, an adaptor to convert
this to a 'push-on' co-ax connector, which
may be required, has been supplied with
your caravan.
b. Locate the primary TV position within the
caravan. At the 12V, TV and SAT socket,
connect your TV to the output from the
socket marked SAT with a suitable lead.
2. Connect an external satellite dish to a
decoder within the caravan. (The direct link
uses F-type interconnects throughout to
allow the decoder and dish to communicate
correctly)
a. Connect the dish to the socket (or flying
lead) in the battery box with a suitable lead.
The F-type to co-ax adaptor should not be
used.
b. Connect the dish input connection on the
decoder to the 'SAT' socket on the 12V, TV
and SAT socket located in the primary TV
location.
174
3. Supply a signal from within the caravan to
the exterior of the caravan
a. Connect the output from your VCR, DVD
player or other device to the SAT connection
on the 12V, TV and SAT socket at the
primary TV position.
b. Connect your receiving device (TV or similar)
to the socket in the battery box with a
suitable lead.

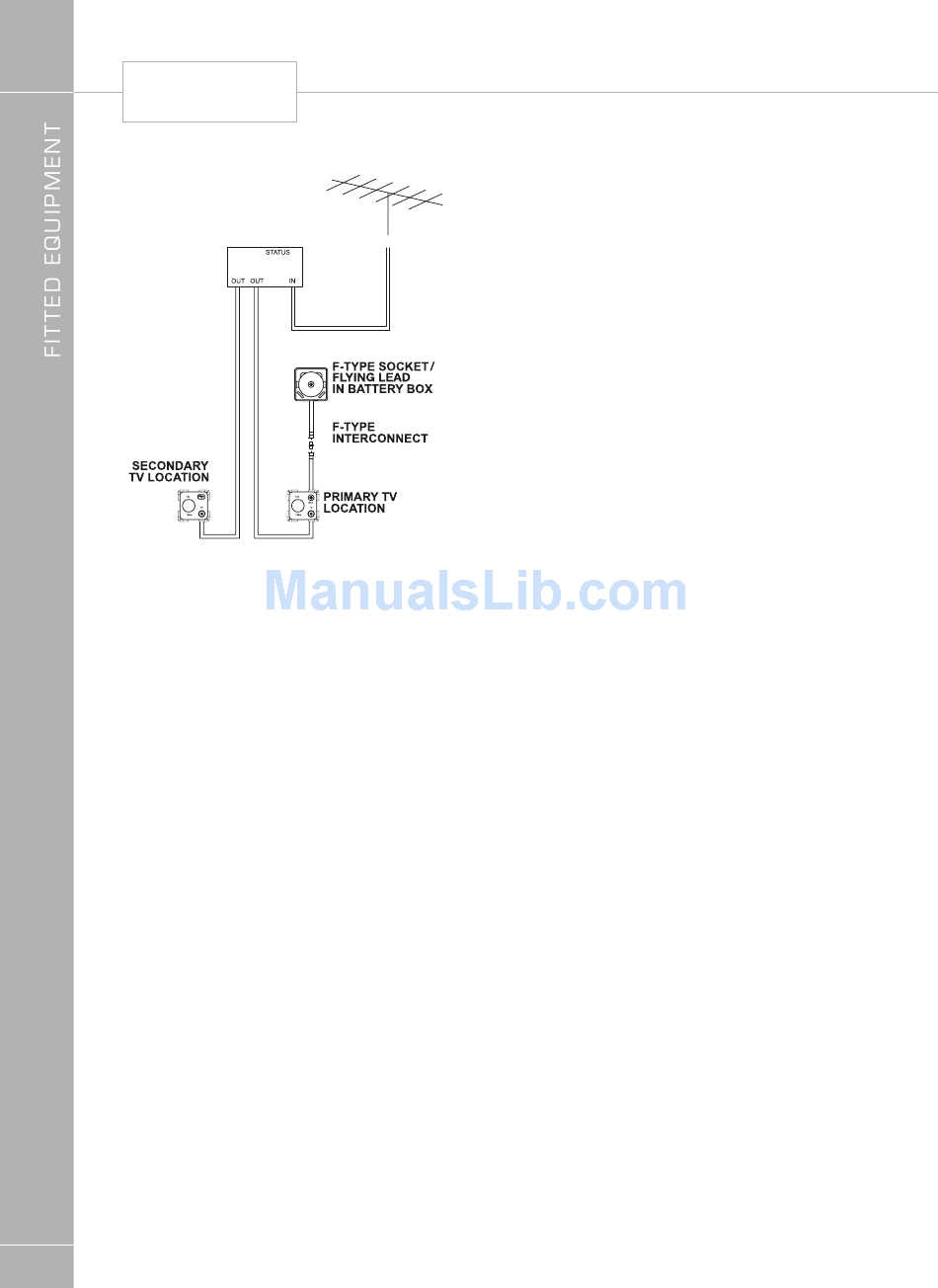

As can be seen from the simplified schematic,
when multiple TV locations are present in a
van, all of these receive signals from the TV
aerial connection box. Using adaptors and
link cables which are readily available, it may
be possible to re-direct a signal from the
'SAT' connection at the primary TV location,
up to the aerial connection box to be then
distributed to other TV positions within the
caravan. Please remember that as the number
of connections increases the quality of the
signal reduces.
Supplier fitted / supplied
entertainment equipment
Audio-visual equipment may have been fitted
by your dealer, or supplied with the caravan,
depending on the specification of the caravan.
Although not specific, below are details of the
types of equipment which would be fitted as
appropriate to the specification of the caravan:

CD/MP3/tuner with auxiliary input

Where provision has been made in the
furniture to install a head unit similar in
appearance to that fitted in the dashboard of
a car. The unit operates as a CD player and
FM/AM radio. In addition MP3 files stored on
a CD can be read and played by the unit. An
auxiliary input on the front of the unit allows
a separate MP3 player to be connected from
that player's headphone socket. (A separate
lead may be required).
Speakers mounted in the front locker of the
caravan are connected to this head unit for
a stereo sound output. A retractable AM/
FM aerial on the side of the caravan, enables
reception of radio stations.
