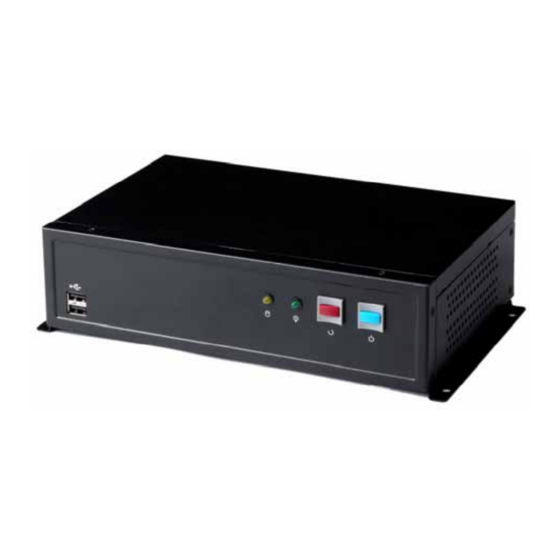

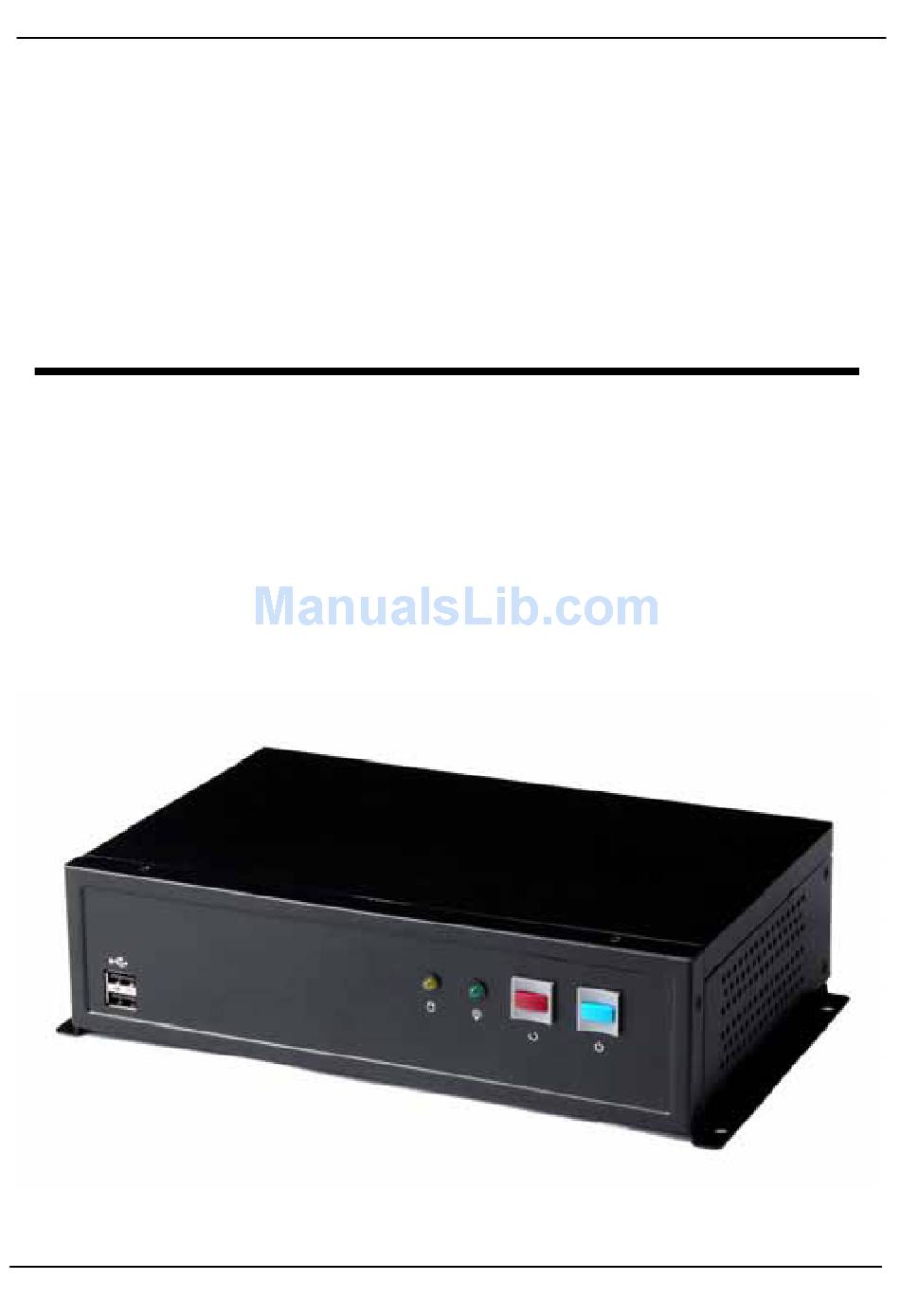

- Page 1 CMB-570 Installation Guide CMB-570 Mini Barebone system Intel High Performance Platform Installation Guide Edition 1.0 2008/03/06...
-
Page 2: Document Content
CMB-570 Installation Guide Document Content: Packing List Product Specification Hardware Installation Packing List: CMB-570 Chassis x 1 (Including LS-570 Motherboard) DSPD-080-12A 80W AC-DC Adapter x 1 Power Cord x 1 CPU Cooler x 1 ATAPI Power Cord x1 44-pin to 44-pin ATA33 IDE Cable x1 (12CM) -
Page 3: Hardware Installation
CMB-570 Installation Guide Hardware Installation: Motherboard placement DDRII_A/B CPUFAN SYSFAN SATA1/2 DC_OUT JRTC JFRNT JCFSEL MINIPCI CN_LVDS JVLCD CN_IR JCRT CN_DIO CN_INV CD_IN CN_LPT CN_PS2 CN_DVI JCSEL1 CN_COM2/3/4 CN_HDTV CN_USB1/2 CN_AUDIO JCSEL2 For the Components placement,it is available for LS-570... - Page 4 CMB-570 Installation Guide I/O panel: Front: Power LED HD LED Reset Button Power Button...
- Page 5 CMB-570 Installation Guide Rear: USB3/4 Printer Mouse Keyboard COM2/3/4 USB1/2 COM1 Line-In RJ45 DC-IN Line-Out Mic Phone...
- Page 6 CMB-570 Installation Guide Chassis Setup procedure: 1. Screw off as indication of the picture below. Rear: Top:...
- Page 7 CMB-570 Installation Guide 2. Push the Chassis shield towards the back then open it.
- Page 8 CMB-570 Installation Guide 3. Screw off as indication of the picture below. 4. Turn the CPU cooler screws and then refer the motherboard manual page.17 to install the CPU.(After installing CPU, please turn the CPU FAN screws to tighten.)
- Page 9 CMB-570 Installation Guide 6. Open the DIMM holder then check the pin number to match the socket side well before installing memory module. 7. Press down the memory module then check DIMM holder hook well.
- Page 10 CMB-570 Installation Guide 8. Put on HDD driver into HDD holder then turn the HDD drive screws to tighten.(If you don’t have HDD drive please direct to step.10) 9. Connect IDE cable from motherboard to the HDD drive.
- Page 11 CMB-570 Installation Guide 10. Screw on as indication of the picture below Turn the screws. 11. Push the Chassis shield towards the back then open it.
- Page 12 CMB-570 Installation Guide 12. Screw on as indication of the picture below. Rear: Top:...
- Page 13 CMB-570 Installation Guide 13. Finish.
- Page 14 CMB-570 Installation Guide CF card Setup Procedure: Screw off as indication of the picture below. Open it and you shall see CF card socket. As shown in the illustration, face the label side toward you and insert the end with the small holes...
- Page 15 CMB-570 Installation Guide Follow the foolproof design then insert the CF card. Check connected well...
- Page 16 CMB-570 Installation Guide Close it shield and turn screw to tighten.
- Page 17 CMB-570 Installation Guide Addendum Notice Please leave the JCFSEL for Master mode, and set the IDE2 HDD as Slave mode if you need to use the CF card. Jumper: JCFSEL Type: onboard 3-pin header JCFSEL Mode Master Slave Default setting...
-
Page 18: Contact Information
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate Computer Inc.
