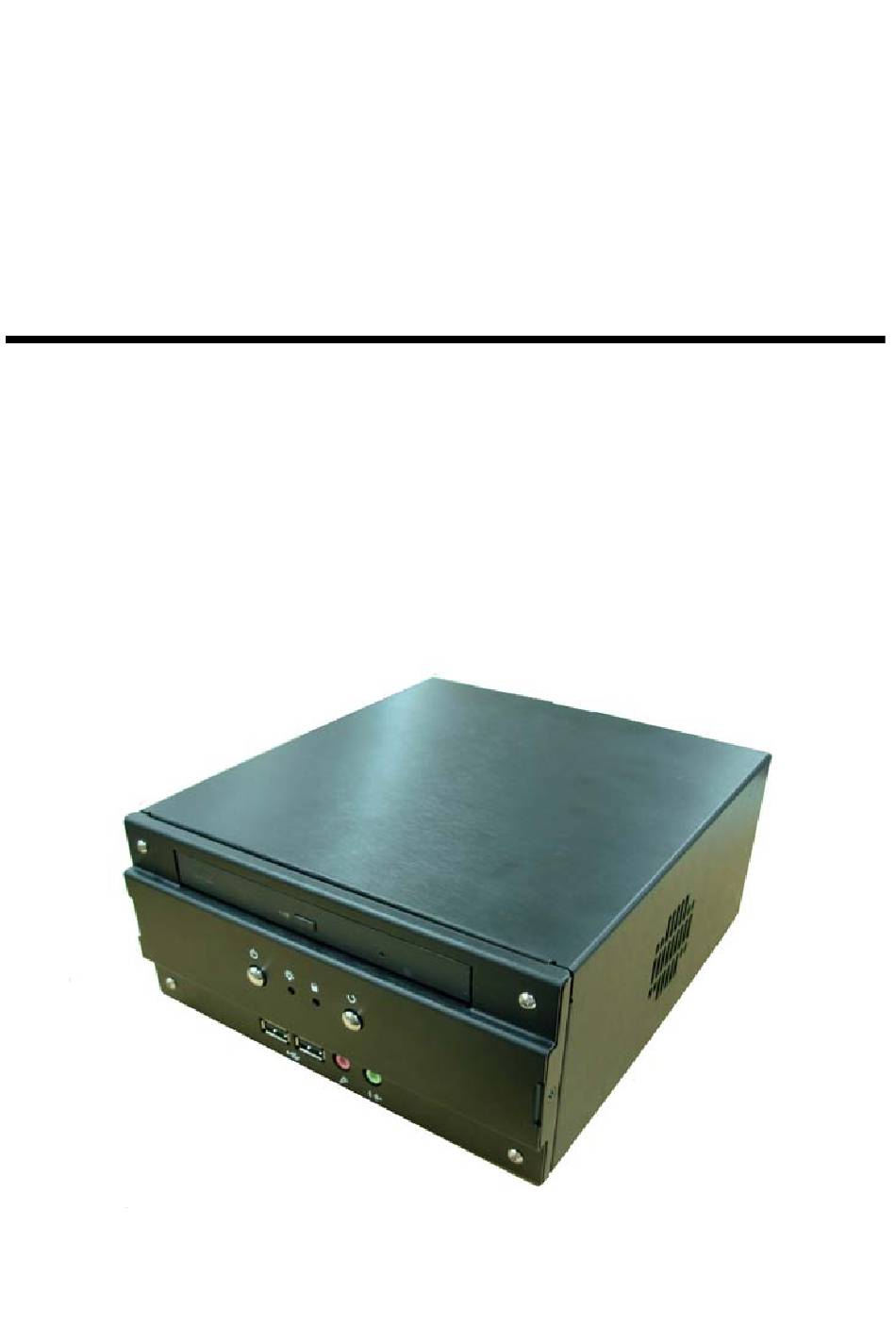

- Page 1 CMB-677DC Mini Barebone system Intel High Performance Platform Installation Guide Edition 1.01 2025/02/03...
-
Page 2: Document Content
CMB-677DC Installation Guide Document Content: Packing List Product Specification Hardware Installation Packing List: CMB-677DC Chassis x 1 (Including LV-677DC Motherboard) DSPD-080-12A 80W AC-DC Adapter x 1 Power Cord x 1 CPU Cooler x 1 ATAPI Power Cord x1 44-pin to 44-pin ATA33 IDE Cable x1 (27CM) -
Page 3: Hardware Installation
CMB-677DC Installation Guide Hardware Installation: Motherboard placement SYSFAN JRTC JFRNT CPUFAN SATA JCFSEL Mini-PCI PCI-Express CN_Audio DC-out COM Port CDIN JVLCD DC-in (LV-677DC) JCSEL For the Components placement,it is available for CMB-677DC only For Jumper For Connector... - Page 4 CMB-677DC Installation Guide I/O panel: Front: CD-ROM HD LED Power LED Reset Button Power Button Ear-Phone...
- Page 5 CMB-677DC Installation Guide Rear: Antenna Port Printer Port RJ45 COM Port DC-IN TV-OUT S/PDIF IEEE1394 Line-In Keyboard Line-Out Mouse Mic Phone...
- Page 6 CMB-677DC Installation Guide Chassis Setup procedure: 1. Turn the chassis screws. 2. Push the Chassis shield towards the back then open it .
- Page 7 CMB-677DC Installation Guide 3. Turn the screws and refer the picture A , B and C...
- Page 8 CMB-677DC Installation Guide 4. Push the front panel towards the front then take the CD-ROM holder off.
- Page 9 CMB-677DC Installation Guide 5. Turn the CPU cooler screws and then refer the motherboard manual page.16 to install the CPU. (After installing CPU, please turn the CPU FAN screws to tighten.)
- Page 10 6. Open the Dimm holder then check the pin number to match the socket side well before installing memory module. 7. Press down the memory module then check dimm holder hook well.
- Page 11 CMB-677DC Installation Guide 8. Find out the HD holder to install HD driver, it is under backside of the CD-ROM holder. 9. Put on HD driver into HD holder then turn the HD drive screws to tighten. (If you don’t have HD drive please direct to step.11)
- Page 12 CMB-677DC Installation Guide 10. Connect IDE or SATA cable from motherboard to the HD drive. 11. After install HD driver, Turn the CD-ROM holder and front panel screw well. (If you don’t have CD-ROM driver please direct to step.14)
- Page 13 CMB-677DC Installation Guide 12. Take CD-ROM shield off . And insert CD-ROM drive from front panel to the CD-ROM holder. 13. Turn the CD-ROM driver screws and IDE cable connects well. Pin 1...
- Page 14 CMB-677DC Installation Guide 14. Turn the chassis shield screws to tighten well.
- Page 15 CMB-677DC Installation Guide CF card Setup Procedure: Turn the CF chassis shield screw. Take CF chassis shield off.
- Page 16 CMB-677DC Installation Guide Follow the Idiot-proof design then insert the CF card. Check connected well...
- Page 17 CMB-677DC Installation Guide Close CF chassis shield and turn screw to tighten.
- Page 18 CMB-677DC Installation Guide Addendum Notice Please leave the JCFSEL for Master mode, and set the IDE2 HDD as Slave mode if you need to use the CF card. Jumper: JCFSEL Type: onboard 3-pin header JCFSEL Mode Master Slave Default setting...
-
Page 19: Contact Information
19F, No. 94, Sec. 1, Xintai 5th Rd., Xizhi Dist Address New Taipei City, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw i nfo@commell.com.tw (General Information) E-Mail t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan Commate Computer Inc.
