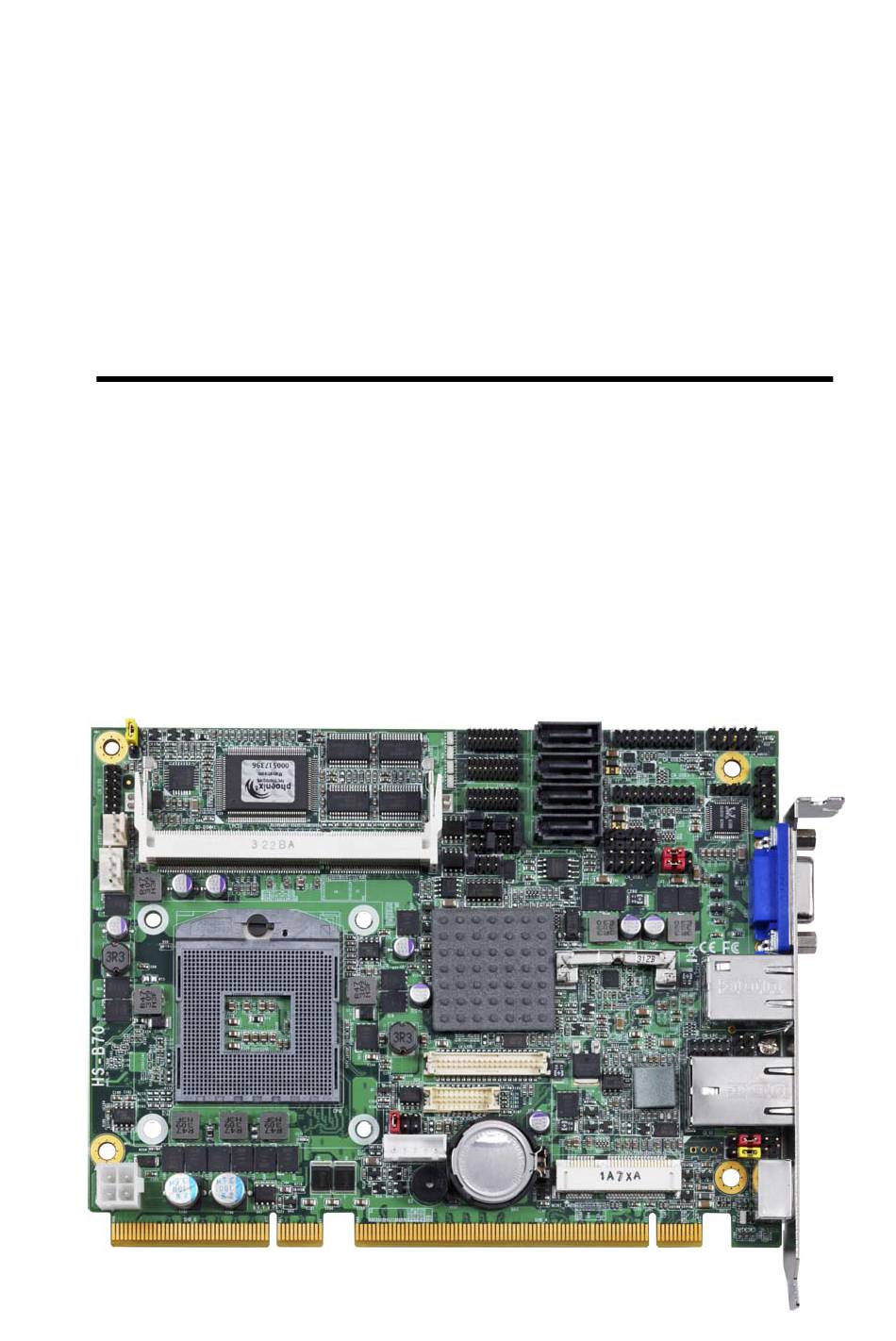

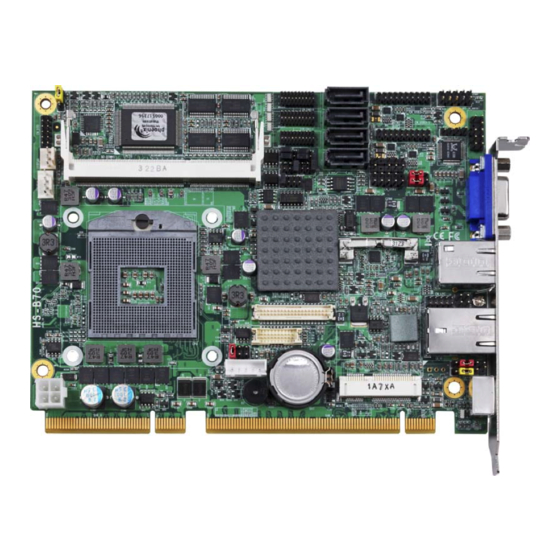

- Page 1 HS-B70 PICMG 1.3 Half-size CPU Card User’s Manual Edition 1.2 2014/3/13...
- Page 2 HS-B70 User’s Manual Copyright Copyright 2013, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
- Page 3 HS-B70 User’s Manual Packing List: Please check the package content before you starting using the board. Hardware: HS-B70 PICMG 1.3 Half-size CPU Card x 1 Cable Kit: SATA Cable x 2 (OALSATA3-L)/ (1040529) USB3.0 Cable x1 (OALUSB3)/ (1040531) PS/2 Keyboard & Mouse Cable x 1 (OALPS2/MKN)/ (1040551) USB2.0 Cable x 1...
-
Page 4: Table Of Contents
HS-B70 User’s Manual Index Chapter 1 <Introduction> .............6 1.1 <Product Overview>..................6 1.2 <Product Specification>................7 1.3 <Mechanical Drawing>................. 9 1.4 <Block Diagram>..................10 Chapter 2 <Hardware Setup> ..........11 2.1 <Connector Location> ................11 2.2 <Jumper Location & Reference>..............12 2.3 <Connector Reference>... - Page 5 HS-B70 User’s Manual 2.15 <Switch and Indicator> ................35 Chapter 3 <System Setup> ............36 3.1 <Audio Configuration> ................36 3.2 <Display Properties Setting> ..............37 3.3 <SATA configuration> .................39 3.4 <SATA RAID Configuration> ...............40 Chapter 4 <BIOS Setup> .............42 Appendix A <I/O Port Pin Assignment>...
- Page 6 HS-B70 User’s Manual (This page is left for blank)
-
Page 7: Chapter 1
HS-B70 User’s Manual Chapter 1 <Introduction> 1.1 <Product Overview> HS-B70 the 3 Generation Intel of the PICMG 1.3 Half-size CPU Card, supports 3 Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor and features Intel QM77 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition Audio, Serial ATA with RAID function for a system and Intel Gigabit LAN. -
Page 8: Product Specification
HS-B70 User’s Manual 1.2 <Product Specification> General Specification Form Factor PICMG 1.3 Half-size CPU Card Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor Package type: rPGA988B Memory 2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB Support Non-ECC, unbuffered memory only... - Page 9 HS-B70 User’s Manual The specifications may be different as the actual production. For further product information please visit the website at http://www.commell.com.tw...
-
Page 10: Mechanical Drawing
HS-B70 User’s Manual 1.3 <Mechanical Drawing>... -
Page 11: Block Diagram
HS-B70 User’s Manual 1.4 <Block Diagram> Generation Intel® Core™ i7, Core™ i5, Core™ i3 Mobile Processor 2 x 204-pin DDR3 SO-DIMM 1066/1333/1600 MHz up to 16GB 1 x LVDS 1 x PCI Express mini card 1 x DVI QM77 4 x USB3.0 2 x Serial ATAIII 2 x USB2.0... -
Page 12: Chapter 2
HS-B70 User’s Manual Chapter 2 <Hardware Setup> 2.1 <Connector Location> SATA1~4 JFRNT CN_COM1~6 CN_USB-1&2 SO_DIMM1 CN_DIO CN_AUDIO CD_IN CN_IR SYSFAN CN_SMBUS CN_USB1 CPUFAN CN_LPC CN_INV CN_LVDS DC_IN MINI_CARD CN_DVI/DP SO_DIMM2... -
Page 13: Jumper Location & Reference
HS-B70 User’s Manual RJ45-2(82574L) RJ45-1(82579LM) 2.2 <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) CN_COM2 RS-232 RS422 RS485 Setting... -
Page 14: Connector Reference
HS-B70 User’s Manual 2.3 <Connector Reference> 2.3.1 <Internal Connectors> Connector Function Remark Socket rPGA988B for PGA988 CPU SO-DIMM 1/2 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector SATA 3/4 7-pin Serial ATAII connector DC_IN 4-pin power supply connector... -
Page 15: Cpu And Memory Setup
HS-B70 User’s Manual 2.4 <CPU and Memory Setup> 2.4.1 <CPU Setup> The board comes with the socket rPGA988 for Intel Ivy Bridge Processor, Please follow the instruction to install the CPU properly. Unlock way Socket CPU Check point 1. Use the flat-type screw drive 2. -
Page 16: Memory Setup
HS-B70 User’s Manual 2.4.2 <Memory Setup> The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3 memory module up to 16GB. Support Non-ECC, unbuffered memory only. SO-DIMM1 SO-DIMM2... -
Page 17: Cmos & Atx Setup
HS-B70 User’s Manual 2.5 <CMOS & ATX Setup> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 18: Serial Ata Interface
HS-B70 User’s Manual 2.6 <Serial ATA Interface> HS-B70 has Two Serial ATA II(SATA Port3/4) & Two Serial ATA III(SATA Port1/2) interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s & Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/... -
Page 19: Ethernet Interface
HS-B70 User’s Manual 2.7 <Ethernet Interface> The board integrates with one Intel 82574L Gigabit Ethernet & one Intel 82579LM controllers, as the PCI Express bus. The Intel 82574L & 82579LM supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported. -
Page 20: Onboard Display Interface
HS-B70 User’s Manual 2.8 <Onboard Display Interface> Based on Intel CPU with built-in HD Graphic, the board provides one DB15 Ivy Bridge connector on real external I/O port, one 40-pin LVDS interface with 5-pin LCD backlight inverter connector and provides 20-pin DVI interface. -
Page 21: Digital Display
HS-B70 User’s Manual 2.8.2 <Digital Display> The board provides one 40-pin LVDS connector for 24-bit single/dual channel panels, supports up to 2048 x 1536 (UXGA) resolution, with one LCD backlight inverter connector and one jumper for panel voltage setting. CN_LVDS... - Page 22 HS-B70 User’s Manual Connector: CN_INV Connector: JVLCD Type: 5-pin LVDS Power Header Type: 6-pin Power select Header Description Description +12V LCDVCC (3.3V) Reserved (Note) LCDVCC (5V) LCDVCC (12V) Default: 1-2 ENABKL Note: Reserved for MB internal test Please treat it as NC.
- Page 23 LCD Installation Guide: Preparing the HS-B70, LCD panel and the backlight inverter. Please check the datasheet of the panel to see the voltage of the panel, and set the jumper JVLCD to +12V or +5V or +3.3V.
- Page 24 HS-B70 User’s Manual After setup the devices well, you need to select the LCD panel type in the BIOS. The panel type mapping is list below: BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel...
-
Page 25: Dvi Interface
HS-B70 User’s Manual 2.8.3 <DVI Interface> Connector: CN_DVI Connector type: E&T 3950-B20C-00R or similar (HIROSE DF13-20DP-1.25V compatible) Pin Number Assignment Pin Number Assignment +3.3V Ground TMDSTX0N TMDSTX0P Ground TMDSTX1N TMDSTX1P Ground TMDSTX2N TMDSTX2P Ground TMDSTXCN TMDSTXCP Ground DVI_DA DVI_SL AUXN... -
Page 26: Integrated Audio Interface
HS-B70 User’s Manual 2.9 <Integrated Audio Interface> The board provides the onboard high definition audio with Realtek ALC888. CN_AUDIO CD_IN... - Page 27 HS-B70 User’s Manual Connector: CN_AUDIO Type: 10-pin (2 x 5) header (pitch = 2.54mm) Description Description MIC_L Ground MIC_R Speaker_R MIC Detect SENSE Speaker_L Speaker Detect Connector: CDIN Type: 4-pin header (pitch = 2.54mm) Description CD – Left Ground Ground...
-
Page 28: Usb Interface
HS-B70 User’s Manual 2.10 <USB Interface> HS-B70 integrates four USB3.0 ports and two USB2.0 ports. The specifications of USB3.0 are listed below: Interface USB3.0 Intel®QM77 Controller Transfer Rate Up to 5Gb/s Voltage The specifications of USB2.0 are list: Interface USB2.0 Intel®QM77... - Page 29 HS-B70 User’s Manual Connector: CN_USB3- 1/2 Type: 20-pin (2 x 10) header (pitch = 2.0mm) Description Description VCC(5V_SB/ 5V) USB3.0_RX0- VCC(5V_SB/ 5V) USB3.0_RX0+ USB3.0_RX1- Ground USB3.0_RX1+ USB3.0_TX0- Ground USB3.0_TX0+ USB3.0_TX1- Ground USB3.0_TX1+ Data0- Ground Data0+ Data1- Data1+ Connector: CN_USB1 Type: 10-pin (2 x 5) header (pitch = 2.54mm)
-
Page 30: Serial Port
HS-B70 User’s Manual 2.11 <Serial Port> The board supports five RS232 serial port and one jumper selectable RS232/ 422/485 serial ports. The jumper JCSEL1 and JCSEL2 can let you configure the communicating modes for COM2. Connector: COM 1/2, 3/4, 5/6 Type: 20-pin (2 x 10) header pitch = 2.54x1.27mm... - Page 31 HS-B70 User’s Manual Function JCSEL2 JCSEL1 IrDA RS-422 RS-485 RS-232 Default setting: JCSEL1: (1-3, 2-4, 7-9, 8-10) JCSEL2: (1-2) Jumper: JP1/JP2 (COM1/2) Type: onboard 6-pin header Power Mode JP1/2/3/4 Pin 9 with 5V Power Pin 9 with 12V Power Standard COM port...
-
Page 32: Pcie Mini Card
HS-B70 User’s Manual 2.12 <PCIE Mini Card > The board provides one PCIE mini card sockets. MINI_CARD slot and option support mSATA. MINI_CARD is the first Mini-PCIe slot for long size Mini-PCIe cards. MINI_CARD JMPCIE Jumper: JMPCIE Type: onboard 3-pin header... -
Page 33: Gpio And Smbus Interface
HS-B70 User’s Manual 2.13 <GPIO and SMBUS Interface> The board provides a programmable 8-bit digital I/O interface; you can use this general purpose I/O port for system control like POS or KIOSK. Connector: CN_DIO Type: 12-pin (6 x 2) header (pitch = 2.0mm) -
Page 34: Power Supply And Fan Interface
HS-B70 User’s Manual 2.14 <Power Supply and Fan Interface > The HS-B70 needs a standard ATX power supply from Backplane's +12V , 5VSB & 3VSB and the board provides one 4-pin fan connector supporting smart fan for CPU cooler and one 4-pin cooler fan connectors for system and Northbridge chip. please connect this well before you finishing the system setup. -
Page 35: Fan Connector
HS-B70 User’s Manual 2.14.2 <Fan connector> The board provides one 4-pin fan connectors supporting smart fan for CPU cooler and one 3-pin cooler fan connectors for system. Connector: CPUFAN Type: 4-pin fan wafer connector Description Description Ground +12V Fan Speed Detection... -
Page 36: Switch And Indicator
HS-B70 User’s Manual 2.15 <Switch and Indicator> The JFRNT provides front control panel of the board, such as power button, reset and beeper, etc. Please check well before you connecting the cables on the chassis. Connector: JFRNT Type: onboard 10-pin (2 x 5) 2.54-pitch header... -
Page 37: Chapter 3
HS-B70 User’s Manual Chapter 3 <System Setup> 3.1 <Audio Configuration> The board integrates Intel® QM77 with REALTEK® ALC888 codec. It can support 2-channel sound under system configuration. Please follow the steps below to setup your sound system. Install REALTEK HD Audio driver. -
Page 38: Display Properties Setting
HS-B70 User’s Manual 3.2 <Display Properties Setting> Based on Intel QM77 with HD Graphic, the board supports two DACs for display device as different resolution and color bit. Please install the Intel Graphic Driver before you starting setup display devices. - Page 39 HS-B70 User’s Manual 3. This setup options can let you define each device settings. Click Monitor to setup the CRT monitor for Resolution and Refresh Rate Click Intel® Dual Display Clone to setup the dual display mode as same screen...
-
Page 40: Sata Configuration
HS-B70 User’s Manual 3.3 <SATA configuration> SATA Mode: This option can let you select whether the Serial ATA hard drives would work under normal IDE mode or RAID mode. The RAID mode need more than one HDD is applied. -39-... -
Page 41: Sata Raid Configuration
HS-B70 User’s Manual 3.4 <SATA RAID Configuration> The board integrates Intel® QM77 PCH with RAID function for Serial ATA drives, and supports the configurations below: RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W performance. It needs two unused drives to build this operation. - Page 42 HS-B70 User’s Manual Please press <CTRL+I> to enter the RAID configuration menu. You can setup the RAID under operation system for Microsoft® Windows XP SP1 , please install the Intel® Application Accelerator Ver.4.5 later to support RAID configuration with Intel® Matrix Storage Technology...
-
Page 43: Chapter 4
HS-B70 User’s Manual Chapter 4 <BIOS Setup> The motherboard uses the Phoenix BIOS for the system configuration. The Phoenix BIOS in the single board computer is a customized version of the industrial standard BIOS for IBM PC AT-compatible computers. It supports Intel x86 and compatible CPU architecture based processors and computers. - Page 44 HS-B70 User’s Manual (This page is left for blank)
-
Page 45: Appendix A
HS-B70 User’s Manual Appendix A <I/O Port Pin Assignment> A.1 <Serial ATA Port> Connector: SATA1/2/3/4 Type: 7-pin wafer connector GND RSATA_TXP1 RSATA_TXN1 GND RSATA_RXN1 RSATA_RXP1 GND A.2 <IrDA Port> Connector: CN_IR JCSEL1 must jump to “SIR” Type: 5-pin header for SIR Ports... -
Page 46: Lan Led Port
HS-B70 User’s Manual A.5 <LAN LED Port> Connector: JSPD1/2 Type: 5-pin header for LAN Speed LED connector When Lan speed 10/100Mbps Description LED- LED+ When Lan speed 1Gbps Description LED+ LED- Connector: JACT1/2 Type: 5-pin header for LAN Activity LED connector... -
Page 47: Appendix B
HS-B70 User’s Manual Appendix B <Flash BIOS> B.1 <Flash Tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: http://www.phoenix.com/en/home/ http://www.commell.com.tw/Support/Support_SBC.htm File name of the tool is “FPT.exe”, it’s the utility that can write the data into the BIOS... -
Page 48: Appendix C
HS-B70 User’s Manual Appendix C <Programming GPIO’s > The GPIO can be programmed with the MSDOS debug program using simple IN/OUT commands. The following lines show an example how to do this. GPIO0…..GPIO7 bit0……bit7 -o 2 E 87 ;enter configuration... -
Page 49: Appendix D
HS-B70 User’s Manual Appendix D <Programming Watchdog Timer > The watchdog timer makes the system auto-reset while it stops to work for a period. The integrated watchdog timer can be setup as system reset mode by program. Timeout Value Range... -
Page 50: Contact Information
Taiwan Commate Computer Inc. 19F., No.94, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Address Taipei City 22102, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan commate computer Inc.
