MPX-885
User's Manual
Edition 1.4
2010/07/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPX-885 and is the answer not in the manual?

Questions and answers

Related Manuals for Commell MPX-885

Summary of Contents for Commell MPX-885

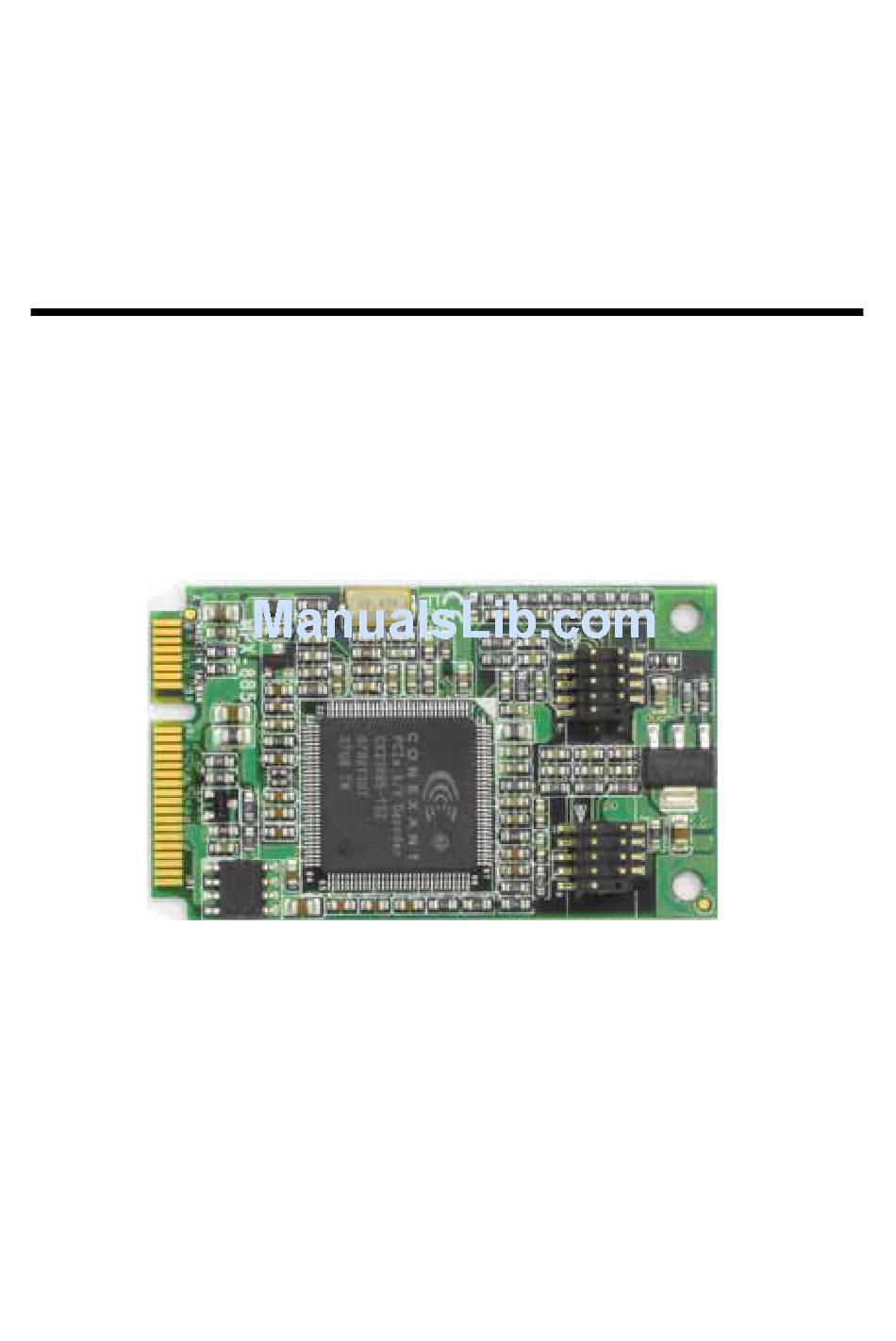

  • Page 1 MPX-885 User’s Manual Edition 1.4 2010/07/01...
  • Page 2 MPX-885 User’s Manual Copyright Copyright 2009 all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.

  • Page 3: Packing List

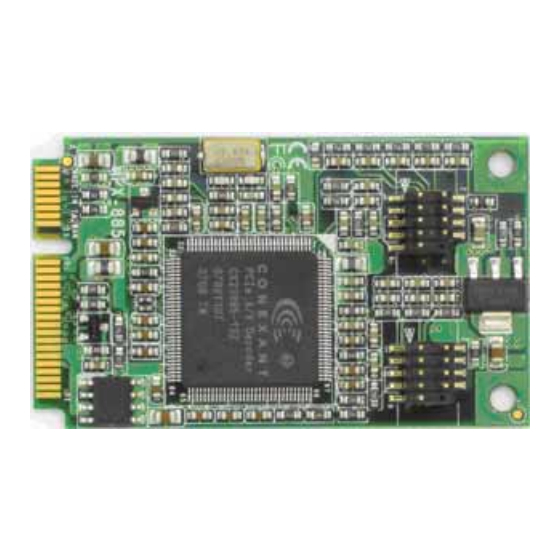

    MPX-885 User’s Manual Packing List: Hardware: MPX-885 Mini PCI Express Capture Card x1 Cable kit: Video Cable 4-ch BNC Cable x 1 DB9 Cable x 1 (OALBNCE4) (OALES-BKU1) Audio Cable (option) DB9 Cable x 1 (option) Audio Cable x 1...
  • Page 4 MPX-885 User’s Manual Video Cable (option) 4-ch S-Video Cable x 1 (option) Dual YPbPR + Dual Composite (OALDB9-4S-885) Cable x 1 (option) (OALDB9-HDTV-885) 8-ch BNC Cable x 1 (option) 8-ch Composite Cable x 1 (option) (OALBNCE8) (OALDB9-AUD8) CD Content: Drivers & User’s Manual...

  • Page 5: General Specification

    MPX-885 User’s Manual 1.0 <Product Specification> General Specification Form Factor PCI Express mini card Controller One CX23885 chip onboard Accessories 1 x 10-pin header to 1 x D-sub 9 Cable 1 x D-sub 9 to 4 x BNC connector Cable...
  • Page 6 MPX-885 User’s manual 1.2 <Mechanical Drawing>...
  • Page 7 MPX-885 User’s Manual 1.3 <Connector Reference> Connector: CN_VIDEO Type: 10-pin (5x2) header Description Description VIEDO1 VIDEO2 VIEDO3 VIEDO4 Ground VIEDO5 VIEDO6 VIEDO7 VIEDO8 Connector: CN_AUDIO Type: 10-pin (5x2) header Description Description...
  • Page 8 MPX-885 User’s manual 1.4 <Driver Setting> 1. Insert the driver CD into your system’s CD-ROM to Set up MPX-885 Setup MPX-885(20091012).exe. (E:/Driver/MPX-885/SDK(1.1)/Setup MPX-885(20091012).exe) Please select “Next” to continue.
  • Page 9 MPX-885 User’s Manual 2. Please read the following License Agreement. Press the Page Down key to see the rest of agreement and click “Next” to continue the installation. Please select fill in your User Name & Company Name. Then, click “Next”.
  • Page 10 MPX-885 User’s manual 4. Please select “Install” in this page. 5. Please Click “Continue Anyway”, when you see the following message.
  • Page 11 MPX-885 User’s Manual 6. Please click “Finish” to complete the installation.
  • Page 12 MPX-885 User’s manual 7. After driver install, please enter Device Manager then select Conexant CX23885 AVS Video Capture(Sonora) press properties.
  • Page 13 MPX-885 User’s Manual 1.5 <Sample Program> When you completed hardware & software installation, you can use COMMELL “Launch COMMELLDVC App” sample program to test. You can find Launch COMMELLDVC App.exe on desktop. Please double –click “Launch COMMELLDVC App.exe”, It’ll pops up as...
  • Page 14 MPX-885 User’s manual You‘ll get the program interface as following.
  • Page 15 MPX-885 User’s Manual Explanation of Sample program function Device ID: It is mean CX23885 Chipset. Channel ID: Support Video input per device. Snapshot: Catch the image on working channel. Callback Test: Catch the series image on working channel Note: Every channel works separately, when you want to change any setting, please stop all channels which are working.

  • Page 16: Video Motion

    Threshold: Select motion detection sensitivity level. The smaller number makes it more sensitive. <Audio Function> MPX-885 SDK doesn’t support Audio function test, if you want to test Audio, please update driver D:\PRI\Driver\MPX-885\Standard Driver and use graphedt.exe.

  • Page 17: Contact Information

    Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Shin Tai Wu Rd., Shi Chih Taipei Hsien, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is the trademark of Taiwan Commate Computer INC.
