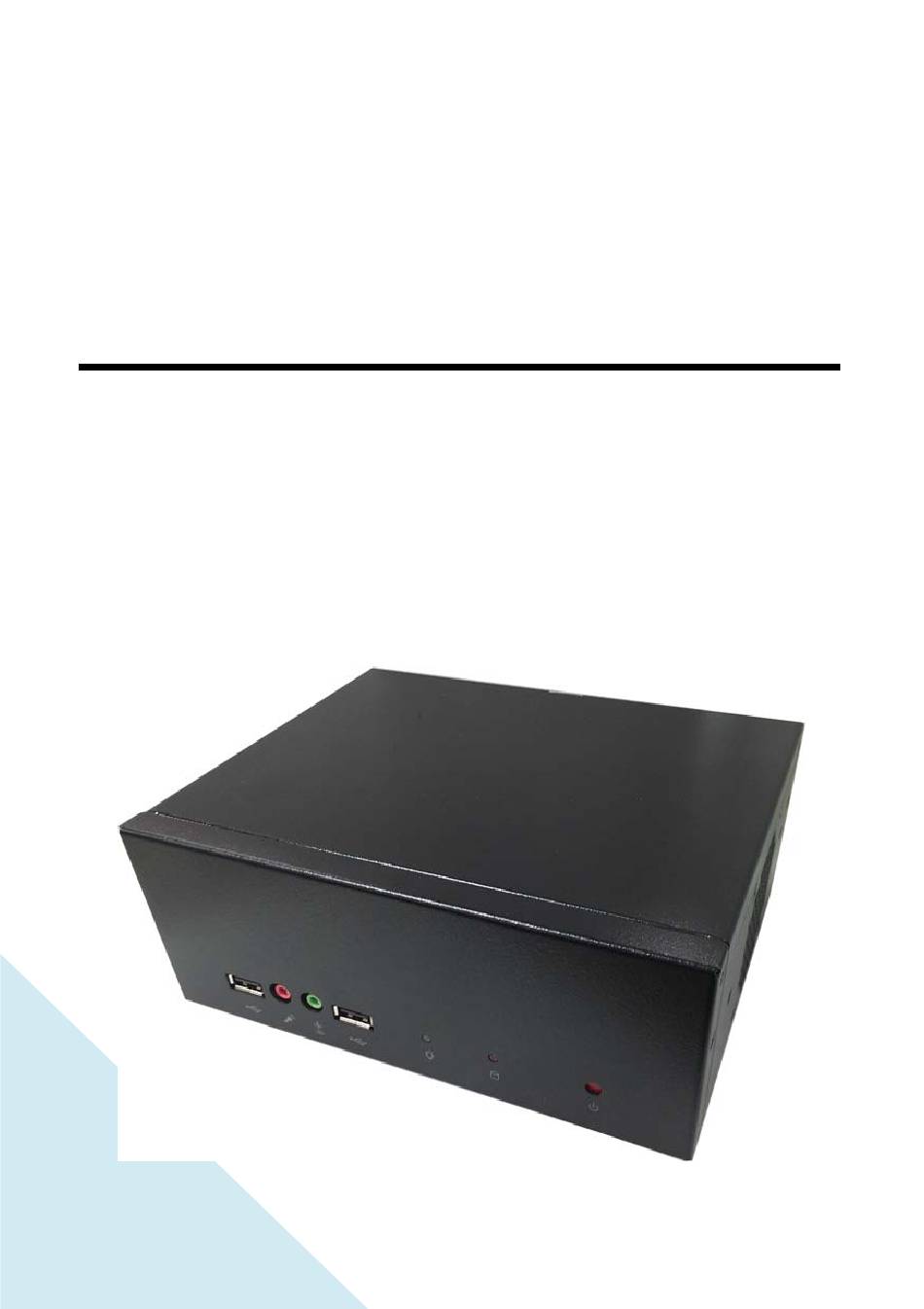

- Page 1 CMB-378 Mini Barebone system Intel High Performance Platform Installation Guide Edition 1.01 2025/02/07...
-
Page 2: Document Content
CMB-378 Installation Guide Document Content: Packing List Product Specification Hardware Installation Packing List: CMB-378 Chassis x 1 (Including LS-378 Motherboard) DSPD-080-12A 80W AC-DC Adapter x 1 CPU Cooler x 1 DVI Adapter x1, DVI Cable x1... - Page 3 CMB-378 Installation Guide COM PORT cable x 1 DC_IN Power Cable x 1 SATA (7P+15P)Cable x 1...
-
Page 4: Hardware Installation
CMB-378 Installation Guide Hardware Installation: <Motherboard placement> CN_LVDS CN_DVI JSPD JACT JVLCD DC_IN CN_LPC CN_USB2 CN_USB1 MINI_CARD1 MINI_CARD2 DC_OUT SATA2 SIMM CPUFAN SATA1 SYSFAN CN_AUDIO CN_INV CN_IR JFRNT CN_IR CN_DIO CD_IN CN_SMBUS CN_COM2 JRTC JCSEL1 JCSEL2 For Jumper For Connector... - Page 5 CMB-378 Installation Guide SO-DIMM PS/2...
- Page 6 CMB-378 Installation Guide <Jumper Location & Reference> Jumper Function JRTC CMOS Operating/Clear Setting JVLCD Panel Voltage Setting Power mode select Com1 Voltage Setting (For Pin 9) Com2 Voltage Setting (For Pin 9) CN_COM2 RS-232 RS422 RS485 Setting JCSEL1 JCSEL2 CN_IR IrDA Setting...
- Page 7 CMB-378 Installation Guide Setting RS-232 & RS-422 & RS-485 for COM2 Jumper: JCSEL1,JCSEL2 Type: 12-pin (6 x 2) & 8-pin (4 x 2) for set COM2 mode jumper RS232 RS485 RS422 IrDA JCSEL1 JCSEL2 Default: RS232...
- Page 8 LV-679 User’s Manual <Internal Connectors> Connector Function Remark Socket rPGA988B for PGA988 CPU SO-DIMM 204 -pin DDR3 SO-DIMM socket SATA 1/2 7-pin Serial ATAIII connector DC_IN DC 9~24V input connector DC_OUT 4-pin DC output connector CN_AUDIO 5 x 2-pin audio connector CD_IN 4-pin CD-ROM audio input connector CN_DIO...
- Page 9 CMB-378 User’s Manual <CPU and Memory Setup> The board comes with the socket rPGA988 for Intel SandyBridge Processor, Please follow the instruction to install the CPU properly. Unlock way Socket CPU Check point 2. Follow the pin crew 3. Lock the socket...
- Page 10 CMB-378 User’s Manual 2.4.2 <Memory Setup> The board provides 1 x 204-pin DDR3 SO-DIMM to support 800/1066MHz DDR3 memory module up to 4GB. SO-DIMM...
- Page 11 CMB-378 User’s Manual I/O panel: Front: Line-Out Mic Phone Power Button HD LED Power LED...
- Page 12 CMB-378 User’s Manual Rear panel: COM1...
-
Page 13: Chassis Setup Procedure
CMB-378 User’s Manual Chassis Setup procedure: 1. Screw off as indication of the picture below. - Page 14 CMB-378 User’s Manual 2. Push the Chassis shield towards the back then open it.
- Page 15 CMB-378 User’s Manual 3. Turn the CPU cooler screws and then refer the page.9 to install the CPU.(After installing CPU, please turn the CPU FAN screws to tighten.) 4. Screw off as indication of the picture below.
- Page 16 CMB-378 User’s Manual 5. Insert the DDRII SO-DIMM module into the socket at 45 degree. Press down the module with a click sound.
- Page 17 6. Put on HDD driver into HDD holder then turn the HDD drive screws to tighten.
- Page 18 CMB-378 User’s Manual 7. Connect SATA cable to motherboard. 8. Put SATA cable holder through the motherboard holder.
- Page 19 9. Connect SATA cable from motherboard to the HD drive. 10. Put the Chassis shield back and screw on as indication of the picture below Turn the screws.
- Page 20 CMB-378 User’s Manual 11. Put the top Chassis shield back and screw on as indication of the picture below.
- Page 21 12. Screw on as indication of the picture below.
- Page 22 CMB-378 User’s Manual 13. Finish...
-
Page 23: Contact Information
New Taipei City, Taiwan +886-2-26963909 +886-2-26963911 Website T U h ttp://www.commell.com.twU T T U i nfo@commell.com.twU T (General Information) E-Mail T U t ech@commell.com.twU T (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan Commate Computer Inc.
