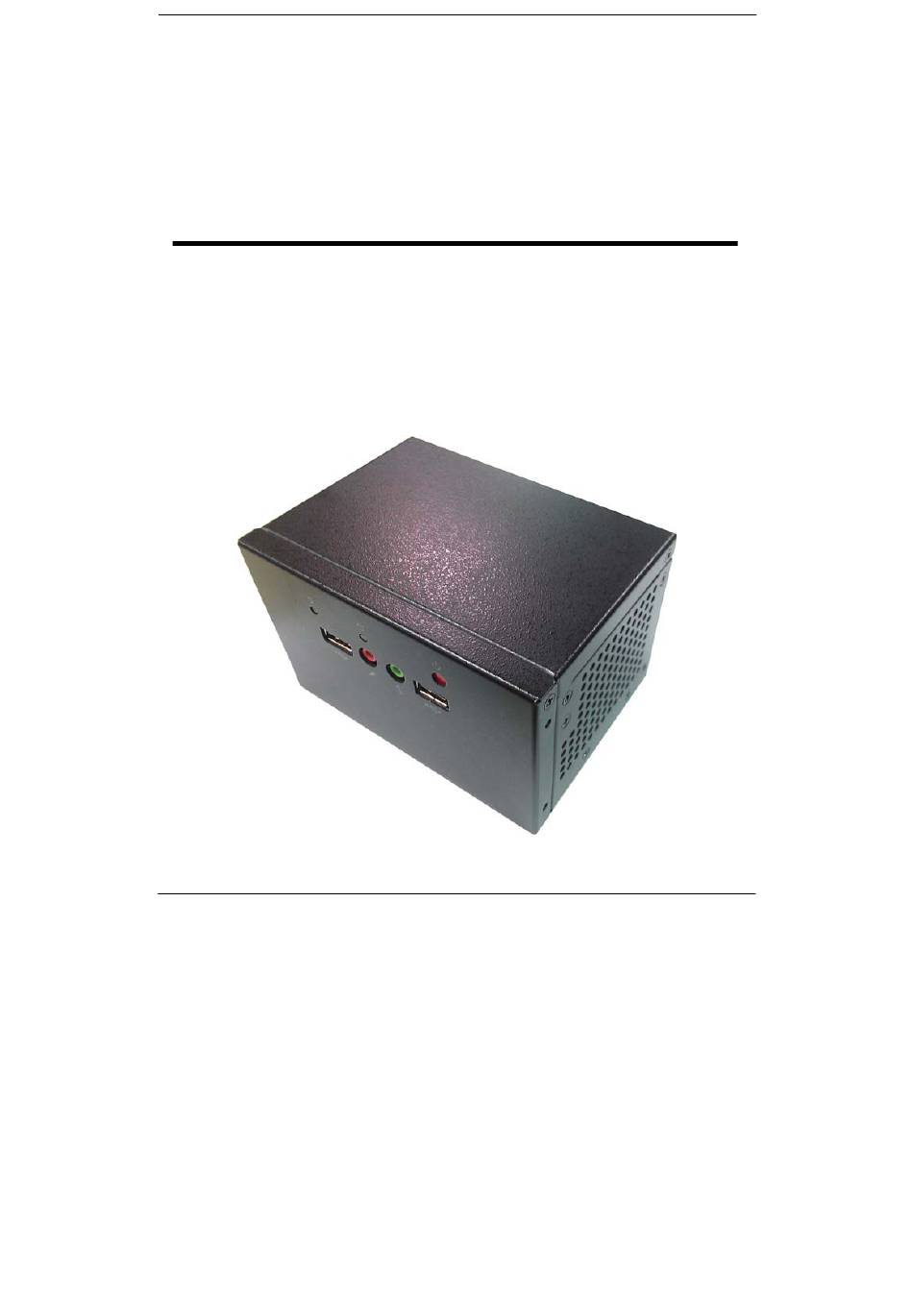

- Page 1 CMB-170 Installation Guide CMB-170 Mini Barebone system Intel High Performance Platform User’s Manual Installation Guide Edition 1.1 2012/01/09...
-
Page 2: Packing List
CMB-170 Installation Guide Document Content: Packing List Product Specification Hardware Installation Packing List: ACMB-170C Chassis x 1 (Including LP-170 Motherboard) DSPD-080-12 80W AC-DC Adapter x 1 Power Code x 1 DC_IN Power Cable x 1 SATA Cable x 1 USB Cable x 1 Audio Cable x 1 PS/2 Keyboard &... -
Page 3: Hardware Installation
CMB-170 Installation Guide Hardware Installation: Motherboard placement CN_LVDS JVLCD SATA JRTC DC_IN CN_LPC CN_USB1 CN_COM1/2 JFRNT CN_USB2 CN_AUDIO MINI_CARD Connector Jumper... - Page 4 CMB-170 Installation Guide DDRll DC_OUT CN_INV...
- Page 5 CMB-170 Installation Guide I/O panel: Front: HD LED Power Button Power LED Mic / Ear-Phone...
- Page 6 CMB-170 Installation Guide Rear: DC_IN DC_IN COMPORT RJ45 Power input : DSPD-080-12 80W AC-DC Adapter Input.
- Page 7 CMB-170 Installation Guide Chassis Setup procedure: 1 . Turn the screws and refer the picture A.
- Page 8 CMB-170 Installation Guide 2. CF card Setup Procedure: Follow the Idiot-proof design then insert the CF card, Check connected well. ( If you don’t have HD drive please direct to step 4 )
- Page 9 CMB-170 Installation Guide 3. Memory module Setup Procedure: (A) Open the Dimm holder then check the pin number to match the socket side well before installing memory module.
- Page 10 (B) Press down the memory module then check dimm holder hook well.
- Page 11 CMB-170 Installation Guide 4. HD driver Setup Procedure: (A) Put on HD driver into HD holder then turn the HD drive screws to tighten. ( If you don’t have HD drive please direct to step 2 )
- Page 12 CMB-170 Installation Guide (B)Connect SATA cable and DC_OUT Power cable from motherboard to the HD drive.
- Page 13 CMB-170 Installation Guide 5. Turn the chassis shield screws with the hanging holders to tighten well.
- Page 14 CMB-170 Installation Guide...
-
Page 15: Contact Information
19F, No. 94, Sec. 1, Xintai 5th Rd., Xizhi Dist Address New Taipei City, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw i nfo@commell.com.tw (General Information) E-Mail t ech@commell.com.tw (Technical Support) Facebook https://www.facebook.com/pages/Taiwan-Commate-Computer-Inc/547993955271899 Twitter https://twitter.com/Taiwan_Commate Commell is a brand name of Taiwan Commate Computer Inc.
