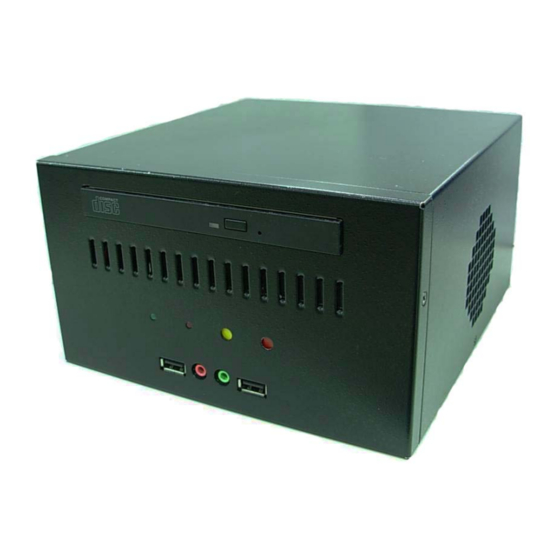

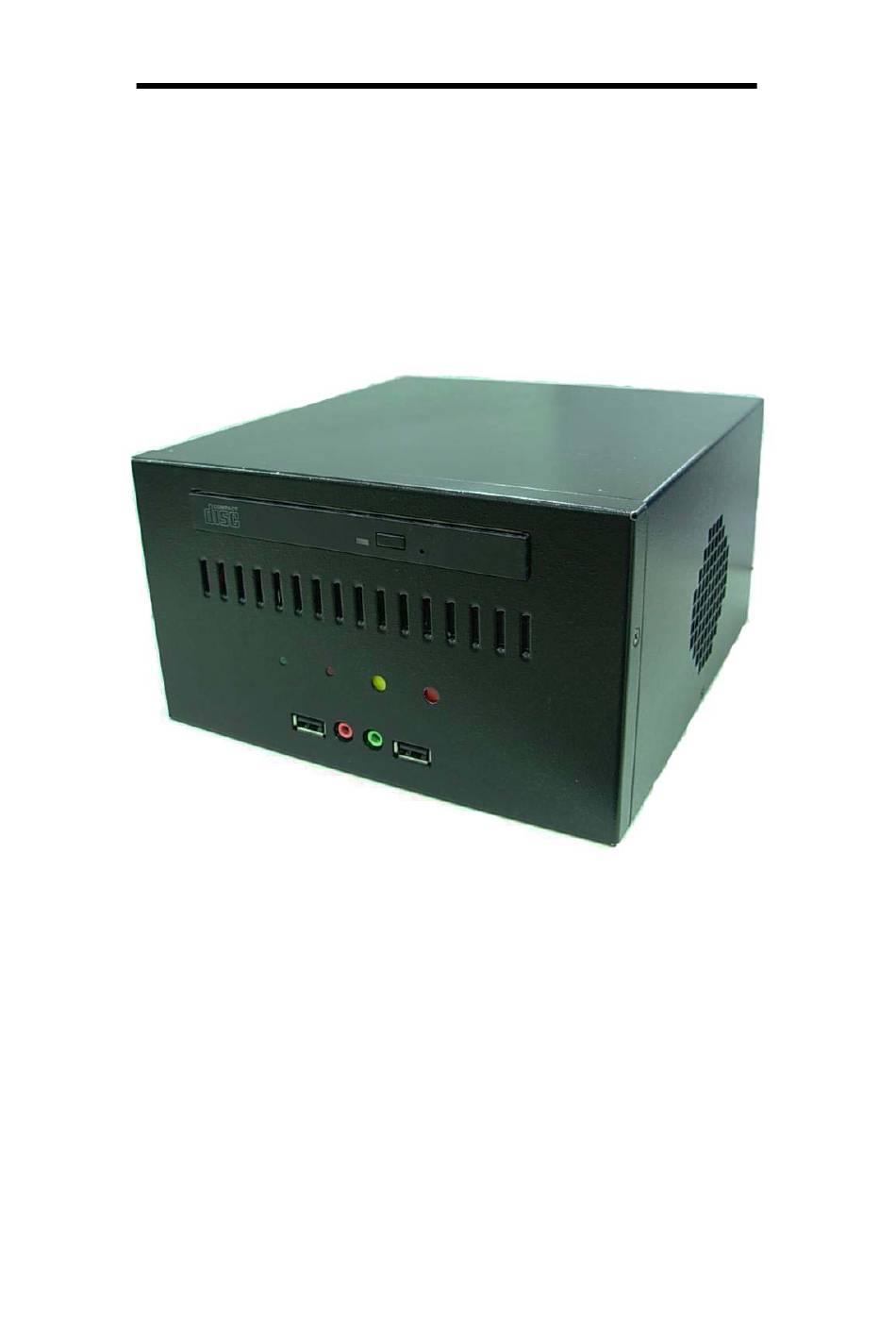

- Page 1 CMB-67H-02 Mini Barebone system Intel High Performance Platform User’s Manual Installation Guide Edition 1.1 2012/05/29...
-
Page 2: Packing List
CMB-67H-02 Installation Guide Document Content: Packing List Product Specification Hardware Installation Packing List: CMB-67H-02 Chassis x1 (Including LV-67H Motherboard) DSPD-120-19 120W 19V AC-DC Adapter x 1 Power Cord x 1 CPU Cooler x 1 13-pin to 7-pin SATA Cable x1... - Page 3 CMB-67H-02 Installation Guide Hardware Installation: Motherboard placement...
- Page 4 CMB-67H-02 Installation Guide Jumper Location & Reference...
- Page 5 CMB-67H-02 Installation Guide I/O panel: Front: CD-ROM HD LED Reset Button Power LED Mic / Ear-Phone Power Button...
- Page 6 CMB-67H-02 Installation Guide Rear: DC-IN COM Port Mouse Line-In SPDIF Line-Out Keyboard Antenna Port Power input : DSPD-120-19 120W 19V AC-DC Adapter Input.
- Page 7 CMB-67H-02 Installation Guide Chassis Setup procedure: 1. Turn the screws and refer the picture A and B and C.
- Page 8 CMB-67H-02 Installation Guide...
- Page 9 CMB-67H-02 Installation Guide 2. Push the Chassis shield towards the back then open it.
- Page 10 CMB-67H-02 Installation Guide Turn the screws.
- Page 11 CMB-67H-02 Installation Guide 4. Push the front panel towards the front then take the CD-ROM holder off.
- Page 12 CMB-67H-02 Installation Guide 5. Turn the CPU cooler screws and then refer the motherboard manual page.16 to install the CPU. (After installing CPU, please turn the CPU FAN screws to tighten.)
- Page 13 CMB-67H-02 Installation Guide...
- Page 14 CMB-67H-02 Installation Guide 6. Open the Dimm holder then check the pin number to match the socket side well before installing memory module. (It has two slots to choice, or use both of them.)
- Page 15 CMB-67H-02 Installation Guide 7. Press down the memory module then check dimm holder hook well.
- Page 16 CMB-67H-02 Installation Guide 8. After install HD driver, Turn the CD-ROM holder and front panel screw well refer picture.
- Page 17 CMB-67H-02 Installation Guide 9. Check the CD-ROM driver SATA input direction. (If you don’t install CD-ROM drive please direct to step.14) 10. Check the CD-ROM driver and SATA cable connects well, then connect the ATX output (4-pin).
- Page 18 CMB-67H-02 Installation Guide 11. After install HD driver, Turn the CD-ROM holder and front panel screw well. Refer picture A and B. (A). (B).
- Page 19 CMB-67H-02 Installation Guide 12. Turn the CD-ROM driver screws and SATA cable connects well.
- Page 20 CMB-67H-02 Installation Guide 13. Find out the HD holder to install HD driver, it is under backside of the CD-ROM holder.
- Page 21 CMB-67H-02 Installation Guide 14. Put on HD driver into HD holder then turn the HD drive screws to tighten. Refer picture A , B and C. (If you don’t install HD drive please direct to step.17)
- Page 22 CMB-67H-02 Installation Guide 15. Connect SATA cable from motherboard to the HD drive, then connect the ATX output (15-pin).
- Page 23 CMB-67H-02 Installation Guide 16. Turn the CD-ROM driver screws and SATA cable connects well and turn the screws. 17. Turn the chassis shield screws to tighten well.
- Page 24 CMB-67H-02 Installation Guide...
- Page 25 CMB-67H-02 Installation Guide 18. Turn the chassis shield screws with the hanging holders to tighten well.
-
Page 26: Contact Information
Taiwan Commate Computer Inc. Address 19F, No. 94, Sec. 1, Xintai 5th Rd., Xizhi Dist New Taipei City, Taiwan +886-2-26963909 +886-2-26963911 Website h ttp://www.commell.com.tw E-Mail i nfo@commell.com.tw (General Information) t ech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate Computer Inc.
