7. WIRING

2 x
parallel IN/OUT
8-PIN SPEAKON
Signal input to the KJ50vb is
v i a a n 8 - p i n S p e a k o n
connector with a parallel
w i r e d T h r u o u t p u t f o r
extending to additional
cabinets. Four amplifier
channels are employed. The
recommended amplifier is
the K-Array KA7-7 four-
channel amplifier, which
supplies 350 watts/channel
into a 4 ohm load. The KA7-7
h a s D S P p r e s e t s
specifically designed for the
K J 5 0 v b , i n c l u d i n g t h e
Vertical focus and steering
features. The wiring is via 2 x
4-pin Speakon connectors.
See the wiring diagram.
To c o n n e c t t o o t h e r
amplifiers follow the same
p i n c o n f i g u r a t i o n .
For use with other DSP
controllers contact tech@k-
array.com

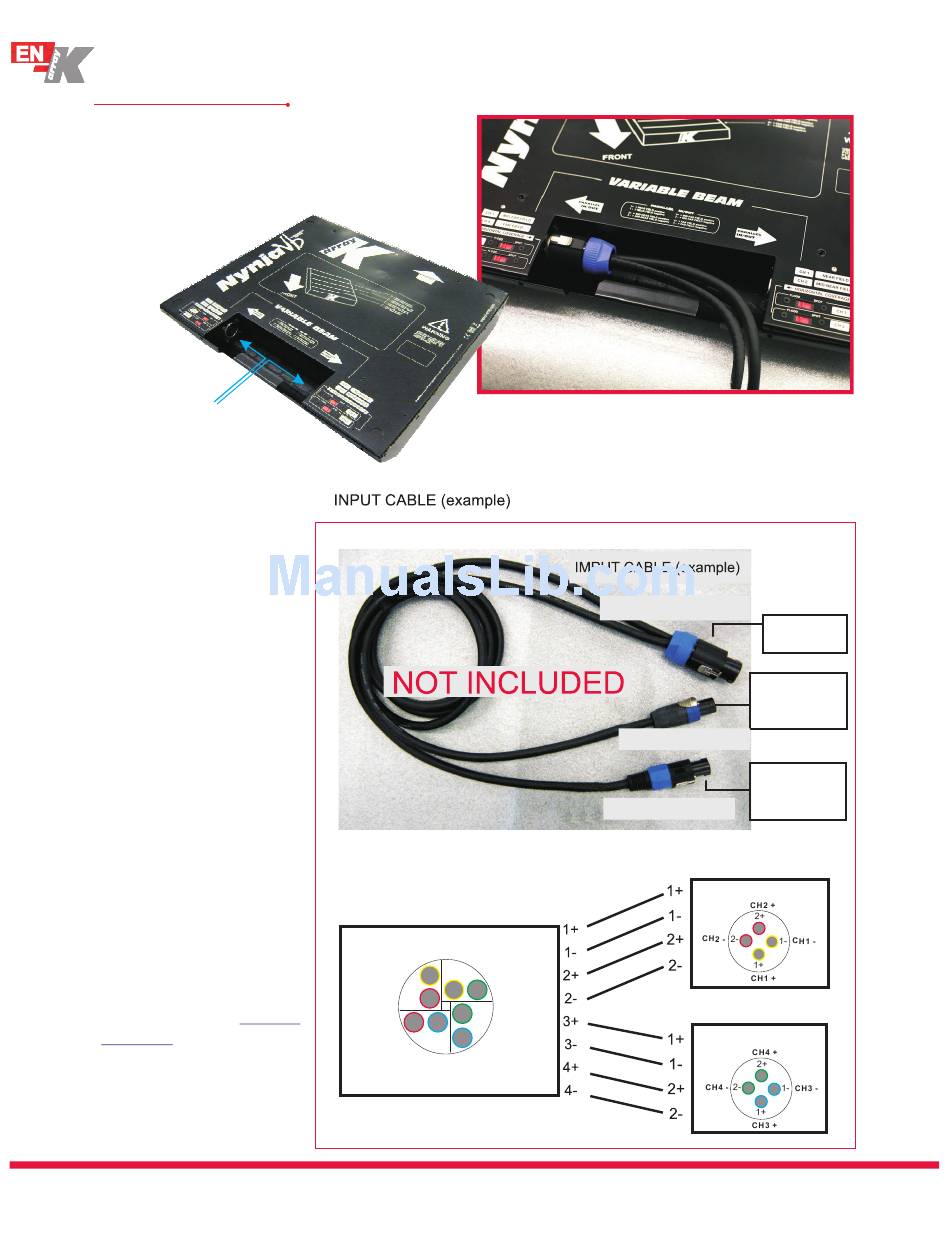

8-pin speakon
CH1
1+ 4-
1-
2+
CH4
CH2
4+
3-
2- 3+
CH3
p. 8
8-pin speakon
SPEAKER
INPUT
AMPLIFIER
CH. 3 & 4
SPEAKON 2
4-pin speakon
AMPLIFIER
CH. 1 & 2
4-pin speakon
SPEAKON 1
4-pin speakon
CH 1,2 OUT
4-pin speakon
CH 3,4 OUT
