8. COVERAGE PATTERNS

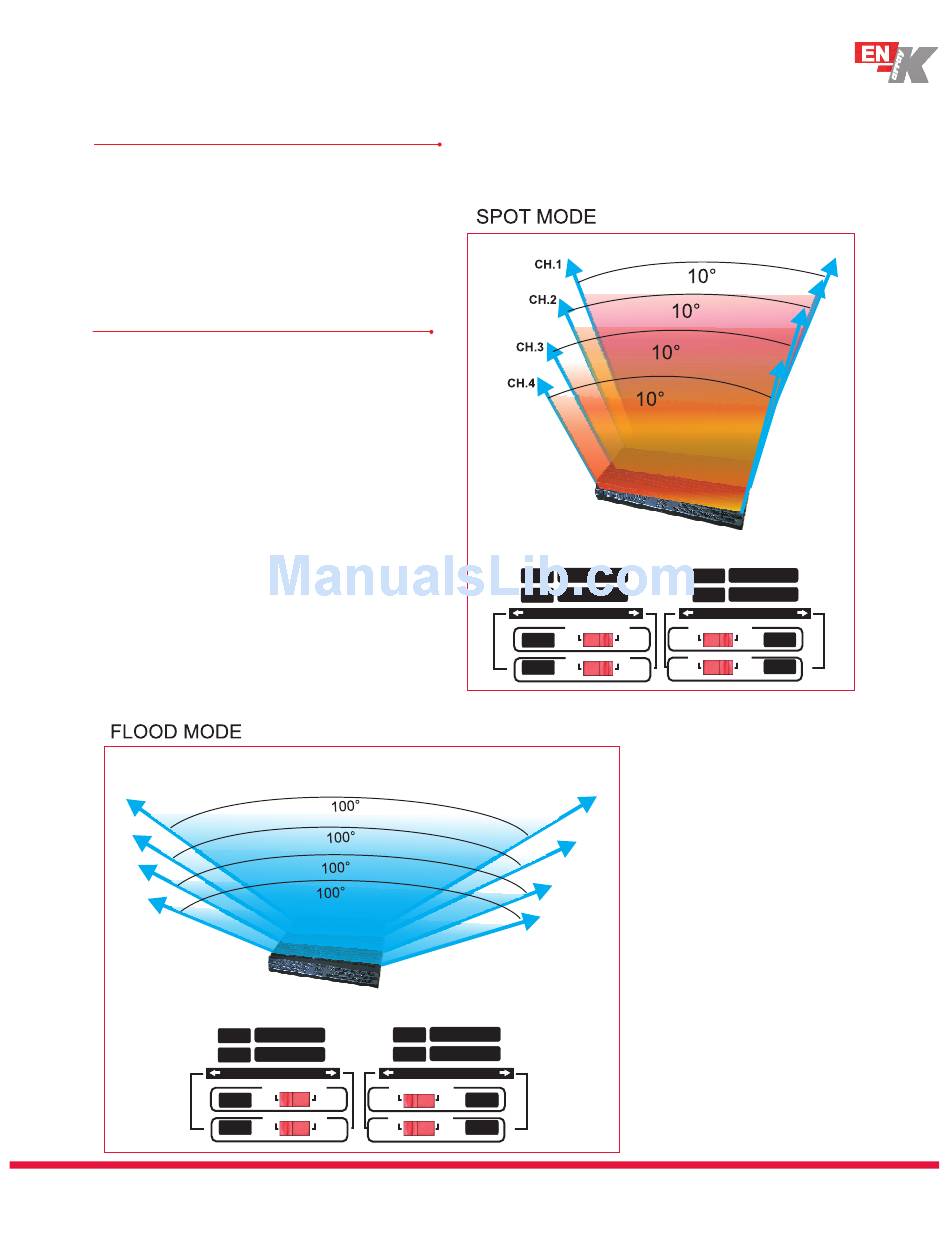

8.1. HORIZONTAL SWITCH SETTING

Horizontal coverage can be
selected using the 4 x switches
located on the back of the speaker
cabinet.
These can be set for 'Spot' 10° or
'Flood' 100°.
The switches can be safely
activated while the speaker is
receiving signal. (Please note the
Safety Warning regarding hearing
damage).
The combined Mode allows you to
select a combination of Near and
Far Field Coverage.
CH 3 MID-FAR FIELD
FAR FIELD
CH 4
HORIZONTAL COVERAGE
FLOOD
CH 3
FLOOD
CH 4
CH 1 NEAR FIELD
MID-NEAR FIELD
CH 2
HORIZONTAL COVERAGE
FLOOD
SPOT SPOT
CH 1
SPOT FLOOD SPOT
CH 2
p. 9
CH 3 MID-FAR FIELD
CH 1
FAR FIELD
CH 4 CH 2
HORIZONTAL COVERAGE HORIZONTAL COVERAGE
FLOOD SPOT FLOOD
CH 3
FLOOD
FLOOD SPOT
CH 4
NEAR FIELD
MID-NEAR FIELD
SPOT
CH 1
SPOT
CH 2
