KO70

7.8 AUDIO INPUT CONNECTOR WIRING

the Audio section includes parallel LINK, which
allows users to distribute an audio signal to
multiple units. Up to 30 different modules can be
connected in parallel on the same balanced line
(with a source output impedance of 600 ohm).
CH 1 Line Input (female, balanced XLR) is
wired in parallel to CH1 Line Parallel out (male,
balanced XLR). to create your own audio cables,
please use the following wiring diagrams:

7.9 AMPLIFICATION AND PROTECTION CIRCUITRY

The KO40 is powered by the K-array digital power amplifier with a total power of 3000 watts.
All the specific functions for the KO40 such as crossovers, frequency, phase response, and loudspeakers
protection are determined by a DSP processor installed inside the amplifier.
All K-array speakers are shipped with the cone drivers in correct alignment. However, if a loudspeaker needs
to be replaced, make sure the replacement is reinstalled with the correct polarity. Incorrect cone driver polarity
impairs the system performance and may damage the component.

8. CONFIGURATIONS

If the device is not used as a stand-alone, K-array suggests some typical configurations which can be found in the
Redline System Matrix manual. The manual packs of the portable Redline systems are included and available to
download on the document download page
and tested stability.

9. SERVICE

To obtain service:
1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center.
2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. Ask for Customer Service,
and be prepared to describe the problem clearly and completely.
3) If the problem cannot be resolved over the phone, you may be required to send the unit in for service. In this instance, you will
be provided with an RA (Return Authorization) number which should be included on all shipping documents and correspondence
regarding the repair. Shipping charges are the responsibility of the purchaser.
Any attempt to modify or replace components of the device will invalidate your warranty. Service must be performed by an
authorized K-array service center.
Cleaning:
Use only a soft, dry cloth to clean the housing. Do not use any solvents, chemicals, or cleaning solutions
containing alcohol, ammonia, or abrasives. Do not use any sprays near the product or allow liquids to spill
into any openings.
12
ho t
on the official K-array website. Redline systems insure a correct setup,

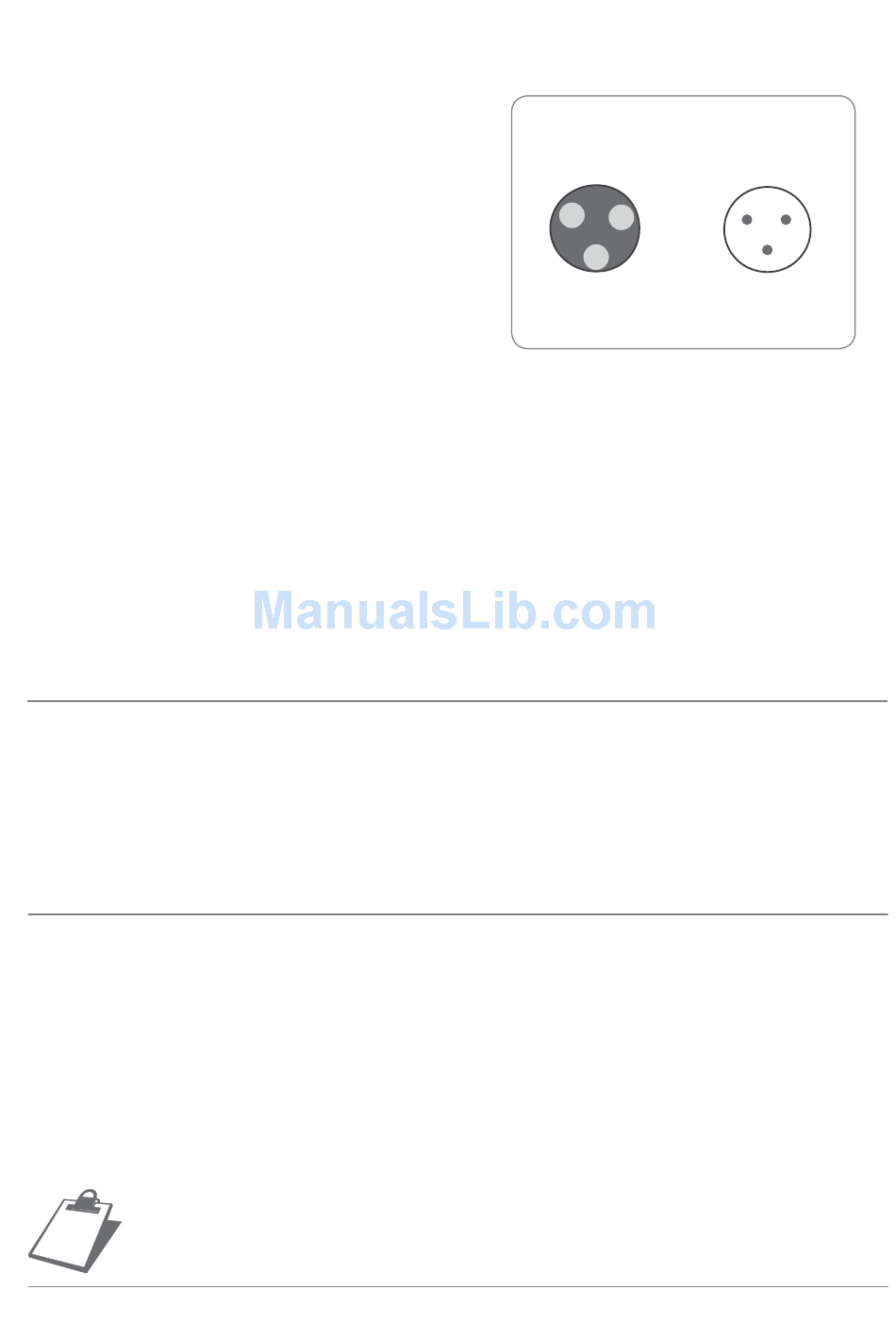

XLR connector
INPUT PARALLEL
grd grd
2
1
3
cold
OUTPUT
1
ho t
2
3
cold
REV. B
