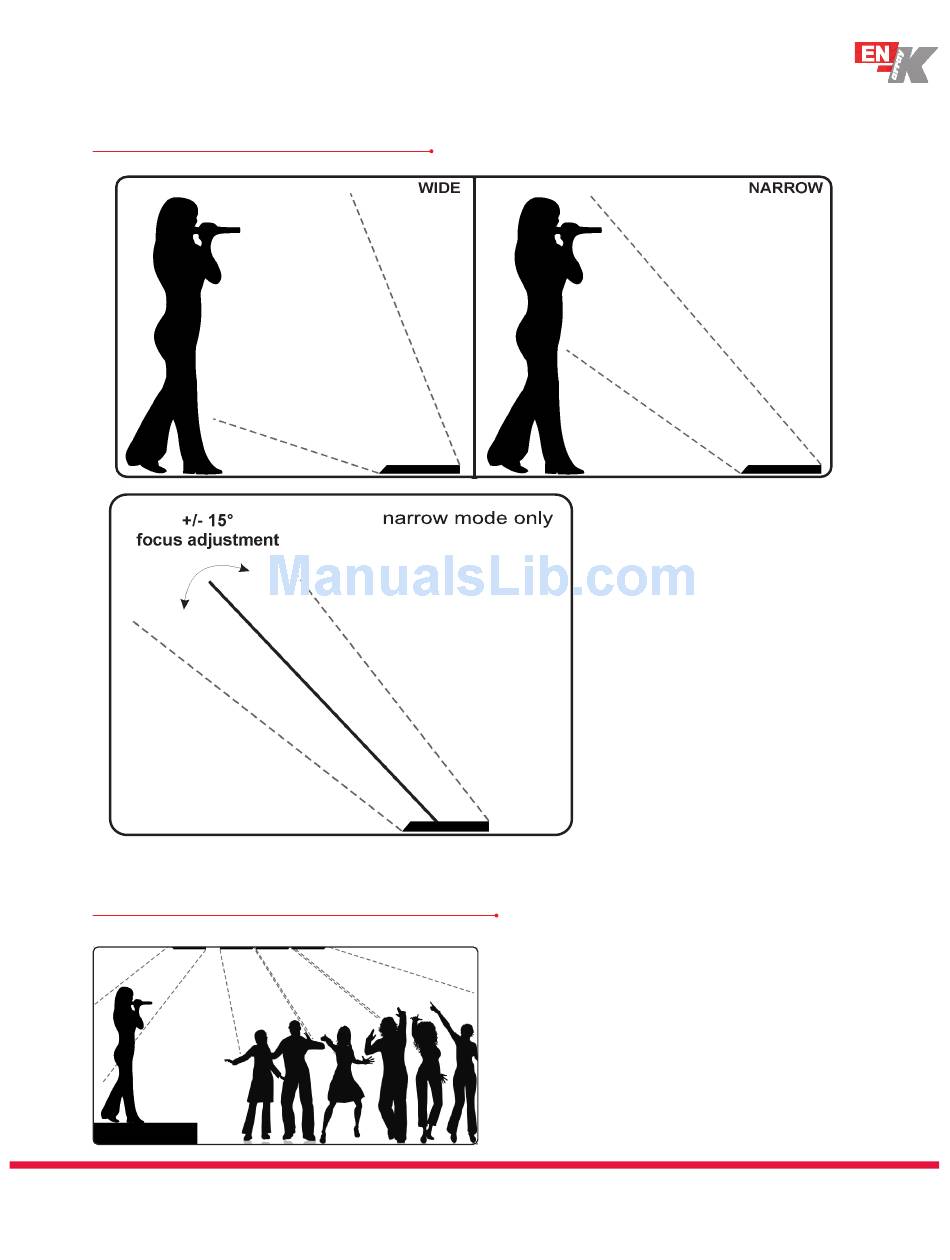

8.2. VERTICAL DSP SETTING

70°

8.3. CEILING LINE ARRAY CONFIGURATION

10°
Vertical coverage is controlled
by DSP settings in the KA7-7
amplifier from 70° '
' Narrow
In '
Narrow
focus can be adjusted by +/- 15°
A Ceiling Line Array Configuration is a unique
application of the KJ50vb.
Because of its very thin profile the KJ50vb is
perfectly suited for low-ceiling venues.
The vertical steering capability means that the
speakers do not need to be located directly
overhead but can be positioned off the stage or
dance floor.
p. 11
Wide ' to 10°
'
' Mode the Vertical
